◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#5669) — 66 parça

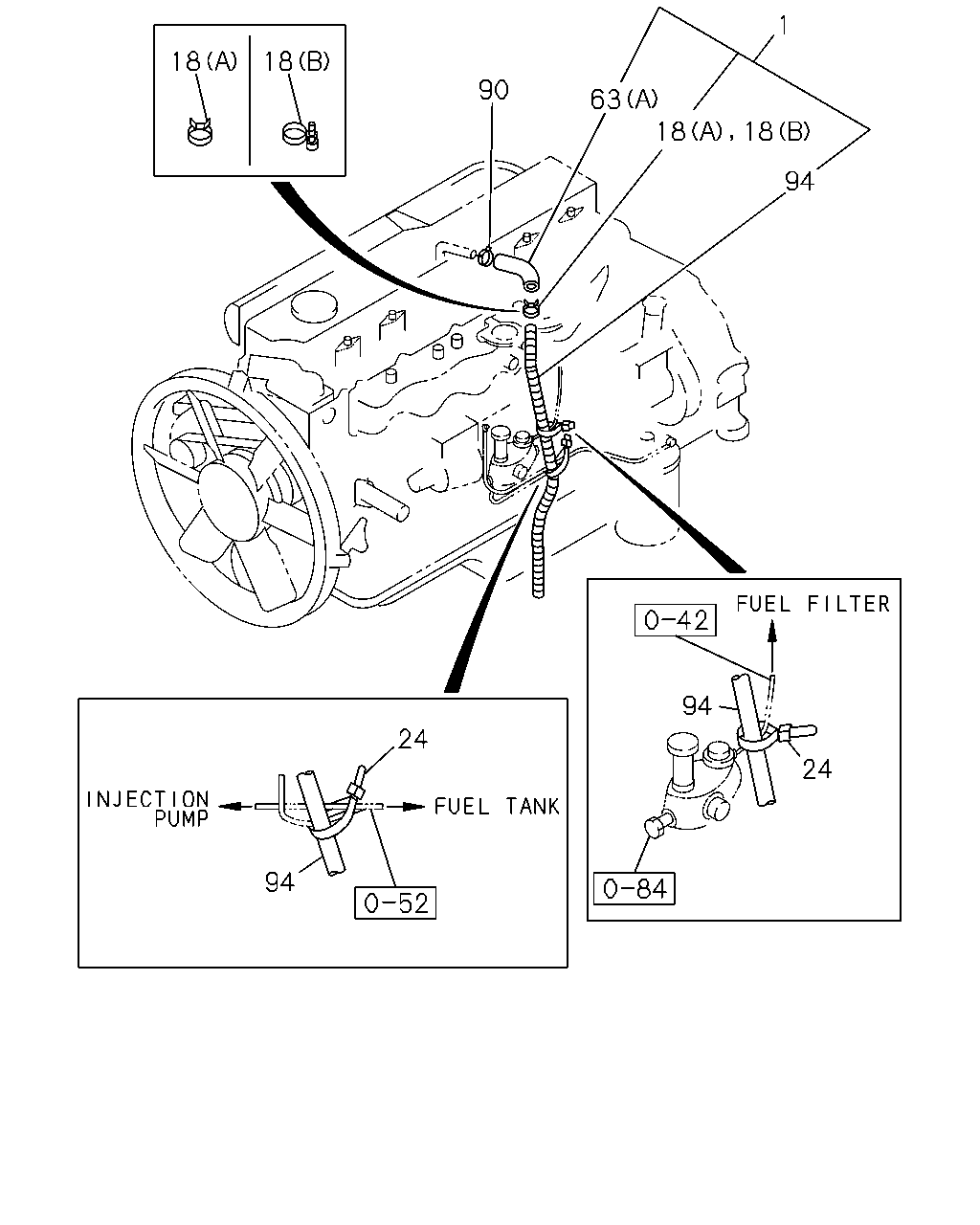

çizim 25023
1 18 18 90 63 18 18 94 94 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BREATHER; AIR 8-94394-777-1 01 1 9811-9906 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9907-0610 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9811-9906 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9907-0610 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9811-9906 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9907-0610 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 TAI 		5-09707-030-1 02 1 9811-9906 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 TAI 		5-09707-030-1 03 1 9907-0610 ●
63 HOSE; RUBBER,AIR BREATHER
(C) 		1-09360-925-0 03 1 0611- ● ●
63 HOSE; RUBBER,AIR BREATHER
(A) 		8-94394-471-0 01 1 9811-9906 ●
63 HOSE; RUBBER,AIR BREATHER
(B) 		8-94394-471-0 01 1 9907-0610 ●
63 HOSE; RUBBER,AIR BREATHER
(D) 		0-02828-070-0 01 1 0611- ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9811-9906 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9907-0610 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0611- ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9811-9906 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9907-0610 ●

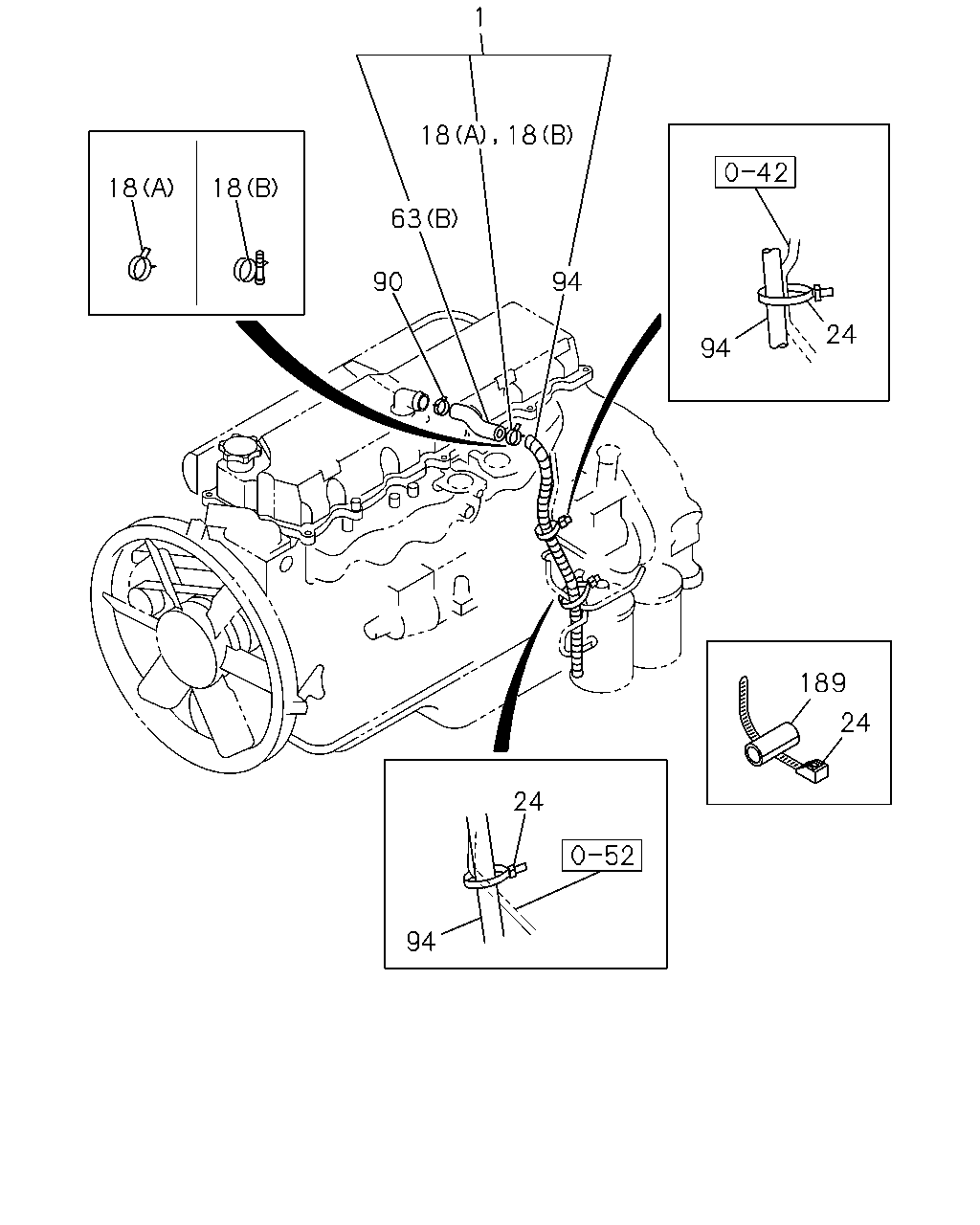

çizim 25606
1 18 18 18 18 63 90 94 24 94 189 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BREATHER; AIR 8-94394-777-1 01 1 9811-9906 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9907-0610 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9811-9906 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9907-0610 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9811-9906 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9907-0610 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 TAI 		5-09707-030-1 02 1 9811-9906 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 TAI 		5-09707-030-1 03 1 9907-0610 ●
63 HOSE; RUBBER,AIR BREATHER
(C) 		1-09360-925-0 03 1 0611- ● ●
63 HOSE; RUBBER,AIR BREATHER
(A) 		8-94394-471-0 01 1 9811-9906 ●
63 HOSE; RUBBER,AIR BREATHER
(B) 		8-94394-471-0 01 1 9907-0610 ●
63 HOSE; RUBBER,AIR BREATHER
(D) 		0-02828-070-0 01 1 0611- ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9811-9906 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9907-0610 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0611- ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9811-9906 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9907-0610 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0012-0610 ●

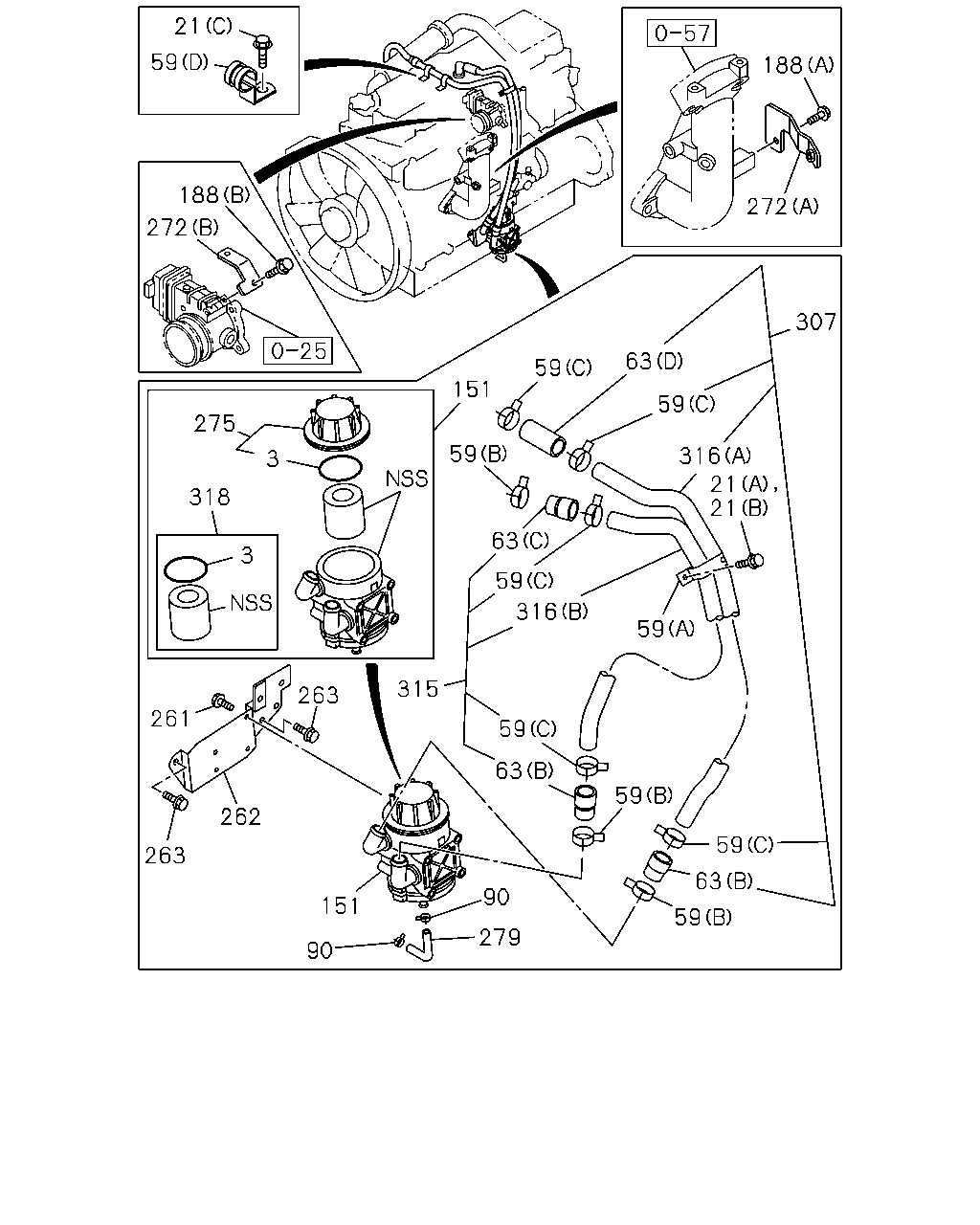

çizim 99227
21 59 188 188 272 272 307 63 59 151 59 275 59 316 21 21 3 318 63 3 59 316 59 315 263 261 59 63 59 262 59 263 63 90 151 59 279 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0611- ● ●
21 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
21 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0611- ● ●
21 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
59 CLIP; HOSE
(D) ID=31 H=30 L=35 		1-09700-994-0 02 1 0611- ● ●
59 CLIP; HOSE
(A) ID=30X2 L=28 		1-09701-266-0 03 1 0611- ● ●
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 03 1 0611- ● ●
59 CLIP; HOSE
(C) ID=33.6 		8-94362-518-0 05 1 0611- ● ●
63 HOSE; RUBBER,AIR BREATHER
(C) 		1-09360-925-0 03 1 0611- ● ●
63 HOSE; RUBBER,AIR BREATHER
(A) 		8-94394-471-0 01 1 9811-9906 ●
63 HOSE; RUBBER,AIR BREATHER
(B) 		8-94394-471-0 01 1 9907-0610 ●
63 HOSE; RUBBER,AIR BREATHER
(D) 		0-02828-070-0 01 1 0611- ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9811-9906 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9907-0610 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0611- ● ●
151 SEPARATOR; OIL,PCV 8-97602-262-2 01 1 0611- ● ●
188 BOLT; BRKT
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
188 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0611- ● ●
262 BRACKET; OIL SEPARETOR 8-97604-921-0 01 1 0611- ● ●
263 BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE 		0-28751-025-0 02 1 0611- ● ●
272 BRACKET; PIPE
(B) 		8-97607-397-0 01 1 0611- ● ●
272 BRACKET; PIPE
(A) 		8-98032-178-0 01 1 0611- ● ●
275 CAP; PCV 8-97606-319-0 01 1 0611- ● ●
279 HOSE; RUBBER,OIL DRAIN 0-02709-140-0 01 1 0611- ●
279 HOSE; RUBBER,OIL DRAIN 0-02709-190-0 01 1 0611- ●
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-97604-965-4 01 1 0611- ● ●
315 HOSE; RUBBER 8-97614-119-4 01 1 0611- ● ●
316 HOSE; BREATHER
(B) 		8-97601-378-1 01 1 0611- ● ●
316 HOSE; BREATHER
(A) L=900 		8-97602-985-0 01 1 0611- ● ●
318 ELEMENT KIT; PCV 8-97606-318-0 01 1 0611- ● ●
