Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

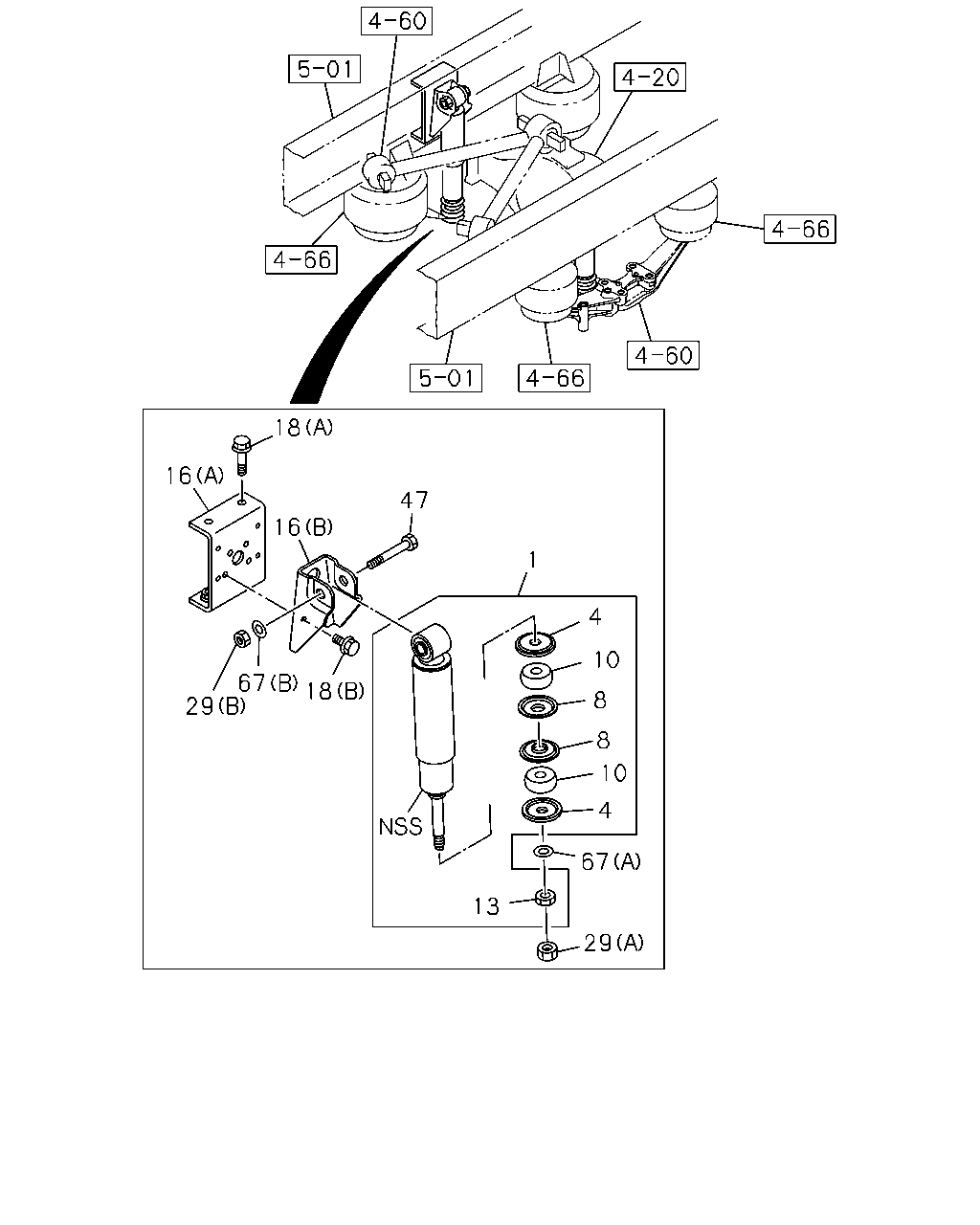

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#56689) — 14 parça
18
16
47
16
1
4
10
67
18
29
8
8
10
4
67
13
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
8-98043-933-0
02
1
0906-
4
WASHER; CENTER,S/ABS
ID=20.5 OD=74 T=6
9-51631-044-0
04
1
0906-
8
WASHER; S/ABS
1-51631-109-0
04
1
0906-
10
BUSHING; RUBBER,S/ABS
9-51631-043-0
04
1
0906-
13
NUT; LWR,RR S/ABS
M18
9-99111-418-0
02
1
0906-
16
BRACKET; S/ABS,RR
(A)
1-51681-789-2
02
1
0906-
16
BRACKET; S/ABS,RR
(B)
8-98048-027-0
02
1
0906-
18
BOLT; S/ABS BRKT
(B) M12X30 FLANGE
0-28661-230-0
08
1
0906-
18
BOLT; S/ABS BRKT
(A) M12X35 FLANGE
0-28661-235-0
08
1
0906-
29
NUT; LK,S/ABS,RR SUSP
(A) M18
0-91111-518-0
02
1
0906-
29
NUT; LK,S/ABS,RR SUSP
(B) M20
8-98010-408-0
02
1
0906-
47
PIN; S/ABS SETTING
8-98010-547-0
02
1
0906-
67
WASHER; PL,S/ABS
(A) ID=19
0-91614-718-0
02
1
0906-
67
WASHER; PL,S/ABS
(B) ID=21
8-98010-403-0
02
1
0906-
