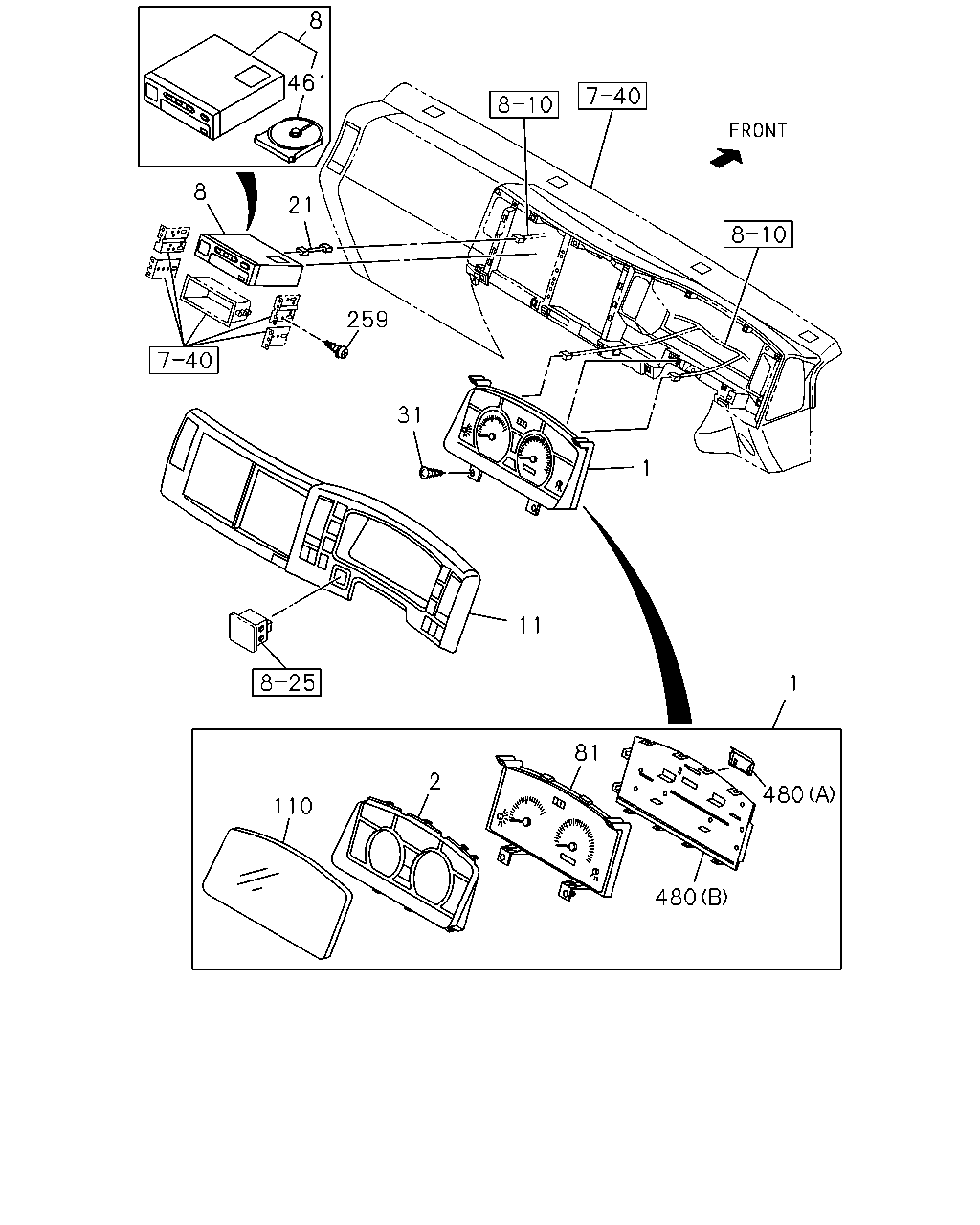

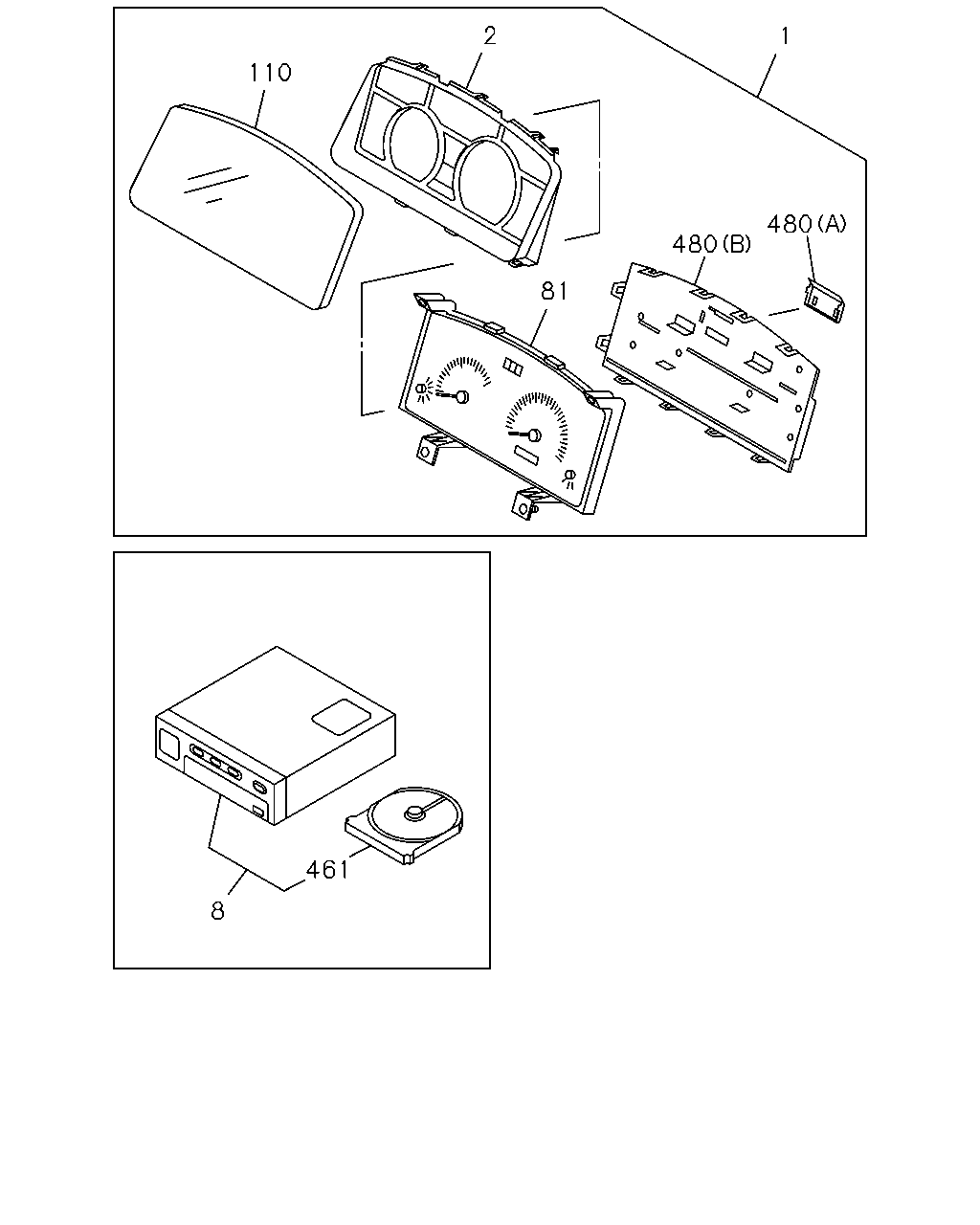

8-21 — METER ASM (#56681) — 86 parça

8 461 8 21 259 31 1 11 1 81 2 480 110 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-	●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-	●
1	METER COMPL; CLUSTER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-		●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-		●
1	METER COMPL; CLUSTER EXC. AUSTRALIA EQUIPMENT(B13)	8-98064-903-6	01	1	0812-1003	●
1	METER COMPL; CLUSTER EXC. AUSTRALIA EQUIPMENT(B13)	8-98064-903-6	01	1	1004-	●
1	METER COMPL; CLUSTER	8-98064-903-6	01	1	1004-			●
1	METER COMPL; CLUSTER	8-98064-926-4	01	1	0712-0811	●	●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13)	8-98064-926-3	01	1	0812-0910	●
1	METER COMPL; CLUSTER	8-98064-926-3	01	1	0812-0910		●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY>	8-98064-926-6	01	1	0911-	●
1	METER COMPL; CLUSTER EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY>	8-98064-926-6	01	1	0911-		●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0712-1003	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	1004-	●	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0712-1003	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	1004-	●	●	●
11	CLUSTER ASM; METER TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97414-681-1	01	1	0801-0808	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-3	01	1	0712-0712	●	●
11	CLUSTER ASM; METER EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97405-350-4	01	1	0801-0808	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	0809-1003	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	1004-	●	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH DIGITAL<EBB>	8-98078-839-0	01	1	0712-0803	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	0712-1003	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	1004-	●	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0712-1003	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-	●	●	●
81	METER SUB ASM AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-	●
81	METER SUB ASM AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-	●
81	METER SUB ASM AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-		●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-		●
81	METER SUB ASM EXC. AUSTRALIA EQUIPMENT(B13)	8-98079-673-0	01	1	0812-1003	●
81	METER SUB ASM EXC. AUSTRALIA EQUIPMENT(B13)	8-98079-673-0	01	1	1004-	●
81	METER SUB ASM	8-98079-673-0	01	1	1004-			●
110	GLASS; CLUSTER METER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-	●
110	GLASS; CLUSTER METER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-	●
110	GLASS; CLUSTER METER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-		●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-		●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0712-1003	●	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	1004-	●	●	●
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0712-1003	●	●
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1004-	●	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0712-1003	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	1004-	●	●	●
480	COVER; METER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-	●
480	COVER; METER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-	●
480	COVER; METER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-		●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-		●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0712-1003	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	1004-	●	●	●

2 1 110 480 480 81 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-	●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-	●
1	METER COMPL; CLUSTER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-		●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98153-452-1	01	1	0911-		●
1	METER COMPL; CLUSTER EXC. AUSTRALIA EQUIPMENT(B13)	8-98064-903-6	01	1	0812-1003	●
1	METER COMPL; CLUSTER EXC. AUSTRALIA EQUIPMENT(B13)	8-98064-903-6	01	1	1004-	●
1	METER COMPL; CLUSTER	8-98064-903-6	01	1	1004-			●
1	METER COMPL; CLUSTER	8-98064-926-4	01	1	0712-0811	●	●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13)	8-98064-926-3	01	1	0812-0910	●
1	METER COMPL; CLUSTER	8-98064-926-3	01	1	0812-0910		●
1	METER COMPL; CLUSTER AUSTRALIA EQUIPMENT(B13) EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY>	8-98064-926-6	01	1	0911-	●
1	METER COMPL; CLUSTER EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY>	8-98064-926-6	01	1	0911-		●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0712-1003	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	1004-	●	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0712-1003	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	1004-	●	●	●
81	METER SUB ASM AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-	●
81	METER SUB ASM AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-	●
81	METER SUB ASM AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-		●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98154-362-0	01	1	0911-		●
81	METER SUB ASM EXC. AUSTRALIA EQUIPMENT(B13)	8-98079-673-0	01	1	0812-1003	●
81	METER SUB ASM EXC. AUSTRALIA EQUIPMENT(B13)	8-98079-673-0	01	1	1004-	●
81	METER SUB ASM	8-98079-673-0	01	1	1004-			●
110	GLASS; CLUSTER METER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-	●
110	GLASS; CLUSTER METER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-	●
110	GLASS; CLUSTER METER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-		●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0911-		●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0712-1003	●	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	1004-	●	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0712-1003	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	1004-	●	●	●
480	COVER; METER AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-	●
480	COVER; METER AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-	●
480	COVER; METER AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-		●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0911-		●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0712-1003	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	1004-	●	●	●
