0-27 — EXHAUST MANIFOLD (#5668) — 124 parça

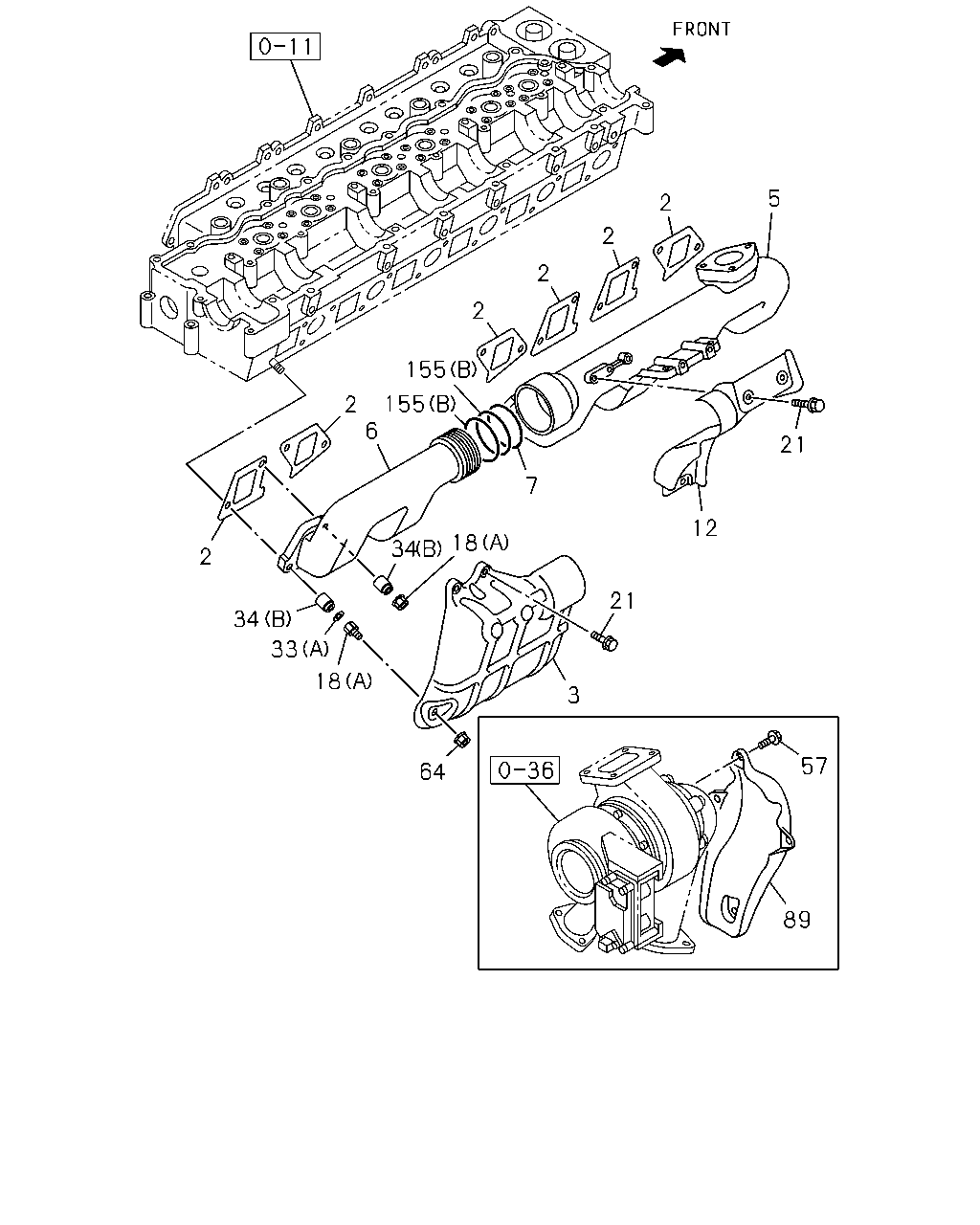

çizim 24942
5 2 2 2 2 155 2 155 6 21 7 12 18 34 2 21 34 33 18 3 57 64 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-9906 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 9907-0610 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0611- ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-94394-944-4 01 1 9907-0111 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97602-394-0 01 1 0112-0610 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0611- ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9811-9906 ●
5 MANIFOLD; EXH,FRT 8-94395-422-2 01 1 9907-0104 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0105-0610 ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 0611- ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9811-9906 ●
6 MANIFOLD; EXH,RR 8-94394-636-1 01 1 9907-0104 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0105-0610 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0611- ● ●
7 RING; SEAL,EXH MANIF 1-14149-151-0 01 1 0611- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0611- ● ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 12 1 9811-9906 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 10 1 9907-0602 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91180-210-0 10 1 0603-0610 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0611- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 9907-0610 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0611- ● ●
21 BOLT; HEAT PROTECTOR
M8X14 FLANGE 		8-97378-075-0 04 1 0611- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 9907-0512 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9906 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9907-0610 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 02 1 0611- ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 9907-0209 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210-0610 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0611- ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-9906 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 0611- ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 9907-0602 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0603-0610 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0611- ● ●
89 PROTECTOR; HEAT 8-97611-985-3 01 1 0611- ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0502-0610 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0611- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9811-9906 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9907-0501 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0502-0610 ●

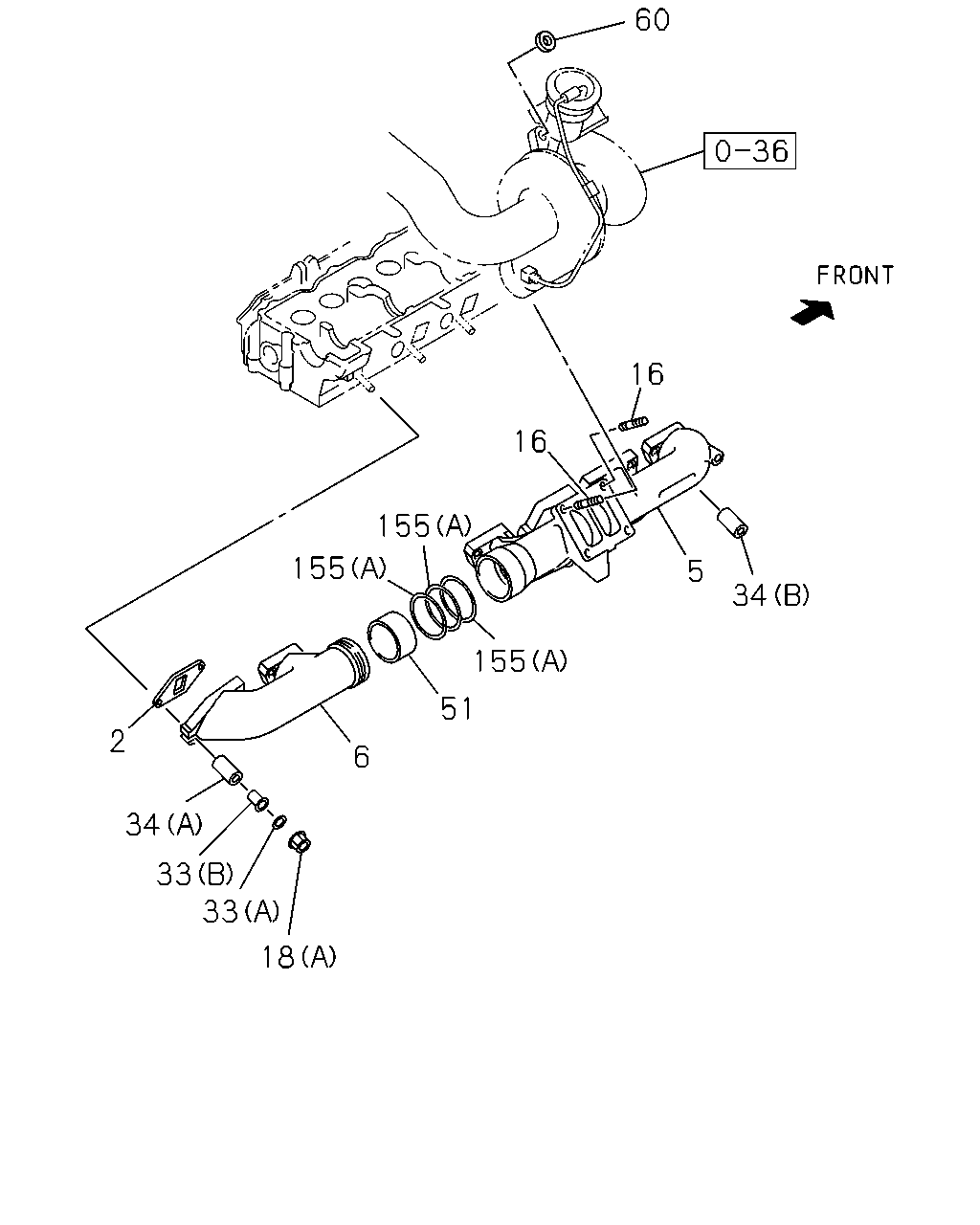

çizim 25262
60 16 16 155 155 5 34 155 51 2 6 34 33 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-9906 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 9907-0610 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0611- ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9811-9906 ●
5 MANIFOLD; EXH,FRT 8-94395-422-2 01 1 9907-0104 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0105-0610 ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 0611- ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9811-9906 ●
6 MANIFOLD; EXH,RR 8-94394-636-1 01 1 9907-0104 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0105-0610 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0611- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9811-9906 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9907-0610 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 12 1 9811-9906 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 10 1 9907-0602 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91180-210-0 10 1 0603-0610 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0611- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 9907-0610 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0611- ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9906 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9907-0610 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 02 1 0611- ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 9907-0209 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210-0610 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0611- ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-9906 ●
51 PIPE; SEAL
OD=49.5 L=43 		1-14149-131-1 01 1 9811-9906 ●
60 WASHER; PL,EXH PIPE
ID=10 		1-09503-033-1 02 1 9811-9906 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0502-0610 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0611- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9811-9906 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9907-0501 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0502-0610 ●
çizim 25364
2 2 2 2 5 16 2 16 6 155 155 155 46 34 33 2 3 18 34 33 18 21 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-9906 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 9907-0610 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0611- ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-94394-944-4 01 1 9907-0111 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97602-394-0 01 1 0112-0610 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0611- ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9811-9906 ●
5 MANIFOLD; EXH,FRT 8-94395-422-2 01 1 9907-0104 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0105-0610 ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 0611- ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9811-9906 ●
6 MANIFOLD; EXH,RR 8-94394-636-1 01 1 9907-0104 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0105-0610 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0611- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9811-9906 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9907-0610 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 12 1 9811-9906 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91150-210-0 10 1 9907-0602 ●
18 NUT; EXH MANIF
(A) M10 FLANGE 		0-91180-210-0 10 1 0603-0610 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0611- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 9907-0610 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0611- ● ●
21 BOLT; HEAT PROTECTOR
M8X14 FLANGE 		8-97378-075-0 04 1 0611- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 9907-0512 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9906 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9907-0610 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 02 1 0611- ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-9906 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 12 1 9907-0209 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0210-0610 ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-97250-073-1 12 1 0611- ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-9906 ●
46 PIPE; SEAL,EXH MANIF
OD=49.5 L=43 		1-14149-131-1 01 1 9907-0104 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 9907-0602 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0603-0610 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0611- ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0502-0610 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0611- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9811-9906 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9907-0501 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0502-0610 ●
