◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#56679) — 891 parça

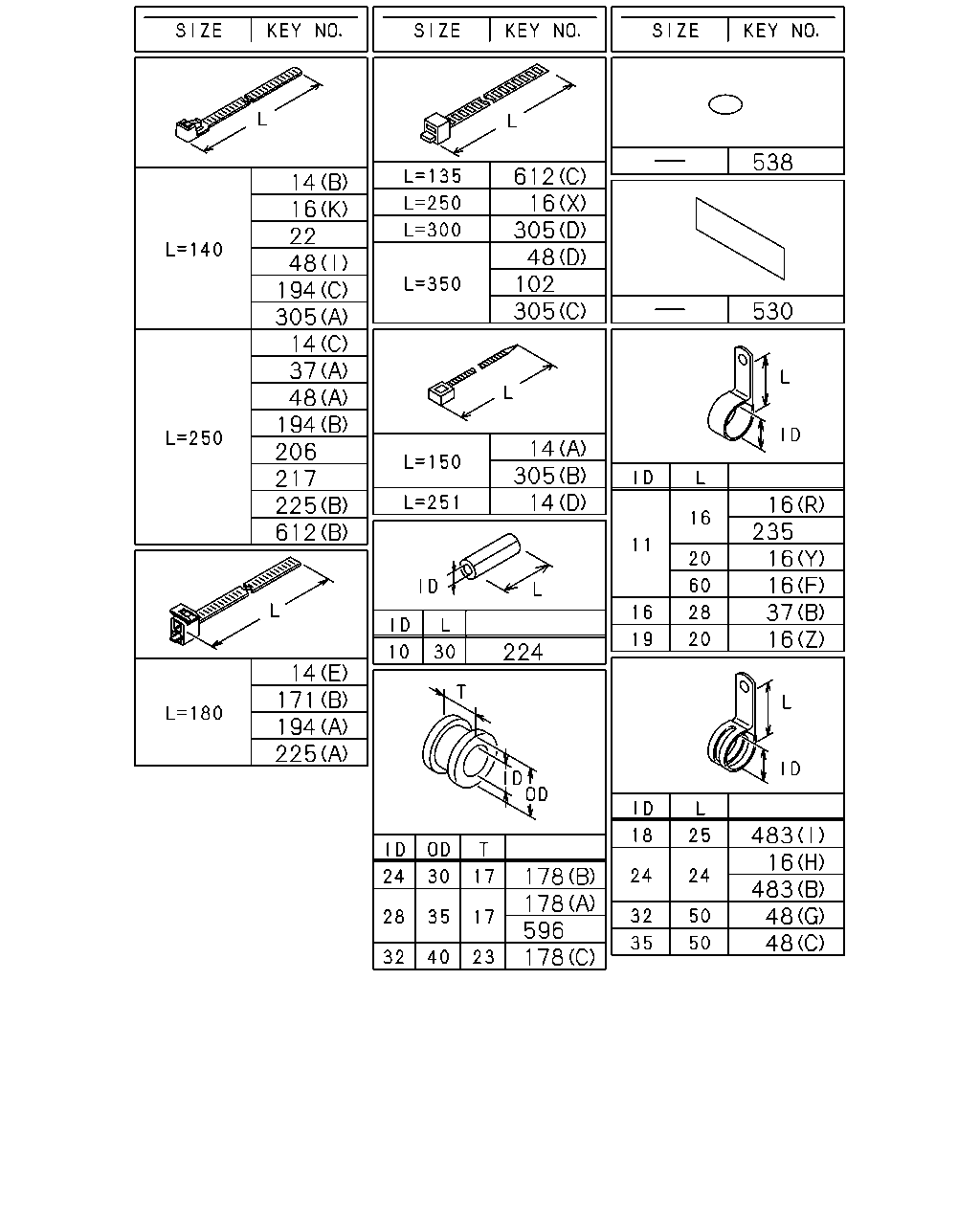

çizim 181858
538 612 16 305 48 102 305 14 16 22 48 194 305 14 37 48 194 206 217 225 612 530 14 305 14 16 235 16 16 37 16 224 14 171 194 225 483 16 483 48 48 178 178 596 178
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> (B) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
DIFF LOCK<C3N> (C) L=250 		5-09707-030-1 01 1 1004- ●
14 CLIP; BAND,HARNESS
MLD6Q M/T(X5J) (E) L=180 		1-09707-162-1 01 1 0906-1003 ● ●
14 CLIP; BAND,HARNESS
MLD6Q M/T(X5J) (E) L=180 		1-09707-162-1 01 1 1004- ● ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0712-1003 ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1004- ● ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0803-0808 ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 0809-1003 ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 0809-1003 ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 1004-1107 ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 1004-1107 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ● ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0712-0803 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 05 1 0804- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 03 1 0712-0803 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0804-1003 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 1004-1311 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 1004-1311 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 1312- ● ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0712-1003 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 1004- ● ● ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0712-1003 ● ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (R) ID=11 L=16 		0-95235-025-0 01 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Z) ID=19 L=20 		0-95235-836-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1004- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 04 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1004- ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807-1003 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 1004- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805-1003 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912-1003 ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 1004- ● ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712-0902 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801-1003 ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> LAMPS EXP PACKAGE<WL5> (E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1004- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1004- ● ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 1004- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906-1003 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712-0811 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1003 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712-1003 ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 1004- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803-1003 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 1004- ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0712-0803 ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0804-1003 ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1004- ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=11 H=45 L=25 		1-09700-866-0 01 1 1108- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 07 1 1004- ●
48 CLIP; FRAME HARNESS
EXC. PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 09 1 1004- ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 1004-1004 ●
48 CLIP; FRAME HARNESS
(K) ID=11 L=41 		1-09700-403-0 02 1 1004- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1004-1201 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 0811-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0804-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0804-1003 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1004-1107 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1004-1107 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 1108- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ● ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1004- ●
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE<JE5> (G) ID=32 L=50 		1-09701-055-1 01 1 1004- ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712-0804 ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 0805-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 12 1 0712-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 11 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> LAMPS EXP PACKAGE<WL5> (C) ID=35 L=50 		1-09701-214-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804-1003 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804-1003 ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1004- ● ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0804-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 15 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 14 1 0804-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0712-0911 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1003 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712-1003 ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 1004- ● ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1004- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0902 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0902 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0903-1003 ● ●
178 GROMMET; HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0903-1003 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0903-1003 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1004- ● ● ●
178 GROMMET; HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1004- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1004- ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1004- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0712-0905 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906-1003 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1004- ● ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0812 ●
178 GROMMET; HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1004 ● ●
178 GROMMET; HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1004 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1004 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1005- ● ●
178 GROMMET; HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1005- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0712-1003 ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 1004- ● ● ●
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0712-1003 ● ●
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1004- ● ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0712-1003 ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 1004- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0712-1003 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 1004- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0712-1003 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1004- ● ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712-1003 ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1004- ● ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0712-0803 ● ●
225 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> (A) L=180 		1-09707-162-1 04 1 1004- ●
225 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 1004- ●
225 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (B) L=250 		5-09707-030-1 03 1 0812-1003 ●
225 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (B) L=250 		5-09707-030-1 03 1 1004- ●
225 CLIP; AIR TANK HARNESS
EXC. ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 03 1 1004- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 04 1 0808- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0808-0910 ●
225 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> (B) L=250 		5-09707-030-1 02 1 0911- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> ID=11 L=16 		0-95235-025-0 01 1 1004- ●
305 CLIP; ENG HARNESS
(C) L=350 		8-94152-256-1 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(D) L=300 		1-09707-001-1 01 1 0906-1003 ● ●
305 CLIP; ENG HARNESS
(D) L=300 		1-09707-001-1 01 1 1004- ● ● ●
305 CLIP; ENG HARNESS
(B) L=150 		8-97355-273-0 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0804-0905 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 0906-1003 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 1004- ● ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0812-1003 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1004- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1004-1112 ● ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1003 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1004-1305 ● ● ●
530 SEAL; HARNESS
EXC. REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
MIR O/S RR VIEW FLAT(YS1) 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1003 ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1004-1305 ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0712-1003 ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1004- ● ● ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0811 ● ●
596 GROMMET
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812- ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0804-0808 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809-0901 ● ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0712-0811 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) L=135 		1-09987-143-1 01 1 0812- ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0812- ●
çizim 181861
304 150 150 139 38 150 304 150 150 139 139 386 38 377 358 127 139 386 38 313 38 139 313 139 150 139 242 150 38 150 313 139 242 139 150
BalonParca AdiParca NoAdetTipApplied Date A B C
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X16 FLANGE 		0-28050-816-0 02 1 1004- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1004- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-1003 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 08 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0805-0905 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0906-1004 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1005- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0905 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906-1003 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1004-1004 ● ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1004-1004 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1004-1107 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1108- ● ● ●
38 BOLT; CLIP,HARNESS
EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1108- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0902 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1003 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1004-1201 ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0803 ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0812-1003 ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1004- ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1004- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1004- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (H) M8X30 FLANGE 		0-28650-830-0 04 1 1004- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (I) M8X10 FLANGE 		0-28050-810-0 02 1 1004- ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60), FULLAUTOAIR CONDITIONER(C68) (G) M8X65 FLANGE 		1-09044-072-1 01 1 0809-1003 ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE 		1-09044-072-1 01 1 0809-1003 ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60), FULLAUTOAIR CONDITIONER(C68) (G) M8X65 FLANGE 		1-09044-072-1 01 1 1004- ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE 		1-09044-072-1 01 1 1004- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 0808-1003 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1107 ● ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1108- ● ● ●
139 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (H) M8X30 FLANGE 		0-28650-830-0 01 1 1108- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-0811 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712-1003 ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1004- ● ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0902 ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903-1003 ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903-1003 ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0804 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0804 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0805-0807 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0808-0902 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0903-1003 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1004- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712-1003 ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1004- ● ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 0712-1003 ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1004- ● ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 02 1 0808-1003 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ● ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (F) M6X20 FLANGE 		0-28050-620-0 01 1 1005- ● ●
150 BOLT; CLIP
(I) M8X30 FLANGE 		0-28650-830-0 01 1 0810-0902 ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 02 1 0812-1003 ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1004- ● ●
150 BOLT; CLIP
(G) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 01 1 0712-1003 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 01 1 1004-1004 ● ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (F) M6X20 FLANGE 		0-28050-620-0 02 1 1005- ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 0712-1003 ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0712-1003 ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1004-1311 ● ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 1004-1311 ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1312- ● ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 1312- ● ● ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0811 ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (E) M8X16 FLANGE 		0-28050-816-0 01 1 0812- ● ●
150 BOLT; CLIP
(D) M8X14 FLANGE 		0-28080-814-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0712-0811 ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M6X16 FLANGE 		0-28650-616-0 01 1 0812- ● ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0809 ● ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0810-0902 ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0903-1003 ● ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ● ●
242 BOLT; BRKT,HARNESS
EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0811 ● ●
242 BOLT; BRKT,HARNESS
EXC. EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0803 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0903- ●
313 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X30 FLANGE 		0-28651-030-0 01 1 0812- ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-1003 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1004- ● ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0807 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0902 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0903-1003 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712-1003 ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1004- ● ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1003 ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1004-1202 ● ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ● ●

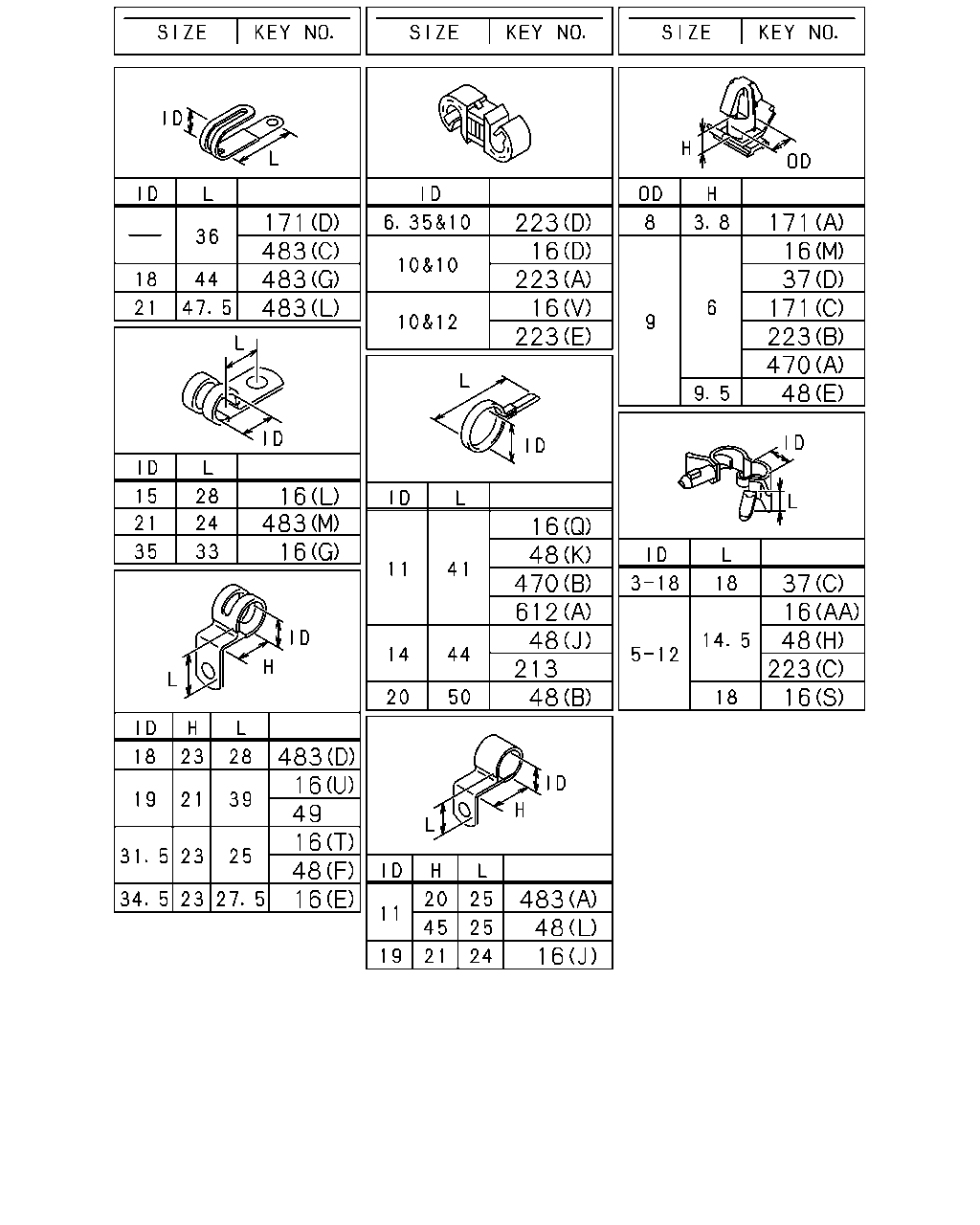

çizim 181864
171 223 483 483 483 16 16 483 483 16 49 16 48 16 16 223 223 16 16 48 470 612 48 213 48 483 48 16 171 37 16 223 171 470 48 37 16 48 223 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (R) ID=11 L=16 		0-95235-025-0 01 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Z) ID=19 L=20 		0-95235-836-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1004- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 04 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1004- ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807-1003 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 1004- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805-1003 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912-1003 ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 1004- ● ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712-0902 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801-1003 ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804-1003 ●

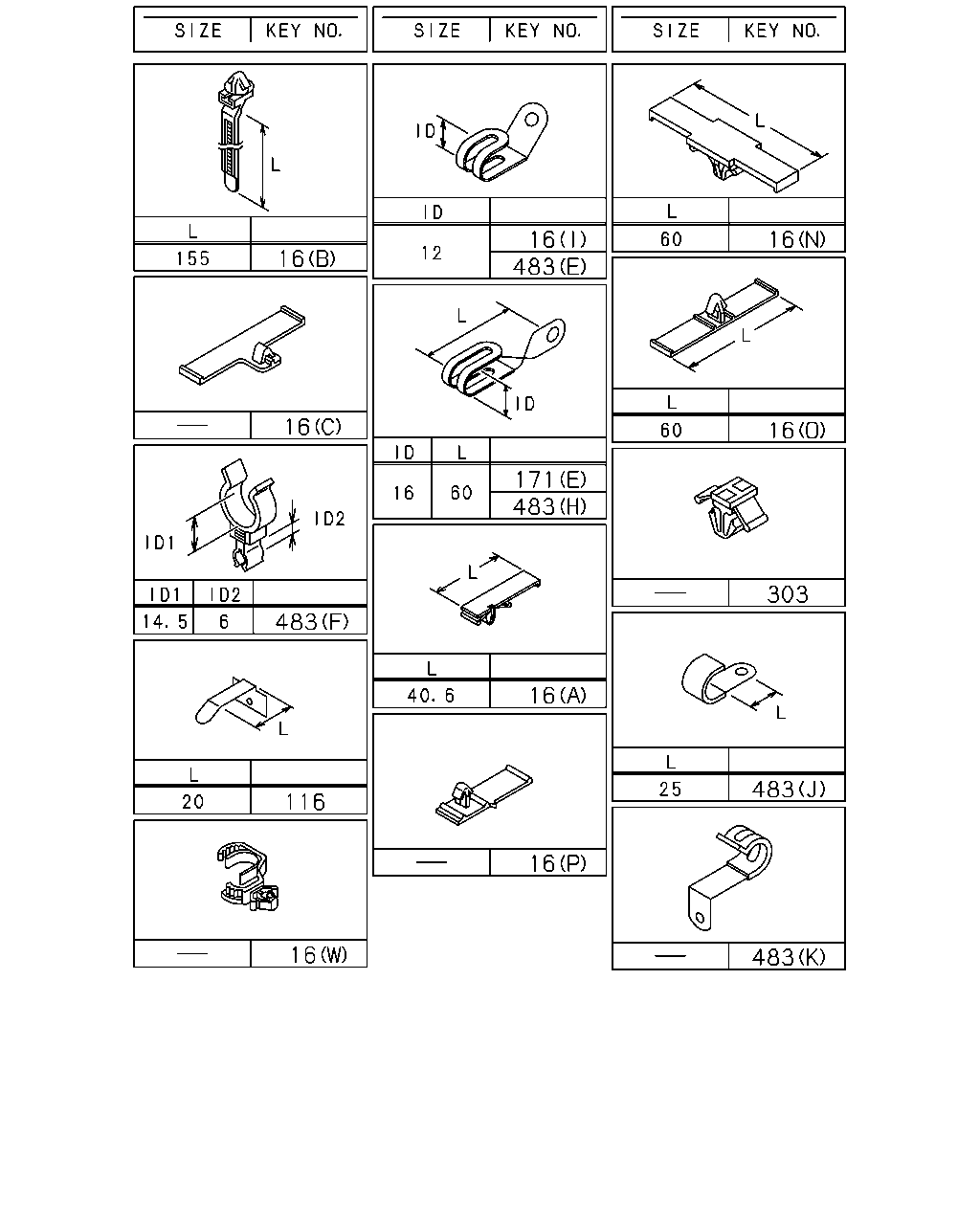

16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> LAMPS EXP PACKAGE<WL5> (E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1004- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1004- ● ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 1004- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906-1003 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712-0811 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1003 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712-1003 ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 1004- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803-1003 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 1004- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=11 H=45 L=25 		1-09700-866-0 01 1 1108- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 07 1 1004- ●
48 CLIP; FRAME HARNESS
EXC. PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 09 1 1004- ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 1004-1004 ●
48 CLIP; FRAME HARNESS
(K) ID=11 L=41 		1-09700-403-0 02 1 1004- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1004-1201 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 0811-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0804-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0804-1003 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1004-1107 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1004-1107 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 1108- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ● ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1004- ●
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE<JE5> (G) ID=32 L=50 		1-09701-055-1 01 1 1004- ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712-0804 ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 0805-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 12 1 0712-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 11 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-1003 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> LAMPS EXP PACKAGE<WL5> (C) ID=35 L=50 		1-09701-214-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804-1003 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804-1003 ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1004- ● ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1004- ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0804-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 15 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 14 1 0804-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0808-1003 ● ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1003 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712-1003 ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 1004- ● ● ●
213 CLIP; END CROSS HARNESS
PINTLE HOOK<PP7> ID=14 L=44 		9-09917-427-0 02 1 1004- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712-1003 ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1004- ● ●
213 CLIP; END CROSS HARNESS
EXC. PINTLE HOOK<PP7> ID=14 L=44 		9-09917-427-0 03 1 1004- ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> (E) ID=10 & 12 		1-09709-278-1 01 1 1004- ●
223 CLIP; AIR TANK HARNESS
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808-1003 ●
223 CLIP; AIR TANK HARNESS
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 1004- ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0807 ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0808-0811 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812-0902 ● ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1003 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1004- ● ● ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1004- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0712-0807 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0808-0811 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0812-0902 ● ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (B) OD=9 H=6 		1-09709-178-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0903-1003 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0903-1003 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 02 1 0808-1003 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 02 1 1004- ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (A) ID=11 L=41 		1-09700-403-0 01 1 1004- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-1003 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1004-1205 ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (B) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0812-1003 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1004- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1004-1112 ● ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0804-0808 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809-0901 ● ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0712-0811 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) L=135 		1-09987-143-1 01 1 0812- ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0812- ●
çizim 181865
524 24 23 219 515 294 525 219 552 294 524 47 184
BalonParca AdiParca NoAdetTipApplied Date A B C
23 NUT; FLOOR STAY
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0712-0807 ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712-1003 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1004- ● ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1004- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0906-1004 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1005- ●
219 NUT
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 01 1 0806-1003 ● ●
219 NUT
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 01 1 1004- ● ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0905 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-1003 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1004-1004 ● ●
219 NUT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1004-1004 ●
219 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 01 1 1004-1004 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1004-1107 ● ●
219 NUT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1004-1107 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108- ● ●
219 NUT
EURO4 SPECIFICATION<NT4> (A) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
219 NUT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-0902 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 1004- ●
294 NUT
EURO2 SPECIFICATION<NT2> (B) M10 FLANGE 		0-91180-210-0 01 1 0812- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0903-1003 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1004- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0903-1003 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0903-1003 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1004- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1004- ● ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1004- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0902 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903-1003 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903-1003 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903-1003 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1004- ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1004- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1004- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712-1003 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
515 NUT; BRKT
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 0809-1003 ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 1004- ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 0712-1003 ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 1004- ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0808-1003 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1004- ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-1003 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1004- ● ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0712-0811 ● ●
552 NUT; BRKT,HARNESS
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 01 1 0812-1107 ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0812-1107 ●
552 NUT; BRKT,HARNESS
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
552 NUT; BRKT,HARNESS
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
çizim 181873
16 483 16 16 16 16 171 483 303 483 16 483 116 16 16 483
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (R) ID=11 L=16 		0-95235-025-0 01 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Y) ID=11 L=20 		0-95235-035-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (Z) ID=19 L=20 		0-95235-836-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1004- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 04 1 1004- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1004- ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807-1003 ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 1004- ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805-1003 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1004- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912-1003 ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 1004- ● ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712-0902 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0903-1003 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 1004- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801-1003 ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> LAMPS EXP PACKAGE<WL5> (E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1004- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1004- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1004- ● ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804-1003 ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 1004- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906-1003 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712-0811 ● ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0812- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803-0811 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0812-1003 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1004-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (A) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1003 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1003 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1004-1202 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712-1003 ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 1004- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803-1003 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 1004- ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712-1003 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1004-1201 ● ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1202- ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1003 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806-1003 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 1004- ● ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712-1003 ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 1004- ● ● ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 0712- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0812-1003 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1004- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0812- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1004-1112 ● ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712-1003 ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004- ● ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0811 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0812- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
çizim 182122
53 53 53 53 53 53 53 7 59 59 59 59 137 137 137 59 137 246 137
BalonParca AdiParca NoAdetTipApplied Date A B C
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712-1003 ● ●
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1004- ● ● ●
53 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (F) 		1-47479-630-1 01 1 1108- ●
53 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (G) 		1-82698-569-0 01 1 1108- ●
53 BRACKET; HARNESS
ANTI LOCK BRAKE<JE5> (E) 		8-97212-532-0 01 1 1004- ●
53 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (D) L=170 		1-47479-380-0 01 1 0812- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 0801-0803 ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98084-590-0 01 1 0804-0811 ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 0812-1003 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98084-590-0 01 1 0812-1003 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1004- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98084-590-0 01 1 1004- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1004- ●
53 BRACKET; HARNESS
(A) 		8-98049-871-0 01 1 0712-0811 ● ●
53 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98049-871-0 01 1 0812- ●
53 BRACKET; HARNESS
(A) 		8-98049-871-0 01 1 0812- ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0712-1003 ● ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1004- ● ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (A) 		8-97609-264-2 01 1 0811-0906 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-97609-264-2 01 1 0907-1003 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-97609-264-2 01 1 1004- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0712-0802 ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 0803-0810 ● ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (A) 		8-98099-963-0 01 1 0811-1003 ●
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 0811-1003 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (A) 		8-98099-963-0 01 1 1004- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 1004- ●
59 BRACKET; FRAME HARNESS
(B) 		8-97619-533-0 01 1 0712-0712 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98047-276-1 01 1 0712-1003 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98047-276-1 01 1 1004- ● ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 0712-1003 ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1004- ● ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0712-1003 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1004-1502 ● ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503- ● ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (E) 		8-97609-797-1 02 1 1004- ●
137 BRACKET; HARNESS CLAMP
(D) L=62 		1-21464-170-2 01 1 0712-1003 ●
137 BRACKET; HARNESS CLAMP
(D) L=62 		1-21464-170-2 01 1 1004- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97616-565-1 01 1 0712-1003 ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97616-565-1 01 1 1004- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98085-819-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98097-516-0 01 1 0712-0804 ●
246 BRACKET; CLIP,SPD SENSOR
L=62 		1-21464-170-2 01 1 0712-1003 ● ●
246 BRACKET; CLIP,SPD SENSOR
L=62 		1-21464-170-2 01 1 1004- ● ● ●
çizim 468063
312 324 335 312 335 428 428 428
BalonParca AdiParca NoAdetTipApplied Date A B C
312 BRACKET; CLIP HARNESS
(A) 		8-98094-804-0 01 1 0712-0811 ● ●
312 BRACKET; CLIP HARNESS
EURO4 SPECIFICATION<NT4> (A) 		8-98094-804-0 01 1 0812- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712-1003 ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1004- ● ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98084-791-1 01 1 1004- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98084-792-1 01 1 1004- ●
335 BRACKET; CONNECTOR
(A) 		1-47477-193-0 01 1 0712-0804 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712-1003 ● ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 1004- ● ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0712-1003 ●
428 BRACKET
(B) 		1-47475-519-0 01 1 1004- ● ●
428 BRACKET
(A) L=95 		1-82699-085-0 02 1 0712-0902 ●
428 BRACKET
(B) L=90 W/NUT 		1-47475-520-0 01 1 0712-0712 ● ●
428 BRACKET
(B) L=90 W/NUT 		1-47475-520-0 01 1 0712-0803 ●
428 BRACKET
(C) 		8-98090-951-0 01 1 0712-0806 ● ●
428 BRACKET
(C) 		8-98116-461-0 01 1 0807-1003 ● ●
428 BRACKET
(C) 		8-98116-461-0 01 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
