8-03 — LAMP; REAR AND REAR SIDE (#56676) — 115 parça

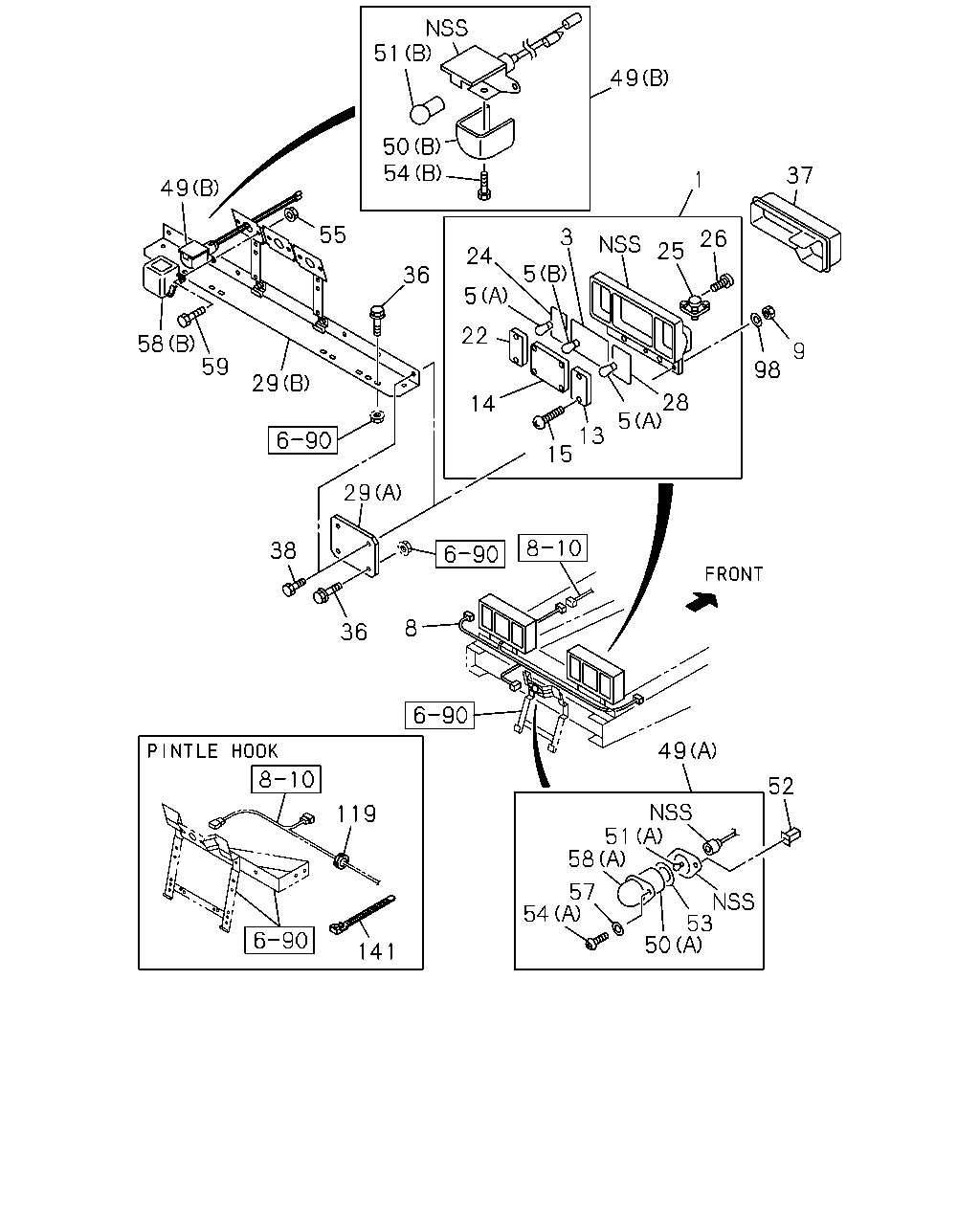

çizim 181855
1 37 49 51 50 54 55 36 49 58 59 29 29 38 36 8 24 3 25 26 5 5 22 14 9 98 28 5 13 15 49 52 53 50 51 58 57 54 141 119
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0712-1003 ● ●
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 1004- ● ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 0712-1003 ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 1004- ● ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 0712-1003 ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 1004- ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 0712-1003 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1004- ● ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 0712-1003 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 1004- ● ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 0712-1003 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 1004- ● ● ●
8 HARNESS; RR COMB LAMP 8-98064-342-3 01 1 0712-1201 ● ●
8 HARNESS; RR COMB LAMP 8-98203-887-0 01 1 1202- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0712-1003 ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1004- ● ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0712-1003 ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1004- ● ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0712-1003 ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1004- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0712-1003 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1004- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0712-1003 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1004- ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0712-1003 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1004- ● ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 0712-1003 ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 1004- ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 0712-1003 ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1004- ● ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0712-1003 ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 1004- ● ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0712-1003 ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1004- ● ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0712-1003 ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1004- ● ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0712-1003 ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1004- ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 0712-1003 ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1004- ● ● ●
29 BRACKET; LAMP,RR COMB
AUSTRALIA EQUIPMENT(B13) (B) 		8-98029-390-3 01 1 1206- ●
29 BRACKET; LAMP,RR COMB
(B) 		8-98029-390-3 01 1 1206- ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 0712-1003 ● ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 1004-1205 ● ● ●
29 BRACKET; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-82237-050-1 02 1 1206- ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 1206- ●
36 BOLT; BRKT,RR COMB
AUSTRALIA EQUIPMENT(B13) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
36 BOLT; BRKT,RR COMB
M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1003 ● ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 1004-1205 ● ● ●
36 BOLT; BRKT,RR COMB
EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0712-1003 ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1004- ● ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0712-1003 ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1004- ● ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0712-1003 ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1004- ● ● ●
49 LAMP; LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) (B) 24V 5W 		8-97105-380-0 02 1 1206- ●
49 LAMP; LICENSE PLATE
(B) 24V 5W 		8-97105-380-0 02 1 1206- ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 0712-1003 ● ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 1004-1205 ● ● ●
49 LAMP; LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) (A) 24V 10W 		1-82120-024-1 01 1 1206- ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 1206- ●
50 LENS; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(B13) (B) 		8-97108-212-0 02 1 1206- ●
50 LENS; LICENSE PLATE LAMP
(B) 		8-97108-212-0 02 1 1206- ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0712-1003 ● ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 1004-1205 ● ● ●
50 LENS; LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-82235-006-0 01 1 1206- ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 1206- ●
51 BULB; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(B13) (B) 24V 5W 		1-82194-039-0 02 1 1206- ●
51 BULB; LICENSE PLATE LAMP
(B) 24V 5W 		1-82194-039-0 02 1 1206- ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 0712-1003 ● ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 1004-1205 ● ● ●
51 BULB; LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (A) 24V 10W 		1-82194-037-0 01 1 1206- ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 1206- ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0712-1003 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1004-1205 ● ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1206- ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1206- ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0712-1003 ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1004-1205 ● ● ●
53 GASKET; LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) 		1-82126-005-0 01 1 1206- ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(B13) (B) M4X8 		8-94419-312-0 02 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
(B) M4X8 		8-94419-312-0 02 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0712-1003 ● ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 1004-1205 ● ● ●
54 SCREW; LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (A) M5X20 		1-82129-007-0 02 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 1206- ●
55 NUT; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(B13) M5 FLANGE 		1-09984-170-0 04 1 1206- ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		1-09984-170-0 04 1 1206- ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0712-1003 ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1004-1205 ● ● ●
57 WASHER; PL,LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) 		1-82129-008-0 02 1 1206- ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(B13) (B) 		8-97076-590-1 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
(B) 		8-97076-590-1 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0712-1003 ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 1004-1205 ● ● ●
58 COVER; LICENSE PLATE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		1-82129-005-0 01 1 1206- ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 1206- ●
59 SCREW; TAP,LICENSE LAMP BODY
AUSTRALIA EQUIPMENT(B13) M5X20 		9-93490-520-0 04 1 1206- ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1206- ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 0712-1003 ● ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1004- ● ● ●
119 GROMMET; HARNESS
PINTLE HOOK<PP7> ID=24 OD=30 T=17 		9-09956-092-1 01 1 1004- ●
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 1004- ●
çizim 182140
202 177 177 181 176 177 180 180
BalonParca AdiParca NoAdetTipApplied Date A B C
176 BULB; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> 24V 6W 		9-82691-306-0 06 1 1004- ●
177 GASKET; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (A) 		1-82236-009-0 02 1 1004- ●
177 GASKET; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (B) 		1-82236-012-0 14 1 1004- ●
180 SCREW; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (A) 		1-82239-027-1 04 1 1004- ●
180 SCREW; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (B) 		1-82239-028-1 04 1 1004- ●
181 WASHER; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> 		1-82239-029-1 08 1 1004- ●
202 LAMP ASM; MARKER,RR COMB
LAMPS EXP PACKAGE<WL5> 		1-82230-195-3 02 1 1004- ●
