7-70 — SEPARATER AND BED (#56674) — 110 parça

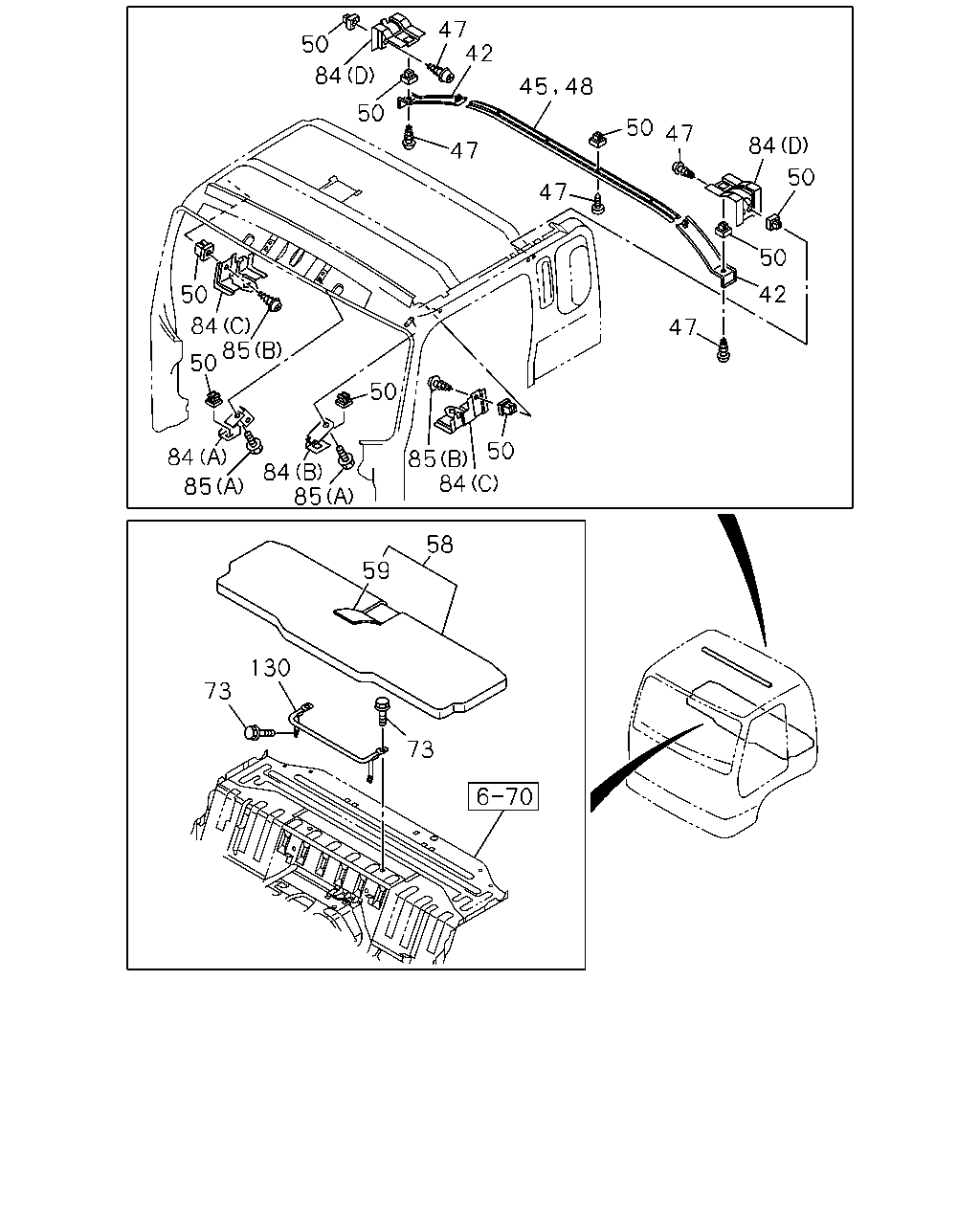

47 42 50 84 50 50 47 84 47 50 47 50 42 50 84 85 50 47 50 50 84 85 84 84 85 85 58 59 130 73 73 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-1003	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	1004-	●	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-1003	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	1004-	●	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	1004-			●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-485-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-1003	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1004-	●	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-485-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1003	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1003	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-1405	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-1405	●		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1001-1402	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97407-382-2	01	1	1403-	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1004-			●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1004-			●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	0712-0912	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1001-1402	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97409-772-1	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1001-1402	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97412-045-1	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1004-			●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1004-			●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	0712-0912	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1001-1402	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97414-106-0	01	1	1403-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0712-1003	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1004-1402	●		●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) M8X20 FLANGE	0-28450-820-0	04	1	1403-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1403-			●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0907-1003	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1004-	●		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0907-1003	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1004-	●	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-0906	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1003	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1004-1405	●		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-0906	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-1003	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1004-	●		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1003	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	1004-1405	●		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●		●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-1003	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-1003	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1004-	●	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1004-	●		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0712-1003	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1004-1402	●		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13)	8-98014-968-0	01	1	1403-	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1403-			●

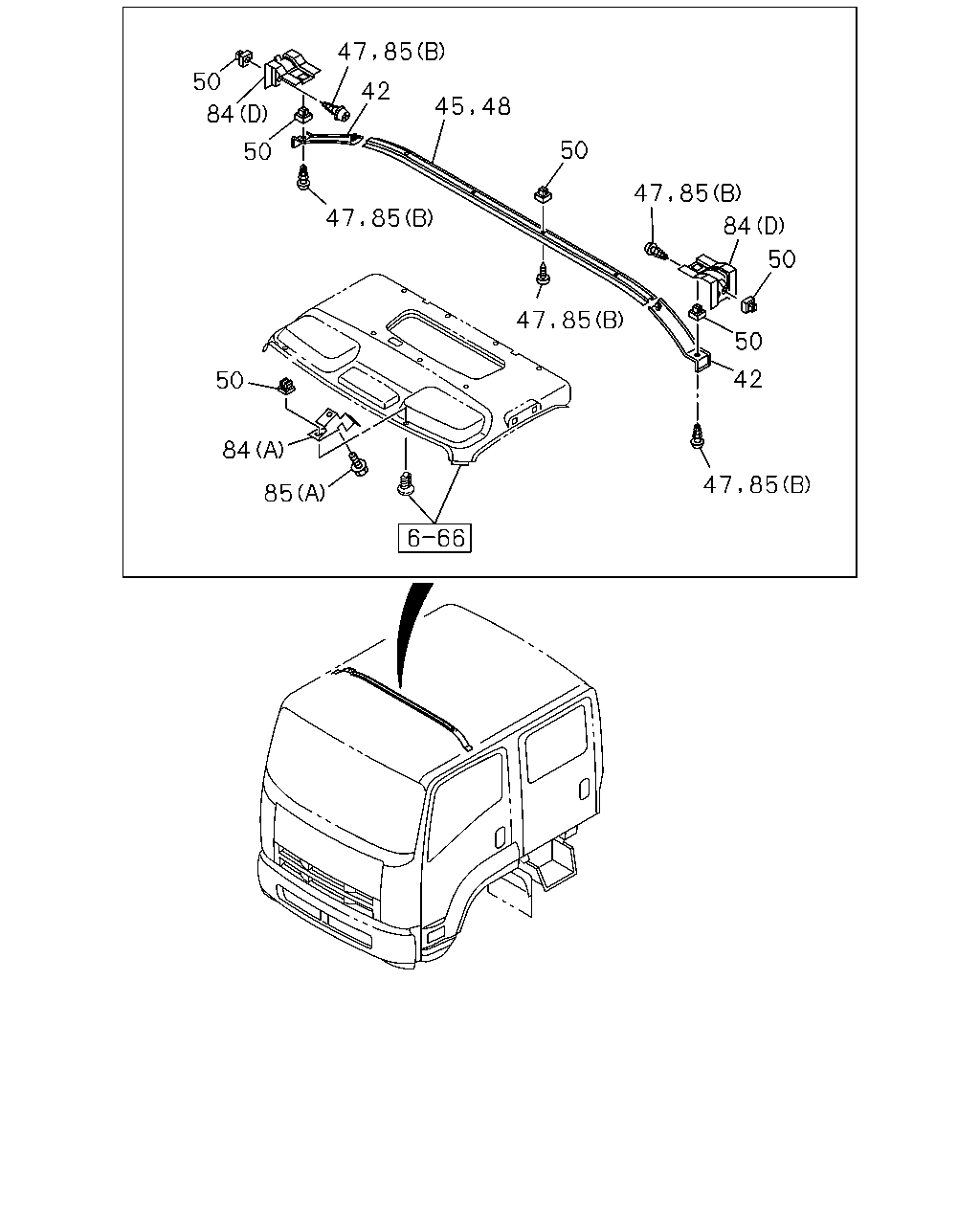

50 42 84 50 50 84 50 50 42 50 84 85 47 85 45 48 47 85 47 85 47 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-1003	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	1004-	●	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-1003	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	1004-	●	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	1004-			●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-485-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-1003	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1004-	●	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-485-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1003	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1003	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-1405	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-1405	●		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0907-1003	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1004-	●		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0907-1003	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1004-	●	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-0906	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1003	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1004-1405	●		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-0906	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-1003	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1004-	●		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1003	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	1004-1405	●		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●		●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-1003	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-1003	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1004-	●	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1004-	●		●
