0-25 — INLET MANIFOLD (#5667) — 189 parça

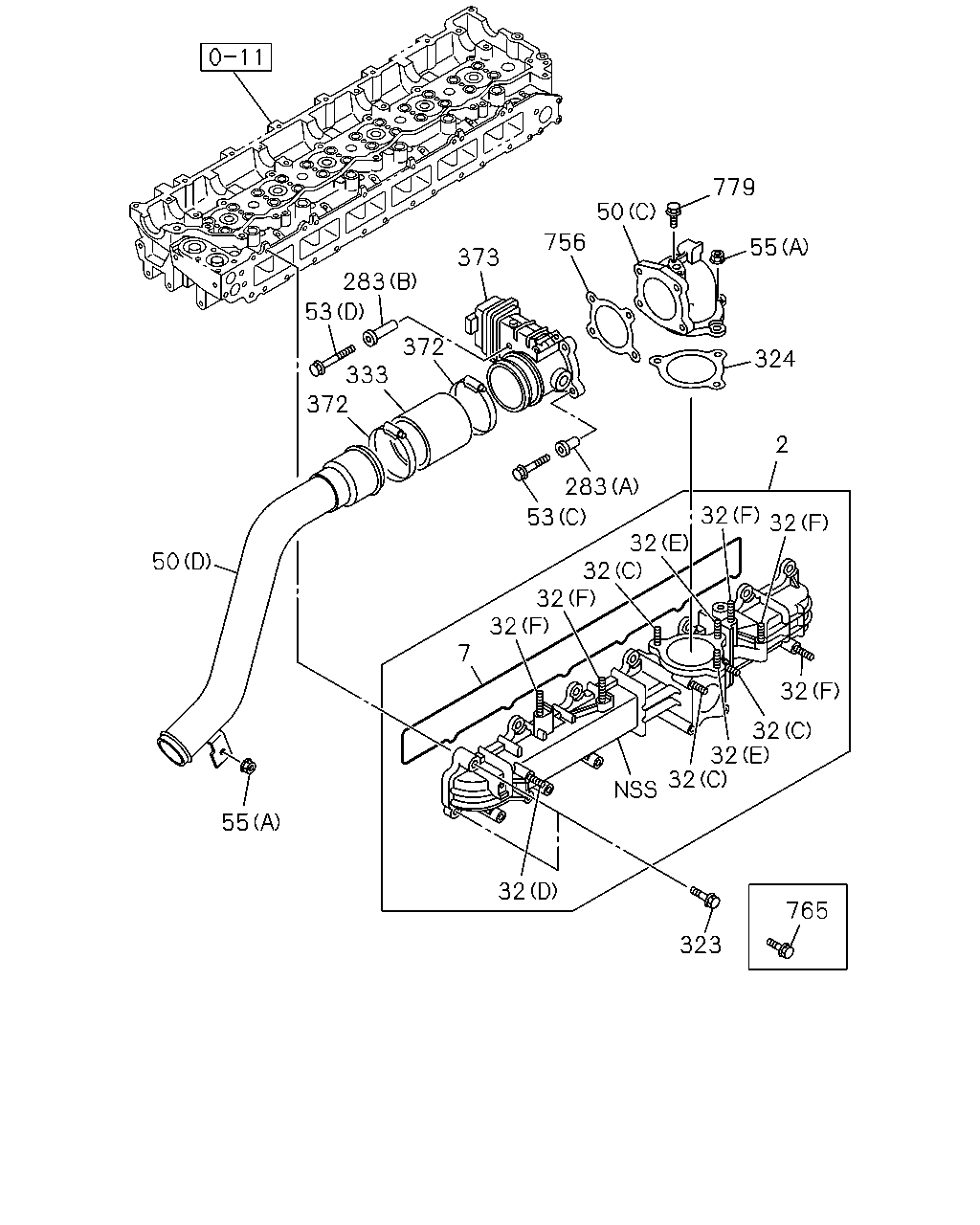

779 50 756 55 373 283 53 372 324 333 372 2 283 32 32 53 32 32 32 32 50 7 32 32 32 32 55 32 765 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94394-301-5	01	1	9811-9906	●
2	COVER; INL	8-94395-825-1	01	1	9907-0610		●
2	COVER; INL	8-97604-934-6	01	1	0611-0611			●	●
2	COVER; INL	8-98061-091-0	01	1	0612-			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9811-9906	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9907-0610		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0611-			●	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0611-			●	●
32	STUD; INL PIPE (E) M8X40 L=52	0-41010-840-0	02	1	0611-			●	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0611-			●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	9811-9906	●
32	STUD; INL PIPE (A) M8X25 L=37	9-04110-825-0	05	1	9907-0604		●
32	STUD; INL PIPE (A) M8X25 L=37	0-41010-825-0	05	1	0605-0610		●
32	STUD; INL PIPE (F) M6X30 L=38	0-41010-630-0	05	1	0611-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9811-9906	●
50	PIPE; INL (E)	8-94394-400-1	01	1	9811-9906	●
50	PIPE; INL (A)	8-94390-319-2	01	1	9907-0610		●
50	PIPE; INL (C)	8-97604-940-0	01	1	0611-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	9907-0610		●
50	PIPE; INL (D)	8-97607-412-2	01	1	0611-			●	●
53	BOLT; INL PIPE (D) M8X70 FLANGE	0-28050-870-0	02	1	0611-			●	●
53	BOLT; INL PIPE (E) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28680-835-0	01	1	9907-0512		●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0610		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28681-035-0	01	1	9907-0512		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-0610		●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0611-			●	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9811-9906	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	9907-0602		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	05	1	0603-0610		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	9811-9906	●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	9907-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-0610		●
283	RUBBER (A) L=18	8-97219-650-0	02	1	0611-			●	●
283	RUBBER (B) L=58	8-97387-995-1	02	1	0611-			●	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0611-			●	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0611-			●	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	9907-0512		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-0610		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0611-			●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9811-9906	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9907-0610		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-777-0	01	1	0611-			●	●
333	HOSE; RUBBER,INL PIPE	1-09360-600-0	01	1	9907-0610		●
333	HOSE; RUBBER,INL PIPE	8-97611-306-0	01	1	0611-			●	●
372	CLIP; HOSE ID=77-95	1-09707-198-0	04	1	0611-			●	●
372	CLIP; HOSE ID=86	9-09915-592-0	02	1	9907-0610		●
373	THROTTLE ASM; INT	8-98061-061-3	01	1	0611-			●	●
756	GASKET; INTAKE,THROTTLE	8-97387-009-0	01	1	0611-			●	●
765	BOLT; INT PIPE M10X30 FLANGE	0-28751-030-0	04	1	0611-			●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	0611-			●	●

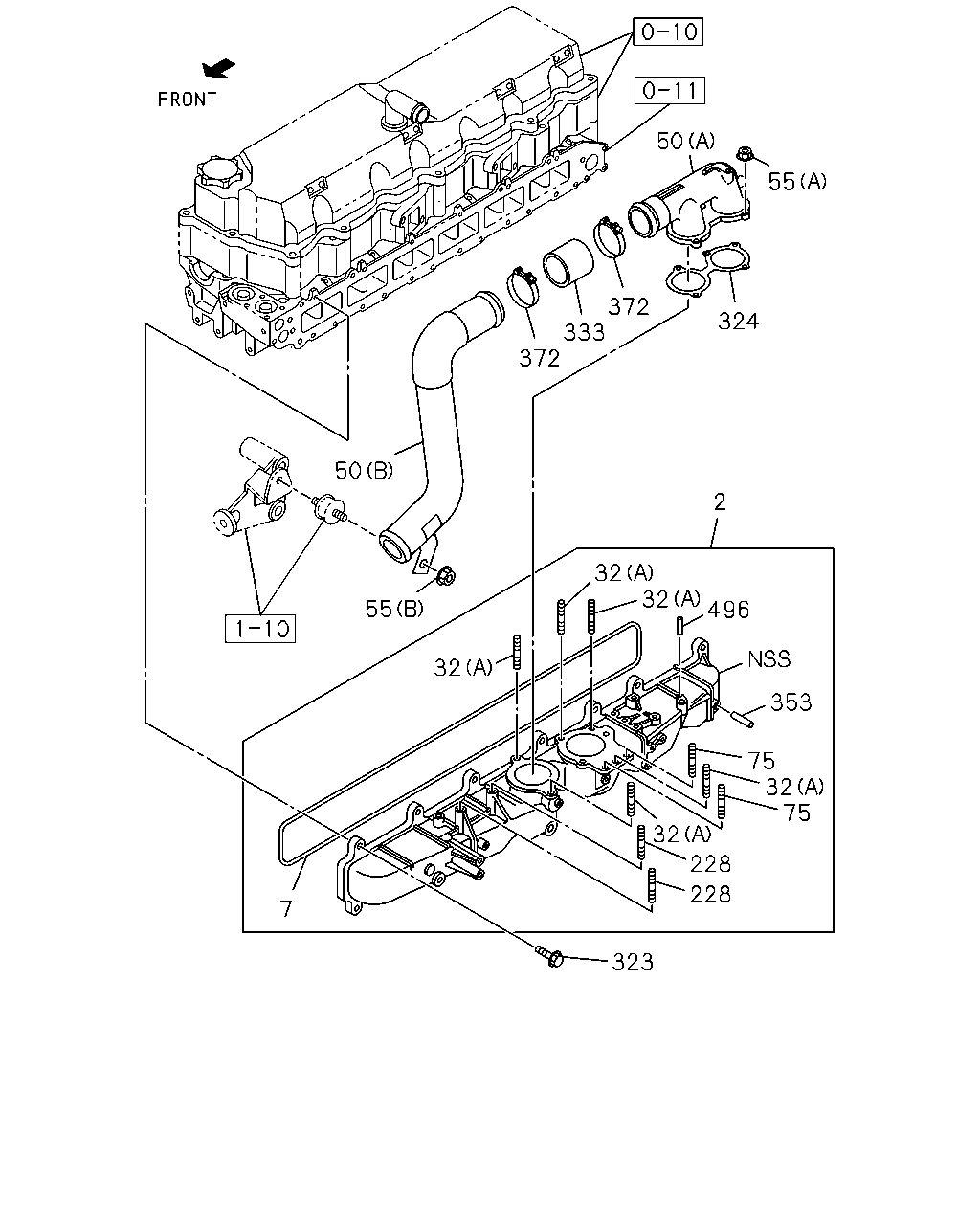

50 55 372 333 372 324 50 2 32 32 496 55 32 353 75 32 75 32 228 228 7 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94394-301-5	01	1	9811-9906	●
2	COVER; INL	8-94395-825-1	01	1	9907-0610		●
2	COVER; INL	8-97604-934-6	01	1	0611-0611			●	●
2	COVER; INL	8-98061-091-0	01	1	0612-			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9811-9906	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9907-0610		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0611-			●	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0611-			●	●
32	STUD; INL PIPE (E) M8X40 L=52	0-41010-840-0	02	1	0611-			●	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0611-			●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	9811-9906	●
32	STUD; INL PIPE (A) M8X25 L=37	9-04110-825-0	05	1	9907-0604		●
32	STUD; INL PIPE (A) M8X25 L=37	0-41010-825-0	05	1	0605-0610		●
32	STUD; INL PIPE (F) M6X30 L=38	0-41010-630-0	05	1	0611-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9811-9906	●
50	PIPE; INL (E)	8-94394-400-1	01	1	9811-9906	●
50	PIPE; INL (A)	8-94390-319-2	01	1	9907-0610		●
50	PIPE; INL (C)	8-97604-940-0	01	1	0611-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	9907-0610		●
50	PIPE; INL (D)	8-97607-412-2	01	1	0611-			●	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9811-9906	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	9907-0602		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	05	1	0603-0610		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	9811-9906	●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	9907-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-0610		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9907-0604		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-0610		●
228	STUD; INL COVER M8X16 L=28	9-04110-816-0	06	1	9811-9906	●
228	STUD; INL COVER M8X16 L=28	9-04110-816-0	02	1	9907-0604		●
228	STUD; INL COVER M8X16 L=28	0-41010-816-0	02	1	0605-0610		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0611-			●	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0611-			●	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	9907-0512		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-0610		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0611-			●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9811-9906	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9907-0610		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-777-0	01	1	0611-			●	●
333	HOSE; RUBBER,INL PIPE	1-09360-600-0	01	1	9907-0610		●
333	HOSE; RUBBER,INL PIPE	8-97611-306-0	01	1	0611-			●	●
353	PIPE; AIR,BOOST	8-94394-439-0	01	1	9811-9906	●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	9907-0610		●
372	CLIP; HOSE ID=77-95	1-09707-198-0	04	1	0611-			●	●
372	CLIP; HOSE ID=86	9-09915-592-0	02	1	9907-0610		●
496	PIN; INL MANIF	9-08160-512-0	01	1	9907-0610		●

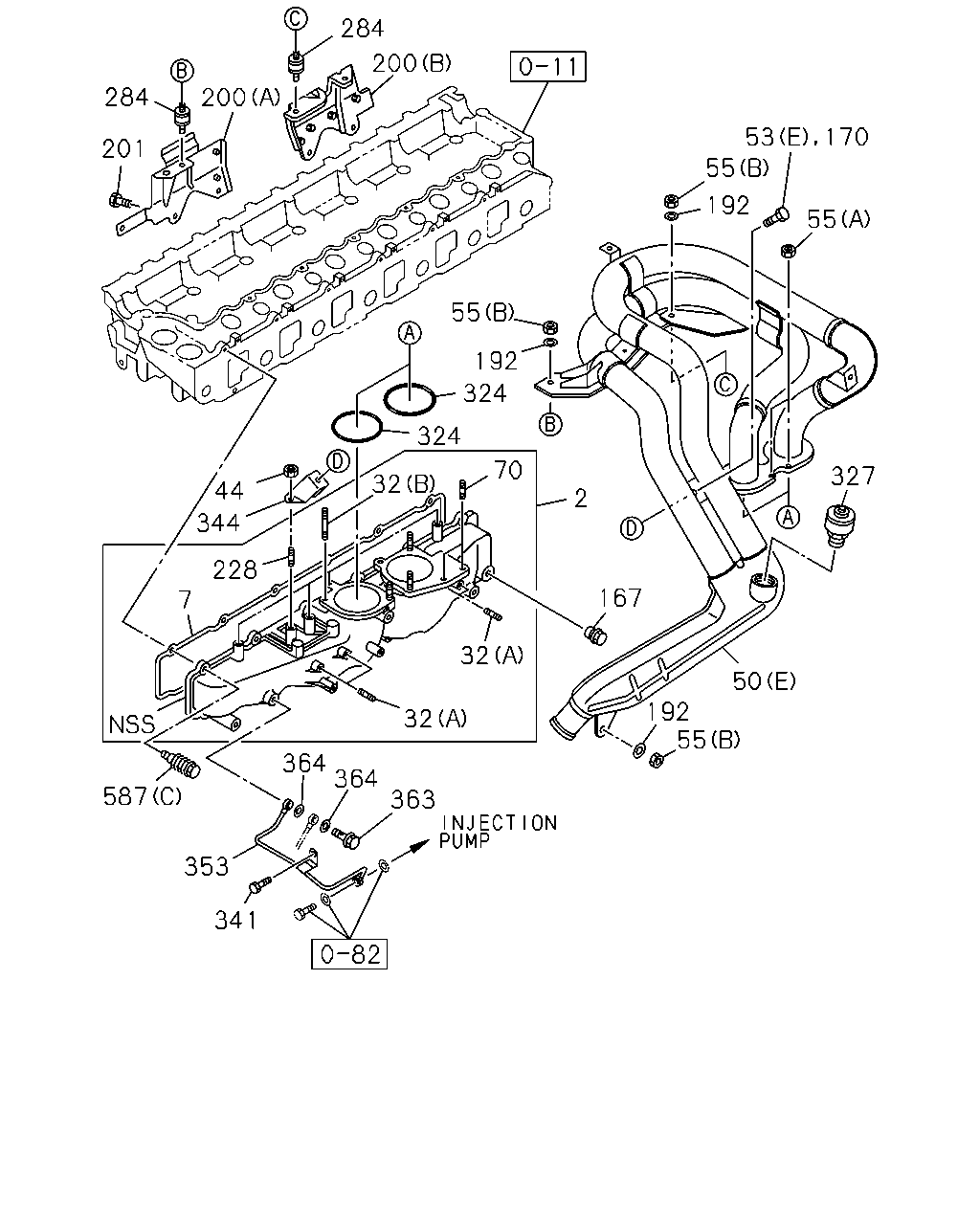

284 200 284 200 53 170 201 55 192 55 55 192 324 324 70 44 327 32 2 344 228 167 7 32 50 192 55 32 364 364 587 363 353 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94394-301-5	01	1	9811-9906	●
2	COVER; INL	8-94395-825-1	01	1	9907-0610		●
2	COVER; INL	8-97604-934-6	01	1	0611-0611			●	●
2	COVER; INL	8-98061-091-0	01	1	0612-			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9811-9906	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9907-0610		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0611-			●	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0611-			●	●
32	STUD; INL PIPE (E) M8X40 L=52	0-41010-840-0	02	1	0611-			●	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0611-			●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	9811-9906	●
32	STUD; INL PIPE (A) M8X25 L=37	9-04110-825-0	05	1	9907-0604		●
32	STUD; INL PIPE (A) M8X25 L=37	0-41010-825-0	05	1	0605-0610		●
32	STUD; INL PIPE (F) M6X30 L=38	0-41010-630-0	05	1	0611-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9811-9906	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9906	●
50	PIPE; INL (E)	8-94394-400-1	01	1	9811-9906	●
50	PIPE; INL (A)	8-94390-319-2	01	1	9907-0610		●
50	PIPE; INL (C)	8-97604-940-0	01	1	0611-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	9907-0610		●
50	PIPE; INL (D)	8-97607-412-2	01	1	0611-			●	●
53	BOLT; INL PIPE (D) M8X70 FLANGE	0-28050-870-0	02	1	0611-			●	●
53	BOLT; INL PIPE (E) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28680-835-0	01	1	9907-0512		●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0610		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28681-035-0	01	1	9907-0512		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-0610		●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0611-			●	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9811-9906	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	9907-0602		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	05	1	0603-0610		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	9811-9906	●
55	NUT; INL PIPE (B) M8 FLANGE	0-91150-208-0	01	1	9907-0602		●
55	NUT; INL PIPE (B) M8 FLANGE	0-91180-208-0	01	1	0603-0610		●
70	STUD; WATER PIPE M10X30 L=45	9-04411-030-0	02	1	9811-9906	●
167	PLUG; INL MANIF	1-09604-078-0	06	1	9811-9906	●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9811-9906	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	9811-9906	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9811-9812	●
200	BRACKET; AIR DUCT (B)	8-97600-201-0	01	1	9901-9906	●
200	BRACKET; AIR DUCT (B)	8-97600-384-0	01	1	9907-0010		●
200	BRACKET; AIR DUCT (B)	8-97601-818-0	01	1	0011-0610		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9811-9906	●
200	BRACKET; AIR DUCT (A)	8-94391-508-2	01	1	9907-9911		●
200	BRACKET; AIR DUCT (A)	8-97600-187-0	01	1	9912-0106		●
200	BRACKET; AIR DUCT (A)	8-97601-726-0	01	1	0107-0610		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9811-9906	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9907-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-0610		●
228	STUD; INL COVER M8X16 L=28	9-04110-816-0	06	1	9811-9906	●
228	STUD; INL COVER M8X16 L=28	9-04110-816-0	02	1	9907-0604		●
228	STUD; INL COVER M8X16 L=28	0-41010-816-0	02	1	0605-0610		●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	9811-9906	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9811-9906	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9907-0610		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-777-0	01	1	0611-			●	●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	9811-9906	●
341	BOLT; BRKT,INL COVER M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	9811-9906	●
353	PIPE; AIR,BOOST	8-94394-439-0	01	1	9811-9906	●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	9907-0610		●
363	BOLT; EYE	1-09675-184-0	01	1	9811-9906	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9811-9906	●
587	MOUNTING; INTAKE DUCT (C)	8-94395-966-0	13	1	9811-9906	●
587	MOUNTING; INTAKE DUCT (A)	8-94395-766-0	01	1	9907-0610		●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	9907-0610		●

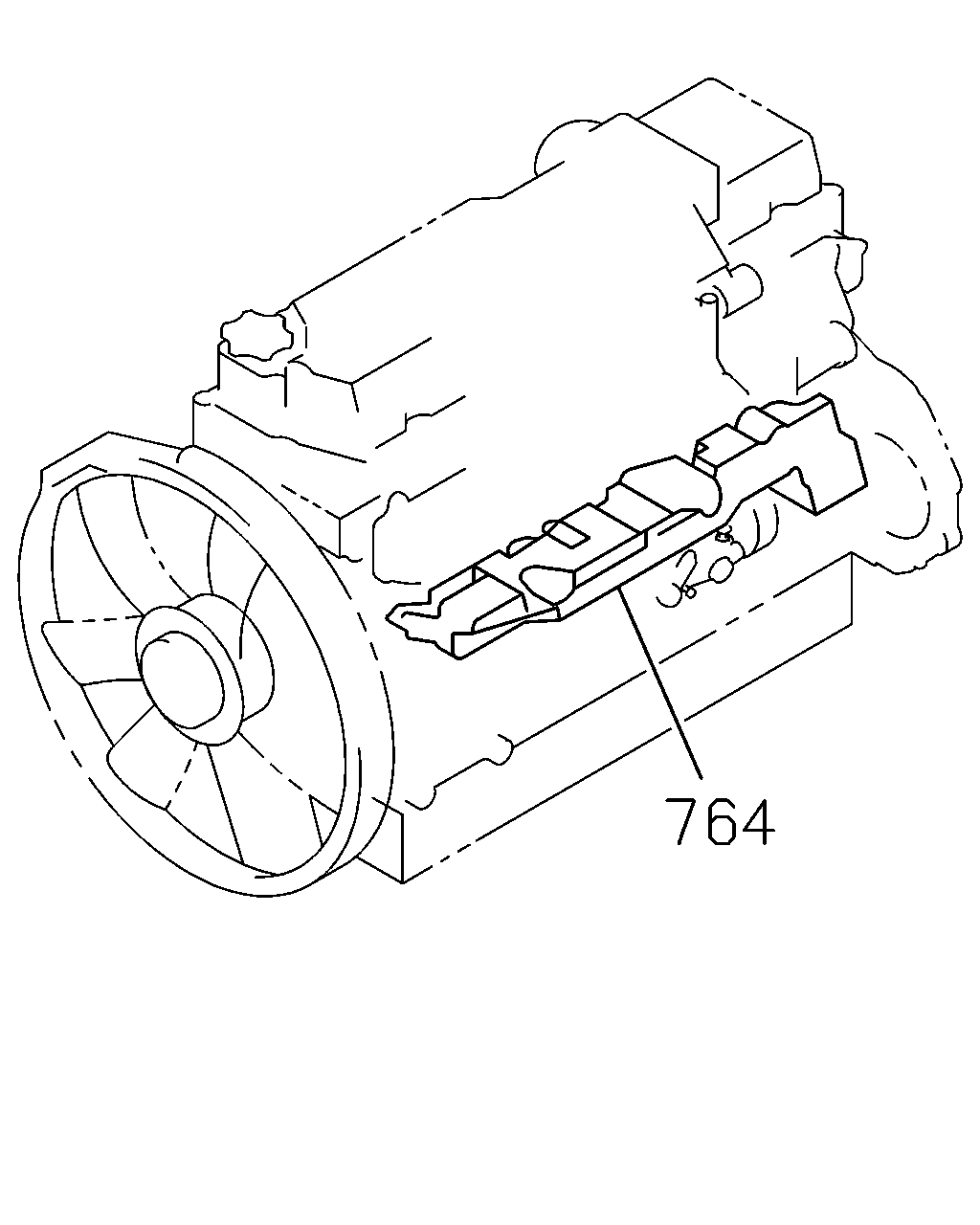

764

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	764	SPACER; INL COVER	8-98023-639-2	01	1	0611-			●	●

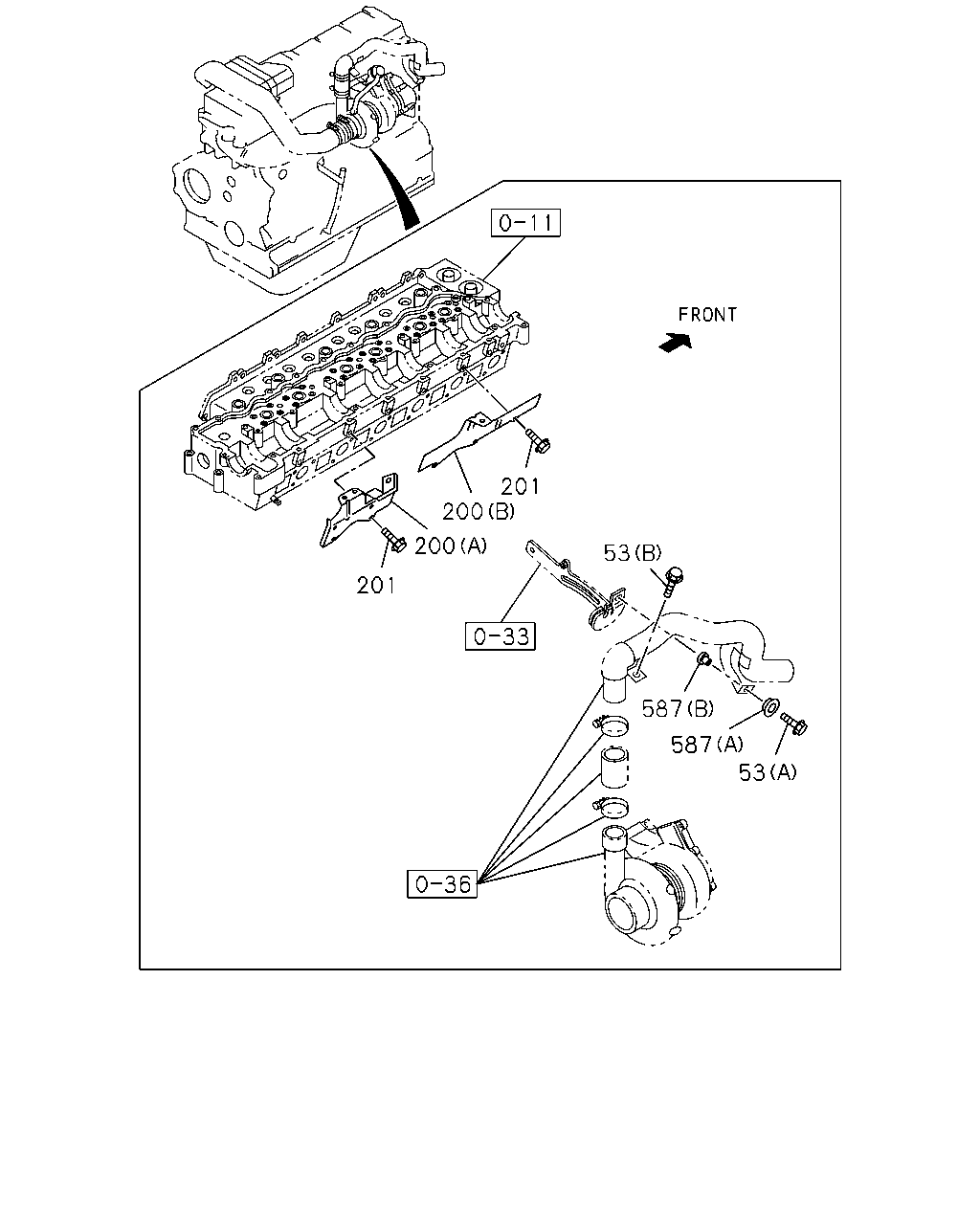

201 200 200 53 201 587 587 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	BOLT; INL PIPE (D) M8X70 FLANGE	0-28050-870-0	02	1	0611-			●	●
53	BOLT; INL PIPE (E) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28680-835-0	01	1	9907-0512		●
53	BOLT; INL PIPE (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0610		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28681-035-0	01	1	9907-0512		●
53	BOLT; INL PIPE (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-0610		●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0611-			●	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9811-9812	●
200	BRACKET; AIR DUCT (B)	8-97600-201-0	01	1	9901-9906	●
200	BRACKET; AIR DUCT (B)	8-97600-384-0	01	1	9907-0010		●
200	BRACKET; AIR DUCT (B)	8-97601-818-0	01	1	0011-0610		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9811-9906	●
200	BRACKET; AIR DUCT (A)	8-94391-508-2	01	1	9907-9911		●
200	BRACKET; AIR DUCT (A)	8-97600-187-0	01	1	9912-0106		●
200	BRACKET; AIR DUCT (A)	8-97601-726-0	01	1	0107-0610		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9811-9906	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9907-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-0610		●
587	MOUNTING; INTAKE DUCT (C)	8-94395-966-0	13	1	9811-9906	●
587	MOUNTING; INTAKE DUCT (A)	8-94395-766-0	01	1	9907-0610		●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	9907-0610		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
