◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#56667) — 654 parça

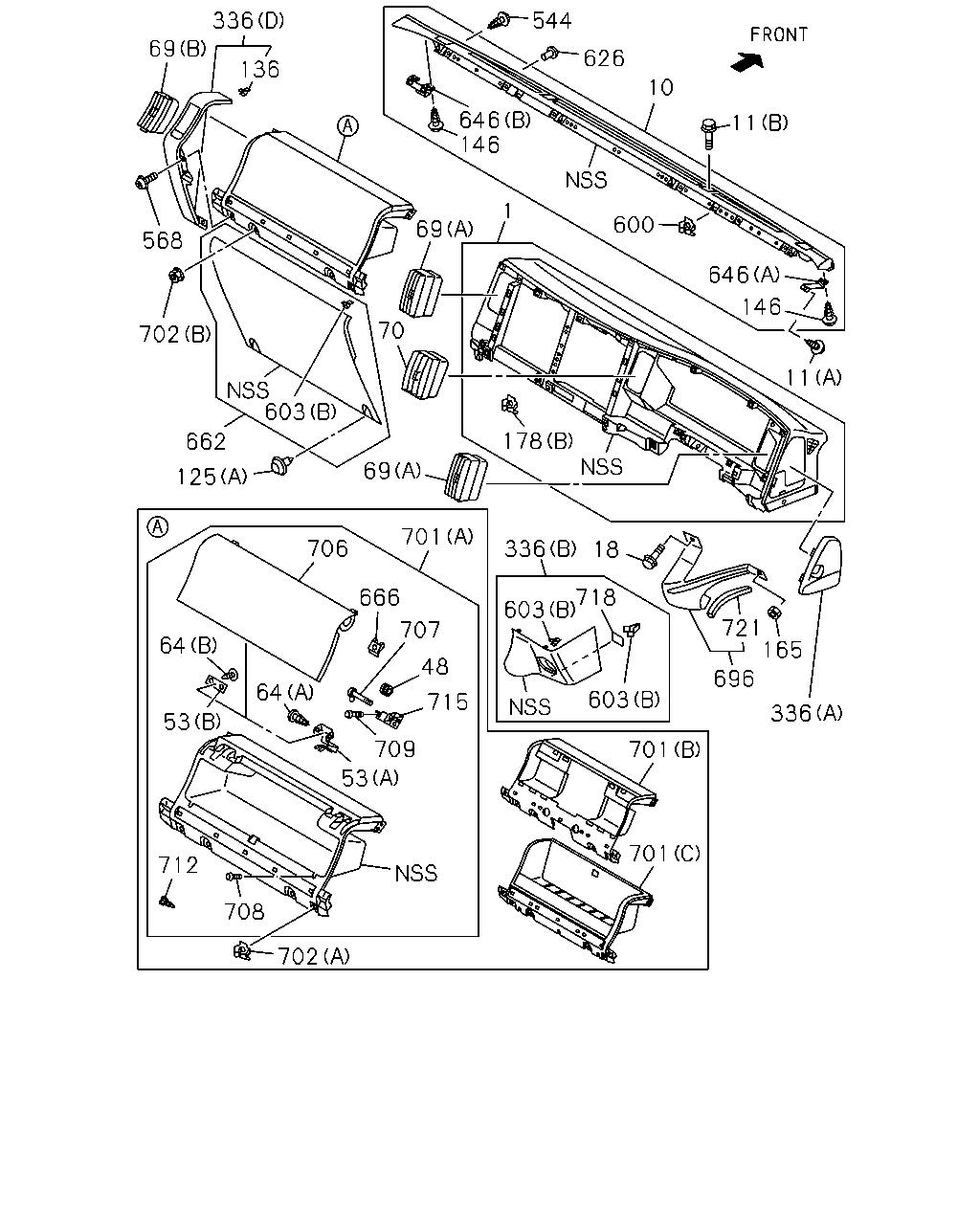

çizim 181825
336 136 69 568 702 662 125 603 69 70 69 1 178 146 646 544 10 626 11 146 646 600 11 165 721 696 336 18 718 603 336 603 701 701 701 706 666 707 48 715 709 53 702 708 712 53 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0712-1003 ● ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1004- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1004-1008 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0712-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0712-1003 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1004- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712-1003 ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1004- ● ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712-1003 ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1004- ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0712-1003 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1004-1005 ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1004-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1006-1011 ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1006-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1012-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0712-1003 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1004-1005 ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1004-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1006-1011 ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1006-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1012-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0805-1003 ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1004-1005 ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1004-1005 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1006-1011 ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1006-1011 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1012-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0805-1003 ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1004-1005 ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1004-1005 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1006-1011 ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1006-1011 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1012-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712-1003 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1004- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712-1003 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1004- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712-1003 ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1004- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1003 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1004-1007 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712-1003 ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1004- ● ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0712-1003 ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1004- ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1003 ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004- ● ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0712-1003 ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712-1003 ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712-1003 ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1004-1012 ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1004- ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1003 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004- ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-1003 ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ● ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0712-1003 ● ●
600 NUT; PANEL 8-98037-629-0 02 1 1004-1008 ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712-1003 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1004- ● ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0712-1003 ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1004- ● ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0712-1003 ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1004- ● ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0712-1003 ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1004- ● ● ●
662 COVER; LWR,INST PANEL
ACCESSORY SOCKET<KC5> GRAY 		8-97414-952-1 01 1 1004- ●
662 COVER; LWR,INST PANEL
EXC. ACCESSORY SOCKET<KC5> GRAY 		8-97407-429-3 01 1 1004- ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0712- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 0712-1003 ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1004-1005 ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1004-1005 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1006-1011 ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1006-1011 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1012-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1312- ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312- ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0712-1003 ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1004- ● ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97412-914-2 01 1 0712-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1006-1011 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97412-913-0 01 1 0712-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-4 01 1 0805-1003 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-4 01 1 1004-1005 ● ●
701 TRAY; INST
(A) GRAY 		8-97415-540-4 01 1 1004-1005 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-6 01 1 1006-1011 ● ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1006-1011 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-6 01 1 1012-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406- ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0712-1003 ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1004- ● ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0712-1003 ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1004- ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-372-2 01 1 0712-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0805-1003 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1004-1005 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1004-1005 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1006-1011 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1006-1011 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1012-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0712-1003 ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1004-1005 ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1004-1005 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1006-1011 ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1006-1011 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1012-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0712-1003 ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1004-1005 ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1004-1005 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1006-1011 ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1006-1011 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1012- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012- ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0712-1003 ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1004-1005 ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1004-1005 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1006-1011 ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1006-1011 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0712-1003 ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1004-1005 ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1004-1005 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1006-1011 ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1006-1011 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1012- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012- ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0712-1003 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1004-1005 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1004-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1006-1011 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1006-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1012-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0712-1003 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1004-1005 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1004-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1006-1011 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1006-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1012-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0712-1003 ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1004- ● ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0712-1003 ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1004- ● ● ●

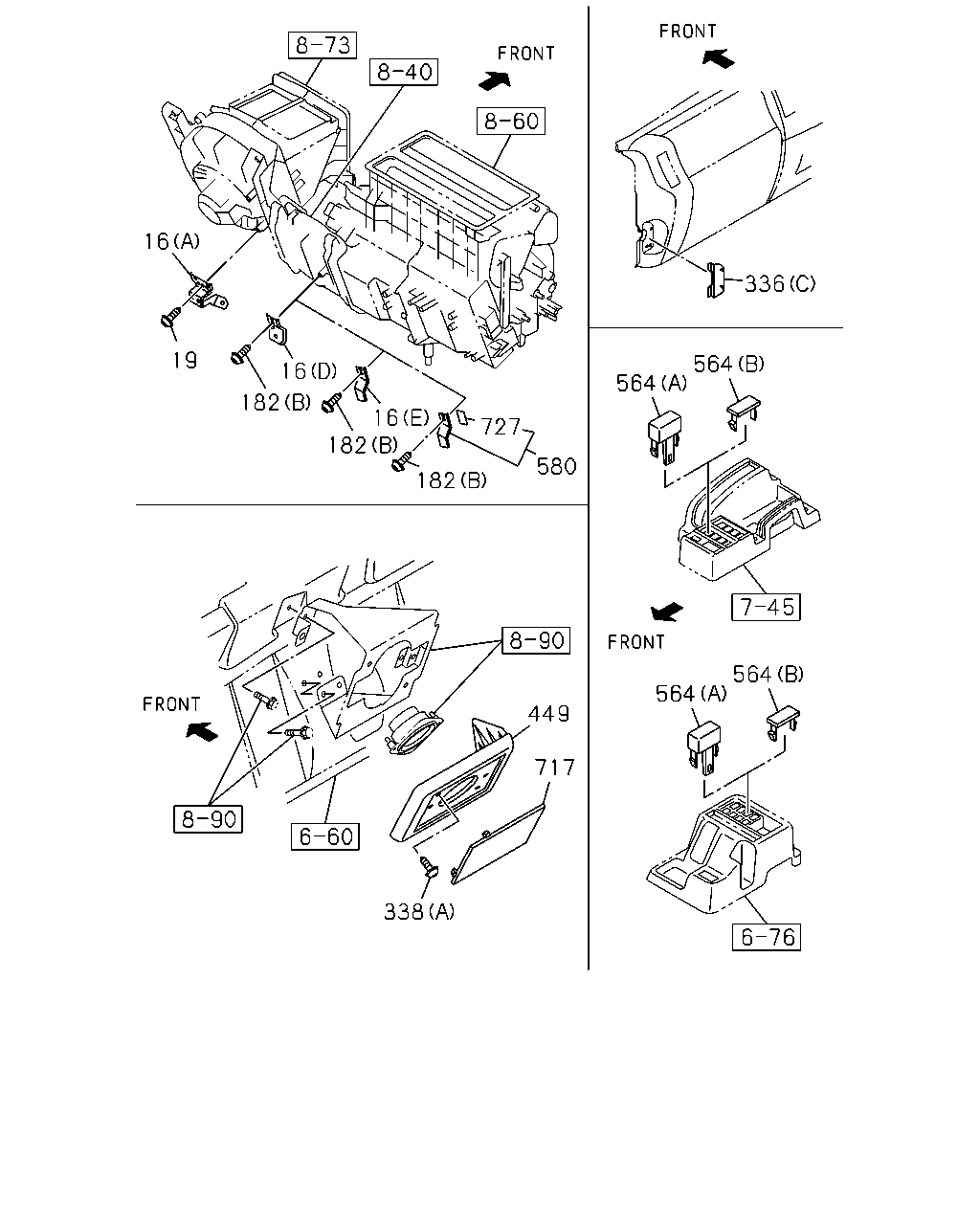

çizim 181836
16 336 19 564 16 564 182 16 182 727 580 182 564 564 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B C
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		8-98017-528-0 01 1 1004-1105 ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0712-0712 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0801-0803 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0804-0807 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0808-0811 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0812-1003 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0812-1003 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 0801-0803 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0804-0811 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 0812- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 0812- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1004- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1004- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1004- ● ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-0807 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-0811 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1004- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1004-1111 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-0811 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1004-1012 ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1004- ● ● ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004- ● ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0712- ● ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97043-732-1 06 1 0812-1003 ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97043-732-1 06 1 1004- ●
564 COVER; SW
(B) 		8-97043-732-1 06 1 1004- ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0712-0811 ● ●
564 COVER; SW
AUSTRALIA EQUIPMENT(B13) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0812- ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0812- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0712-0811 ● ●
564 COVER; SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0812- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0812- ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1106- ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0712- ● ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1106- ●
çizim 181847
336 136 69 568 702 662 603 125 579 146 646 544 626 10 11 11 146 646 600 1 338 356 69 70 178 18 721 165 696 336 701 603 603 718 336 69 701 706 64 53 712 708 702 53 64 666 707 48 715 709
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0712-1003 ● ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1004- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1004-1008 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0712-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0712-1003 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1004- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712-1003 ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1004- ● ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712-1003 ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1004- ● ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0712-1003 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1004-1005 ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1004-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1006-1011 ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1006-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1012-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0712-1003 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1004-1005 ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1004-1005 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1006-1011 ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1006-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1012-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0805-1003 ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1004-1005 ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1004-1005 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1006-1011 ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1006-1011 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1012-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0805-1003 ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1004-1005 ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1004-1005 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1006-1011 ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1006-1011 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1012-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712-1003 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1004- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712-1003 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1004- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712-1003 ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1004- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1003 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1004-1007 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712-1003 ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1004- ● ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0712-1003 ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1004- ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1003 ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004- ● ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0712-1003 ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712-1003 ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712-1003 ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1004-1012 ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1004- ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712-1003 ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1004- ● ● ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004- ● ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1003 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004- ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-1003 ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ● ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 1004- ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
600 NUT; PANEL 8-98037-629-0 02 1 0712-1003 ● ●
600 NUT; PANEL 8-98037-629-0 02 1 1004-1008 ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712-1003 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1004- ● ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0712-1003 ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1004- ● ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0712-1003 ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1004- ● ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0712-1003 ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1004- ● ● ●
662 COVER; LWR,INST PANEL
ACCESSORY SOCKET<KC5> GRAY 		8-97414-952-1 01 1 1004- ●
662 COVER; LWR,INST PANEL
EXC. ACCESSORY SOCKET<KC5> GRAY 		8-97407-429-3 01 1 1004- ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0712- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 0712-1003 ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1004-1005 ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1004-1005 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1006-1011 ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1006-1011 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1012-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1312- ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312- ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0712-1003 ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1004- ● ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97412-914-2 01 1 0712-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1006-1011 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97412-913-0 01 1 0712-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-4 01 1 0805-1003 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-4 01 1 1004-1005 ● ●
701 TRAY; INST
(A) GRAY 		8-97415-540-4 01 1 1004-1005 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-6 01 1 1006-1011 ● ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1006-1011 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-6 01 1 1012-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406- ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0712-1003 ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1004- ● ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0712-1003 ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1004- ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-372-2 01 1 0712-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0805-1003 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1004-1005 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1004-1005 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1006-1011 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1006-1011 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1012-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0712-1003 ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1004-1005 ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1004-1005 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1006-1011 ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1006-1011 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1012-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0712-1003 ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1004-1005 ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1004-1005 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1006-1011 ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1006-1011 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1012- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012- ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0712-1003 ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1004-1005 ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1004-1005 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1006-1011 ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1006-1011 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0712-1003 ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1004-1005 ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1004-1005 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1006-1011 ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1006-1011 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1012- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012- ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0712-1003 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1004-1005 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1004-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1006-1011 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1006-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1012-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0712-1003 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1004-1005 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1004-1005 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1006-1011 ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1006-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1012-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0712-1003 ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1004- ● ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0712-1003 ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1004- ● ● ●

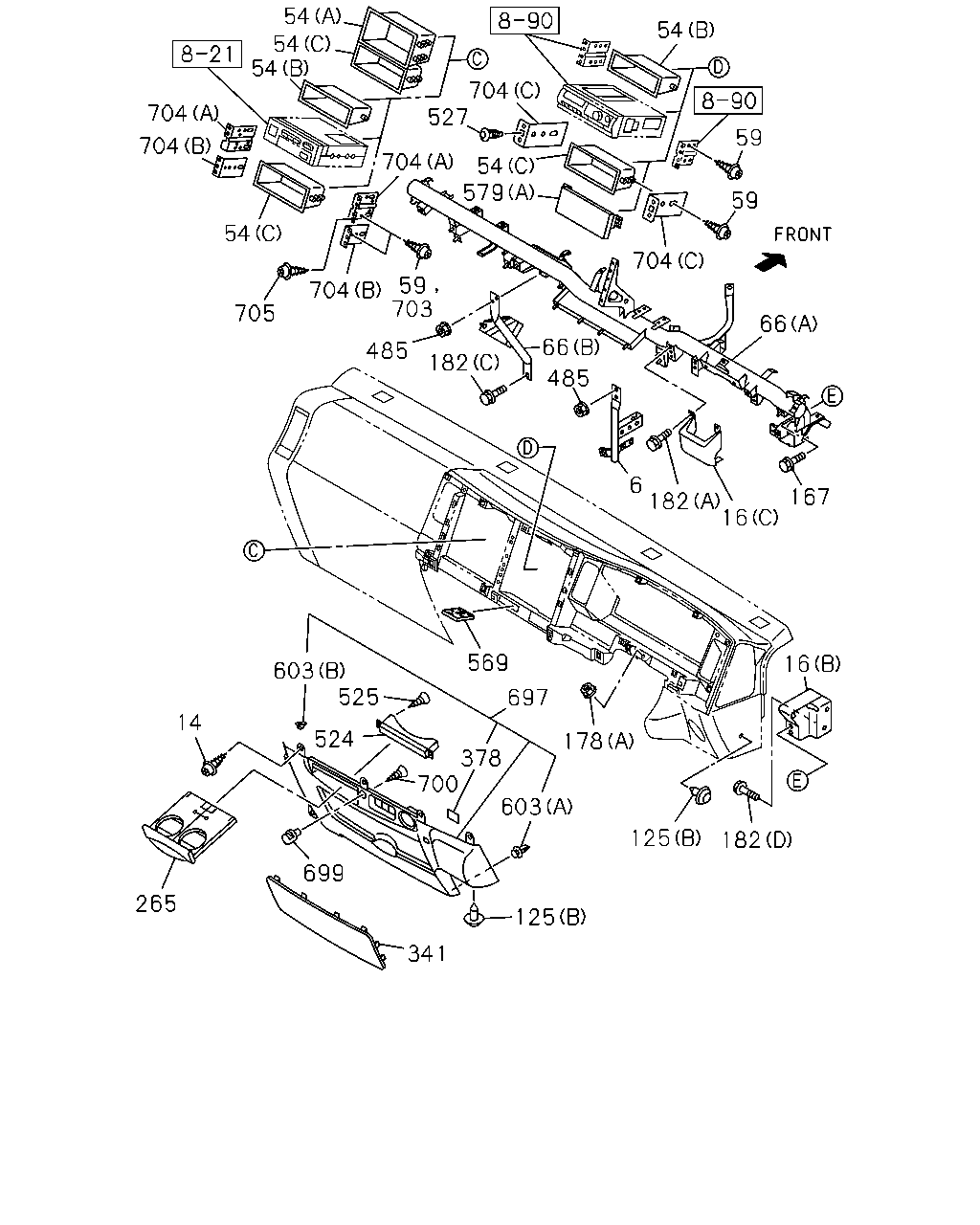

çizim 181853
54 54 54 704 704 54 705 704 704 527 704 54 54 579 59 703 485 182 66 485 6 182 16 167 66 704 59 59 265 14 603 525 524 699 341 125 603 700 378 125 182 16 178 697 569
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0712-1003 ● ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1004-1109 ● ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712-1003 ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		8-98017-528-0 01 1 1004-1105 ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0712-0712 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0801-0803 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0804-0807 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0808-0811 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0812-1003 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0812-1003 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1004- ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 0801-0803 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0804-0811 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 0812- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 0812- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1004- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1004- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712-1003 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1004- ● ● ●
54 POCKET; CENTER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0812-1003 ●
54 POCKET; CENTER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0712-0712 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0801-0803 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0801-0803 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0811 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0811 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0812-1003 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0812-1003 ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0812-1003 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1004- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
EXC. LAMPS EXP PACKAGE<WL5> (C) H=69.8 BLACK 		8-97408-865-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712-0811 ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712-0811 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0812-1003 ● ●
54 POCKET; CENTER CLUSTER
AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0812-1003 ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> EXC. AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0812-1003 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1004- ● ● ●
54 POCKET; CENTER CLUSTER
AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> EXC. AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 1004- ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1004- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0803 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0803 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0803 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0803 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1003 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1003 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1003 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1003 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-1003 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ● ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ●
59 SCREW; CLUSTER POCKET
EXC. LAMPS EXP PACKAGE<WL5> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98154-701-1 01 1 1004-1111 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97585-580-2 01 1 0911- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0712-0909 ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910-0910 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98151-167-0 01 1 0911-1003 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98151-167-0 01 1 1004- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1004- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-97585-566-9 01 1 0712-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98170-399-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98240-604-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98009-970-9 01 1 0712-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98170-401-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98240-605-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1003 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1004-1007 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712-1003 ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1004- ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0712-1003 ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1004- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712-1003 ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1004- ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712-1003 ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1004- ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1004- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1004-1111 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-0811 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0812-1003 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712-1003 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1004- ● ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0712-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-1003 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1004- ● ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0712-1003 ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1004-1010 ● ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712-1003 ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1004- ● ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0712-1003 ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1004- ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1003 ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004- ● ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0712-0803 ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0804-0811 ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0812-1003 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0812-1003 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1004- ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1004- ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1004- ●
569 HOLDER; CARD 8-97410-276-1 01 1 0712-1003 ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1004- ● ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 1004- ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712-1003 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1004- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712-1003 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1004- ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0712-1003 ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1004-1010 ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712-1003 ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1004- ● ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-1003 ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004- ● ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0712-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801-1003 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1004- ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98073-822-0 02 1 0712-0712 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0801-0803 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0804-0811 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0812-1003 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 0812-1003 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1004- ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 1004- ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1004- ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0712-1003 ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1004- ● ●
704 BRACKET; CENTER POCKET
EXC. LAMPS EXP PACKAGE<WL5> (B) 		8-97585-616-2 02 1 1004- ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0712-1003 ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1004- ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0712-0803 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-0811 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0812-1003 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0812-1003 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1004- ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1004- ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1004- ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0712-0906 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1003 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1003 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1004- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
