Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

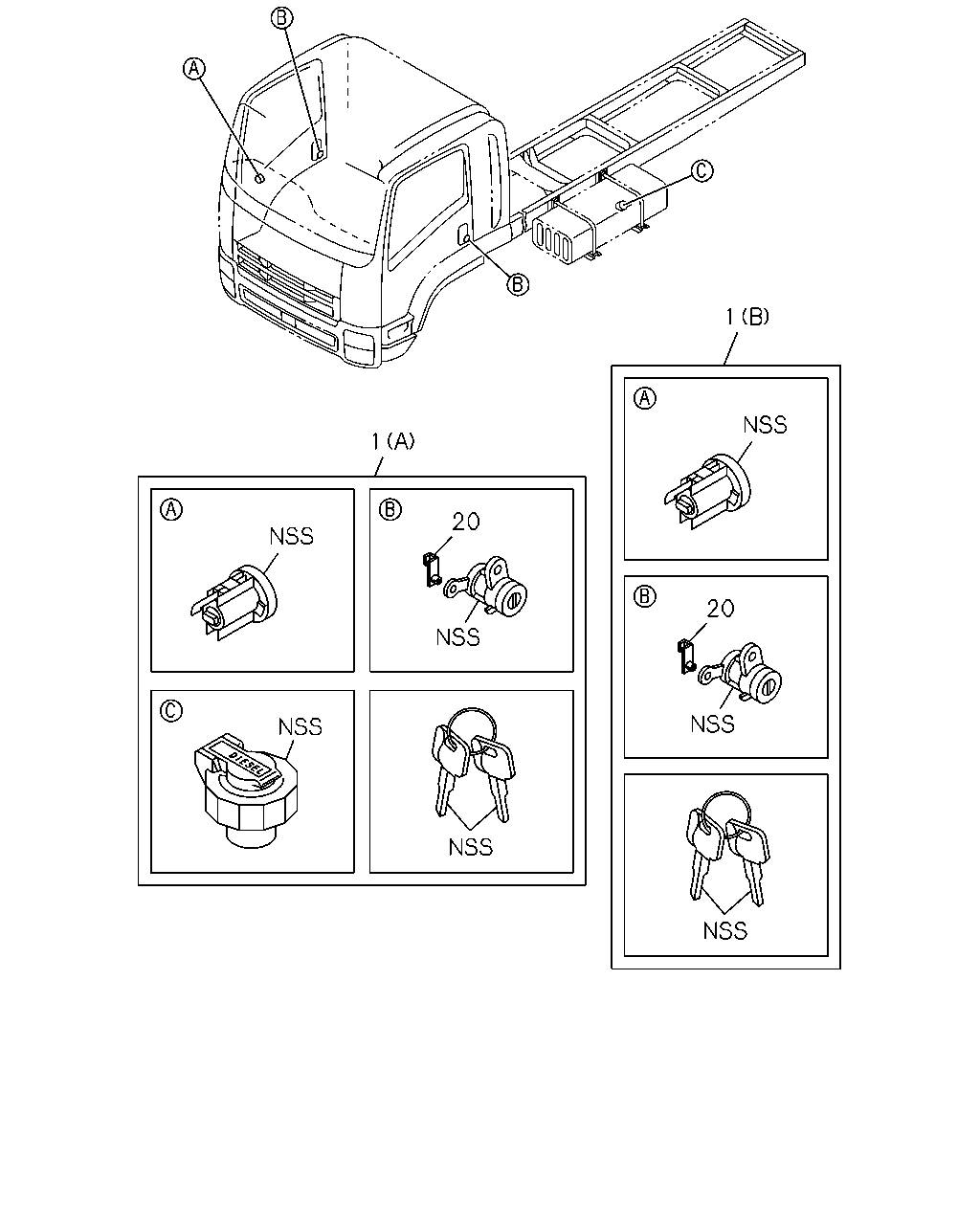

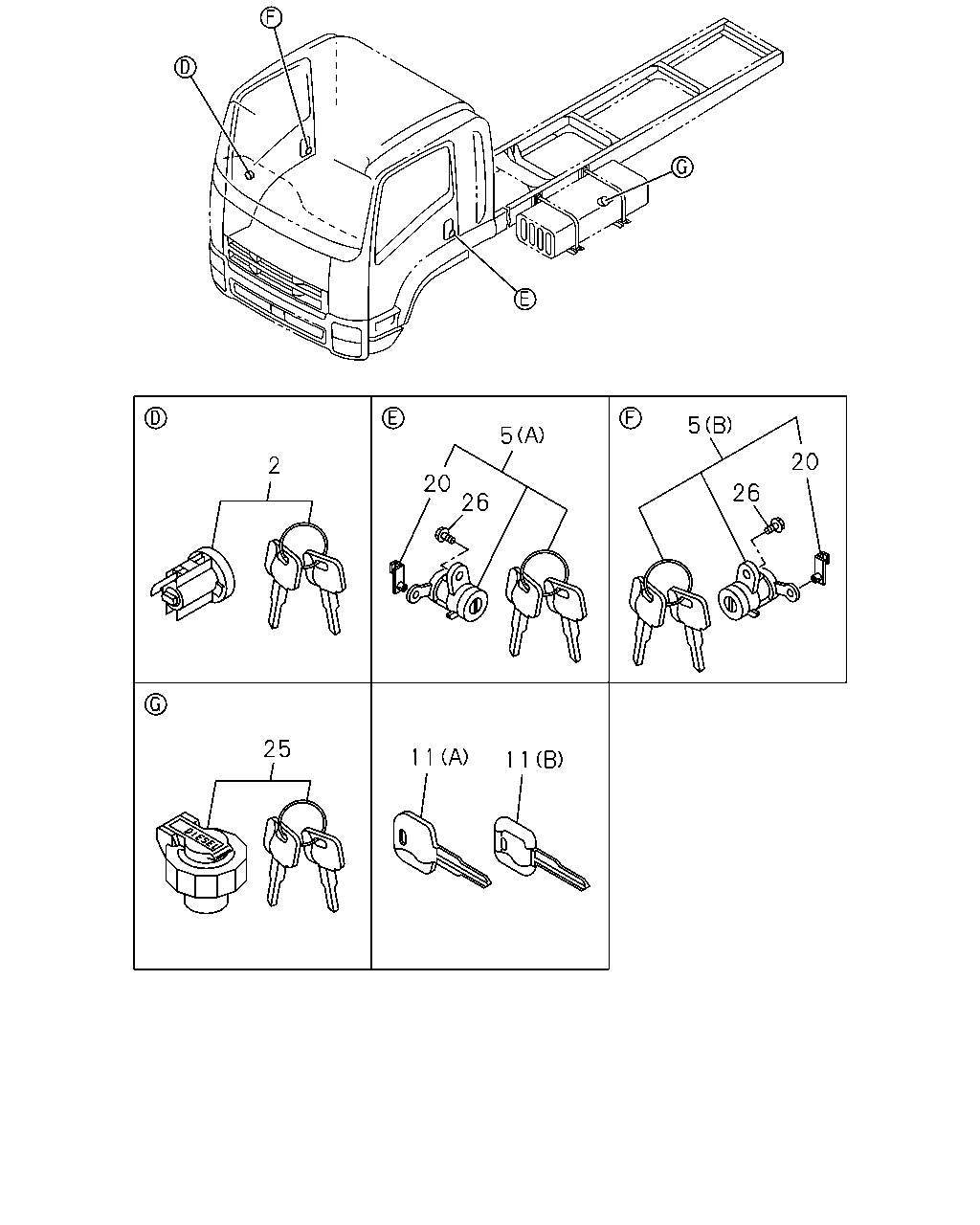

7-30 — LOCK CYLINDER SET (#56666) — 107 parça

1 1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CYLINDER SET; CAR LOCK EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B)	8-98166-646-0	01	1	1007-1203	●
1	CYLINDER SET; CAR LOCK EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98166-646-0	01	1	1007-1203		●
1	CYLINDER SET; CAR LOCK EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B)	8-98201-232-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98201-232-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98166-974-0	01	1	1002-1003	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98166-974-0	01	1	1004-1006	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98166-974-0	01	1	1004-1006		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98166-647-0	01	1	1007-1203	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98166-647-0	01	1	1007-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98201-233-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98201-233-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98088-954-0	01	1	0812-0911	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98145-979-0	01	1	0912-1001	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (A)	8-98145-979-0	01	1	1002-1003	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (A)	8-98145-979-0	01	1	1004-1203	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98145-979-0	01	1	1004-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (A)	8-98201-216-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98201-216-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B)	8-98056-003-0	01	1	0812-1001	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>, EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (B)	8-98056-003-0	01	1	1002-1003	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>, EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (B)	8-98056-003-0	01	1	1004-1203	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>, EQUIPMENT-ADDITIONAL KEY<Z1V> (B)	8-98056-003-0	01	1	1004-1203		●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>, EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC> (B)	8-98201-161-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP KEY LOCK<N05>, EQUIPMENT-ADDITIONAL KEY<Z1V> (B)	8-98201-161-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK (A)	8-98029-406-1	01	1	0712-0804	●		●
1	CYLINDER SET; CAR LOCK (A)	8-98088-949-0	01	1	0805-0811	●		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> (A)	8-98088-949-0	01	1	0812-0911	●
1	CYLINDER SET; CAR LOCK (A)	8-98088-949-0	01	1	0812-0911			●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> (A)	8-98145-977-0	01	1	0912-1001	●
1	CYLINDER SET; CAR LOCK (A)	8-98145-977-0	01	1	0912-1001			●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98145-977-0	01	1	1002-1203	●
1	CYLINDER SET; CAR LOCK (A)	8-98145-977-0	01	1	1002-1203			●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98201-214-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK (A)	8-98201-214-0	01	1	1204-			●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0712-1001	●		●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1002-1006	●	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-181-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1007-		●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0712-1001	●		●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1002-1006	●	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-182-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1007-		●	●

5 5 20 2 20 26 26 25 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BARREL ASM; W/KEY,STRG LOCK EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	0812-1001	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	1002-1003	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	1002-1003	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	1004-1006	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	1004-1006	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-148-0	01	1	1004-1006		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-148-0	01	1	1004-1006		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	1007-1203	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-148-0	01	1	1007-1203		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. IMMOBILIZER SYSTEM<7KC>	8-98201-342-0	01	1	1204-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1204-		●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0712-0811	●		●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC>	8-98055-147-0	01	1	0812-1001	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0812-1001			●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-147-0	01	1	1002-1203	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	1002-1203			●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98201-341-0	01	1	1204-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-			●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	0712-1001	●		●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1002-1006	●	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (B)	8-98055-149-0	01	1	1007-	●
5	CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-98055-149-0	01	1	1007-	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1007-		●	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	0712-1001	●		●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1002-1006	●	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98055-150-0	01	1	1007-	●
5	CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98055-150-0	01	1	1007-	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1007-		●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0712-0811	●		●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER	8-98055-168-0	AR	1	0812-1001	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0812-1001			●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (B) IMMOBILIZER	8-98055-168-0	AR	1	1002-	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	1002-			●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	0712-1001	●		●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	1002-1006	●	●	●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (A)	8-98055-170-0	AR	1	1007-	●
11	KEY; BLANK EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98055-170-0	AR	1	1007-	●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	1007-		●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0712-1001	●		●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1002-1006	●	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-181-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1007-		●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0712-1001	●		●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1002-1006	●	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98055-182-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	1007-	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1007-		●	●
25	CAP; FUEL TANK,W/KEY	8-98033-157-0	01	1	0712-0804	●		●
25	CAP; FUEL TANK,W/KEY	8-98088-982-0	01	1	0805-0811	●		●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05>	8-98088-982-0	01	1	0812-0911	●
25	CAP; FUEL TANK,W/KEY	8-98088-982-0	01	1	0812-0911			●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05>	8-98146-010-0	01	1	0912-1001	●
25	CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	0912-1001			●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC>	8-98146-010-0	01	1	1002-1003	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98146-010-0	01	1	1002-1003	●
25	CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1002-1003			●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC>	8-98146-010-0	01	1	1004-	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>	8-98146-010-0	01	1	1004-	●
25	CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1004-			●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05>	8-98146-010-0	01	1	1004-		●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0712-1003	●		●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1004-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
