13 |

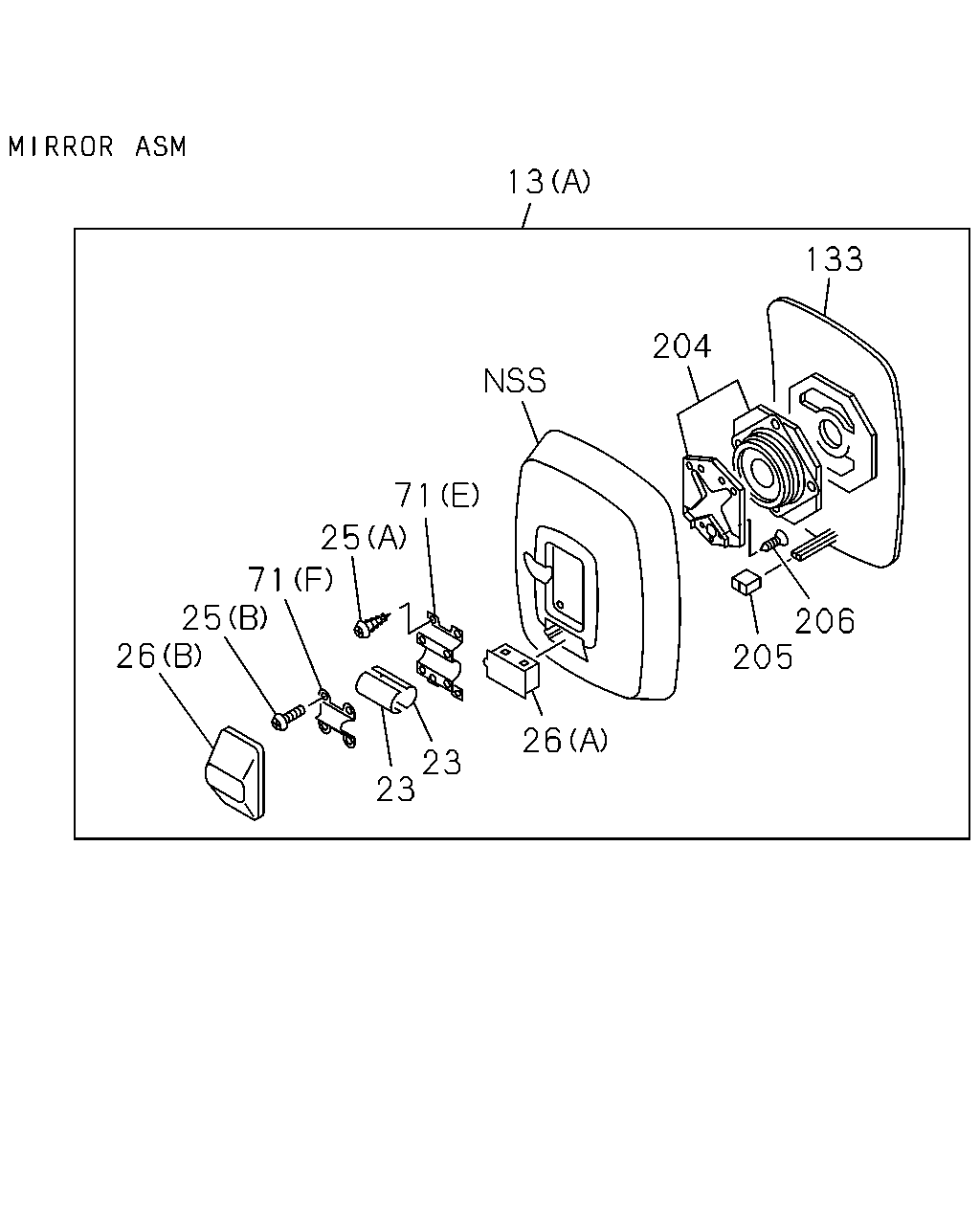

MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
1-71707-100-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
1-71707-101-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),
MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-991-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-991-1 |
01 |
1 |
1001-1003 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-991-1 |
01 |
1 |
1004- |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(B)
|
8-98055-991-1 |
01 |
1 |
1004- |
|
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),
MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-992-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-992-1 |
01 |
1 |
1001-1003 |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1)
(B)
|
8-98055-992-1 |
01 |
1 |
1004- |
● |
|
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(B)
|
8-98055-992-1 |
01 |
1 |
1004- |
|
● |
|
| |
21 |
NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M5
|
1-09984-124-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
21 |
NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
M5
|
1-09984-124-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0712-1003 |
● |
|
● |
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1004- |
● |
● |
● |
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
|
1-71797-879-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
1-71797-880-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-806-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98031-806-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-806-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-806-0 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-806-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-805-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98031-805-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-805-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-805-0 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(C)
|
8-98031-805-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
30 |

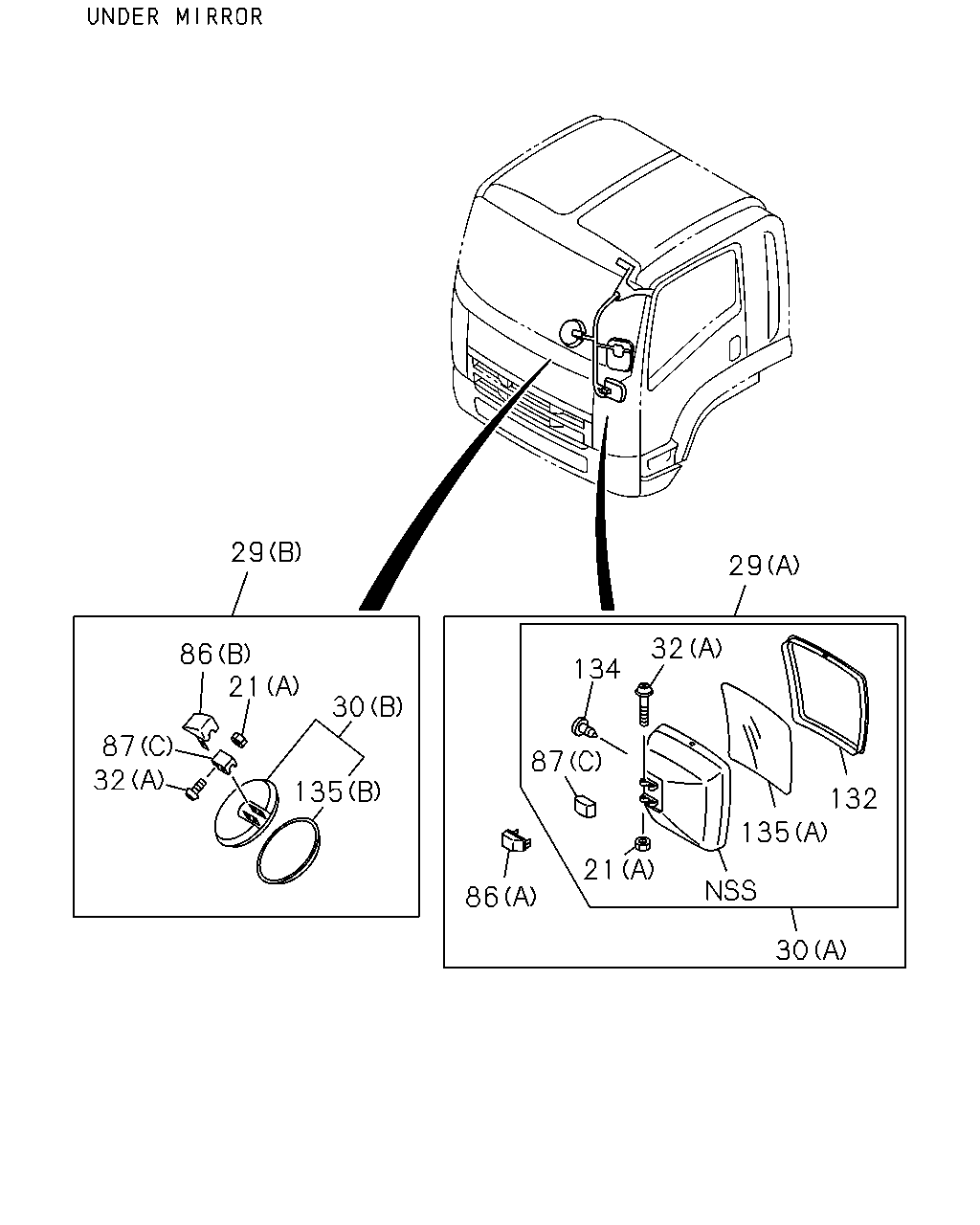

MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-591-1 |
01 |
1 |
0812-0812 |
● |
|
|
| |
30 |
MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
|
1-71798-591-1 |
01 |
1 |
0901-0912 |
● |
|
|
| |
30 |
MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71798-592-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98055-994-0 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98055-994-0 |
01 |
1 |
1004-1504 |
● |
● |
● |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98309-725-0 |
01 |
1 |
1505- |
● |
● |
● |
| |
32 |
SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
32 |
SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
0712-1003 |
● |
|
● |
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
1004- |
● |
● |
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98067-514-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98067-514-1 |
01 |
1 |
1001-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-180-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98067-515-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98067-515-1 |
01 |
1 |
1001-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-181-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98091-456-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98083-831-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98060-215-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98060-215-1 |
01 |
1 |
1001-1003 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98060-215-1 |
01 |
1 |
1004-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98060-215-1 |
01 |
1 |
1004-1202 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-194-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98166-194-0 |
01 |
1 |
1203- |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98060-216-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98060-216-1 |
01 |
1 |
1001-1003 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98060-216-1 |
01 |
1 |
1004-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98060-216-1 |
01 |
1 |
1004-1202 |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-195-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98166-195-0 |
01 |
1 |
1203- |
|
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98075-060-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98075-060-1 |
01 |
1 |
1001-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-206-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR
VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98075-061-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98075-061-1 |
01 |
1 |
1001-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98166-207-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-055-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-055-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-055-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98166-185-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98166-185-0 |
01 |
1 |
1203- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-054-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-054-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98075-054-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98166-184-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98166-184-0 |
01 |
1 |
1203- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-779-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-779-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-779-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-201-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-201-0 |
01 |
1 |
1203- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-778-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-778-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-778-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-200-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-200-0 |
01 |
1 |
1203- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-069-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-069-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-069-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-213-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-213-0 |
01 |
1 |
1203- |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-068-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-068-0 |
01 |
1 |
0812-1202 |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-068-0 |
01 |
1 |
0812-1202 |
|
|
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-212-0 |
01 |
1 |
1203- |
● |
|
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-212-0 |
01 |
1 |
1203- |
|
|
● |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0712-1003 |
● |
|
● |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1004- |
● |
● |
● |
| |
63 |
NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M14 CAP NUT
|
8-98041-311-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
63 |
NUT; STAY
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808-0811 |
● |
|
● |
| |
63 |
NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
63 |
NUT; STAY
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0812-0912 |
|
|
● |
| |
63 |
NUT; STAY
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
63 |
NUT; STAY
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1004- |
● |
● |
● |
| |
66 |
WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
ID=14.5 OD=30
|
9-09851-946-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0712-0811 |
● |
|
● |
| |
66 |
WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0812-0912 |
● |
|
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0812-0912 |
|
|
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1001-1003 |
● |
|
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1004- |
● |
● |
● |
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
05 |
1 |
0712-0805 |
● |
|
● |
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0806-1003 |
● |
|
● |
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1004- |
● |
● |
● |
| |
69 |
NUT; CAP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
69 |
NUT; CAP
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0712-0807 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(E)
|
1-71797-877-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(F)
|
1-71797-878-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(G)
|
8-98040-021-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(H)
|
8-98040-022-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(I)
|
8-98040-543-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(D)
|
8-98039-277-1 |
02 |
1 |
0712-0811 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(D)
|
8-98039-277-2 |
02 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(D)
|
8-98039-277-2 |
02 |
1 |
0812-0912 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(D)
|
8-98039-277-2 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(D)
|
8-98039-277-2 |
02 |
1 |
1004-1202 |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR -
O/SIDE RR VIEW,HEATED<7SV>
(D)
|
8-98039-277-2 |
02 |
1 |
1203- |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98031-794-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98031-793-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
|
8-98060-240-0 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
|
8-98060-240-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98092-492-3 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98092-492-3 |
01 |
1 |
1004- |
● |
● |
● |
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98116-604-0 |
01 |
1 |
1203- |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98116-604-0 |
01 |
1 |
1203- |
|
● |
|
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98116-605-0 |
01 |
1 |
1203- |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98116-605-0 |
01 |
1 |
1203- |
|
● |
|
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(E)
|
8-98040-351-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(F)
|
8-98040-353-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(G)
|
8-98040-535-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(H)
|
8-98040-537-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98101-865-0 |
01 |
1 |
0805-0811 |
● |
|
● |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
|
8-98101-865-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98101-865-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
72 |
SHEET
(B)
|
8-98101-865-0 |
01 |
1 |
1001-1202 |
● |
● |
● |
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98101-865-0 |
01 |
1 |
1203- |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98101-865-0 |
01 |
1 |
1203- |
|
|
● |
| |
72 |
SHEET
(B)
|
8-98080-418-0 |
02 |
1 |
0712-0804 |
● |
|
● |
| |
72 |
SHEET
(B)
|
8-98101-864-0 |
01 |
1 |
0805-0811 |
● |
|
● |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
|
8-98101-864-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98101-864-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
72 |
SHEET
(B)
|
8-98101-864-0 |
01 |
1 |
1001-1202 |
● |
● |
● |
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98101-864-0 |
01 |
1 |
1203- |
● |
|
|
| |
72 |
SHEET
(B)
|
8-98101-864-0 |
01 |
1 |
1203- |
|
|
● |
| |
72 |
SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98031-797-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
72 |
SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
72 |
SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
72 |
SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98031-796-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
72 |
SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
0812-0912 |
|
|
● |
| |
72 |
SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
72 |
SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98060-245-1 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98060-245-1 |
01 |
1 |
1004- |
● |
● |
● |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-776-0 |
01 |
1 |
0712-1003 |
● |
|
● |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-776-0 |
01 |
1 |
1004- |
● |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(E)
|
8-98040-542-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(C)
|
8-98040-545-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(D)
|
8-98040-546-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0812-0812 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0901-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-652-1 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(F)
|
8-98031-803-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(F)
|
8-98031-802-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
87 |
SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(C)
|
1-71737-646-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
87 |
SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(C)
|
1-71737-646-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
0712-0811 |
● |
|
● |
| |
87 |
SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98063-786-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
0812-0912 |
|
|
● |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
1004- |
● |
● |
● |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
0712-0811 |
● |
|
● |
| |
87 |
SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
|
8-98063-789-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
0812-0912 |
|
|
● |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
1004- |
● |
● |
● |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M8X26 W/PL WASHER
|
8-98067-249-2 |
10 |
1 |
0812-0912 |
● |
|
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0808-0811 |
● |
|
● |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0812-0912 |
● |
|
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0812-0912 |
|
|
● |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
1001-1003 |
● |
|
● |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
1004- |
● |
● |
● |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
0712-0811 |
● |
|
● |
| |
96 |
CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
|
8-98080-173-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
0812-0912 |
|
|
● |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
1004- |
● |
● |
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
ID=10
|
1-09985-180-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0812-0912 |
● |
|
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0712-0811 |
● |
|
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0812-0912 |
● |
|
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0812-0912 |
|
|
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1001-1003 |
● |
|
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1004- |
● |
● |
● |
| |
145 |
NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M10 CAP NUT
|
1-09984-134-0 |
03 |
1 |
0812-0912 |
● |
|
|
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0712-0811 |
● |
|
● |
| |
145 |
NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0812-0912 |
● |
|
|
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0812-0912 |
|
|
● |
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1001-1003 |
● |
|
● |
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1004- |
● |
● |
● |
| |
174 |
HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98136-172-0 |
02 |
1 |
0902- |
● |
|
|
| |
174 |
HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
8-98136-172-0 |
02 |
1 |
0902- |
|
|
● |
| |
174 |
HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98137-139-0 |
02 |
1 |
0902- |
● |
|
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98137-139-0 |
02 |
1 |
0902- |
|
|
● |
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-98047-368-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98047-367-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0712-0811 |
● |
|
● |
| |
185 |
BOLT; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0812-0912 |
● |
|
|
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0812-0912 |
|
|
● |
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1001-1003 |
● |
|
● |
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1004-1202 |
● |
● |
● |
| |
185 |
BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR -
O/SIDE RR VIEW,HEATED<7SV>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1203- |
● |
|
● |
| |
185 |
BOLT; BRKT
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0712-0807 |
● |
|
● |
| |
220 |
HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-94479-375-0 |
02 |
1 |
0902-1003 |
● |
|
|
| |
220 |
HOLDER; CONNECTOR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-94479-375-0 |
02 |
1 |
0902-1003 |
|
|
● |
| |
220 |
HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-94479-375-0 |
02 |
1 |
1004- |
● |
|
|
| |
220 |
HOLDER; CONNECTOR
(B)
|
8-94479-375-0 |
02 |
1 |
1004- |
|
|
● |
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-94447-536-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
8-94447-536-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
307 |
STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
|
8-98063-785-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
0712-0811 |
● |
|
● |
| |
307 |
STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
|
8-98063-784-2 |
01 |
1 |
0812-0912 |
● |
|
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
0812-0912 |
|
|
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
1001-1003 |
● |
|
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
1004- |
● |
● |
● |
| |
313 |
CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13)
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-94479-370-0 |
02 |
1 |
0902-1003 |
● |
|
|
| |
313 |
CONNECTOR; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR
MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-94479-370-0 |
02 |
1 |
0902-1003 |
|
|
● |
| |
313 |
CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-94479-370-0 |
02 |
1 |
1004- |
● |
|
|
| |
313 |
CONNECTOR; MIRROR
(B)
|
8-94479-370-0 |
02 |
1 |
1004- |
|
|
● |
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
(A)
|
8-94447-532-0 |
01 |
1 |
0812-0912 |
● |
|
|
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
8-94447-532-0 |
01 |
1 |
0812-0912 |
● |
|
|
