◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#56664) — 23 parça

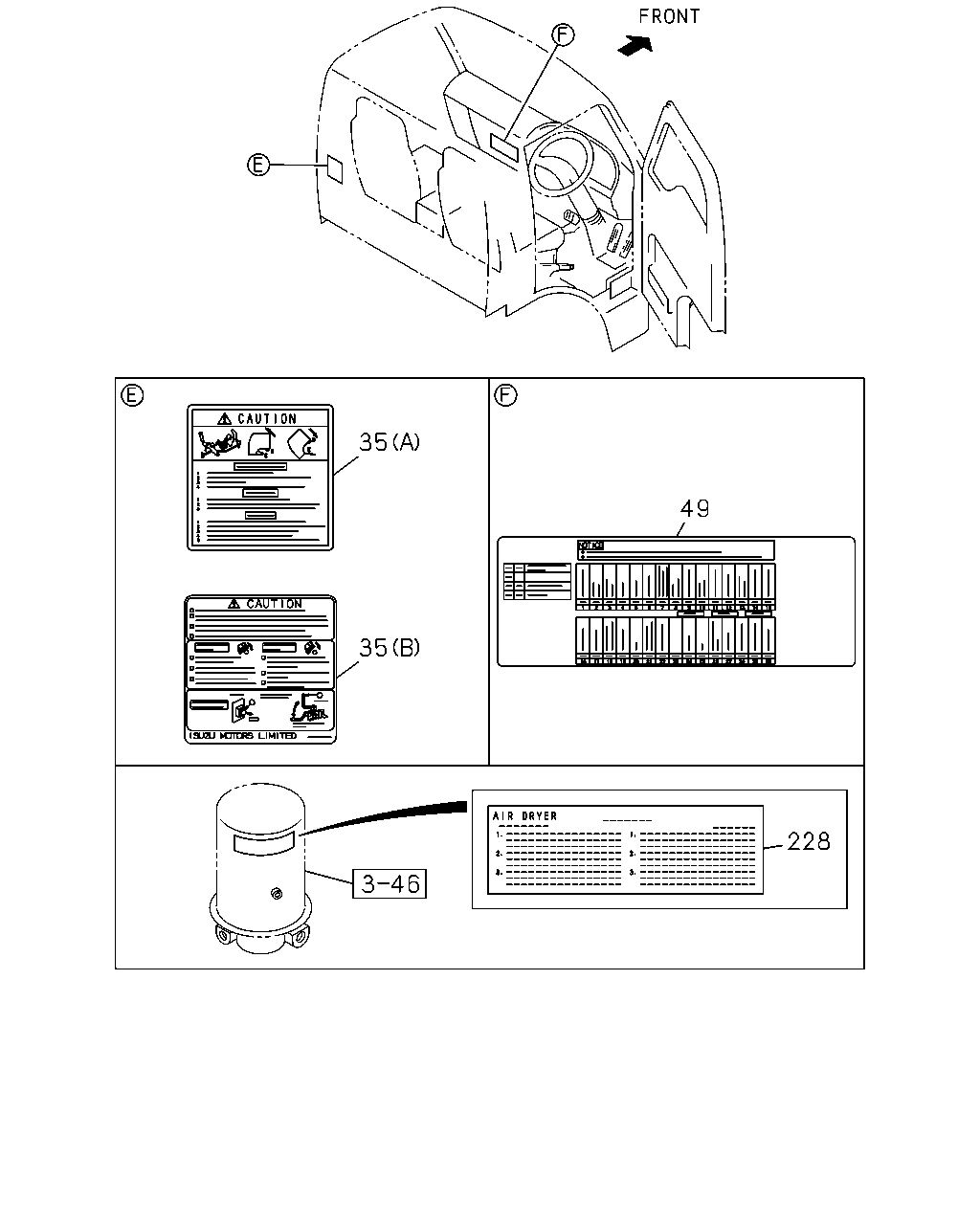

çizim 181795
35 49 35 228
BalonParca AdiParca NoAdetTipApplied Date A B C
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 0712-1003 ●
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1004- ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98017-667-1 01 1 0712-0803 ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 0804- ●
49 PLATE; CAUTION,FUSE BOX
LAMPS EXP PACKAGE<WL5> 		8-98138-599-1 01 1 1004- ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0712-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806-1003 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1004- ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. LAMPS EXP PACKAGE<WL5> 		8-98122-353-0 01 1 1004- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0712-1001 ● ●

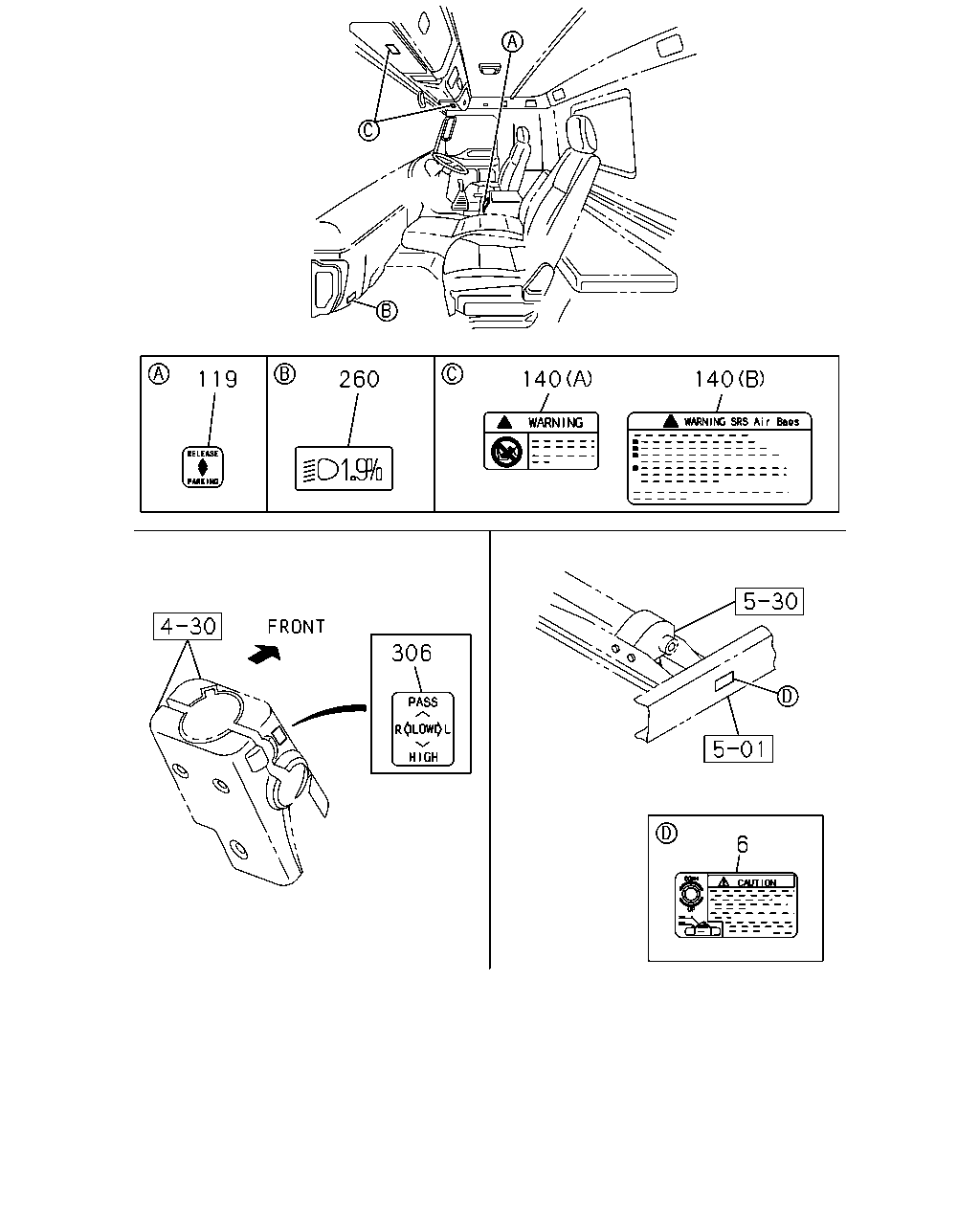

çizim 181814
119 260 140 140 306 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0712-1003 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1004- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1004- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0712-0811 ● ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0812- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0812- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. EURO4 SPECIFICATION<NT4> (B) 		8-98139-964-0 01 1 0812- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98080-839-0 01 1 0712-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0712-1003 ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1004- ● ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0712-1003 ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
