6-90 — REAR BUMPER (#56662) — 121 parça

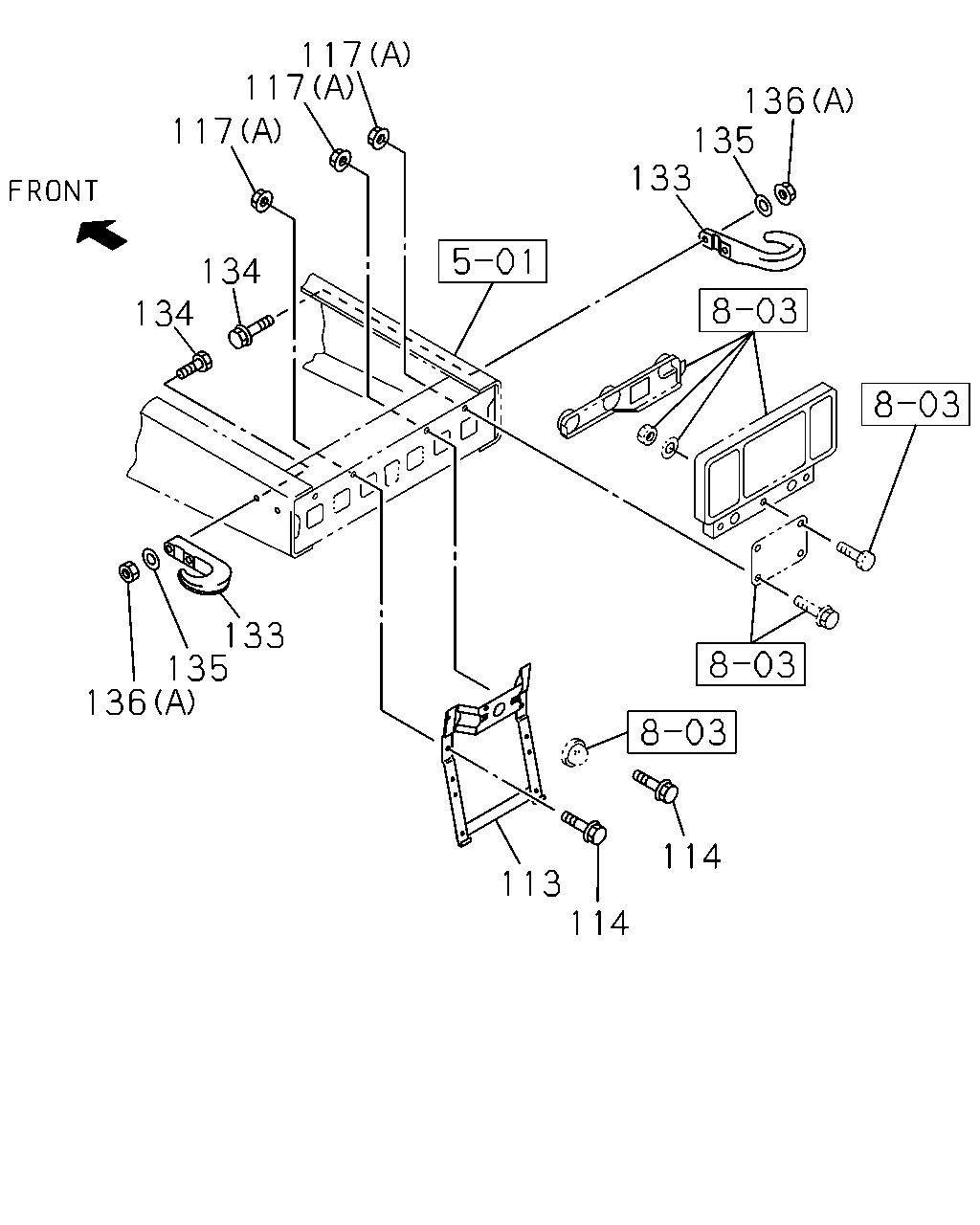

117 117 117 136 135 133 134 134 133 135 136 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0712-1003	●	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1004-1205	●	●	●
113	BRACKET; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(B13)	1-53485-074-0	01	1	1206-	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1206-			●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0712-1003	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1004-1205	●	●	●
114	BOLT; BRKT,LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
117	NUT; BRKT PINTLE HOOK<PP7> (B) M12 FLANGE	0-91180-212-0	02	1	1004-			●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0712-1003	●	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1004-1205	●	●	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●	●
117	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-			●
133	HOOK EXC. REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	0812-1003	●
133	HOOK EXC. REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	1004-	●
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7>	1-57181-003-5	01	1	1004-			●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	02	1	0712-0803	●	●
133	HOOK	1-57181-003-5	02	1	0804-0811	●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	02	1	0812-1003	●
133	HOOK	1-57181-003-5	02	1	0812-1003		●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	02	1	1004-	●
133	HOOK	1-57181-003-5	02	1	1004-		●
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-003-5	02	1	1004-			●
133	HOOK EXC. REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	0712-0803	●	●
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	02	1	0812-1003	●
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	02	1	1004-	●
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> M14X50	0-10861-450-0	02	1	1004-			●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	04	1	0712-0803	●	●
134	BOLT; HOOK M14X50	0-10861-450-0	04	1	0804-0811	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	04	1	0812-1003	●
134	BOLT; HOOK M14X50	0-10861-450-0	04	1	0812-1003		●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	04	1	1004-	●
134	BOLT; HOOK M14X50	0-10861-450-0	04	1	1004-		●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M14X50	0-10861-450-0	04	1	1004-			●
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1> M14X50	0-10861-450-0	02	1	0712-0803	●	●
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	02	1	0812-1003	●
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	02	1	1004-	●
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=14.2	0-91510-814-0	02	1	1004-			●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	04	1	0712-0803	●	●
135	WASHER; LK,HOOK ID=14.2	0-91510-814-0	04	1	0804-0811	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	04	1	0812-1003	●
135	WASHER; LK,HOOK ID=14.2	0-91510-814-0	04	1	0812-1003		●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	04	1	1004-	●
135	WASHER; LK,HOOK ID=14.2	0-91510-814-0	04	1	1004-		●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=14.2	0-91510-814-0	04	1	1004-			●
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1> ID=14.2	0-91510-814-0	02	1	0712-0803	●	●
136	NUT; HOOK PINTLE HOOK<PP7> (B)	1-09420-006-0	01	1	1004-			●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	0812-1003	●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	1004-	●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M14	0-91110-514-0	02	1	1004-			●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	0712-0803	●	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	0804-0811	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	0812-1003	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	0812-1003		●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	1004-	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	1004-		●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M14	0-91110-514-0	04	1	1004-			●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	0712-0803	●	●

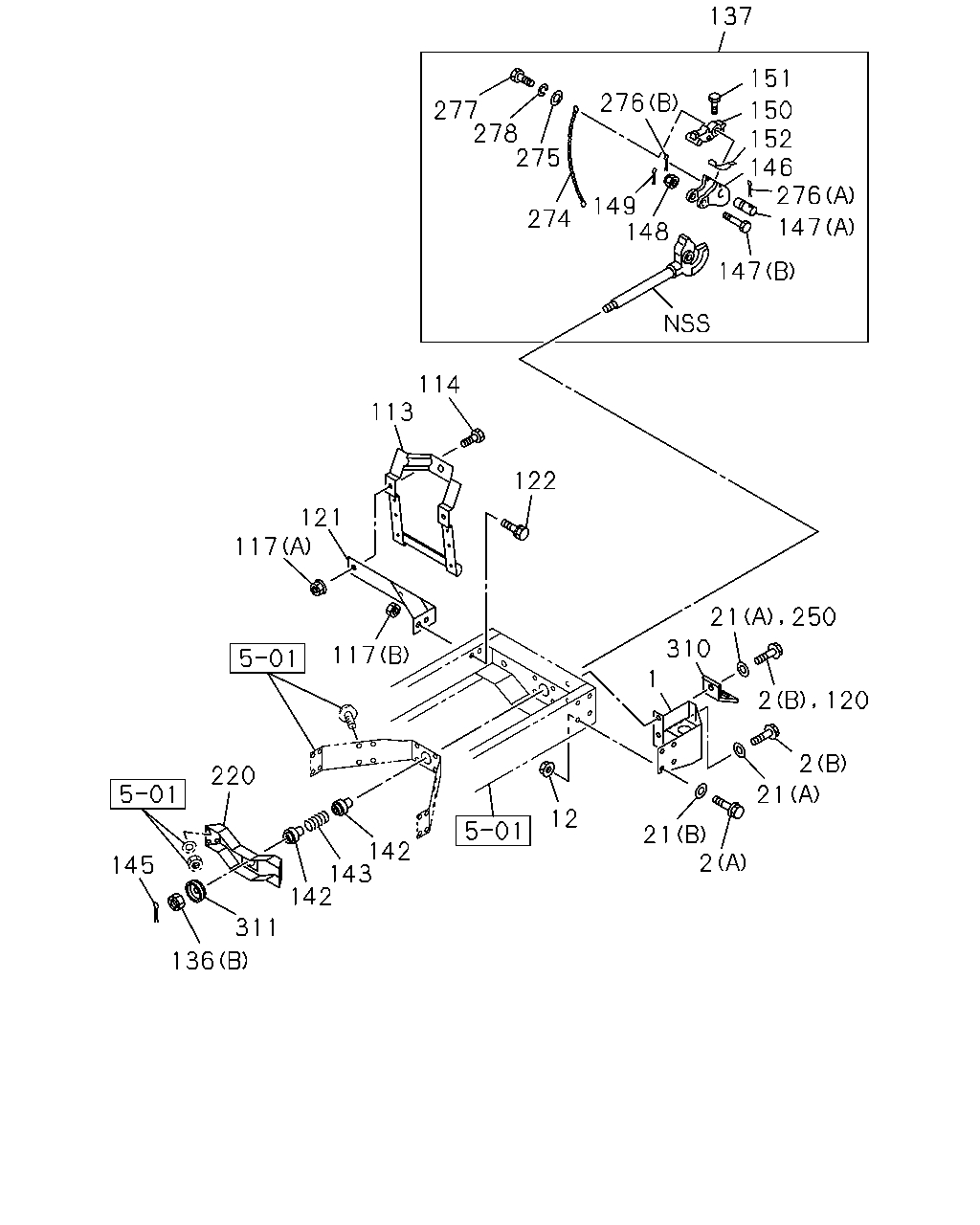

137 151 276 277 278 275 150 152 146 276 149 148 274 147 147 114 113 122 121 117 21 250 310 117 1 2 120 2 220 21 12 142 143 142 21 2 145 311 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS>	1-71220-068-2	01	1	1004-			●
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS>	1-71220-069-2	01	1	1004-			●
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) M14X40	0-20851-440-0	08	1	1004-			●
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	02	1	1004-			●
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	04	1	1004-			●
12	NUT; BRKT PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> M14	0-91110-514-0	08	1	1004-			●
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (B) ID=14.2	0-91510-814-0	08	1	1004-			●
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (A) ID=16.2	0-91510-816-0	02	1	1004-			●
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (A) ID=16.2	0-91510-816-0	04	1	1004-			●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0712-1003	●	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1004-1205	●	●	●
113	BRACKET; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(B13)	1-53485-074-0	01	1	1206-	●
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1206-			●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0712-1003	●	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1004-1205	●	●	●
114	BOLT; BRKT,LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
117	NUT; BRKT PINTLE HOOK<PP7> (B) M12 FLANGE	0-91180-212-0	02	1	1004-			●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0712-1003	●	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1004-1205	●	●	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●	●
117	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-			●
120	BOLT RR HOOK TWO EYE<VR7> M16X40	0-20851-640-0	02	1	1004-			●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	1004-1111			●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1112-			●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	1004-			●
136	NUT; HOOK PINTLE HOOK<PP7> (B)	1-09420-006-0	01	1	1004-			●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	0812-1003	●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	1004-	●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M14	0-91110-514-0	02	1	1004-			●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	0712-0803	●	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	0804-0811	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	0812-1003	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	0812-1003		●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	04	1	1004-	●
136	NUT; HOOK (A) M14	0-91110-514-0	04	1	1004-		●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M14	0-91110-514-0	04	1	1004-			●
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M14	0-91110-514-0	02	1	0712-0803	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	1004-			●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	1004-			●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	1004-			●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	1004-			●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	1004-			●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	1004-			●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	1004-			●
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	1004-			●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1004-			●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	1004-			●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	1004-			●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	1004-			●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-056-0	01	1	1004-			●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-056-0	01	1	1004-			●
250	WASHER; LK,BRKT TRAILER SAFETY CHAIN RR HOOK TWO EYE<VR7> ID=16.2	0-91510-816-0	02	1	1004-			●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	1004-			●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	1004-			●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	1004-			●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	1004-			●
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	1004-			●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	1004-			●
310	EYE; PLATE RR HOOK TWO EYE<VR7>	1-57184-001-0	02	1	1004-			●
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	1004-			●
