Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#5666) — 235 parça

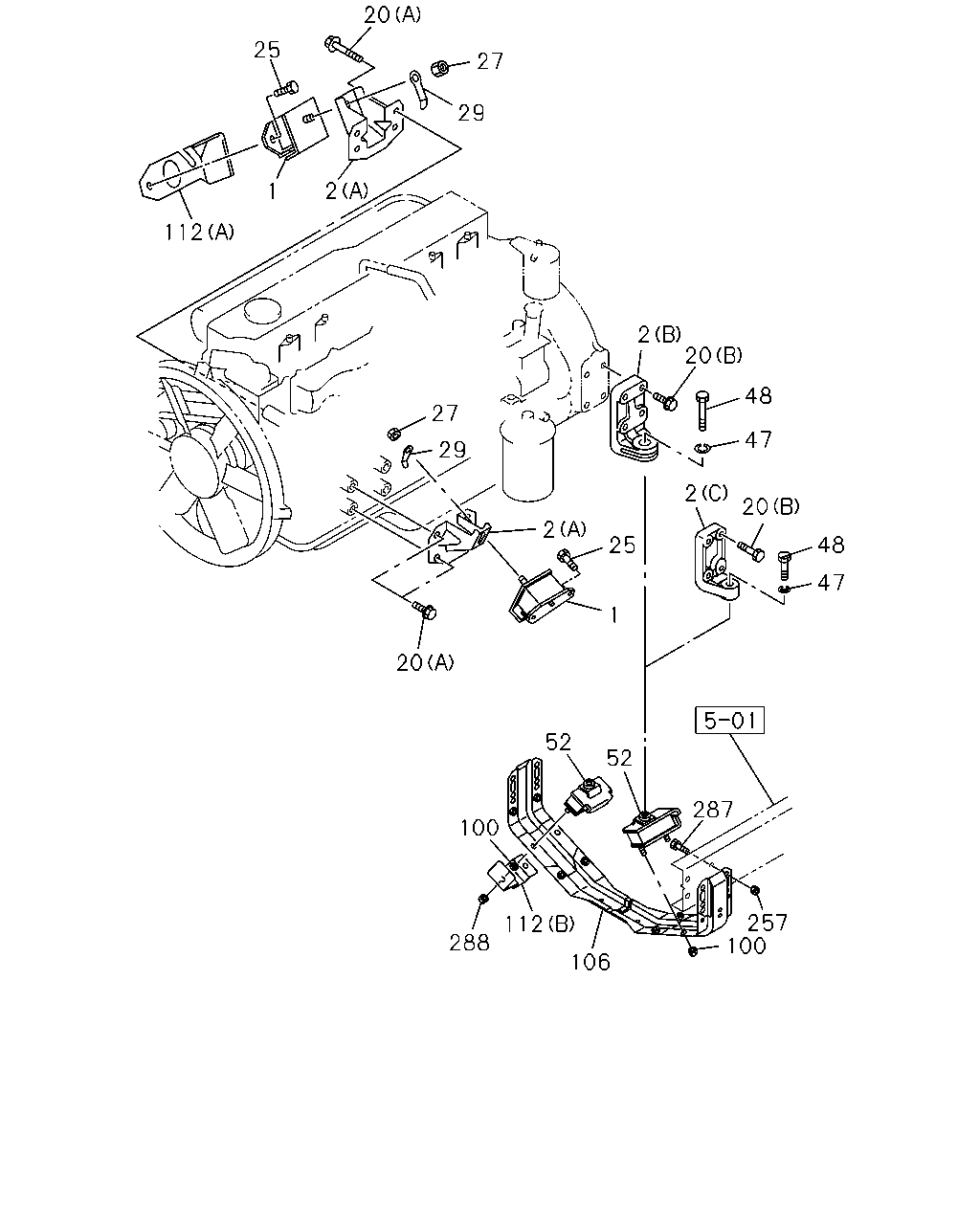

20 27 25 29 2 1 112 27 29 2 25 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W)	1-53215-173-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W)	1-53215-173-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT WB 4200MM(42W)	1-53215-173-0	02	1	0611-			●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FVR MIDDLE CHASSIS(FV****)	1-53215-172-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT FVR MIDDLE CHASSIS(FV****)	1-53215-172-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0611-				●
1	RUBBER; ENG FOOT,FRT WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	0611-			●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9811-9906	●
2	FOOT; ENG (A)	8-94392-141-1	02	1	9907-0207		●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-0610		●
2	FOOT; ENG (A)	8-94392-141-3	02	1	0611-			●	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-942-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-564-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-564-1	01	1	0611-			●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-941-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-563-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-563-1	01	1	0611-			●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0611-				●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0611-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9811-9906	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	9907-0207		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-0610		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0611-			●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9811-9906	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9907-0610		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0611-			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9811-9906	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9907-0512		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-0610		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0611-			●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9811-9906	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9907-0602		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-0610		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0611-			●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9811-9906	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9907-0610		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0611-			●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9811-9906	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9907-0610		●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9811-9906	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9907-0610		●

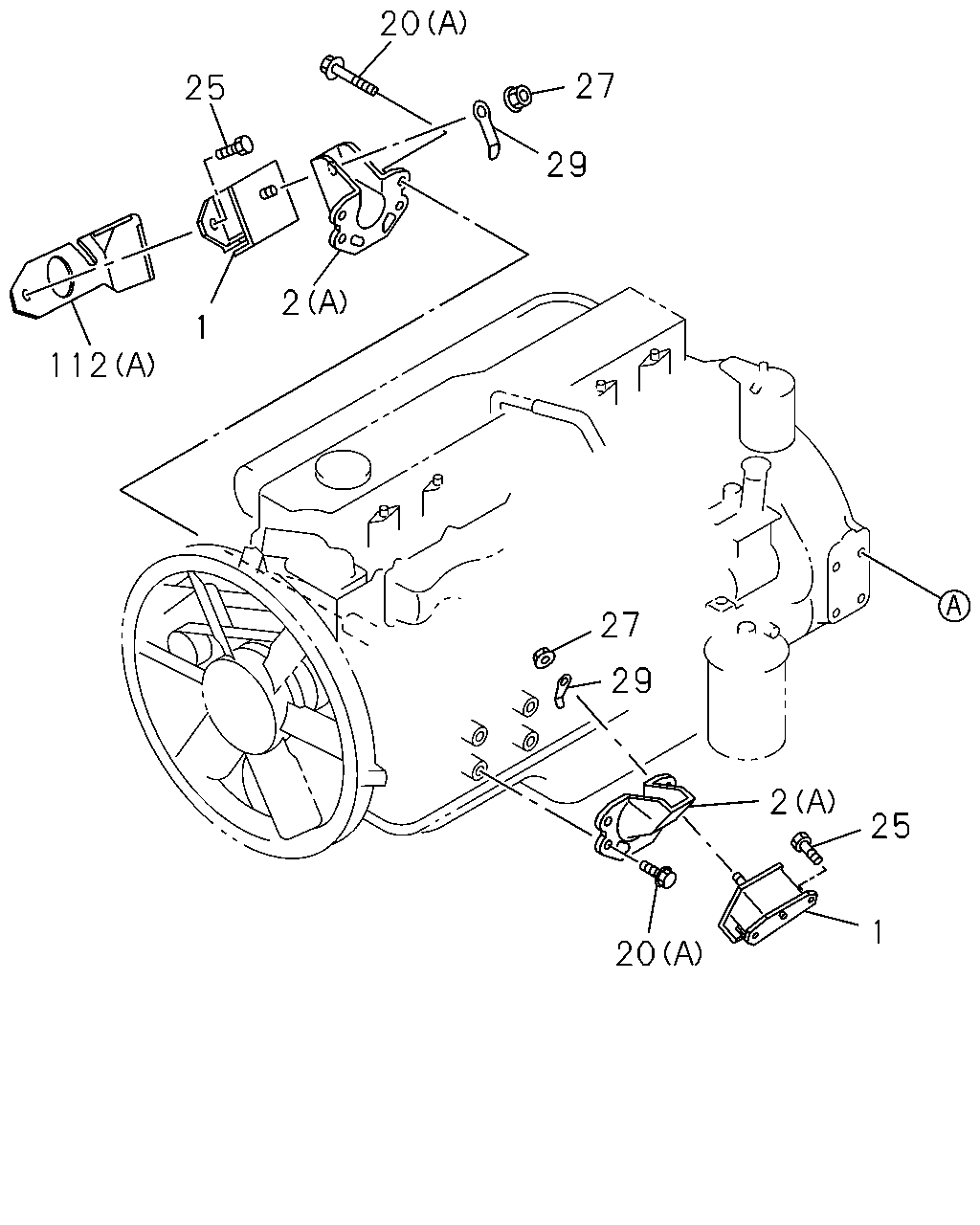

20 25 27 29 2 1 112 2 20 48 27 47 29 2 20 2 48 25 47 1 20 52 52 287 100 257 100 112 288 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W)	1-53215-173-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W)	1-53215-173-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT WB 4200MM(42W)	1-53215-173-0	02	1	0611-			●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FVR MIDDLE CHASSIS(FV****)	1-53215-172-0	02	1	9811-9906	●
1	RUBBER; ENG FOOT,FRT FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT FVR MIDDLE CHASSIS(FV****)	1-53215-172-0	02	1	9907-0610		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0611-				●
1	RUBBER; ENG FOOT,FRT WB 4800MM(48W),WB 5500MM(55W)	1-53215-172-0	02	1	0611-			●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9811-9906	●
2	FOOT; ENG (A)	8-94392-141-1	02	1	9907-0207		●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-0610		●
2	FOOT; ENG (A)	8-94392-141-3	02	1	0611-			●	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-942-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-564-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-564-1	01	1	0611-			●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-941-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-563-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-563-1	01	1	0611-			●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0611-				●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0611-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9811-9906	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	9907-0207		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-0610		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0611-			●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9811-9906	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9907-0610		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0611-			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9811-9906	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9907-0512		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-0610		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0611-			●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9811-9906	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9907-0602		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-0610		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0611-			●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9811-9906	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9907-0610		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0611-			●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9811-9906	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9907-0009		●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0611-				●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9811-9906	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9907-0512		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-0610		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0611-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-316-0	02	1	0611-				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0611-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0611-			●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9811-9906	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9907-0602		●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-0610		●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0611-			●
106	MEMBER; MTG,RR FRR MIDDLE CHASSIS(FR****) TAI	8-97530-370-0	01	1	9811-9906	●
106	MEMBER; MTG,RR FRR MIDDLE CHASSIS(FR****) TAI	8-97530-370-0	01	1	9907-0610		●
106	MEMBER; MTG,RR TAI	1-53221-199-0	01	1	0611-			●
106	MEMBER; MTG,RR FVR MIDDLE CHASSIS(FV****) TAI	8-97530-372-0	01	1	9811-9906	●
106	MEMBER; MTG,RR FVR MIDDLE CHASSIS(FV****) TAI	8-97530-372-0	01	1	9907-0610		●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9811-9906	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9907-0610		●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9811-9906	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9907-0610		●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9811-9906	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9907-0602		●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0603-0610		●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0611-			●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9811-9906	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9907-0512		●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0601-0610		●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0611-			●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9811-9906	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9907-0602		●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91180-212-0	02	1	0603-0610		●

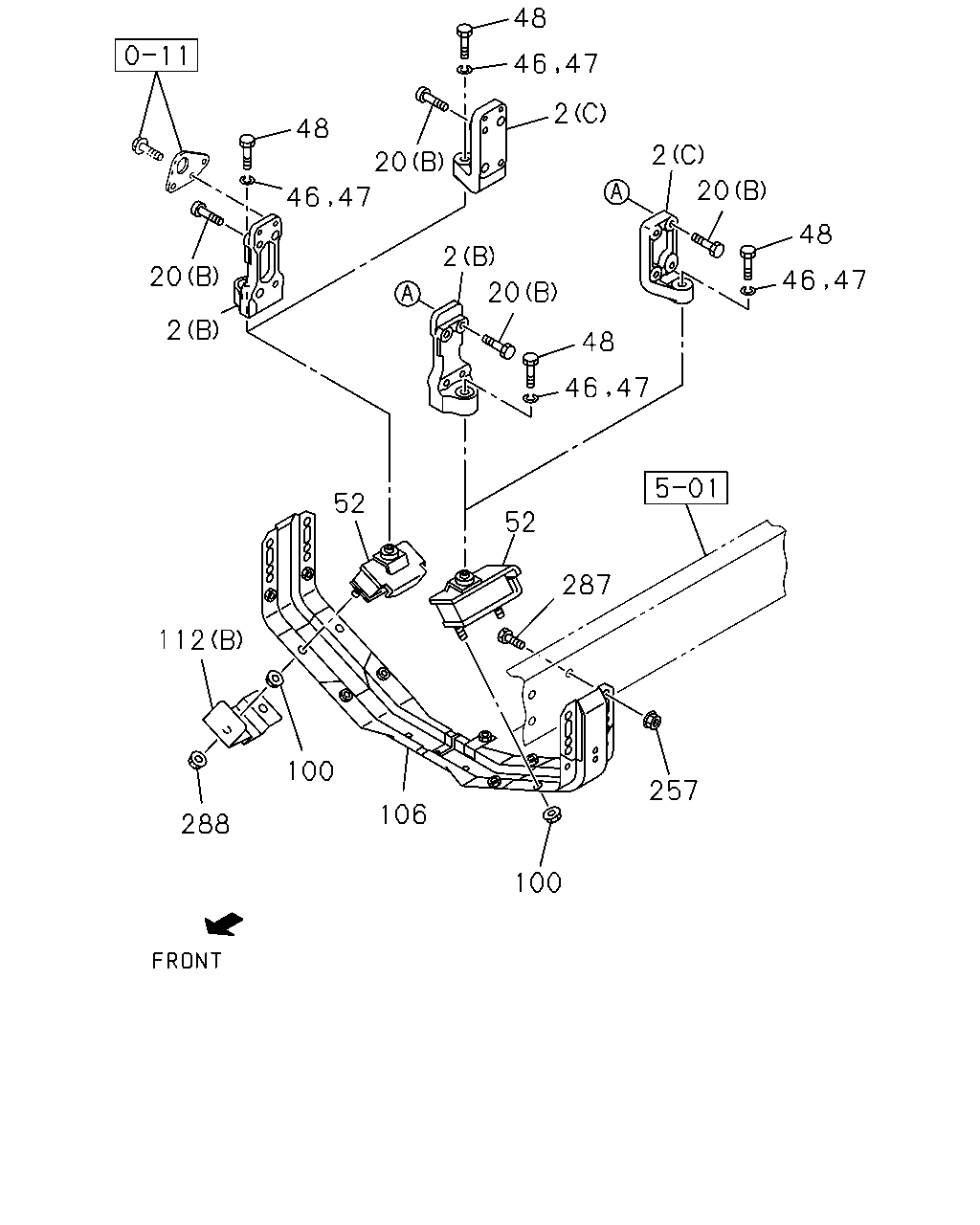

48 2 48 2 20 20 48 2 20 20 2 48 52 52 287 112 100 257 106 288 100 46 47 46 47 46 47 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	FOOT; ENG (A)	8-94393-491-0	02	1	9811-9906	●
2	FOOT; ENG (A)	8-94392-141-1	02	1	9907-0207		●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-0610		●
2	FOOT; ENG (A)	8-94392-141-3	02	1	0611-			●	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-942-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-564-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-564-1	01	1	0611-			●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-941-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-563-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-563-1	01	1	0611-			●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0611-				●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0611-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9811-9906	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	9907-0207		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-0610		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0611-			●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9811-9906	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9907-0610		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0611-			●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0611-				●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0610		●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0611-			●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9811-9906	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9907-0009		●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0611-				●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9811-9906	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9907-0512		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-0610		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0611-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-316-0	02	1	0611-				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0611-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0611-			●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9811-9906	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9907-0602		●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-0610		●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0611-			●
106	MEMBER; MTG,RR FRR MIDDLE CHASSIS(FR****) TAI	8-97530-370-0	01	1	9811-9906	●
106	MEMBER; MTG,RR FRR MIDDLE CHASSIS(FR****) TAI	8-97530-370-0	01	1	9907-0610		●
106	MEMBER; MTG,RR TAI	1-53221-199-0	01	1	0611-			●
106	MEMBER; MTG,RR FVR MIDDLE CHASSIS(FV****) TAI	8-97530-372-0	01	1	9811-9906	●
106	MEMBER; MTG,RR FVR MIDDLE CHASSIS(FV****) TAI	8-97530-372-0	01	1	9907-0610		●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9811-9906	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9907-0610		●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9811-9906	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9907-0610		●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9811-9906	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9907-0602		●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0603-0610		●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0611-			●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9811-9906	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9907-0512		●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0601-0610		●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0611-			●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9811-9906	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9907-0602		●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91180-212-0	02	1	0603-0610		●

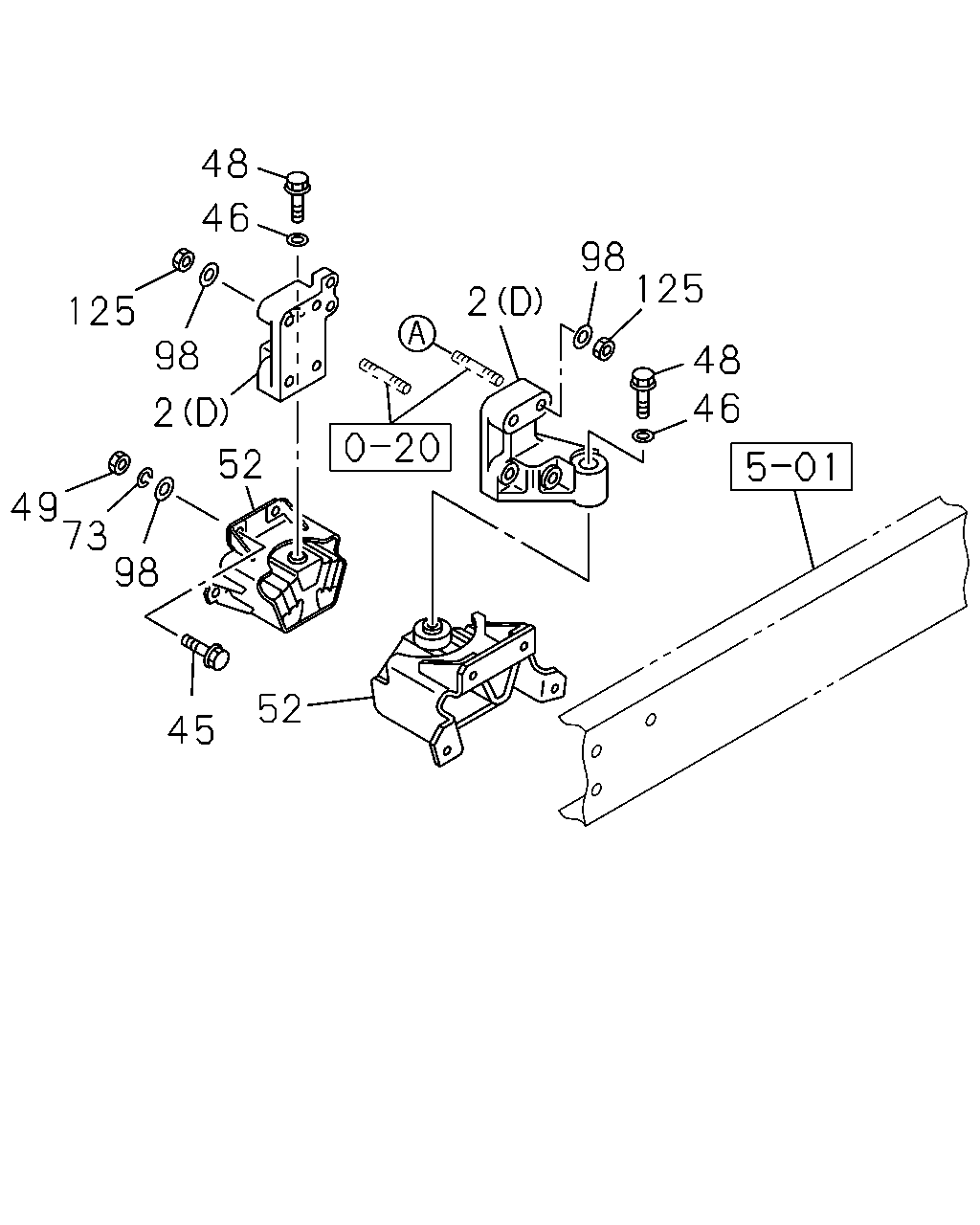

48 46 98 125 125 98 48 46 2 20 52 49 73 98 52 45 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	FOOT; ENG (A)	8-94393-491-0	02	1	9811-9906	●
2	FOOT; ENG (A)	8-94392-141-1	02	1	9907-0207		●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-0610		●
2	FOOT; ENG (A)	8-94392-141-3	02	1	0611-			●	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-942-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-564-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-564-1	01	1	0611-			●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94395-941-0	01	1	9811-9906	●
2	FOOT; ENG FRR MIDDLE CHASSIS(FR****) (B)	8-94390-563-1	01	1	9907-0610		●
2	FOOT; ENG (B)	8-94390-563-1	01	1	0611-			●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-543-1	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0611-				●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9811-9906	●
2	FOOT; ENG FVR MIDDLE CHASSIS(FV****) (C)	8-94394-544-2	01	1	9907-0610		●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0611-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9811-9906	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	9907-0207		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-0610		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0611-			●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9811-9906	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9907-0610		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0611-			●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0611-				●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0611-				●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0610		●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0611-			●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0611-				●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9811-9906	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9907-0512		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-0610		●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0611-			●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0611-				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-316-0	02	1	0611-				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0611-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9811-9906	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9907-0610		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0611-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0611-				●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15 TAI	9-09651-069-0	16	1	0611-				●
125	NUT; ENG FOOT M12 FLANGE	8-94394-704-0	08	1	0611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
