6-76 — FLOOR EQUIPMENT AND SEALING (#56657) — 120 parça

370 370 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
370	SEAL; LOCATION HOLE OD=30 T=1.0	8-98051-161-0	08	1	0712-1003	●	●
370	SEAL; LOCATION HOLE OD=30 T=1.0	8-98051-161-0	08	1	1004-1211	●	●	●
370	SEAL; LOCATION HOLE OD=30 T=0.8	8-98230-420-0	08	1	1212-	●	●	●

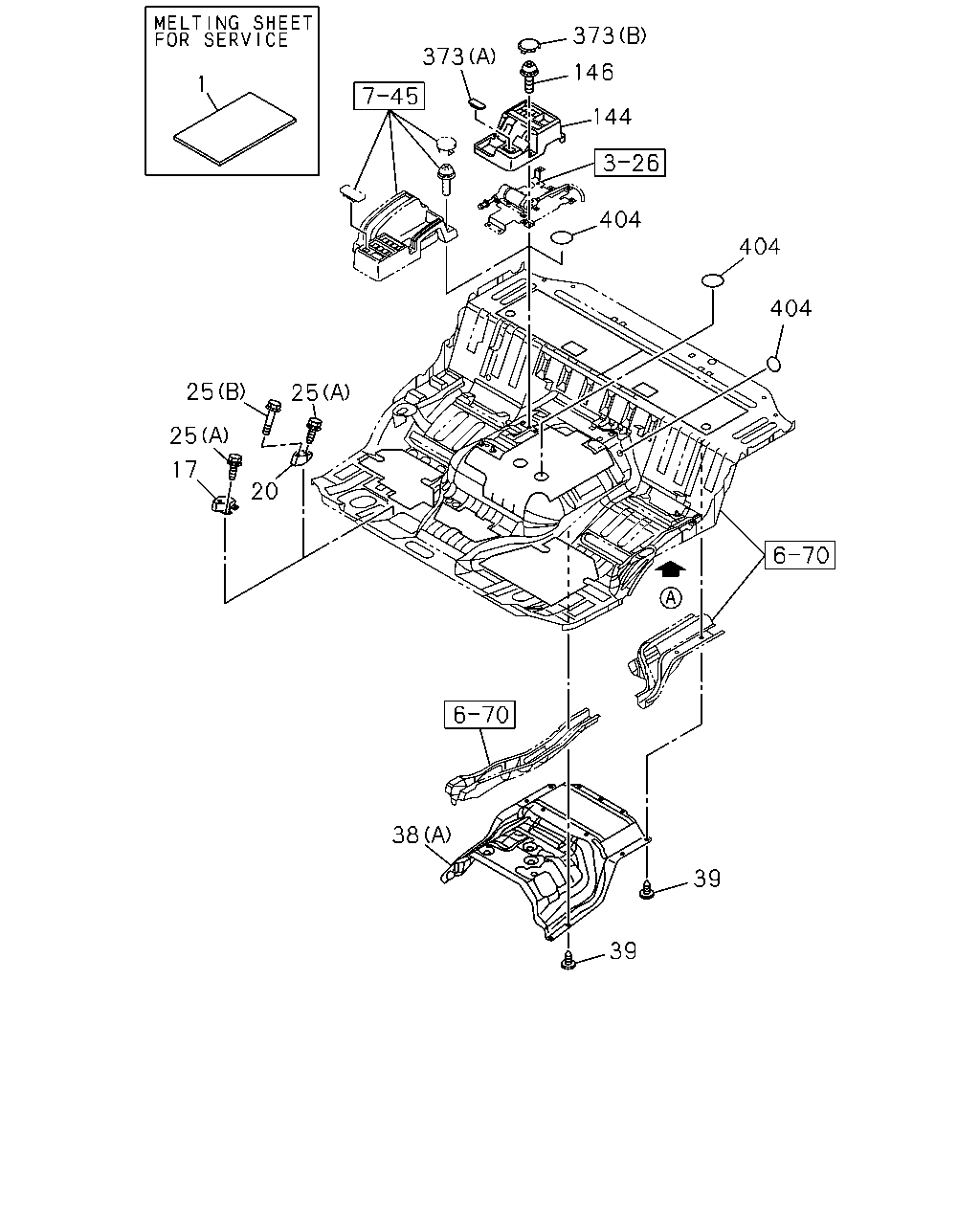

373 373 146 1 144 404 404 404 25 25 25 17 20 38 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0712-1003	●	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1004-	●	●	●
17	REST; FOOT,DRIVER	8-98076-322-1	01	1	1004-			●
20	REST; FOOT	1-73907-176-1	01	1	0712-	●	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1004-			●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0712-	●	●
25	SCREW; FOOT REST (B) BOLT M6X47	8-94407-876-1	01	1	0712-	●	●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98248-305-0	01	1	1311-1405	●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98248-305-0	01	1	1311-1405			●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98248-305-0	01	1	1406-	●		●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98240-137-1	01	1	1311-1405	●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>, MALAYSIA EQUIPMENT(B10) (A)	8-98240-137-1	01	1	1311-1405			●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98240-137-1	01	1	1406-	●		●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98180-258-0	01	1	1012-1310	●		●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> MALAYSIA EQUIPMENT(B10) (A)	8-98180-258-0	01	1	1311-1405			●
38	INSULATOR; ENG COVER (B)	8-97586-183-5	01	1	0712-1305		●
38	INSULATOR; ENG COVER (C)	8-98240-138-1	01	1	1306-		●
38	INSULATOR; ENG COVER (A)	8-97586-180-6	01	1	0712-1003	●
38	INSULATOR; ENG COVER (A)	8-97586-180-6	01	1	1004-1011	●		●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-97586-180-6	01	1	1012-1310	●		●
38	INSULATOR; ENG COVER MALAYSIA EQUIPMENT(B10) EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-97586-180-6	01	1	1311-1405			●
39	CLIP; INSULATOR,COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4	8-97808-623-0	24	1	1012-	●		●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	18	1	0712-		●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	0712-1003	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	1004-1011	●		●
39	CLIP; INSULATOR,COVER INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4	8-97808-623-0	17	1	1012-	●		●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0907-	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0907-		●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0907-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY	8-97407-974-0	01	1	0907-	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0907-		●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0712-0811	●	●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0812-0906		●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0712-0811	●	●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY	8-97414-752-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0812-0906		●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0712-0811	●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16	0-38050-616-0	04	1	0812-	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0812-		●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0712-0811	●	●
373	COVER; HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97409-339-0	01	1	0812-	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0812-		●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0712-0811	●	●
373	COVER; HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY	8-97407-951-0	04	1	0812-	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0812-		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	0712-1003	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	1004-	●		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	39	1	0712-		●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK	1-76798-019-0	02	1	0712-1003	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	0712-1003		●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK	1-76798-019-0	02	1	1004-	●		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	1004-		●

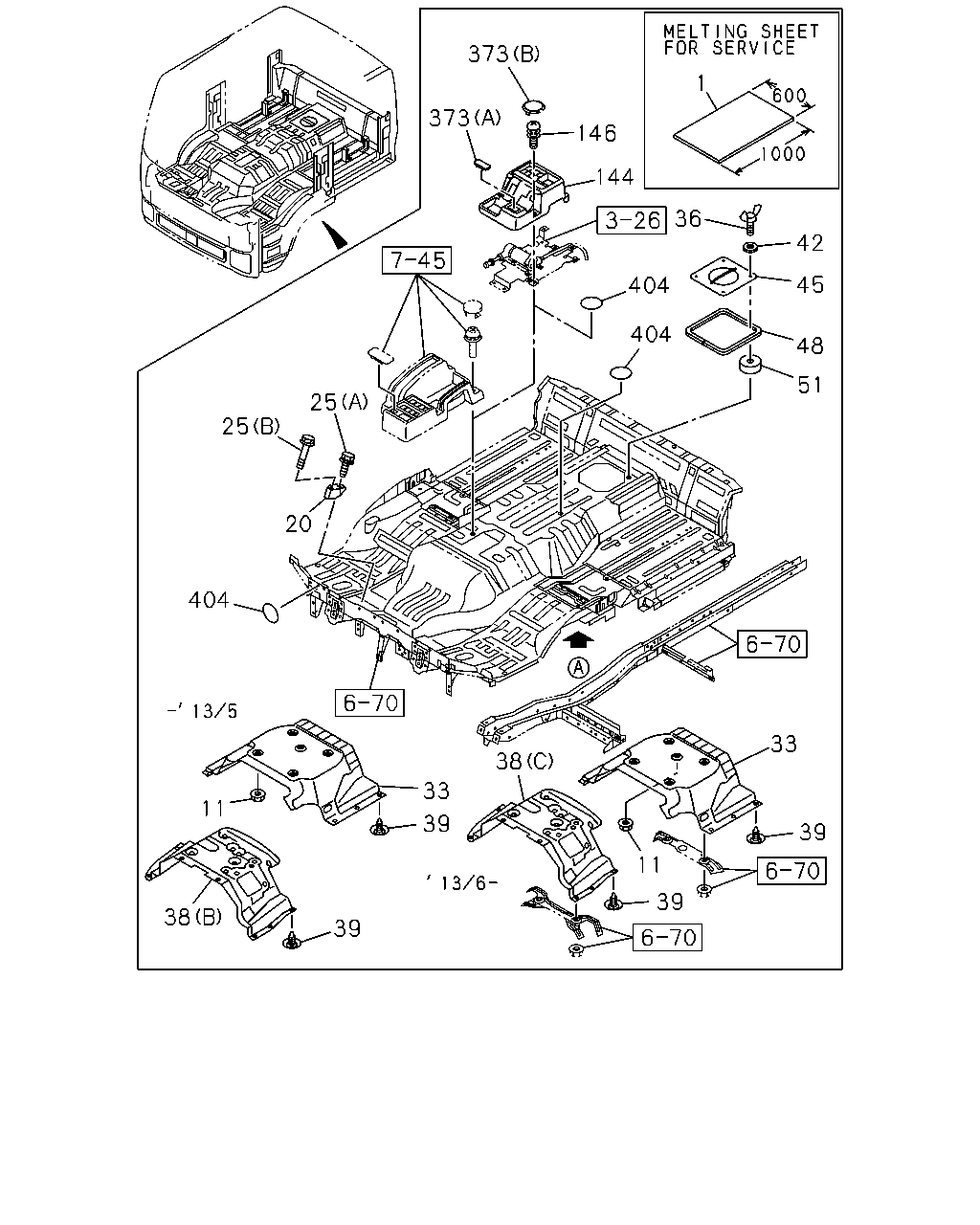

25 25 373 373 146 144 1 20 404 11 38 39 33 39 38 11 39 39 33 36 404 404 42 45 48 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0712-1003	●	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1004-	●	●	●
11	NUT; HEAT INSULATOR ID=6 OD=25	8-94468-316-0	05	1	0712-1305		●
11	NUT; HEAT INSULATOR ID=6 OD=25	8-94468-316-0	01	1	1306-		●
20	REST; FOOT	1-73907-176-1	01	1	0712-	●	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1004-			●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0712-	●	●
25	SCREW; FOOT REST (B) BOLT M6X47	8-94407-876-1	01	1	0712-	●	●
33	INSULATOR; HEAT,RR	8-97607-711-2	01	1	0712-1101		●
33	INSULATOR; HEAT,RR	8-98164-660-0	01	1	1102-1305		●
33	INSULATOR; HEAT,RR	8-98248-307-0	01	1	1306-		●
36	BOLT; WING,COVER	9-61405-010-0	04	1	0712-		●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98248-305-0	01	1	1311-1405	●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98248-305-0	01	1	1311-1405			●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98248-305-0	01	1	1406-	●		●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98240-137-1	01	1	1311-1405	●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>, MALAYSIA EQUIPMENT(B10) (A)	8-98240-137-1	01	1	1311-1405			●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98240-137-1	01	1	1406-	●		●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-98180-258-0	01	1	1012-1310	●		●
38	INSULATOR; ENG COVER INSULATION ACOUSTICAL PKG DELETE<BS3> MALAYSIA EQUIPMENT(B10) (A)	8-98180-258-0	01	1	1311-1405			●
38	INSULATOR; ENG COVER (B)	8-97586-183-5	01	1	0712-1305		●
38	INSULATOR; ENG COVER (C)	8-98240-138-1	01	1	1306-		●
38	INSULATOR; ENG COVER (A)	8-97586-180-6	01	1	0712-1003	●
38	INSULATOR; ENG COVER (A)	8-97586-180-6	01	1	1004-1011	●		●
38	INSULATOR; ENG COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-97586-180-6	01	1	1012-1310	●		●
38	INSULATOR; ENG COVER MALAYSIA EQUIPMENT(B10) EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A)	8-97586-180-6	01	1	1311-1405			●
39	CLIP; INSULATOR,COVER EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4	8-97808-623-0	24	1	1012-	●		●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	18	1	0712-		●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	0712-1003	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	1004-1011	●		●
39	CLIP; INSULATOR,COVER INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4	8-97808-623-0	17	1	1012-	●		●
42	WASHER; PL,COVER ID=10.5	0-91610-510-0	04	1	0712-		●
45	COVER; CENTER,CHECK HOLE	1-65380-056-0	01	1	0712-		●
48	SEAL; CHECK HOLE LID,CENTER	1-65380-091-0	01	1	0712-		●
51	SEAL; LID,CHECK HOLE	1-65380-121-0	04	1	0712-		●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0907-	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0907-		●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0907-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY	8-97407-974-0	01	1	0907-	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0907-		●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0712-0811	●	●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0812-0906		●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0712-0811	●	●
144	COVER; HAND BRK VLV AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY	8-97414-752-0	01	1	0812-0906	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0812-0906		●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0712-0811	●	●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16	0-38050-616-0	04	1	0812-	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0812-		●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0712-0811	●	●
373	COVER; HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97409-339-0	01	1	0812-	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0812-		●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0712-0811	●	●
373	COVER; HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY	8-97407-951-0	04	1	0812-	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0812-		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	0712-1003	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	1004-	●		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	39	1	0712-		●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK	1-76798-019-0	02	1	0712-1003	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	0712-1003		●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK	1-76798-019-0	02	1	1004-	●		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	1004-		●
