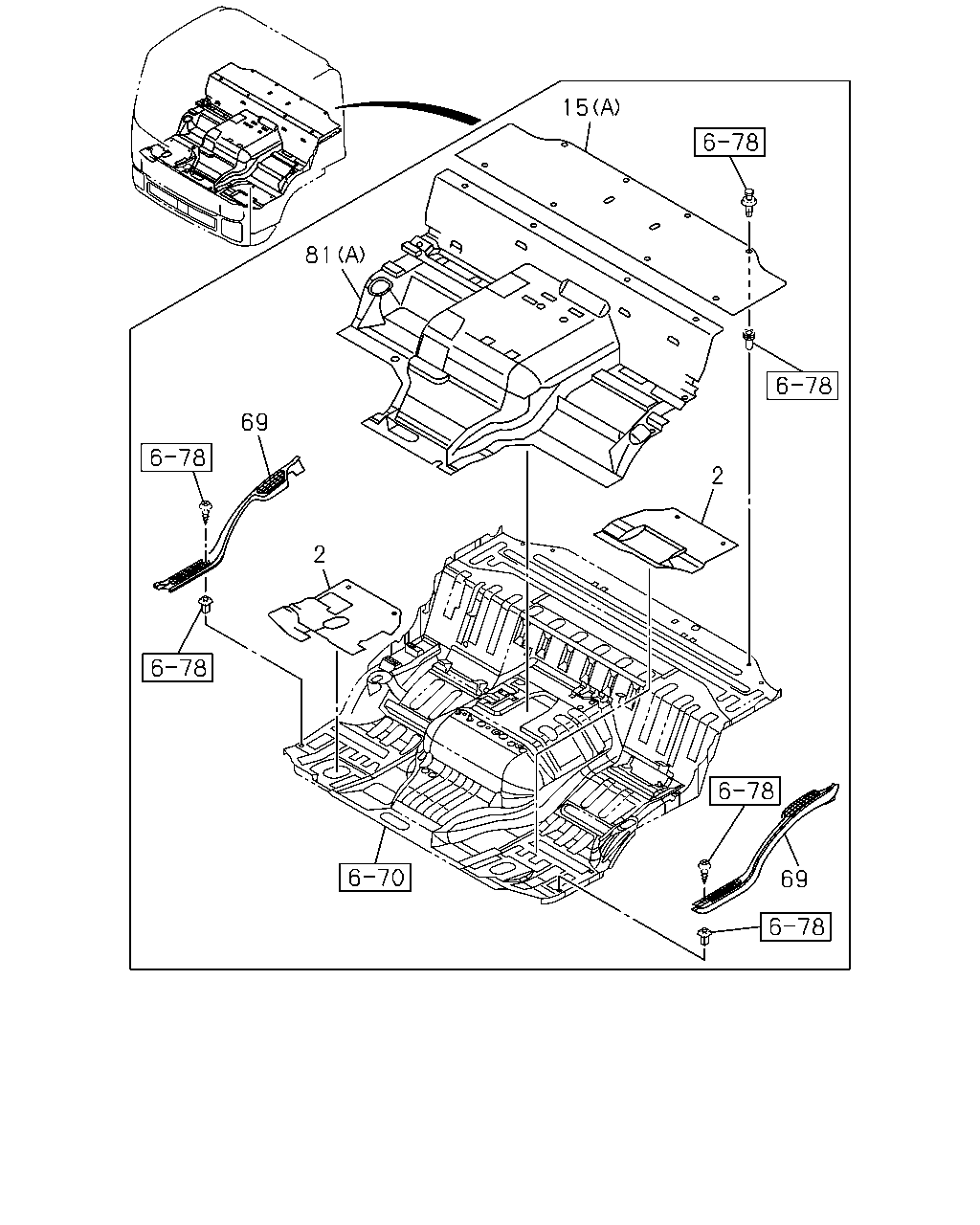

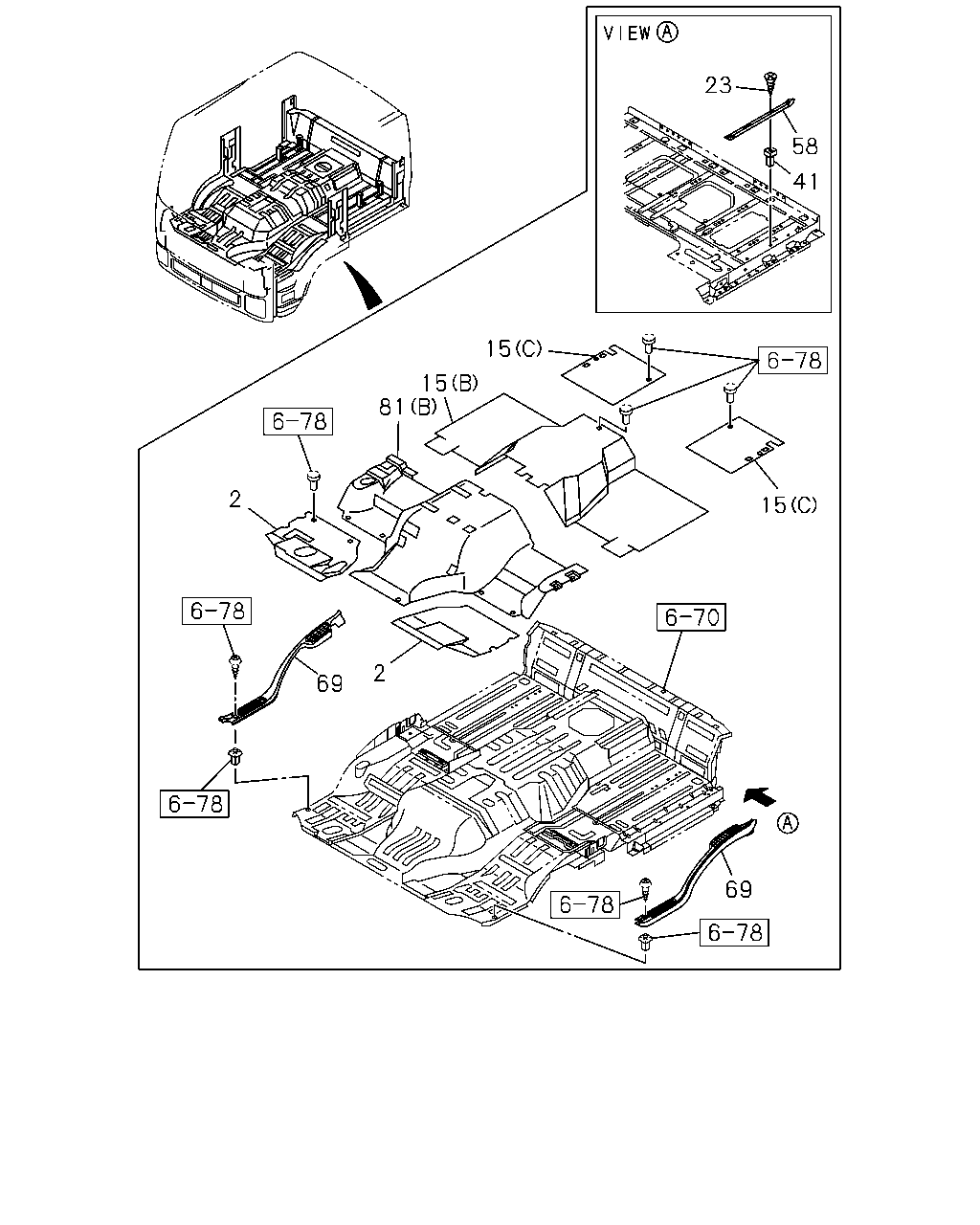

6-75 — MAT AND CARPET (#56656) — 117 parça

15 81 69 2 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1004-	●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1004-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1006-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0712-1003		●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	0712-1003			●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1004-		●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1004-			●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0712-1003		●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	0712-1003			●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1004-		●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1004-			●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	0712-1003		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	1004-1005		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1006-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	0712-1003		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	1004-1005		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1006-		●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1004-1005		●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1006-		●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1004-1005	●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	1004-	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	1004-1005	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	0712-		●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	0712-1003		●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	1004-1005		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-890-1	01	1	0712-			●
15	MAT; FLOOR REAR (B) GRAY	8-97411-891-1	01	1	0712-			●
15	MAT; FLOOR REAR (C) GRAY	8-97411-892-2	01	1	0712-			●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	0712-1003		●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	1004-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	0712-1003		●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	1004-	●	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-406-3	01	1	1004-	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-388-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-940-0	01	1	1006-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-407-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-407-3	01	1	1004-		●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1004-		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-405-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-405-3	01	1	1004-		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0812-1003		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	1004-1005		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-936-0	01	1	1006-		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0712-0811		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97411-791-3	01	1	1004-		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0712-0801		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0802-0811		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	1004-1005		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-937-0	01	1	1006-		●
81	MAT; FLOOR,CENTER (B) GRAY	8-97407-409-2	01	1	0712-			●

23 58 41 15 15 81 2 15 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1004-	●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1004-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1006-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0712-1003		●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	0712-1003			●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1004-		●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1004-			●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0712-1003		●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	0712-1003			●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1004-		●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1004-			●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	0712-1003		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	1004-1005		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1006-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	0712-1003		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	1004-1005		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1006-		●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1004-1005		●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1006-		●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1004-1005	●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	1004-	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	1004-1005	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	0712-		●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	0712-1003		●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	1004-1005		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-890-1	01	1	0712-			●
15	MAT; FLOOR REAR (B) GRAY	8-97411-891-1	01	1	0712-			●
15	MAT; FLOOR REAR (C) GRAY	8-97411-892-2	01	1	0712-			●
23	SCREW; SILL PLATE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0712-			●
41	GROMMET; SCREW,SILL PLATE D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	0712-			●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0712-			●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	0712-1003		●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	1004-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	0712-1003		●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	1004-	●	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-406-3	01	1	1004-	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-388-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-940-0	01	1	1006-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-407-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-407-3	01	1	1004-		●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1004-		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-405-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97407-405-3	01	1	1004-		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0812-1003		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	1004-1005		●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-936-0	01	1	1006-		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0712-0811		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY	8-97411-791-3	01	1	1004-		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0712-0801		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0802-0811		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0812-1003		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	1004-1005		●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-937-0	01	1	1006-		●
81	MAT; FLOOR,CENTER (B) GRAY	8-97407-409-2	01	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
