◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#56655) — 325 parça

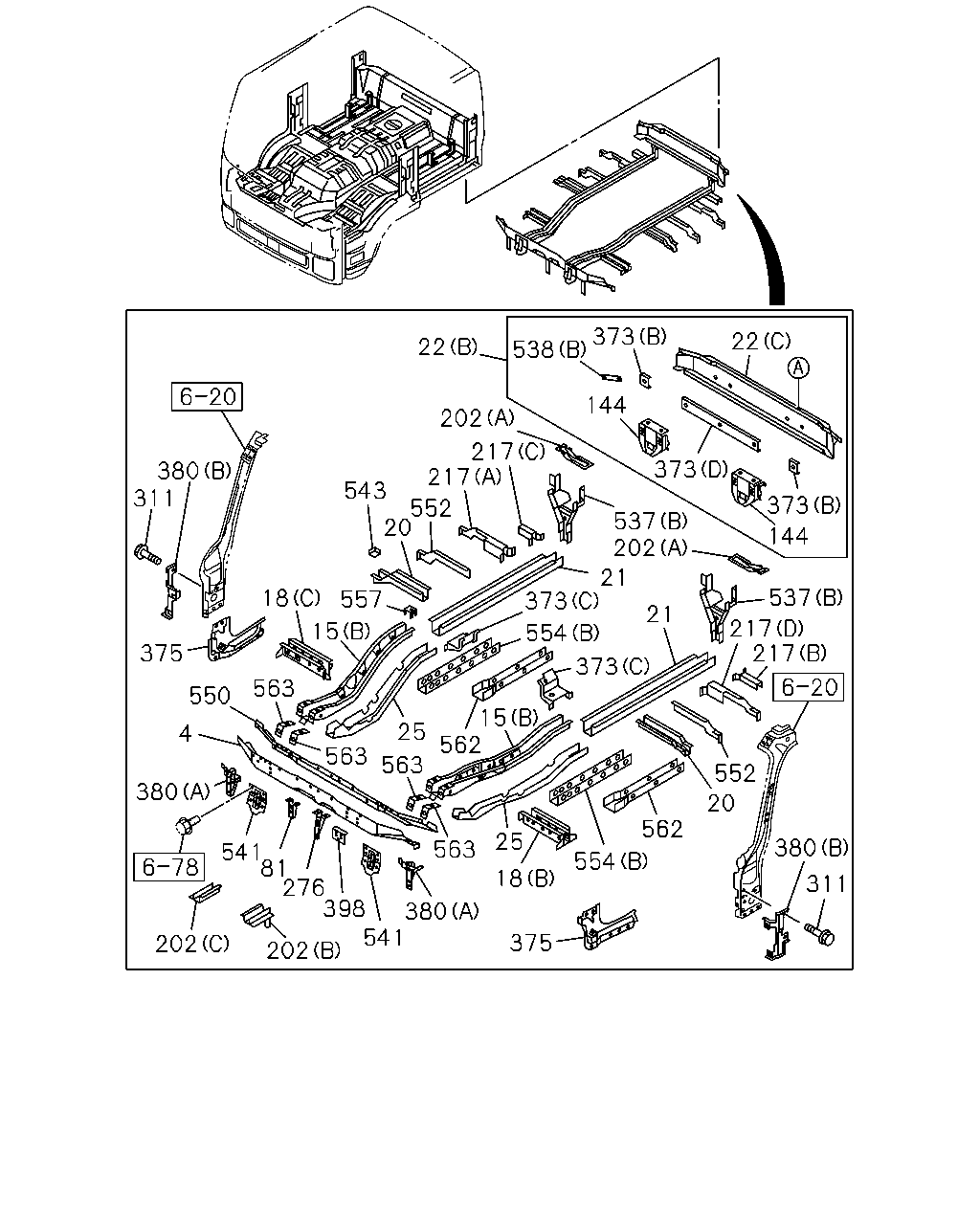

çizim 181801
373 538 22 22 144 202 217 217 373 380 311 543 373 552 20 537 202 144 21 373 537 18 557 21 217 217 15 554 375 373 563 550 15 562 25 4 563 563 552 380 20 25 562 380 563 541 81 276 398 380 541 554 18 311 375 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1004- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0712-1003 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1004- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0712-1003 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1004- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0712-1003 ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1004- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0712-1003 ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1004- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1004- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1004- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-431-5 01 1 1004- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0712- ●
22 FRAME; FLOOR REAR
(C) 		8-97410-959-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-98094-833-1 01 1 0712-0906 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 0712- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 0712- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712-1003 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1004- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712-1003 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1004- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712-1003 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1004- ● ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 0712- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-514-0 01 1 0712- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-515-0 01 1 0712- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 0712- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 0712- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 0712- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 0712- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712-1003 ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1004- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712-1003 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1004- ● ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 0907-1003 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 1004- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-97584-345-9 01 1 1004- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 0712-0906 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98081-349-3 01 1 0907- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0712-1003 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1004- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0712-1003 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1004- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0712-1003 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1004- ● ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0712-1003 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1004- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712-1003 ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1004- ● ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0712-1003 ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 1004- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0712-1003 ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 1004- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0712-1003 ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 1004- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712-1003 ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1004- ● ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 0712- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 0712- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1004- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 0712- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712-1003 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1004- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
557 PATCH; SEAT 8-98074-333-0 01 1 0712- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712-1003 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1004- ● ● ●

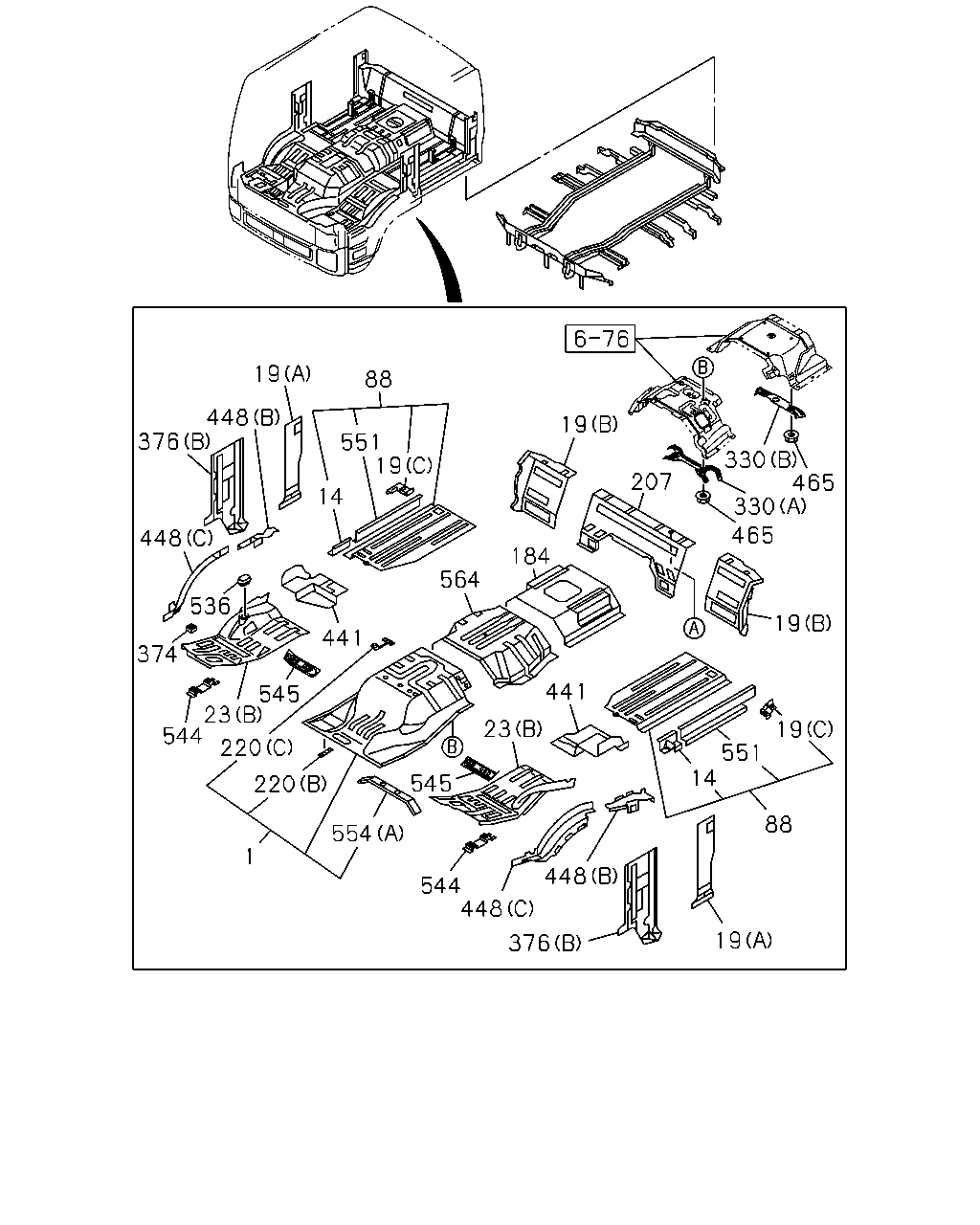

çizim 181815
88 551 19 448 376 448 536 374 544 220 220 554 545 441 564 184 207 19 330 465 19 19 551 88 14 19 441 23 545 544 448 376 448 465 330 19 14 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 8-97410-865-7 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1004- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1004- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-6 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 0712- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 0712- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 0712- ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712-1003 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1004- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712-1003 ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1004- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712-1003 ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1004- ● ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1306- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1306- ●
374 NUT; FLOOR
M6 		1-09984-110-0 03 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0712-1003 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1004-1403 ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-4 01 1 0712-1003 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1004- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98058-016-2 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98074-232-1 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0712-1003 ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1004- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0712-1003 ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1004- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1306- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712-1003 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1004- ● ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712-1003 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1004- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712-1003 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1004- ● ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 0907-1003 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 1004- ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1004- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712-1003 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1004- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-0906 ● ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 0907- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0907- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 0712- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712-1003 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1004- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 0712- ●

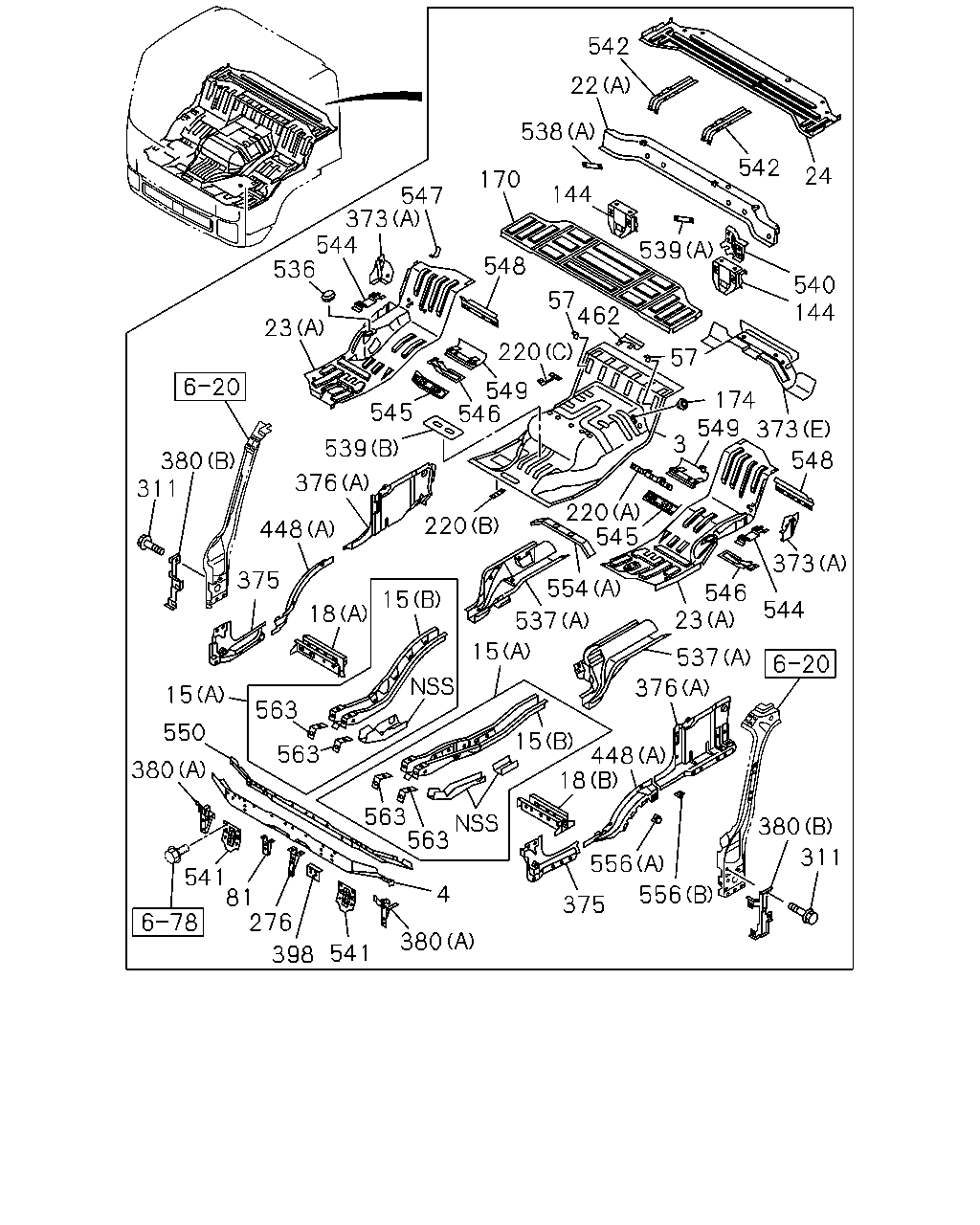

çizim 181822
542 22 538 542 24 170 144 547 373 544 536 539 548 540 144 57 462 23 220 57 549 546 174 549 545 373 3 539 548 380 311 376 220 545 220 448 373 375 554 546 23 15 544 18 537 15 537 376 15 563 550 563 15 448 18 380 563 563 380 311 556 556 541 81 276 4 375 380 541 398
BalonParca AdiParca NoAdetTipApplied Date A B C
3 HOOD ASM; ENG
EXC. MANUAL TRANSMISSION<X9C> 		8-98109-508-2 01 1 1004- ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98032-904-9 01 1 0907-1003 ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98032-904-9 01 1 1004-1004 ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> 		8-98032-904-9 01 1 1004-1004 ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98167-036-0 01 1 1005- ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> 		8-98167-036-0 01 1 1005- ●
3 HOOD ASM; ENG 8-98081-357-3 01 1 0712-0906 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) 		8-98081-357-4 01 1 0907- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1004- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0712-1003 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1004- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0712-1003 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1004- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0712-1003 ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1004- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0712-1003 ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1004- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1004- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1004- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-431-5 01 1 1004- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0712- ●
22 FRAME; FLOOR REAR
(C) 		8-97410-959-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-98094-833-1 01 1 0712-0906 ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1004- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1004- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-6 01 1 0712- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1004- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 0712- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0712-1003 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1004- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712-1003 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1004- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712-1003 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1004- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712-1003 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1004- ● ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1004- ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0712- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0712-1003 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1004- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712-1003 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1004- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712-1003 ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1004- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712-1003 ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1004- ● ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712-1003 ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1004- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712-1003 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1004- ● ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 0907-1003 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 1004- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-97584-345-9 01 1 1004- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 0712-0906 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98081-349-3 01 1 0907- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0712-1003 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1004- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0712-1003 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1004- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0712-1003 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1004- ● ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0712-1003 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1004- ● ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0712-1003 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1004-1403 ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-4 01 1 0712-1003 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1004- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1004- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712-1003 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1004- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712-1003 ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1004- ● ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0712-1003 ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1004- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0712-1003 ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1004- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0712-1002 ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1003-1003 ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1003-1003 ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1004- ●
462 BRACKET; EXTINGUISHER
MANUAL TRANSMISSION<X9C> 		8-97585-688-1 01 1 1004- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712-1003 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1004- ● ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0712-1003 ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 1004- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0712-1003 ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 1004- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0712-1003 ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 1004- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0812-1003 ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1004- ● ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0712-1003 ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1004- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0712-1003 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1004- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712-1003 ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1004- ● ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0712-1003 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1004- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712-1003 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1004- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712-1003 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1004- ● ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 0907-1003 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 1004- ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1004- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712-1003 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1004- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-0906 ● ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 0907- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0907- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1004- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0712- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0712-1003 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1004- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1004- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1004- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0712- ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0712- ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-557-4 01 1 0907-1003 ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-557-4 01 1 1004- ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1004- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0712-1003 ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1004- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0712-0906 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13) 		8-98050-187-1 01 1 0907- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1004- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712-1003 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1004- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 0712-1003 ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1004- ● ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 0712-1003 ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1004- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712-1003 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
