6-66 — HEAD LINING AND TRIM (#56654) — 114 parça

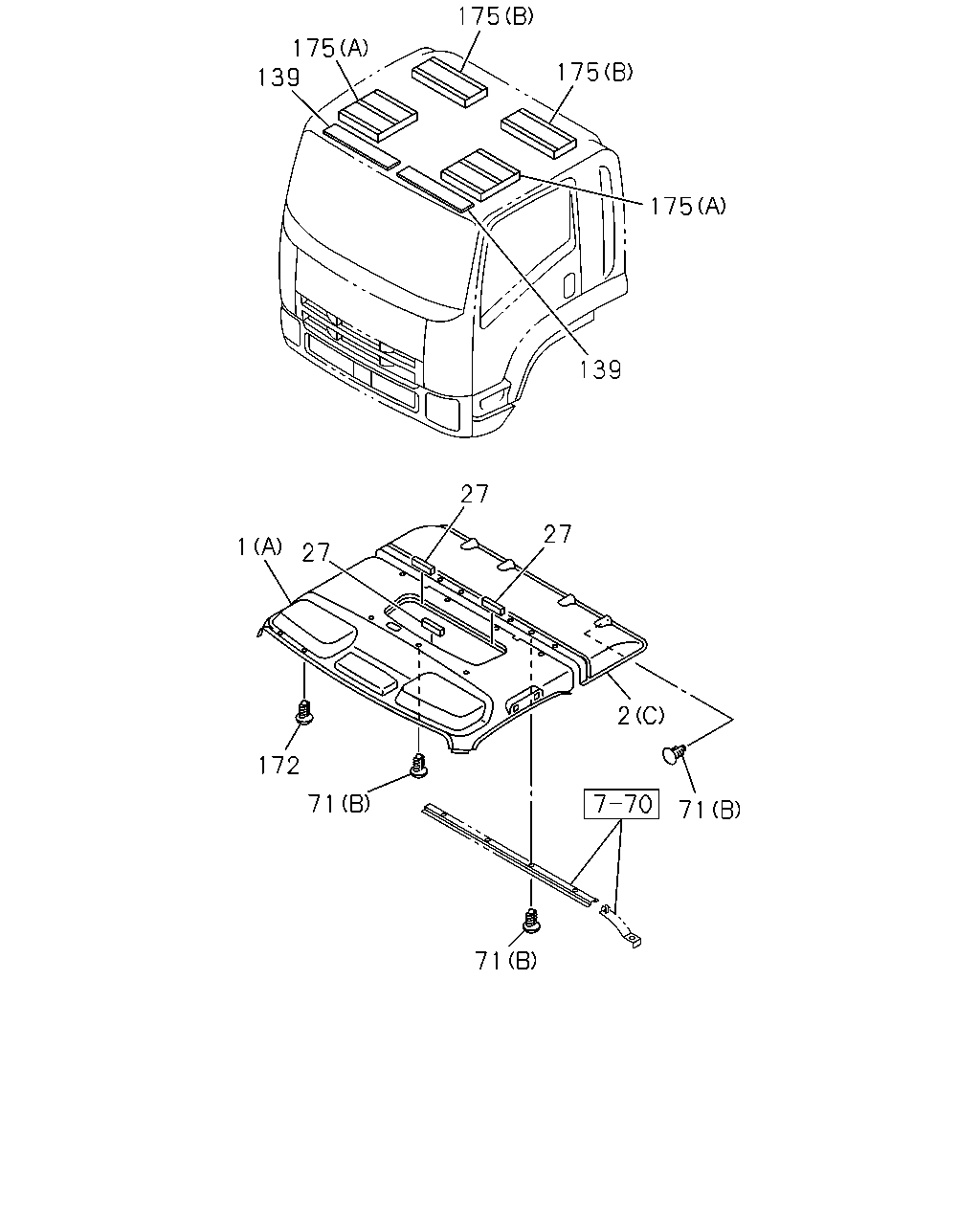

175 175 139 175 175 139 27 27 1 27 2 172 71 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97416-360-0	01	1	1004-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-741-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-899-3	01	1	1004-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-728-0	01	1	1307-	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) DARK GRAY	8-97416-359-0	01	1	1004-1306	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) DARK GRAY	8-97426-740-0	01	1	1307-	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-898-3	01	1	1004-1306	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-727-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-788-4	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-685-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97411-877-4	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-688-0	01	1	1307-		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97411-876-4	01	1	0812-1306		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-687-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-443-5	01	1	0712-0811		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97416-347-0	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-701-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-434-5	01	1	0712-0811		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97416-344-0	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97426-698-0	01	1	1307-		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-433-5	01	1	0712-0811		●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97416-343-0	01	1	0812-1306		●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97426-697-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-794-2	01	1	0712-1306			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-686-0	01	1	1307-			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-209-2	01	1	0712-1306			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-682-0	01	1	1307-			●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-208-2	01	1	0712-1306			●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-681-0	01	1	1307-			●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97415-674-0	01	1	1004-1306	●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97427-627-0	01	1	1307-	●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97407-451-4	01	1	0712-0804		●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97415-673-0	01	1	0805-		●
2	LINING; HD,ROOF RR (A) DARK GRAY	8-97407-454-1	01	1	0712-			●
2	LINING; HD,ROOF RR (B) DARK GRAY	8-97408-557-1	01	1	0712-			●
2	LINING; HD,ROOF RR (B) DARK GRAY	8-97408-555-1	01	1	0712-			●
27	INSULATION; ROOF	8-98046-638-1	03	1	0712-0911		●	●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0912-1003		●
27	INSULATION; ROOF	8-98046-638-2	03	1	0912-1003			●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	1004-	●	●
27	INSULATION; ROOF	8-98046-638-2	03	1	1004-			●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	0712-1003		●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	1004-	●	●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	03	1	0712-			●
71	FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	14	1	0712-			●
139	SEAL; ROOF	8-98076-274-0	02	1	0801-1003		●	●
139	SEAL; ROOF	8-98076-274-0	02	1	1004-1009	●	●	●
139	SEAL; ROOF	8-98169-116-0	02	1	1010-	●	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	12	1	0712-0804		●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	0805-1003		●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	1004-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	0712-			●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	0712-1003		●	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1004-	●	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	0712-1003		●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1004-	●	●	●

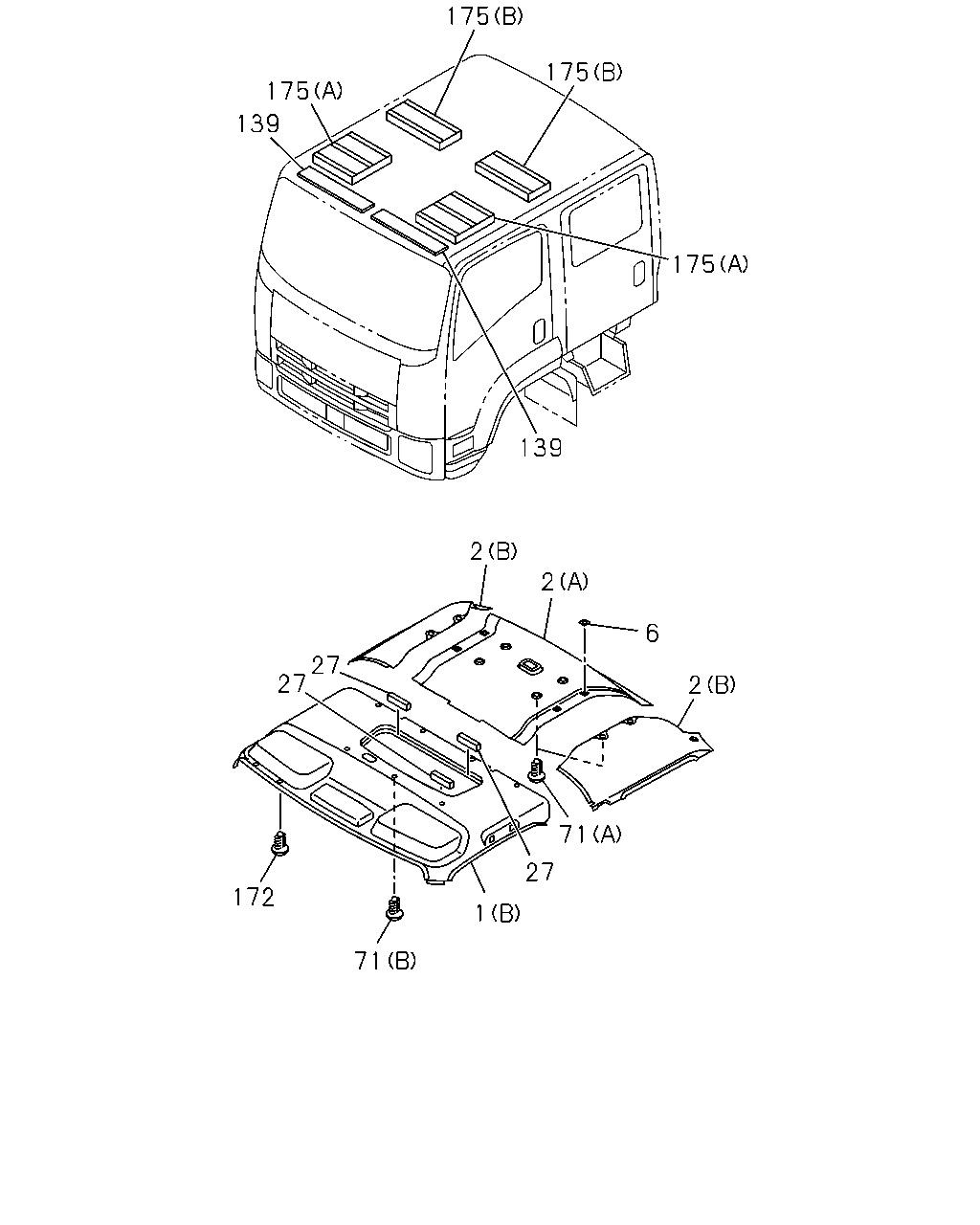

175 175 175 139 175 139 2 2 6 27 27 2 71 27 172 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97416-360-0	01	1	1004-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-741-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-899-3	01	1	1004-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-728-0	01	1	1307-	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) DARK GRAY	8-97416-359-0	01	1	1004-1306	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) DARK GRAY	8-97426-740-0	01	1	1307-	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-898-3	01	1	1004-1306	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-727-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97409-788-4	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-685-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97411-877-4	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-688-0	01	1	1307-		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97411-876-4	01	1	0812-1306		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-687-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-443-5	01	1	0712-0811		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97416-347-0	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97426-701-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-434-5	01	1	0712-0811		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97416-344-0	01	1	0812-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97426-698-0	01	1	1307-		●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97407-433-5	01	1	0712-0811		●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97416-343-0	01	1	0812-1306		●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (A) DARK GRAY	8-97426-697-0	01	1	1307-		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-794-2	01	1	0712-1306			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-686-0	01	1	1307-			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-209-2	01	1	0712-1306			●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-682-0	01	1	1307-			●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97409-208-2	01	1	0712-1306			●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> (B) DARK GRAY	8-97426-681-0	01	1	1307-			●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97415-674-0	01	1	1004-1306	●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97427-627-0	01	1	1307-	●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97407-451-4	01	1	0712-0804		●
2	LINING; HD,ROOF RR (C) DARK GRAY	8-97415-673-0	01	1	0805-		●
2	LINING; HD,ROOF RR (A) DARK GRAY	8-97407-454-1	01	1	0712-			●
2	LINING; HD,ROOF RR (B) DARK GRAY	8-97408-557-1	01	1	0712-			●
2	LINING; HD,ROOF RR (B) DARK GRAY	8-97408-555-1	01	1	0712-			●
6	SPACER; HD LINING	8-94353-014-0	08	1	0712-0712			●
6	SPACER; HD LINING 1 SET=20 PIECE	8-98100-429-0	04	1	0801-			●
27	INSULATION; ROOF	8-98046-638-1	03	1	0712-0911		●	●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0912-1003		●
27	INSULATION; ROOF	8-98046-638-2	03	1	0912-1003			●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	1004-	●	●
27	INSULATION; ROOF	8-98046-638-2	03	1	1004-			●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	0712-1003		●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	1004-	●	●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	03	1	0712-			●
71	FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	14	1	0712-			●
139	SEAL; ROOF	8-98076-274-0	02	1	0801-1003		●	●
139	SEAL; ROOF	8-98076-274-0	02	1	1004-1009	●	●	●
139	SEAL; ROOF	8-98169-116-0	02	1	1010-	●	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	12	1	0712-0804		●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	0805-1003		●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	1004-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	0712-			●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	0712-1003		●	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1004-	●	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	0712-1003		●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1004-	●	●	●
