◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#5665) — 330 parça

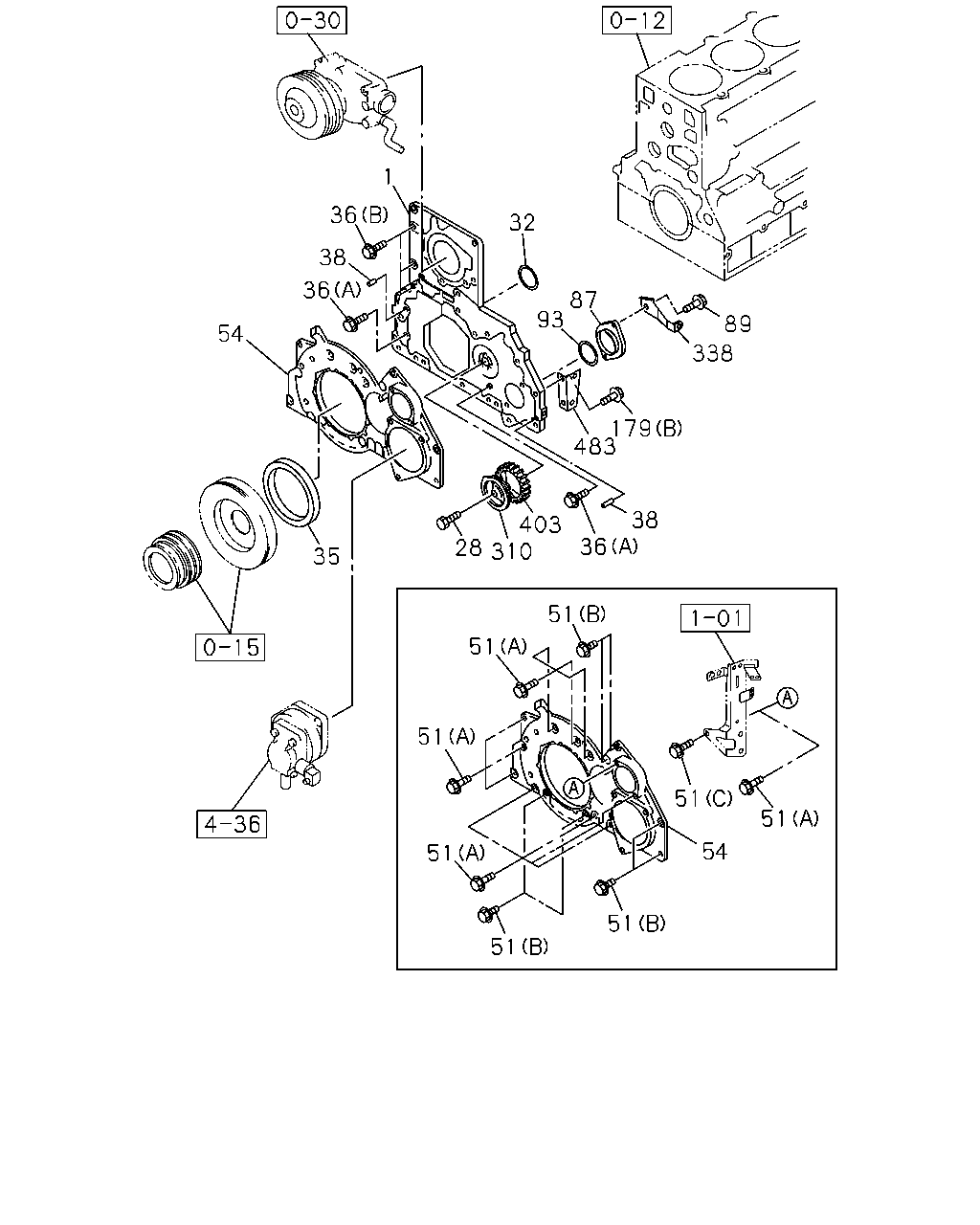

çizim 24948
1 36 32 38 36 87 93 89 54 338 179 483 38 403 28 310 36 35 51 51 51 51 51 54 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CASE; TIMING GEAR 8-94392-282-1 01 1 0611- ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0611- ●
1 CASE; TIMING GEAR 8-94396-434-5 01 1 9811-9906 ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0611- ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9811-9906 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9811-9906 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9907-0610 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0611- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9811-9906 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9907-0112 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-1 01 1 0201-0610 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0611- ● ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0611- ● ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0611- ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9811-9906 ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9811-9906 ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0611- ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9811-9906 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0611- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9811-9906 ●
51 BOLT; GEAR CASE COVER
(D) M8X35 FLANGE 		0-28080-835-0 16 1 9907-0512 ●
51 BOLT; GEAR CASE COVER
(D) M8X35 FLANGE 		0-28050-835-0 16 1 0601-0610 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0611- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9811-9906 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9811-9906 ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0611- ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 9811-9906 ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0611- ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9811-9906 ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0611- ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9811-9906 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 0611- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9811-9906 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9906 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9907-0512 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0611- ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9906 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0611- ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9811-9906 ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 0611- ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9811-9906 ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0611- ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9811-9906 ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0611- ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 9811-9906 ●

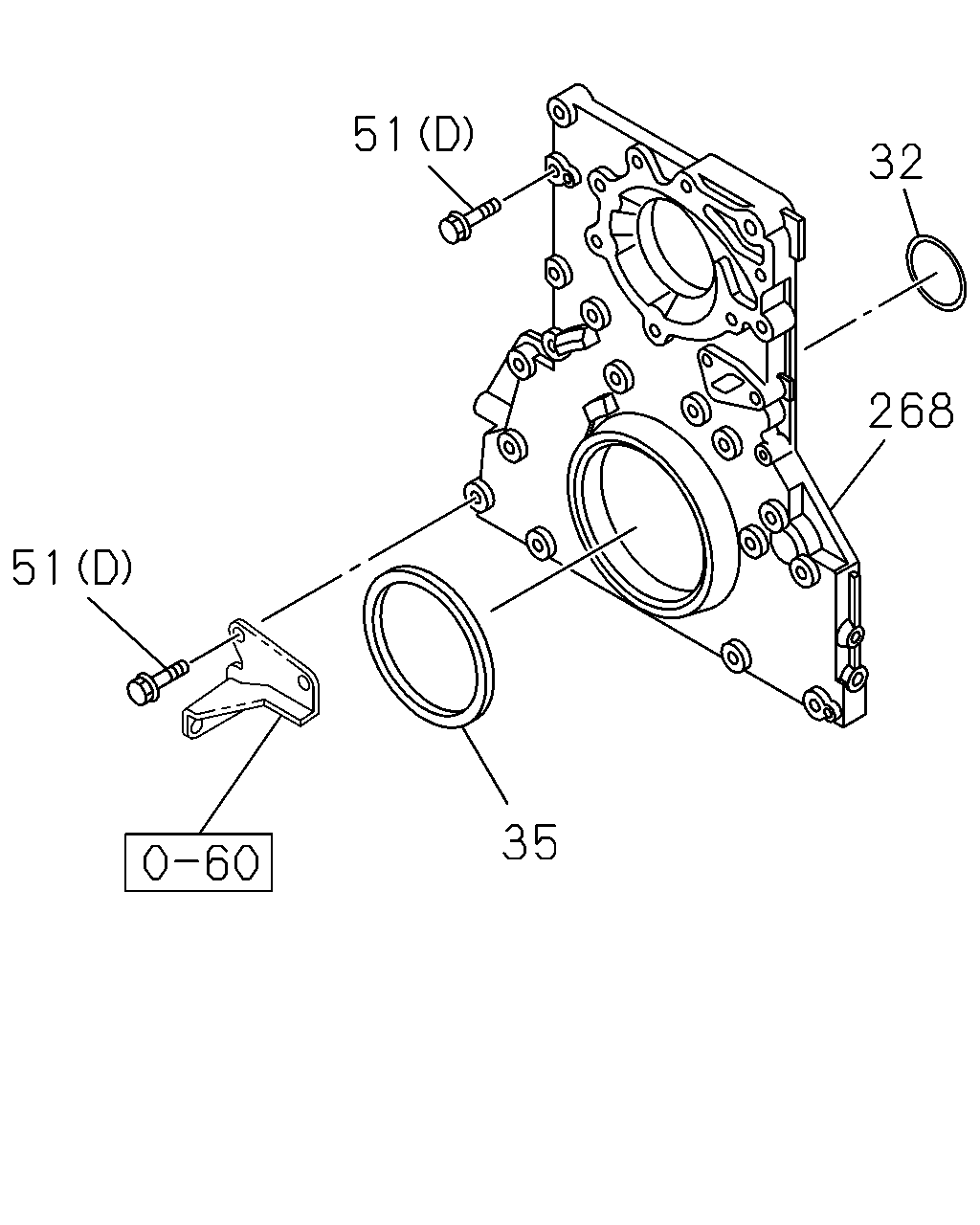

çizim 24949
51 32 268 51 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9811-9906 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9907-0610 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0611- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9811-9906 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9907-0112 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-1 01 1 0201-0610 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0611- ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0611- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9811-9906 ●
51 BOLT; GEAR CASE COVER
(D) M8X35 FLANGE 		0-28080-835-0 16 1 9907-0512 ●
51 BOLT; GEAR CASE COVER
(D) M8X35 FLANGE 		0-28050-835-0 16 1 0601-0610 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0611- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9811-9906 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9811-9906 ●
268 COVER; FRT 8-94392-480-0 01 1 9907-0610 ●

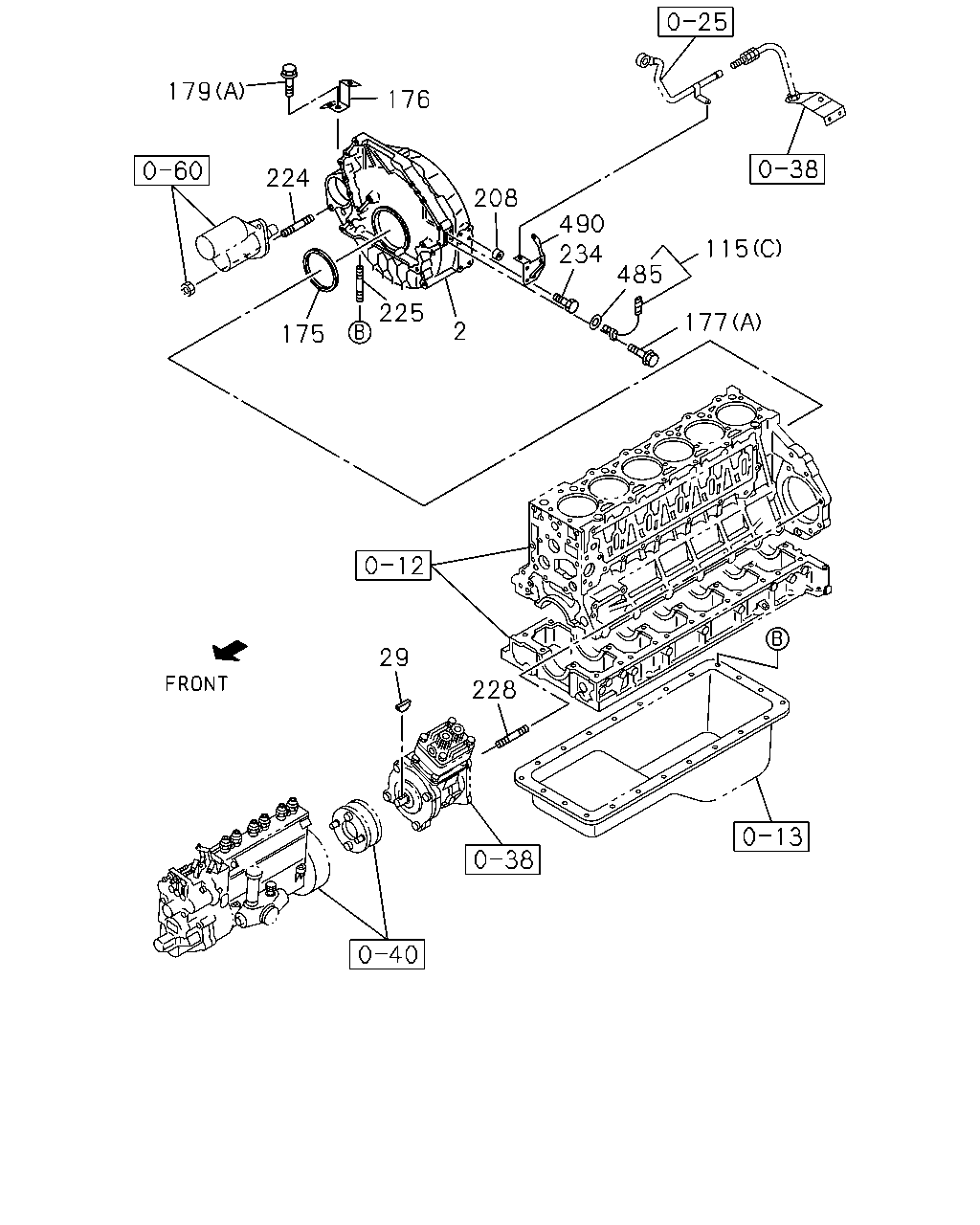

çizim 24950
179 176 224 208 490 234 115 485 225 177 2 175 29 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9811-9906 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9907-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 0611- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(C) 		1-81510-561-0 01 1 9811-9906 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-94390-279-0 01 1 9907-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 0611- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-9906 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9907-0112 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0610 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0611- ● ●
176 BRACKET; HARNESS 1-82699-412-1 01 1 9811-9906 ●
176 BRACKET; HARNESS 1-82698-079-1 01 1 9907-0610 ●
176 BRACKET; HARNESS 1-82698-497-0 01 1 0611- ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9811-9906 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9907-0512 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0601-0610 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0611- ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9906 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9907-0512 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0611- ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9906 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9811-9906 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9907-0610 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0611- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9811-9906 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9907-0604 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605-0610 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0611- ● ●
225 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 03 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 0712- ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 0712- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9811-9906 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9907-0610 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 06 1 0611- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9811-9906 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 9907-0610 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0611- ● ●
234 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9811-9906 ●
485 GASKET; SENSOR 8-97369-404-0 02 1 0611- ● ●
485 GASKET; SENSOR 9-09565-212-0 01 1 9811-9906 ●
490 BRACKET; AIR PIPE,VSS 8-94394-857-0 01 1 9811-9906 ●

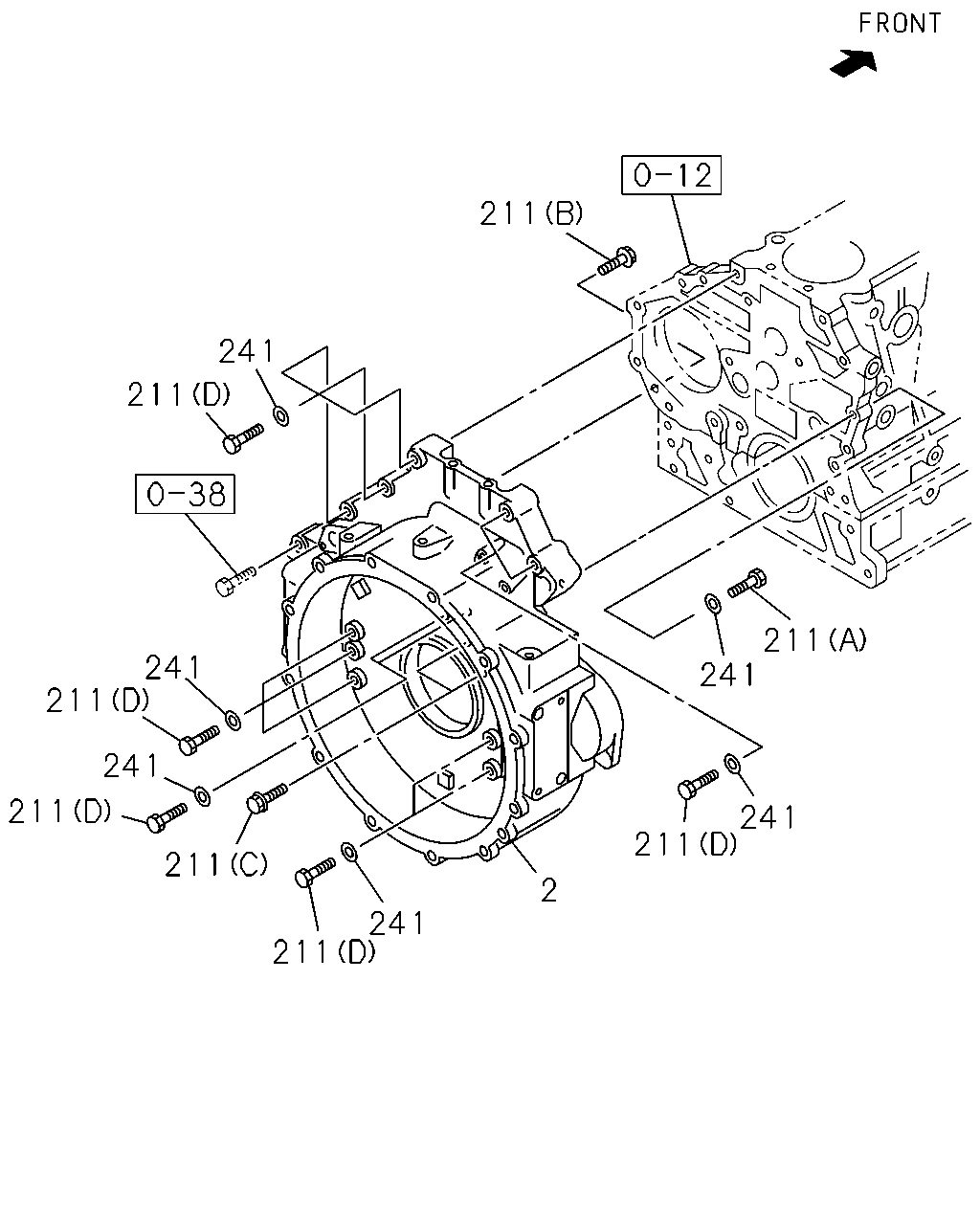

çizim 25271
211 241 211 211 241 241 211 241 211 241 211 211 2 241 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 0611- ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9811-9906 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9907-0512 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0610 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0611- ● ●
211 BOLT; HSG
(A) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9811-9906 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 9907-0610 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 0611- ● ●
211 BOLT; HSG
(C) M12X65 		9-01666-265-0 03 1 9811-9906 ●
211 BOLT; HSG
(C) M12X60 		0-16806-260-0 01 1 9907-0512 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0601-0610 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0611- ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 10 1 9811-9906 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9907-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601-0610 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 0611- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9811-9906 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9907-0610 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0611- ● ●

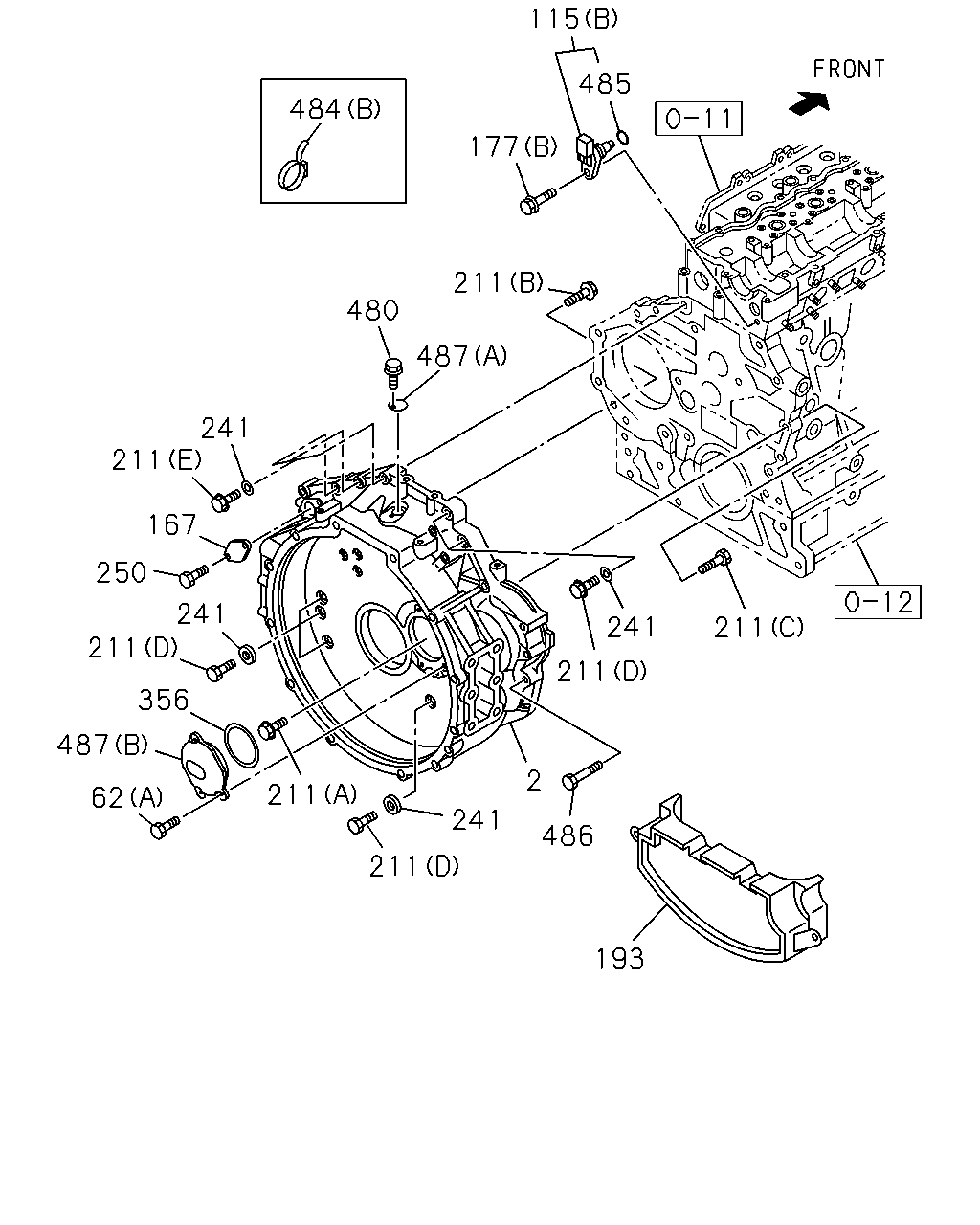

çizim 25272
115 485 484 177 211 480 487 241 211 167 250 241 211 241 211 211 356 487 2 211 62 241 486 211 193
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9907-0610 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0611- ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9907-0512 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 0611- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(C) 		1-81510-561-0 01 1 9811-9906 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-94390-279-0 01 1 9907-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 0611- ● ●
167 COVER; OIL 1-11219-163-0 01 1 9907-0610 ●
167 COVER; OIL 1-11219-163-0 01 1 0611- ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9811-9906 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9907-0512 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0601-0610 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0611- ● ●
193 SPACER; STAY TO OIL,PAN 8-94392-984-0 01 1 0611- ●
193 SPACER; STAY TO OIL,PAN 8-98019-738-1 01 1 0611- ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 0611- ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9811-9906 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9907-0512 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0610 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0611- ● ●
211 BOLT; HSG
(A) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9811-9906 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 9907-0610 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 0611- ● ●
211 BOLT; HSG
(C) M12X65 		9-01666-265-0 03 1 9811-9906 ●
211 BOLT; HSG
(C) M12X60 		0-16806-260-0 01 1 9907-0512 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0601-0610 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0611- ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 10 1 9811-9906 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9907-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601-0610 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 0611- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9811-9906 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9907-0610 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0611- ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9907-0610 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0611- ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9907-0610 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0611- ● ●
480 BOLT; COVER
M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
484 CLIP; BAND
(B) L=140 		8-97122-360-0 01 1 0611- ● ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 9907-0610 ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 0611- ● ●
485 GASKET; SENSOR 8-97369-404-0 02 1 0611- ● ●
485 GASKET; SENSOR 9-09565-212-0 01 1 9811-9906 ●
486 BOLT; AIR CMPR
M12X15 		0-28156-215-0 01 1 0611- ●
487 COVER; HOLE
(A) 		8-97600-831-0 01 1 0611- ● ●
487 COVER; HOLE
(B) 		8-94394-513-1 01 1 9907-0610 ●
487 COVER; HOLE
(B) 		8-94394-513-1 01 1 0611- ● ●

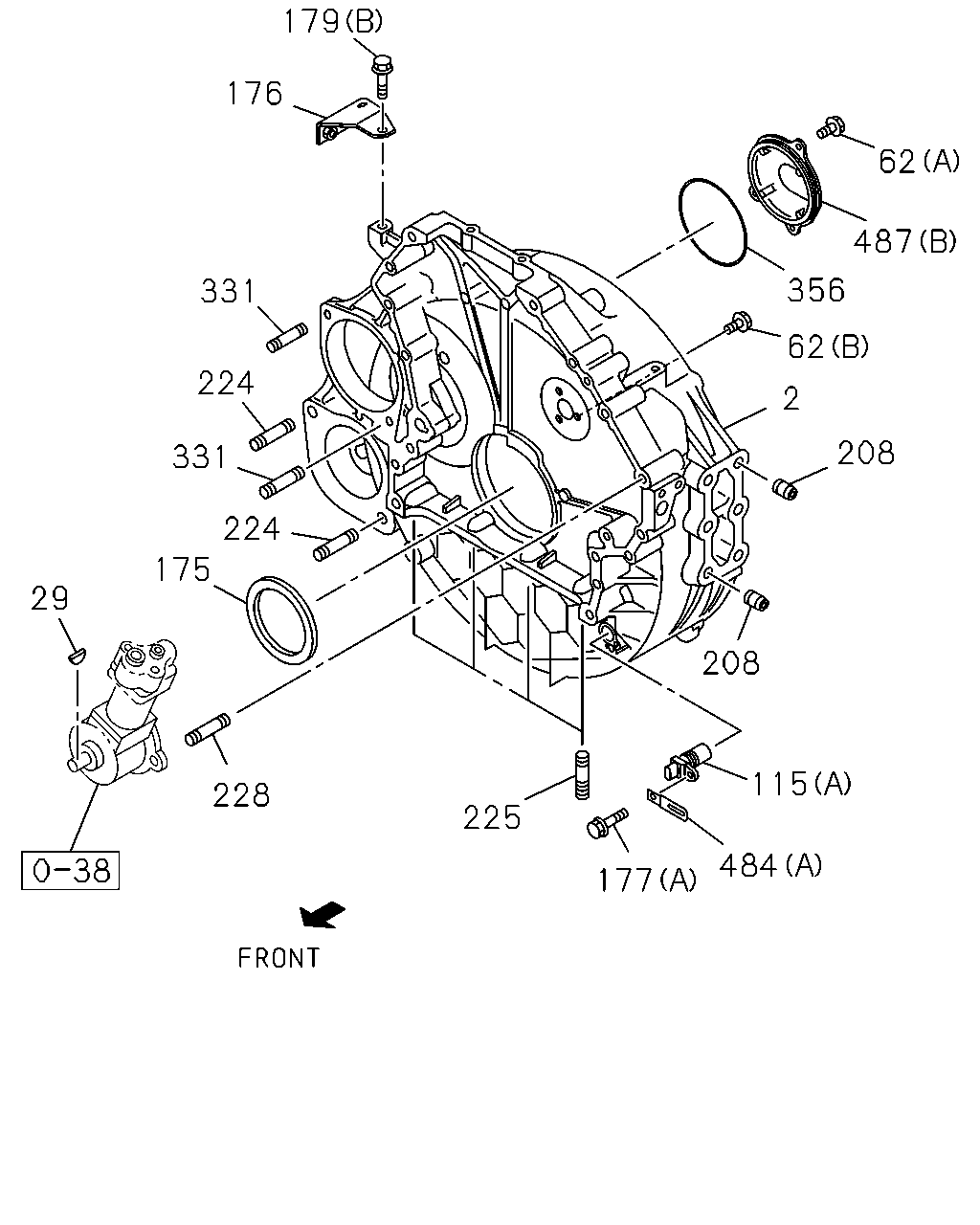

çizim 25542
179 176 62 487 356 331 62 224 2 208 331 224 175 29 208 115 228 225 484 177
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9811-9906 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9907-0610 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9907-0610 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0611- ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9907-0512 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 0611- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(C) 		1-81510-561-0 01 1 9811-9906 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-94390-279-0 01 1 9907-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 0611- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-9906 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9907-0112 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0610 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0611- ● ●
176 BRACKET; HARNESS 1-82699-412-1 01 1 9811-9906 ●
176 BRACKET; HARNESS 1-82698-079-1 01 1 9907-0610 ●
176 BRACKET; HARNESS 1-82698-497-0 01 1 0611- ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9811-9906 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9907-0512 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0601-0610 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0611- ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9906 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9907-0512 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0611- ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9906 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9811-9906 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9907-0610 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0611- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9811-9906 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9907-0604 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605-0610 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0611- ● ●
225 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 03 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 0712- ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 0712- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9811-9906 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9907-0610 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 06 1 0611- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9811-9906 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 9907-0610 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0611- ● ●
331 STUD; P/S PUMP
M10X36.5 L=48.5 		8-94396-145-0 02 1 9907-0301 ●
331 STUD; P/S PUMP
M10X25 L=40 		0-49841-025-0 02 1 0302-0512 ●
331 STUD; P/S PUMP
M10X25 L=48.5 		0-49241-025-0 02 1 0601-0610 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9907-0610 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0611- ● ●
484 CLIP; BAND
(B) L=140 		8-97122-360-0 01 1 0611- ● ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 9907-0610 ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 0611- ● ●
487 COVER; HOLE
(A) 		8-97600-831-0 01 1 0611- ● ●
487 COVER; HOLE
(B) 		8-94394-513-1 01 1 9907-0610 ●
487 COVER; HOLE
(B) 		8-94394-513-1 01 1 0611- ● ●

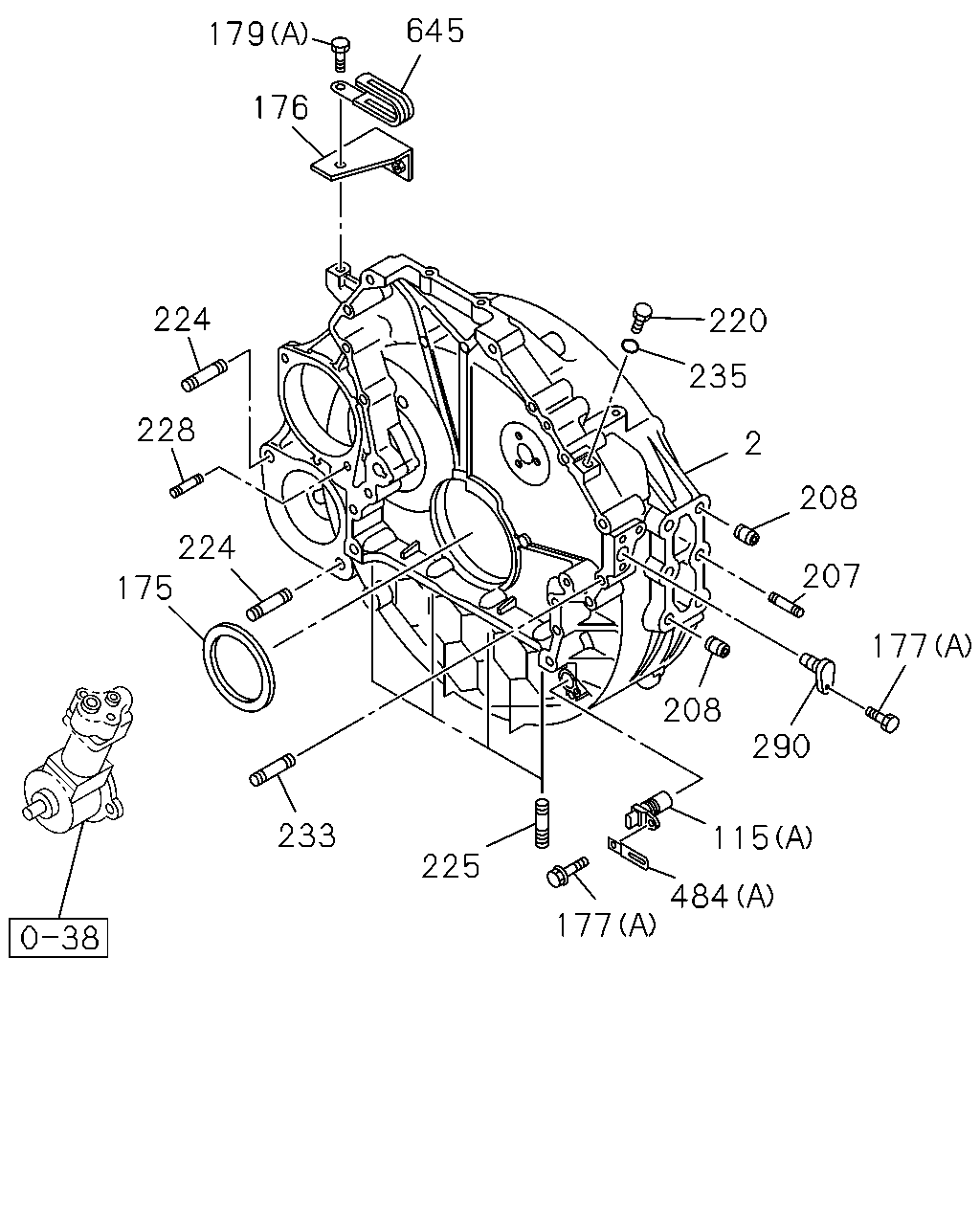

çizim 25612
645 179 176 224 220 235 228 2 208 224 207 175 177 208 290 233 115 225 484 177
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 0611- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(C) 		1-81510-561-0 01 1 9811-9906 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-94390-279-0 01 1 9907-0610 ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 0611- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-9906 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9907-0112 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0610 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0611- ● ●
176 BRACKET; HARNESS 1-82699-412-1 01 1 9811-9906 ●
176 BRACKET; HARNESS 1-82698-079-1 01 1 9907-0610 ●
176 BRACKET; HARNESS 1-82698-497-0 01 1 0611- ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9811-9906 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9907-0512 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0601-0610 ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0611- ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9906 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9907-0512 ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0611- ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9906 ●
207 STUD; ENG FOOT
M12X10 L=55 		0-43211-255-0 06 1 0611- ●
207 STUD; ENG FOOT
M12X24 L=104 		8-94390-111-0 02 1 0611- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9811-9906 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9907-0610 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0611- ● ●
220 PLUG; GEAR CHECK HOLE
M12X10 		1-09605-125-0 01 1 0611- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9811-9906 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9907-0604 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605-0610 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0611- ● ●
225 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 03 1 0611-0711 ●
225 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 0712- ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 02 1 0611-0711 ●
225 STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 0712- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9811-9906 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9907-0610 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 06 1 0611- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9811-9906 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 9907-0610 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0611- ● ●
233 STUD; BRKT
M12X67 L=82 		1-09302-112-0 01 1 0611- ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0611- ● ●
290 PLUG; SENSOR HOLE 8-97101-974-0 01 1 0611- ● ●
484 CLIP; BAND
(B) L=140 		8-97122-360-0 01 1 0611- ● ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 9907-0610 ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 0611- ● ●
645 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0703- ● ●

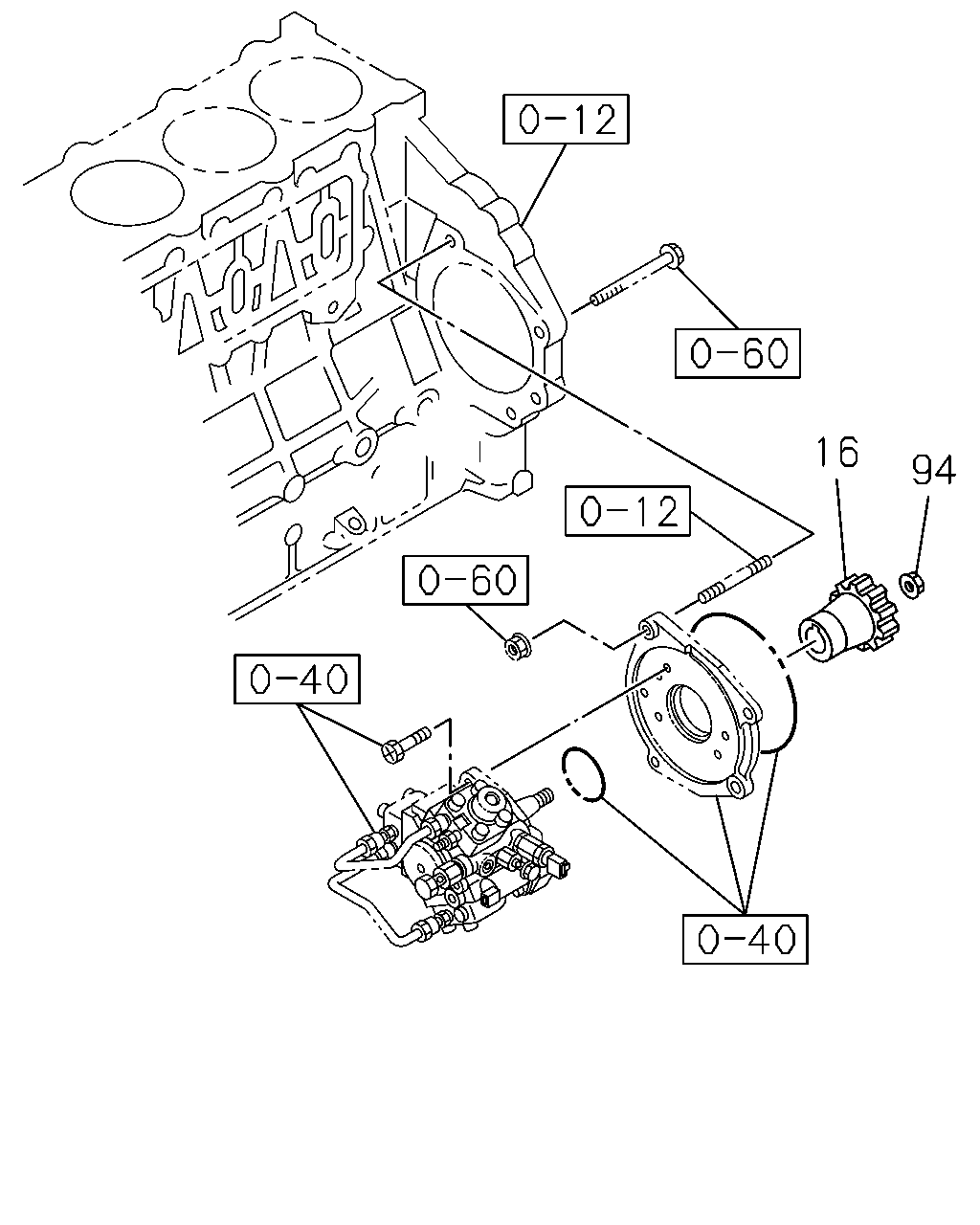

çizim 25613
16 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 GEAR; INJ PUMP DRIVE
Z=35 		8-97601-153-1 01 1 0611- ● ●
94 NUT; GEAR
M14 FLANGE 		0-91180-214-0 01 1 0611- ● ●

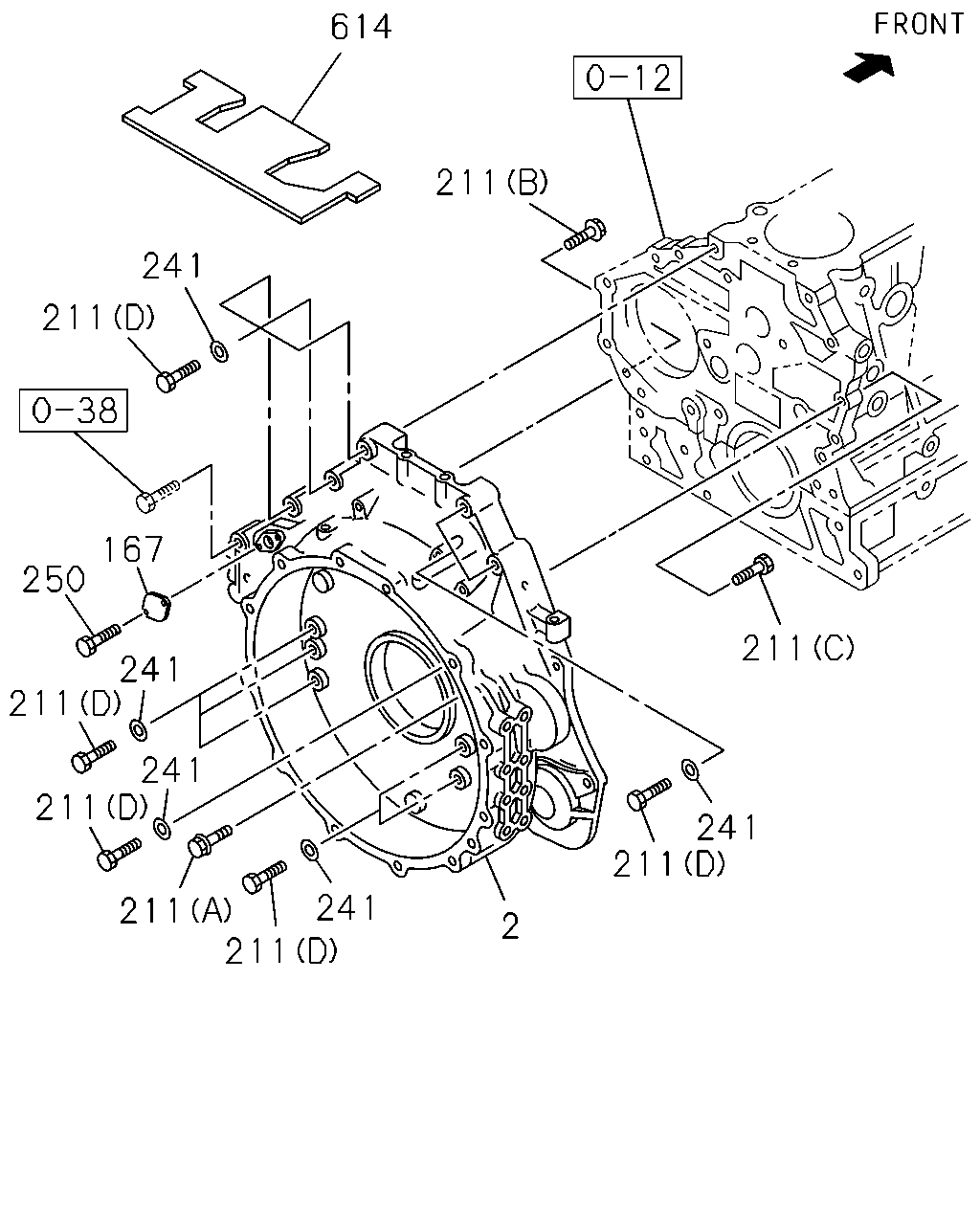

çizim 99173
614 211 241 211 167 250 211 241 211 241 211 241 211 241 211 211 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-998-1 01 1 0611- ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-9906 ●
2 HOUSING; FLYWHEEL 8-94391-983-4 01 1 9907-0610 ●
2 HOUSING; FLYWHEEL 8-97609-996-6 01 1 0611- ●
167 COVER; OIL 1-11219-163-0 01 1 9907-0610 ●
167 COVER; OIL 1-11219-163-0 01 1 0611- ● ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 0611- ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9811-9906 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9907-0512 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0610 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0611- ● ●
211 BOLT; HSG
(A) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9811-9906 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 9907-0610 ●
211 BOLT; HSG
(A) M14X27 FLANGE 		8-94393-995-0 01 1 0611- ● ●
211 BOLT; HSG
(C) M12X65 		9-01666-265-0 03 1 9811-9906 ●
211 BOLT; HSG
(C) M12X60 		0-16806-260-0 01 1 9907-0512 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0601-0610 ●
211 BOLT; HSG
(C) M12X60 		0-16856-260-0 01 1 0611- ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 10 1 9811-9906 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9907-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601-0610 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 0611- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9811-9906 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9907-0610 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0611- ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9907-0610 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0611- ● ●
614 RUBBER; HOUSING
ANTI NOISE EQUIPMENT ECE<SLK> 		8-97602-342-0 01 1 0503-0610 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
