◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#56647) — 64 parça

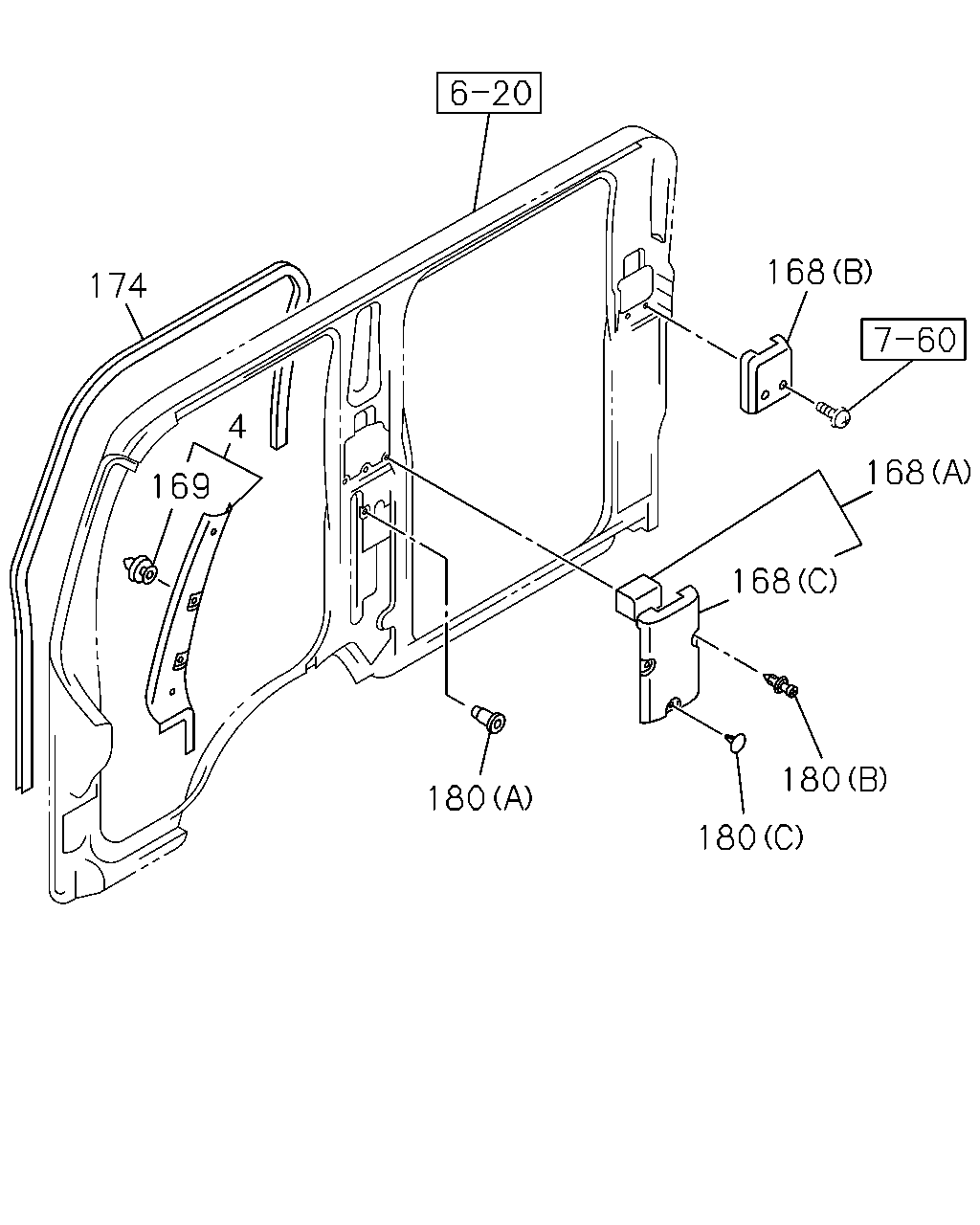

çizim 182011
168 174 4 168 169 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0712-1003 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1004- ● ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0712-1003 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1004- ● ● ●
168 COVER; SEAT BELT RETRACTOR
(C) GRAY 		8-97405-191-2 01 1 0712- ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 0712- ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97413-008-1 01 1 0712- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0712-1003 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1004- ● ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0804-0912 ●
174 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0804-0912 ●
174 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1003 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1004- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1003 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1004- ● ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 0712- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 0712- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 0712- ●

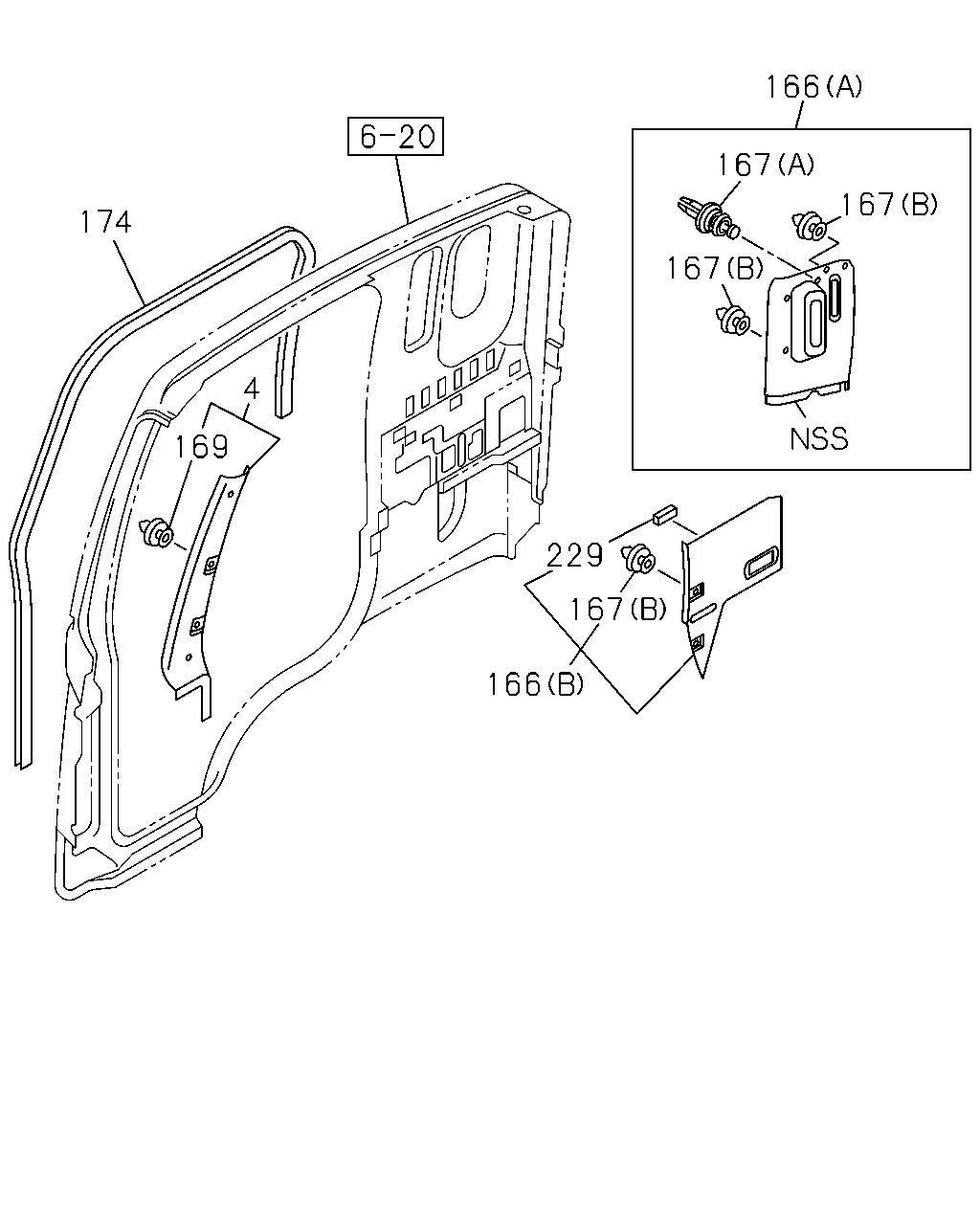

çizim 182012
166 167 167 174 167 4 169 229 167 166
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0712-1003 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1004- ● ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0712-1003 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1004- ● ● ●
166 TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97407-459-1 01 1 0812-1003 ●
166 TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97407-459-1 01 1 1004- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 1004- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0712-1003 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1004- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-462-1 01 1 0712-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0805-1003 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1004- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97409-800-1 01 1 0712-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0805-1003 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1004- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 0712-0811 ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97414-300-0 01 1 0812- ●
167 CLIP; TRIM,RR PILLAR
(A) DARK GRAY 		8-97412-726-0 02 1 0712-0804 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 12 1 0712-1003 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 1004- ● ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0712-1003 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 12 1 1004- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0712-1003 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1004- ● ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0804-0912 ●
174 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0804-0912 ●
174 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1003 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1004- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1003 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1004- ● ●
229 SEAL 8-98080-972-0 02 1 0712-0811 ●
229 SEAL 8-98092-662-0 01 1 0712-0811 ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98092-662-0 01 1 0812- ●
229 SEAL 8-98080-972-0 02 1 0812-1003 ●
229 SEAL
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98080-972-0 02 1 0812-1003 ●
229 SEAL 8-98080-972-0 02 1 1004- ● ●
229 SEAL
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98080-972-0 02 1 1004- ●
229 SEAL 8-98080-972-0 02 1 1004- ●
