◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#56646) — 54 parça

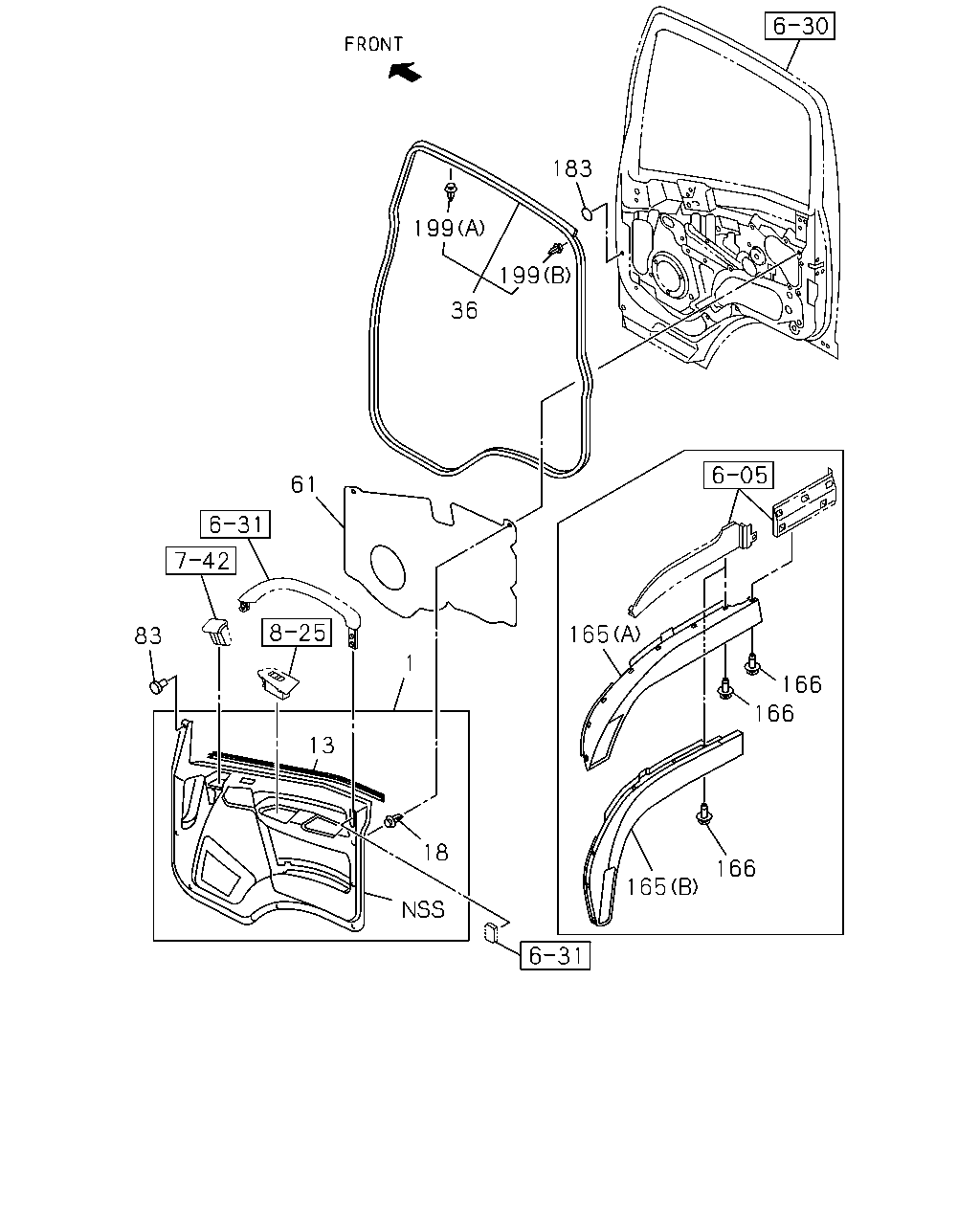

çizim 182015
183 199 199 36 61 165 83 1 166 166 13 18 166 165
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0812-1003 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 1004- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-305-6 01 1 1004- ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 0812-1003 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 1004- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-307-6 01 1 1004- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0712-0811 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0812- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0812- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0712-0811 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0812- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0812- ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0712-1003 ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1004- ● ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0712-1003 ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1004- ● ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0712-0811 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0712-0811 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0812-1003 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0812-1003 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 1004- ● ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 1004- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0712-1003 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1004- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0712-1003 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 1004-1009 ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 0712-1003 ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1004- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1004- ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 0712-1003 ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1004- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1004- ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 0712-1003 ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1004- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1004- ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0712-1003 ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1004- ● ● ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 0712-1003 ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 1004-1412 ● ●
165 LINER; DOOR LWR
(A) 		8-98299-436-0 01 1 1501- ● ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 0712-1003 ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 1004-1412 ● ●
165 LINER; DOOR LWR
(A) 		8-98299-434-0 01 1 1501- ● ●
165 LINER; DOOR LWR
(B) 		8-97584-591-0 01 1 0712- ●
165 LINER; DOOR LWR
(B) 		8-97584-590-0 01 1 0712- ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 08 1 0712-1003 ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 08 1 1004- ● ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0712-1003 ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1004- ● ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 0712-1003 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1004- ● ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 0712-1003 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1004- ● ● ●
