◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#56643) — 59 parça

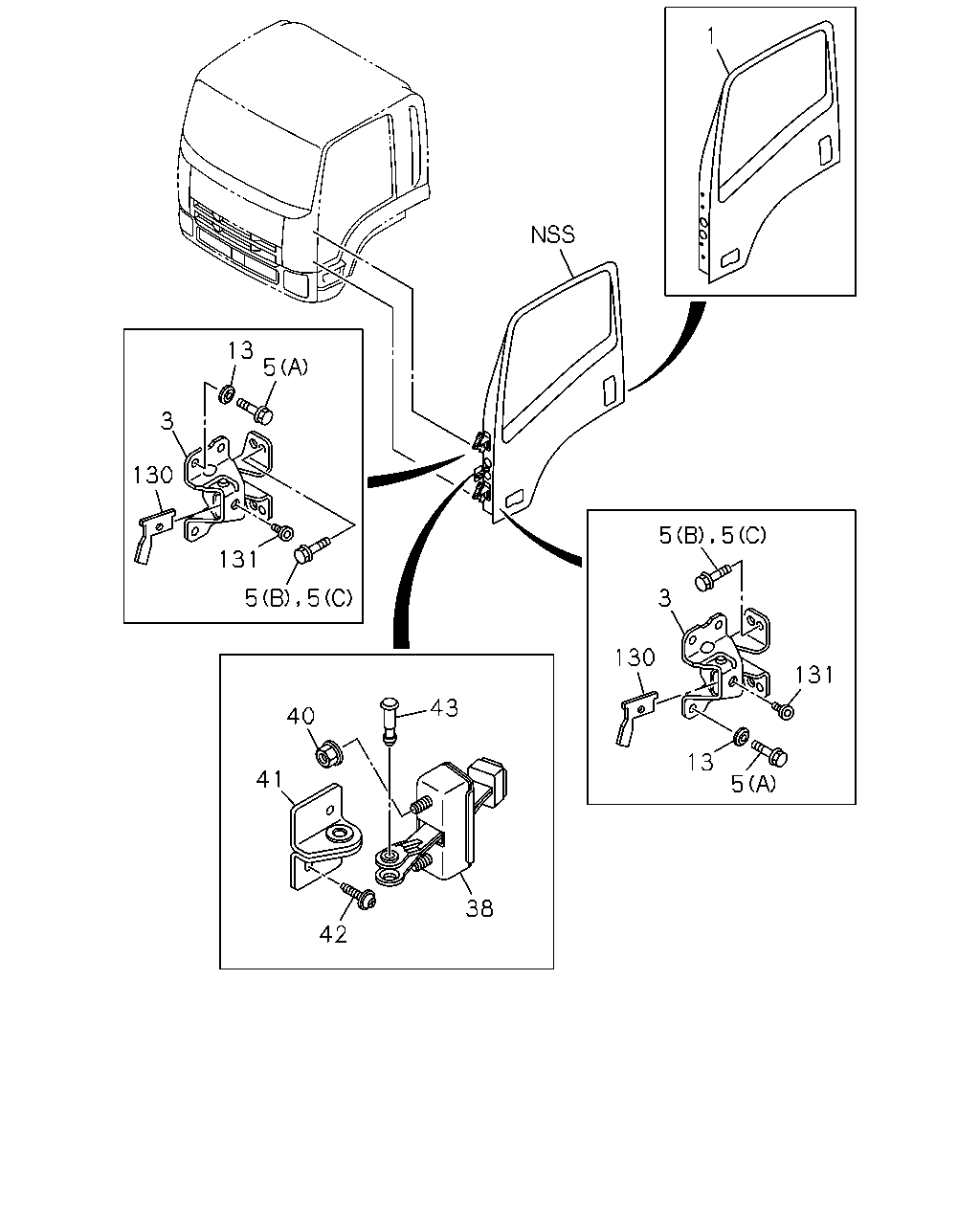

çizim 182005
1 13 5 3 130 131 3 130 131 43 40 13 41 5 38 42 5 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98064-821-0 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98064-822-0 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 0712-0811 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98060-798-1 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 1001-1003 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 1004-1012 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-231-0 01 1 1101-1411 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-598-0 01 1 1412- ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 0712-0811 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98060-797-1 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 0812-0912 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 1001-1003 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 1004-1012 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-223-0 01 1 1101-1411 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-597-0 01 1 1412- ● ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0712-1003 ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 1004-1104 ● ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ● ●
5 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (C) M8X20 FLANGE 		8-98049-756-0 08 1 0812-1003 ●
5 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (C) M8X20 FLANGE 		8-98049-756-0 08 1 1004- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0712-0811 ● ●
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 0812-1003 ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0812-1003 ●
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1004- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1004- ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 24 1 0712-0712 ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0801-0811 ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0801-0811 ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0812-1003 ● ●
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 12 1 0812-1003 ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0812-1003 ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1004- ● ● ●
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 12 1 1004- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1004- ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0712-0811 ● ●
13 WASHER; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL 		8-97890-584-1 04 1 0812-1003 ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0812-1003 ●
13 WASHER; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL 		8-97890-584-1 04 1 1004- ● ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 1004- ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98029-417-5 02 1 0812-0912 ●
38 CHECKER ASM; DOOR 8-98031-730-4 02 1 0712-0811 ● ●
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98031-730-6 02 1 0812-0912 ●
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 0812-0912 ●
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 1001-1003 ● ●
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 1004-1508 ● ● ●
38 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509- ● ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0712-1003 ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 1004-1012 ● ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101-1508 ● ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1509- ● ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 0712-1003 ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1004- ● ● ●
42 BOLT; BRKT
SCREW M6X20 W/PL WASHER 		8-98032-159-2 04 1 0712-1003 ● ●
42 BOLT; BRKT
SCREW M6X20 W/PL WASHER 		8-98032-159-2 04 1 1004- ● ● ●
43 PIN 8-98037-152-2 02 1 0712-1003 ● ●
43 PIN 8-98037-152-2 02 1 1004- ● ● ●
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98038-299-1 04 1 0812-0912 ●
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10X11 		8-98039-593-1 04 1 0812-0912 ●
