◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#56641) — 27 parça

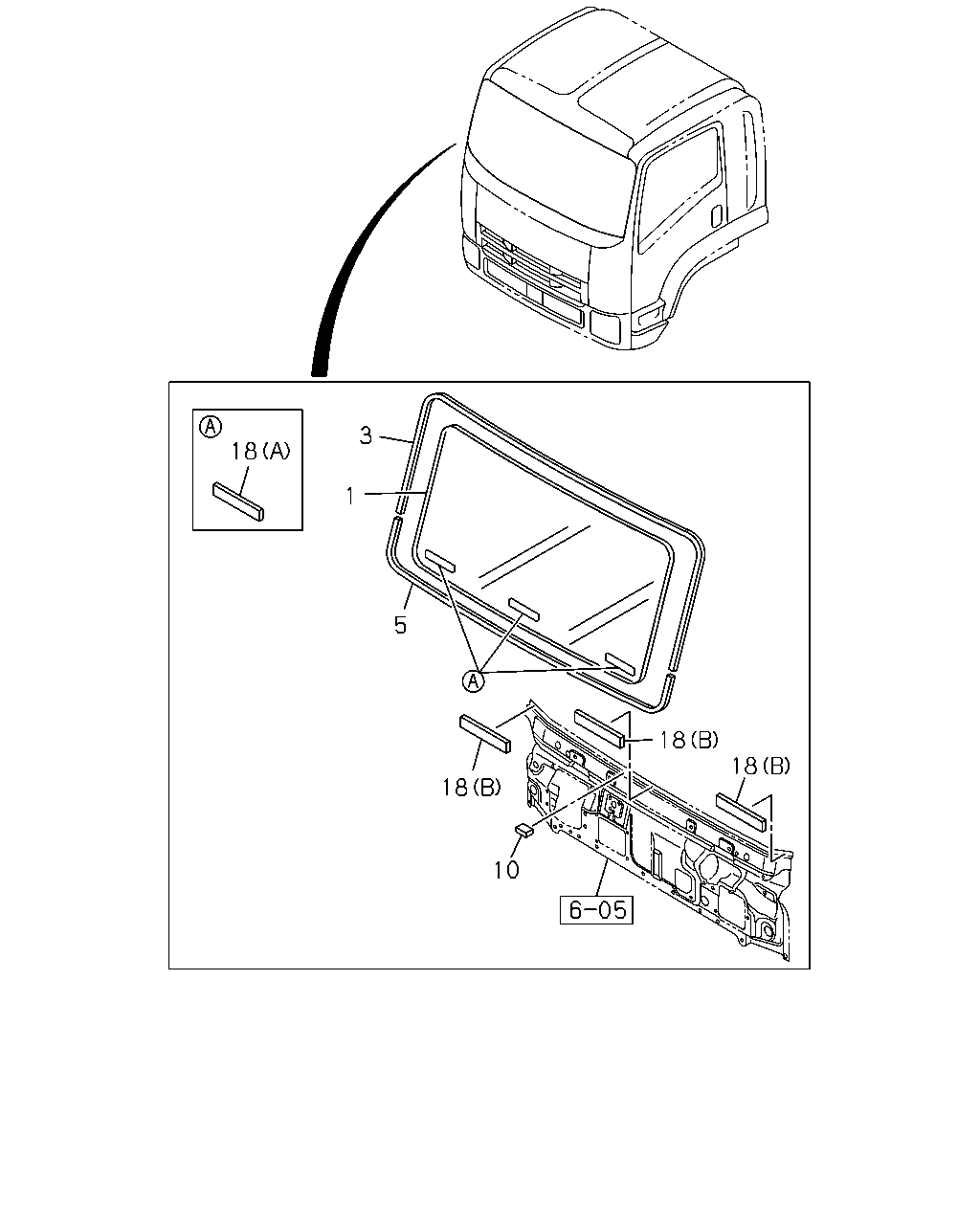

çizim 181995
3 18 1 5 18 18 18 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; WINDSHIELD 8-98041-647-3 01 1 1004- ●
1 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98041-646-3 01 1 0812- ●
1 GLASS; WINDSHIELD 8-98064-709-3 01 1 0712-0811 ● ●
1 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(B13) 		8-98064-709-3 01 1 0812- ●
1 GLASS; WINDSHIELD 8-98064-709-3 01 1 0812- ●
3 MOLDING; WINDSHIELD 8-98041-651-3 01 1 1004- ●
3 MOLDING; WINDSHIELD 8-98041-650-3 01 1 0712- ● ●
5 MOLDING; WINDSHIELD,LWR 8-98041-654-2 01 1 1004-1209 ●
5 MOLDING; WINDSHIELD,LWR 8-98222-159-0 01 1 1210- ●
5 MOLDING; WINDSHIELD,LWR 8-98041-653-2 01 1 0712-1209 ● ●
5 MOLDING; WINDSHIELD,LWR 8-98222-158-0 01 1 1210- ● ●
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 0812-1003 ●
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 1004- ● ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 0812-1003 ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 1004- ● ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 0812-1003 ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 1004- ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 0712-0811 ● ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 0812-1003 ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 0812-1003 ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 1004- ● ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 1004- ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 0712-0811 ● ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 0812-1003 ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 0812-1003 ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 1004- ● ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 1004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
