◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#56640) — 1602 parça

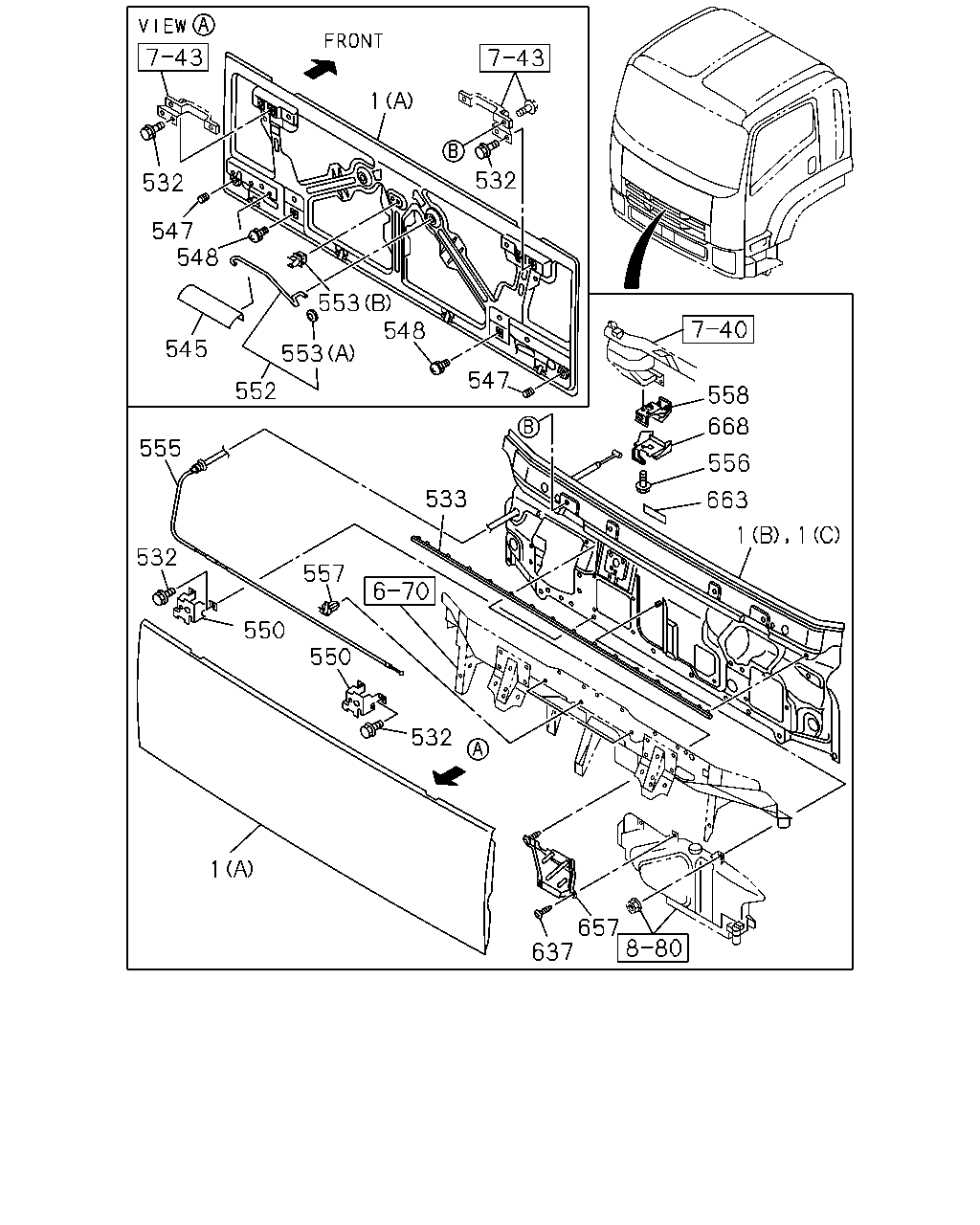

çizim 181804
1 532 532 547 548 553 548 545 553 547 552 558 668 555 556 533 663 1 1 532 557 550 550 532 1 657 637
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0712-1003 ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1004- ● ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1004- ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 0712- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1004- ●
545 SEAL; FRT LID 8-98036-583-0 01 1 0712-0910 ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 0911- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0712-1003 ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1004- ● ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0712-1003 ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1004- ● ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0712-1003 ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1004- ● ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1004- ●
552 STAY; FRT LID 8-98089-836-0 01 1 0712- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1004- ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0712-1003 ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1004- ● ● ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 0712- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1004- ●
555 CABLE; FRT LID 8-98036-573-1 01 1 0712- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0712-1003 ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1004- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0712-1003 ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1004- ● ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0712-1003 ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1004- ● ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 0712- ● ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 0712- ● ●
663 TAPE; PROTECT
275X11 		8-98070-053-1 01 1 0712-0910 ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0712-1003 ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1004- ● ● ●

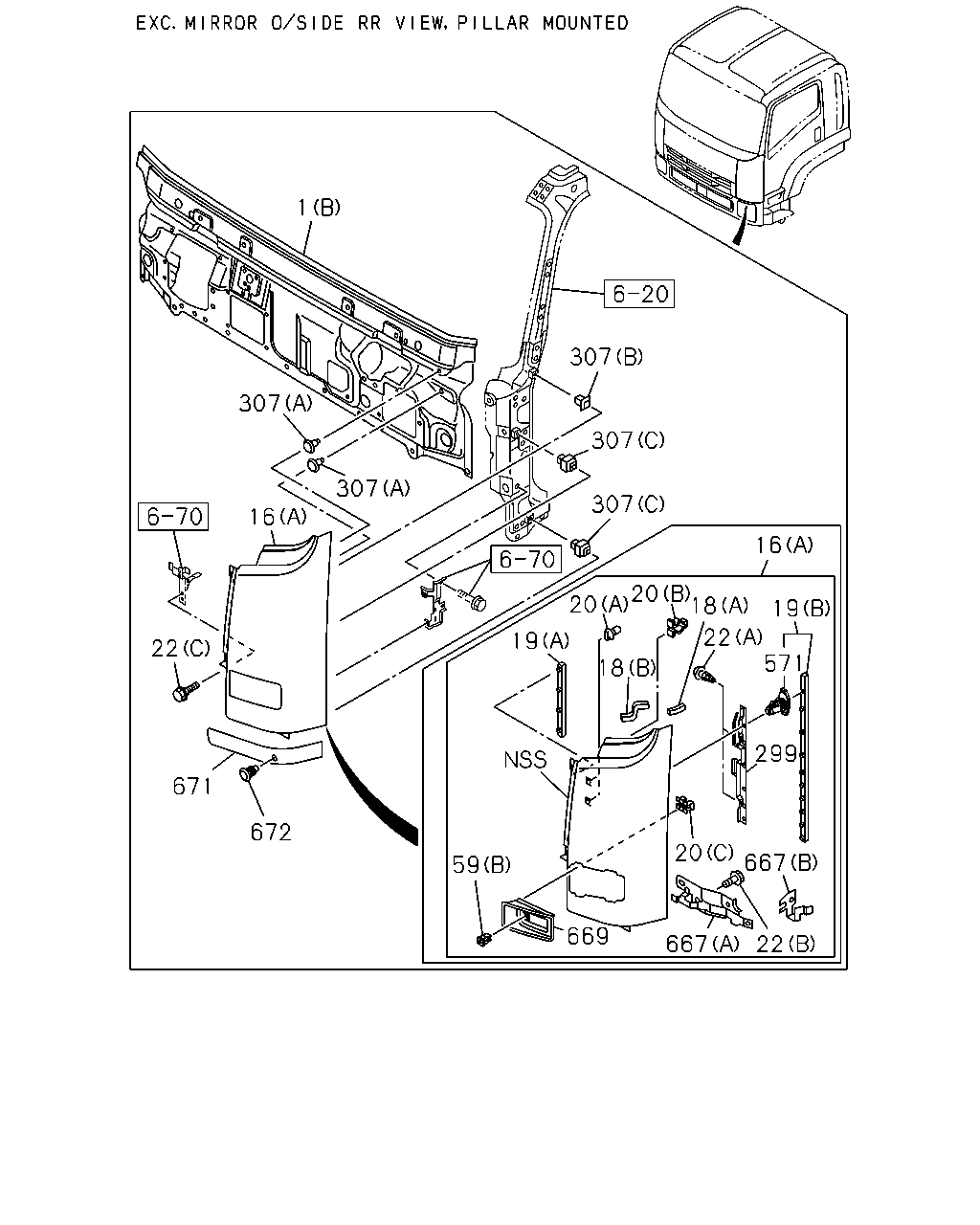

çizim 181811
1 307 307 307 307 307 16 16 20 18 20 19 22 571 19 22 18 299 671 672 20 667 59 22 669 667
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97417-654-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97417-655-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97417-656-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97415-030-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97409-901-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-298-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97415-031-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97415-032-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-299-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97417-657-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-302-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-084-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-301-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97417-658-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-659-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97417-660-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-303-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-235-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-236-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-237-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-238-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-239-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-240-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-241-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-243-5 01 1 0906-0912 ●

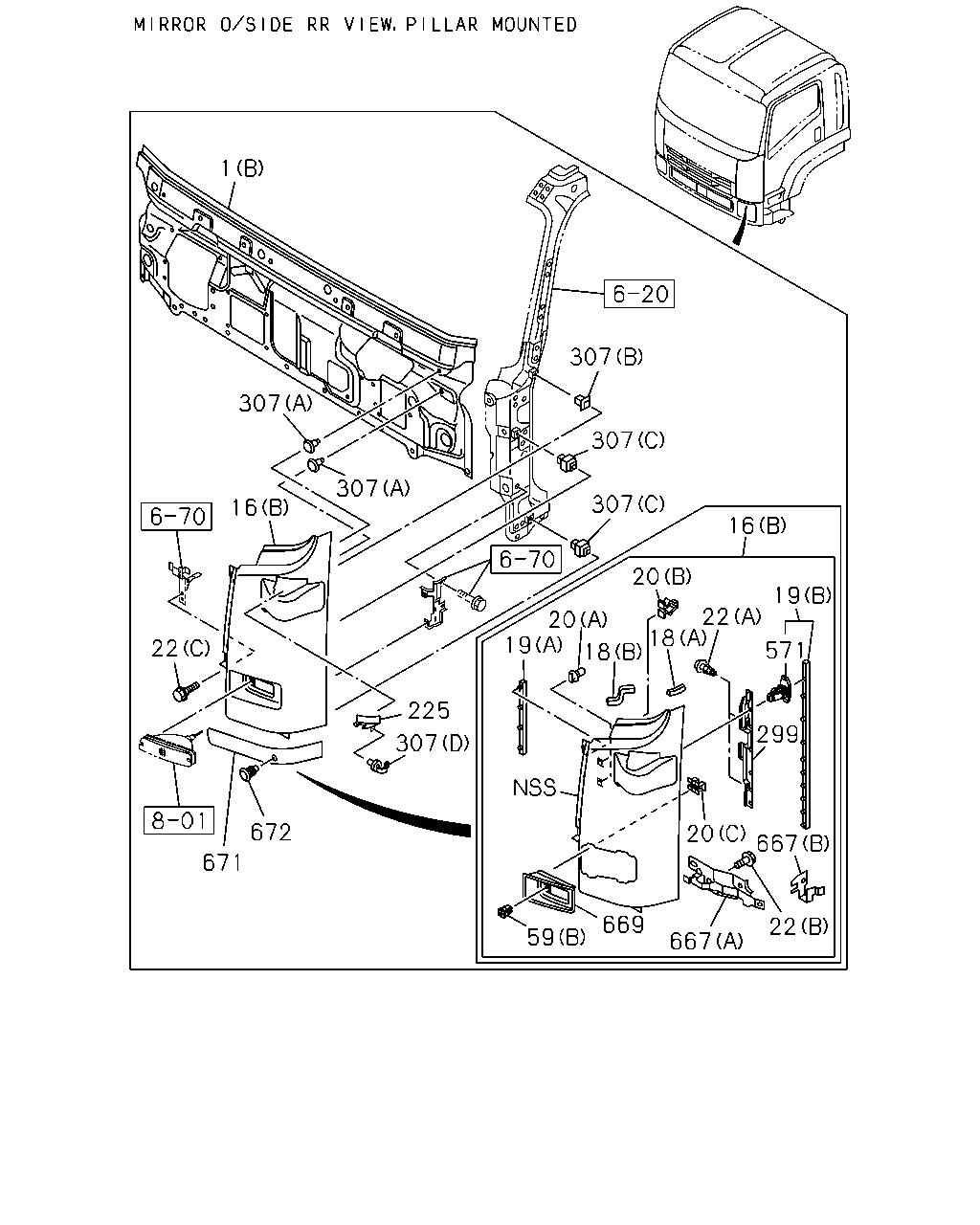

16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-791-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-246-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-255-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-480-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-481-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-482-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-483-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-484-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1001- ● ●

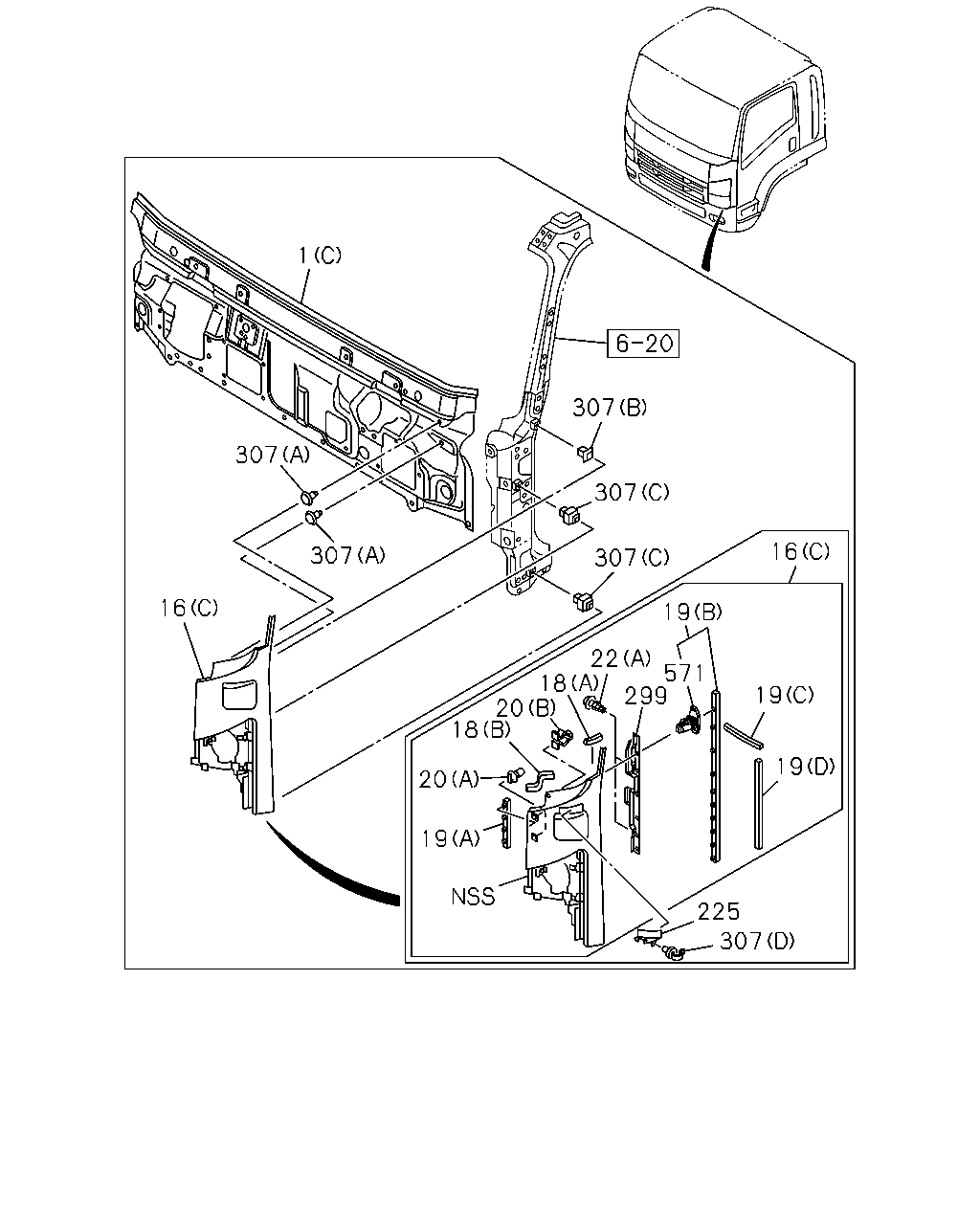

18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1004- ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0712-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1008- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1004- ● ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0712-0906 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1004- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1004- ● ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1004- ● ● ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 0910-0912 ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1004- ● ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1004- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0712-0906 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 1004- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) YELLOW 		8-97418-002-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97418-002-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) YELLOW 		8-97418-078-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97418-078-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 0712- ● ●
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 0712- ● ●
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 0712- ● ●
çizim 181985
1 655 656 655 656
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 0907-1003 ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1004- ● ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 0907-1003 ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1004- ● ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 0712-0906 ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 0712-0906 ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 0907-1003 ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1004- ● ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 0712-0906 ● ●
çizim 182003
1 307 307 307 16 307 307 16 19 22 18 20 18 571 299 19 19 20 19 225 307
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97417-654-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97417-655-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97417-656-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97415-030-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97409-901-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-298-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97415-031-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97415-032-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-299-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97417-657-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-302-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-084-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-301-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97417-658-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-659-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97417-660-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-303-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-235-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1001- ● ●

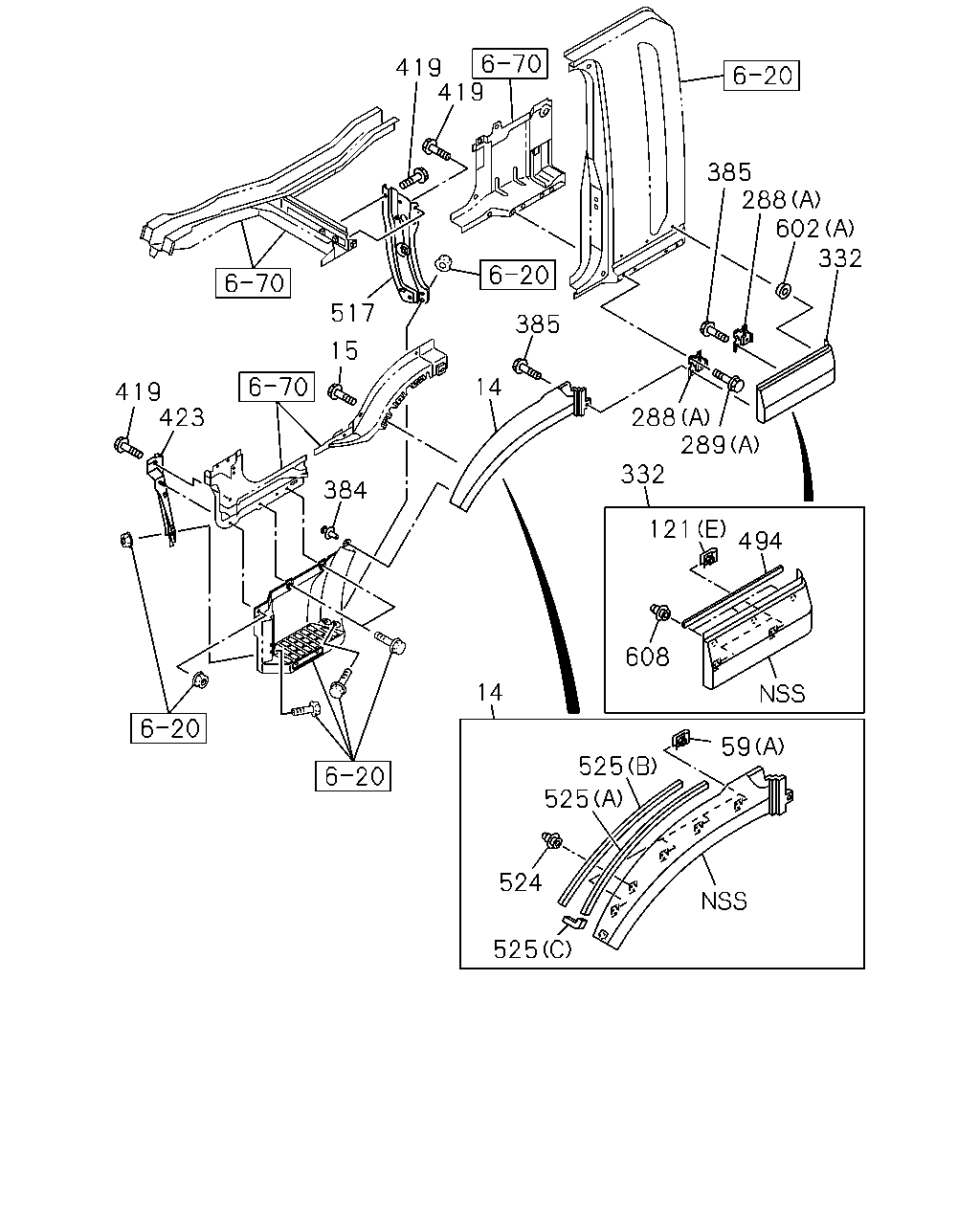

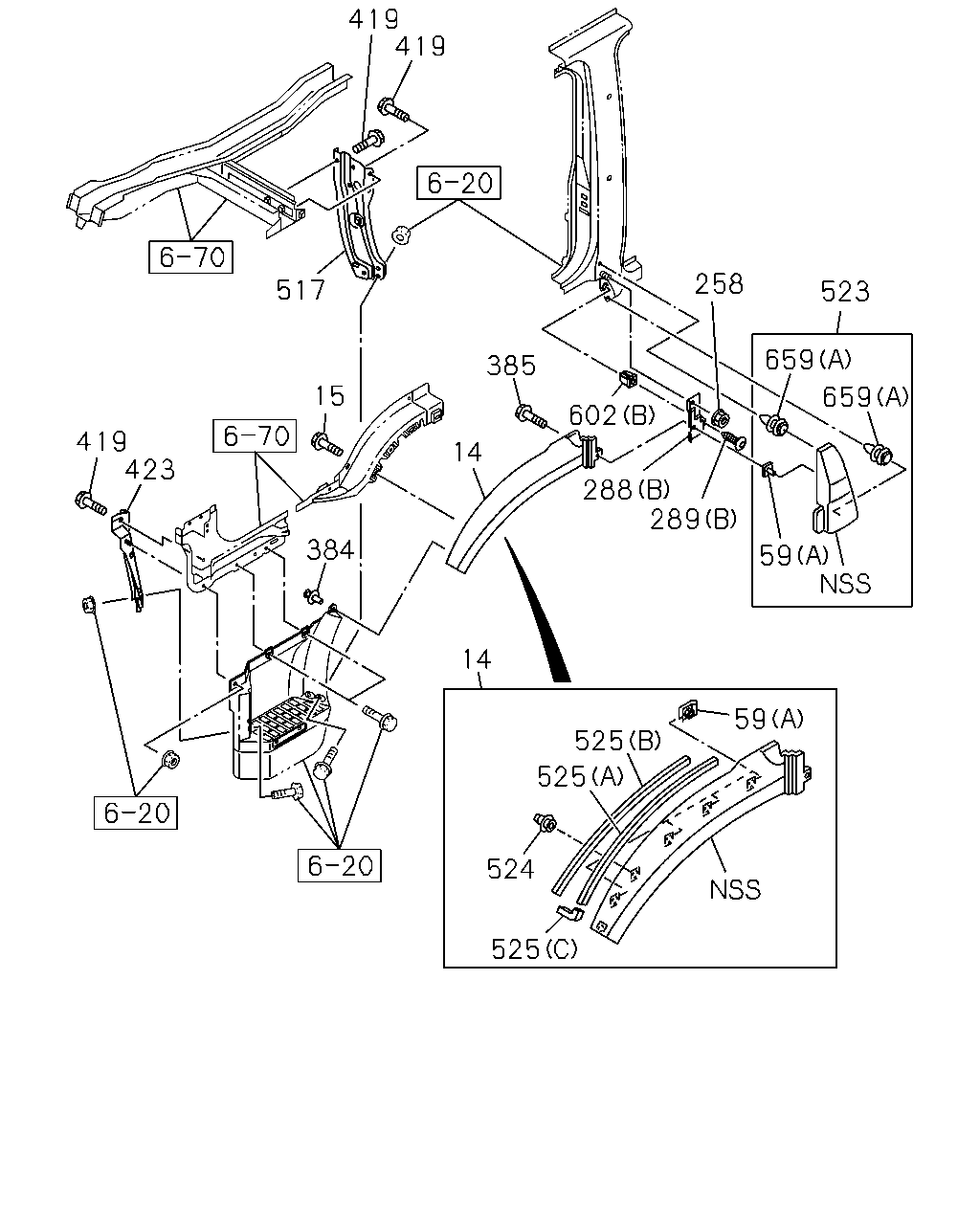

16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-236-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-237-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-238-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-239-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-240-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-241-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-243-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-791-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-246-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-255-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-480-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-481-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-482-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-483-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-484-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1001- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1004- ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0712-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
225 COVER; SIDE,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98041-431-1 01 1 0910-0912 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1004- ● ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1004- ● ● ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 0910-0912 ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1004- ● ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1004- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0712-0906 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1004- ● ●
çizim 182004
1 293 198 577 543 573 293 578 540 293 1 293 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0712-1003 ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1004- ● ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0712-1003 ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1004- ● ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0712-1003 ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1004- ● ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 0712-1003 ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1004- ● ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1004- ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 0712- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1004- ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 0712- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1004- ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 0712- ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 0712- ● ●
578 COVER; WIPER MOTOR 8-97586-018-2 01 1 0712-1003 ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1004- ● ● ●
çizim 182010
1 307 307 307 307 307 16 16 20 19 22 20 19 18 18 22 571 225 299 307 672 20 667 671 22 669 59 667
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1004- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1004- ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97417-654-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97417-655-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97417-656-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97415-030-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97409-901-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-298-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97415-031-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97415-032-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-299-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97417-657-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-302-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-084-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-301-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97417-658-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-659-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97417-660-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-303-4 01 1 1004- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-235-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-794-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) (A) YELLOW 		8-97417-797-5 01 1 0906-0906 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-236-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-237-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-238-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-239-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-240-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-241-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-243-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-791-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-246-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 0906-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-255-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-480-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-481-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-482-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-483-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-484-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 1001- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0712-0811 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0812-0912 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1001- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 1004- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0712-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0907-1003 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 01 1 1004- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1004- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0712-0906 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0907-1003 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1004- ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1004- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0712-0906 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0907-1003 ●
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0712-0906 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0907-1003 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1004- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0712-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1008- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1004- ● ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0712-0906 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1004- ● ●
225 COVER; SIDE,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98041-431-1 01 1 0910-0912 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1004- ● ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0712-0906 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0907-1003 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1004- ● ● ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 0910-0912 ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1004- ● ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0712-1003 ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1004- ● ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1004- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0712-0906 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0907-1003 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 1004- ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0712-0906 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0907-1003 ● ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0907-1003 ●
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 1004- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) YELLOW 		8-97418-002-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97418-002-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) YELLOW 		8-97418-078-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97418-078-0 01 1 0906-0906 ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 0906- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 0712- ● ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 0712- ● ●
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 0712- ● ●
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 0712- ● ●
çizim 182063
419 419 385 288 602 332 517 385 15 14 419 423 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0712-1003 ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1004- ● ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0712-1003 ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1004- ● ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0712-1003 ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1004- ● ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0712-1003 ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1004- ● ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0712-1003 ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1004- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1008- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1004- ● ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0712-0906 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1004- ● ●
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 0712-1003 ●
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 1004- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712-1003 ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1004- ● ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0712-0901 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-1003 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1004- ● ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0712-1003 ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1004- ● ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 0712-1003 ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 1004- ● ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 0712-1003 ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 1004- ● ● ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 0712-1003 ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1004- ● ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 0712- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 0712- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 0712-1003 ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1004- ● ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-085-2 01 1 1004- ●
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-086-2 01 1 1004- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-754-2 01 1 0906-0906 ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-755-2 01 1 0906-0906 ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 0906-1003 ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1004- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 0712-1003 ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1004- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 0712-1003 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1004- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 0712-1003 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1004- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0712-1003 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1004- ● ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0712-1003 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1004- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0712-1003 ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1004- ● ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0712-1003 ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1004- ● ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0712-1003 ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1004- ● ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 0712-1003 ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1004- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 0712-1003 ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1004- ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 0712-1003 ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1004- ● ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 0712-1003 ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1004- ● ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0712-1003 ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1004- ● ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1004- ● ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1004- ● ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1004- ● ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 0712-1003 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 1004-1302 ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ● ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 0712- ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 0712-1003 ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1004- ● ●
çizim 182126
546 546 226 121 472 121 226 534 121 472 472 78 121 472 535 121 534 535 659 659 59 666 59 666 658 658 666 666 659 664 659 650 665
BalonParca AdiParca NoAdetTipApplied Date A B C
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1008- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1004- ● ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0712-0906 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1004- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 0712-1003 ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1004- ● ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 0712-1003 ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1004- ● ● ●
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 0712-1003 ●
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 1004- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712-1003 ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1004- ● ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0712-0901 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-1003 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1004- ● ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0712-1003 ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1004- ● ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 0712-1003 ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 1004- ● ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 0712-1003 ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 1004- ● ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 0712-1003 ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 1004- ● ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 0712-1003 ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 1004- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0712-1003 ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1004- ● ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0712-1003 ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1004- ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0712-1003 ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1004- ● ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0712-1003 ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1004-1302 ● ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ● ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-494-0 01 1 1004- ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-495-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-271-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-296-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-263-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-288-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-272-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-297-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-264-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-289-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-278-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-303-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-273-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-298-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-270-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-295-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-285-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-310-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-286-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-311-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-287-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-312-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-282-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-307-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97417-087-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97417-088-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-089-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-090-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-274-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-299-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-284-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-309-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-779-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-781-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-267-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-292-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-265-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-290-0 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97415-320-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97415-340-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-770-0 01 1 0906-0906 ● ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-771-0 01 1 0906-0906 ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-313-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-333-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-321-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-341-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-314-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-334-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97415-319-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97415-339-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-330-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-350-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-332-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-352-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97415-329-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97415-349-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-742-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-743-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97415-317-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 0906-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97415-337-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-227-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97415-345-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-226-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97415-325-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-334-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-342-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-328-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-322-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-337-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-343-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-331-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-323-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-338-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-348-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-332-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-328-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-335-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-351-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-329-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-331-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-339-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-335-1 01 1 1004- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-333-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 0801-1003 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 1004- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-315-1 01 1 1004- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98060-620-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 0801-1003 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 1004- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> BLACK 		8-98106-499-0 01 1 1004- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98060-619-2 01 1 0712-0712 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 0801-1003 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 1004- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> BLACK 		8-98106-498-0 01 1 1004- ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0712-1003 ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1004- ● ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0712-1003 ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1004- ● ● ●
650 NUT; SPIRE 8-94279-501-0 02 1 0712-1003 ● ●
650 NUT; SPIRE 8-94279-501-0 02 1 1004-1007 ● ●
650 NUT; SPIRE
EXC. CORNERING LAMP<T87> 		8-94279-501-0 02 1 1004-1007 ●
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1008- ● ●
650 NUT; SPIRE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARKBLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1008- ● ●
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-94279-501-0 02 1 1008- ●
650 NUT; SPIRE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARKBLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-94279-501-0 02 1 1008- ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0712-1003 ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1004- ● ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0712-1003 ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1004- ● ● ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0712-1003 ● ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1004- ● ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0712- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-101-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-601-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-102-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-603-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97413-878-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-521-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97413-898-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-549-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-946-1 01 1 0906-0906 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-948-1 01 1 0906-0906 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-879-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-509-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-899-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-537-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97413-880-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-523-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97413-900-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-551-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-881-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-511-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-901-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-539-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97413-882-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-519-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97413-902-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-547-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97413-883-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-533-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97413-903-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-596-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-884-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-535-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-904-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-563-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97413-885-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-531-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97413-905-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-559-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-936-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-607-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-943-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-605-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97413-887-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-515-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 0906-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97413-907-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-543-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97409-219-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-497-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97409-218-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-485-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-454-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-499-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-448-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-487-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-457-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-503-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-451-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-491-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97411-458-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-505-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97411-452-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-493-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97411-455-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-501-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97411-449-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-489-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97411-459-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-507-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 1004-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97411-453-1 01 1 1004-1007 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-495-0 01 1 1008- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1004- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-146-1 01 1 1004- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 0712-1003 ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1004- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-145-1 01 1 1004- ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0712-1003 ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1004-1007 ● ●
665 SCREW; FENDER
EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1004-1007 ●
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008- ● ●
665 SCREW; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARKBLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008- ● ●
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008- ●
665 SCREW; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARKBLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008- ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0712-1003 ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1004- ● ● ●
çizim 182127
419 419 258 517 523 659 385 15 659 602 419 423 14 288 289 384 59 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0712-1003 ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1004- ● ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0712-1003 ● ●
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1004- ● ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0712-1003 ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1004- ● ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0712-1003 ● ●
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1004- ● ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0712-1003 ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1004- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0712-1003 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1004-1007 ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1008- ● ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0712-1003 ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1004- ● ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0712-0906 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ● ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0907-1003 ●
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1004- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0712- ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 0712-1003 ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1004- ● ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 0712- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 0712- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 0712-1003 ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1004- ● ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0712-1003 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1004- ● ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0712-1003 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1004- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0712-1003 ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1004- ● ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0712-1003 ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1004- ● ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0712-1003 ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1004- ● ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 0712-1003 ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1004- ● ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 0712-1003 ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1004- ● ● ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-766-1 01 1 0906-0906 ●
523 COVER; FENDER RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-767-1 01 1 0906-0906 ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 0712- ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0712-1003 ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1004- ● ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1004- ● ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1004- ● ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0712-1003 ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1004- ● ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 0712-1003 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 1004-1302 ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ● ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 0712- ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0712-1003 ● ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1004- ● ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
