Sayfa 0-15 - Isuzu EPC

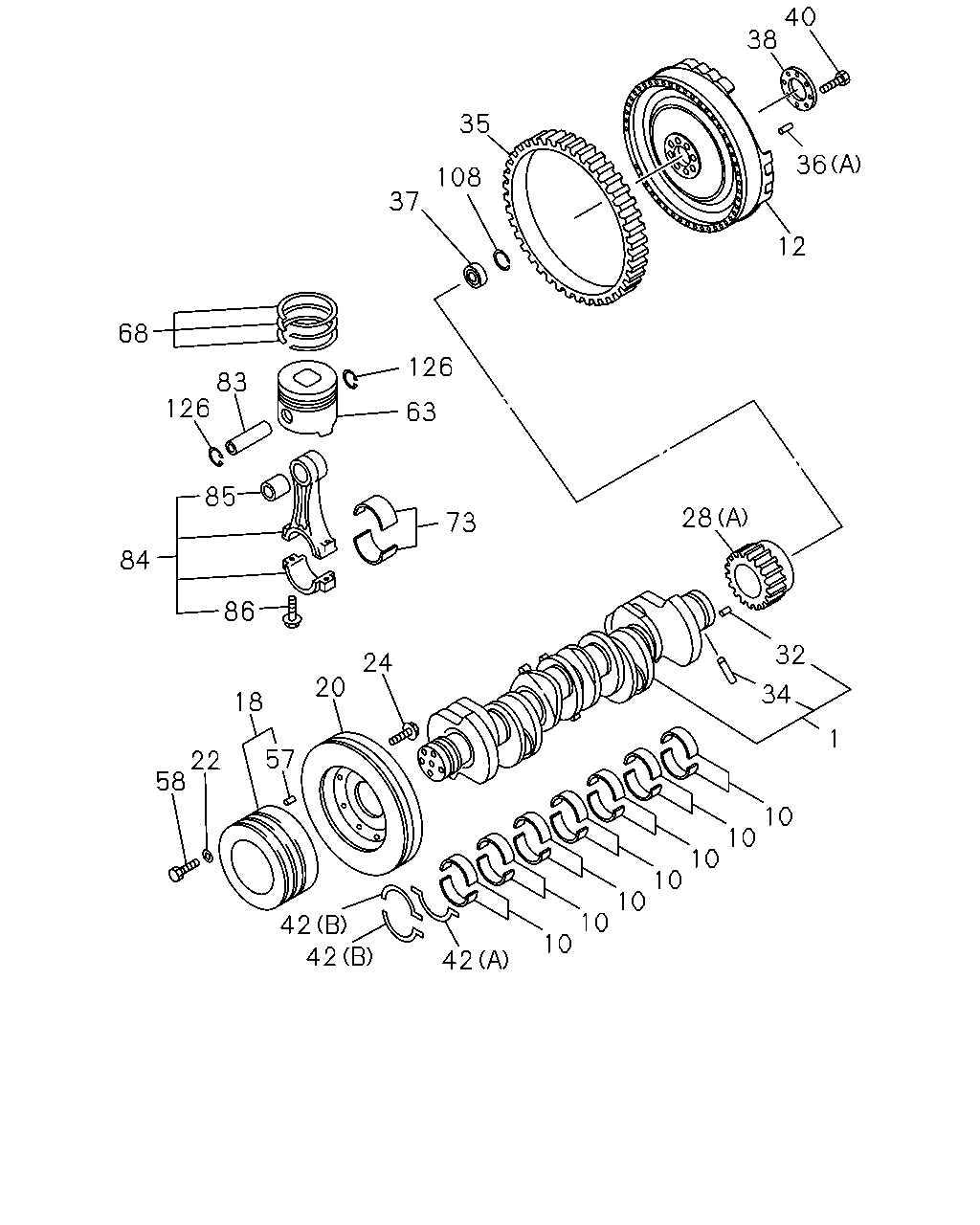

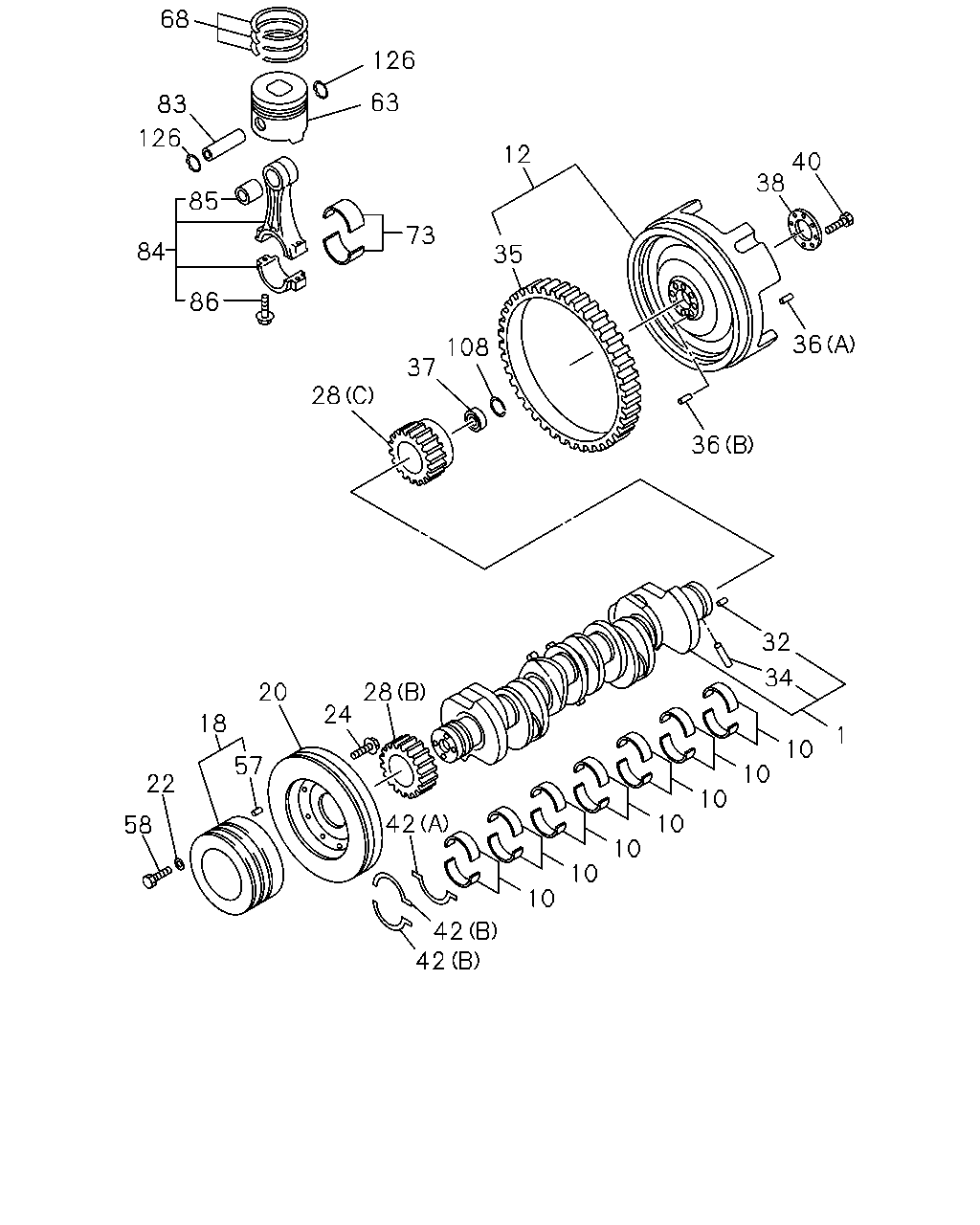

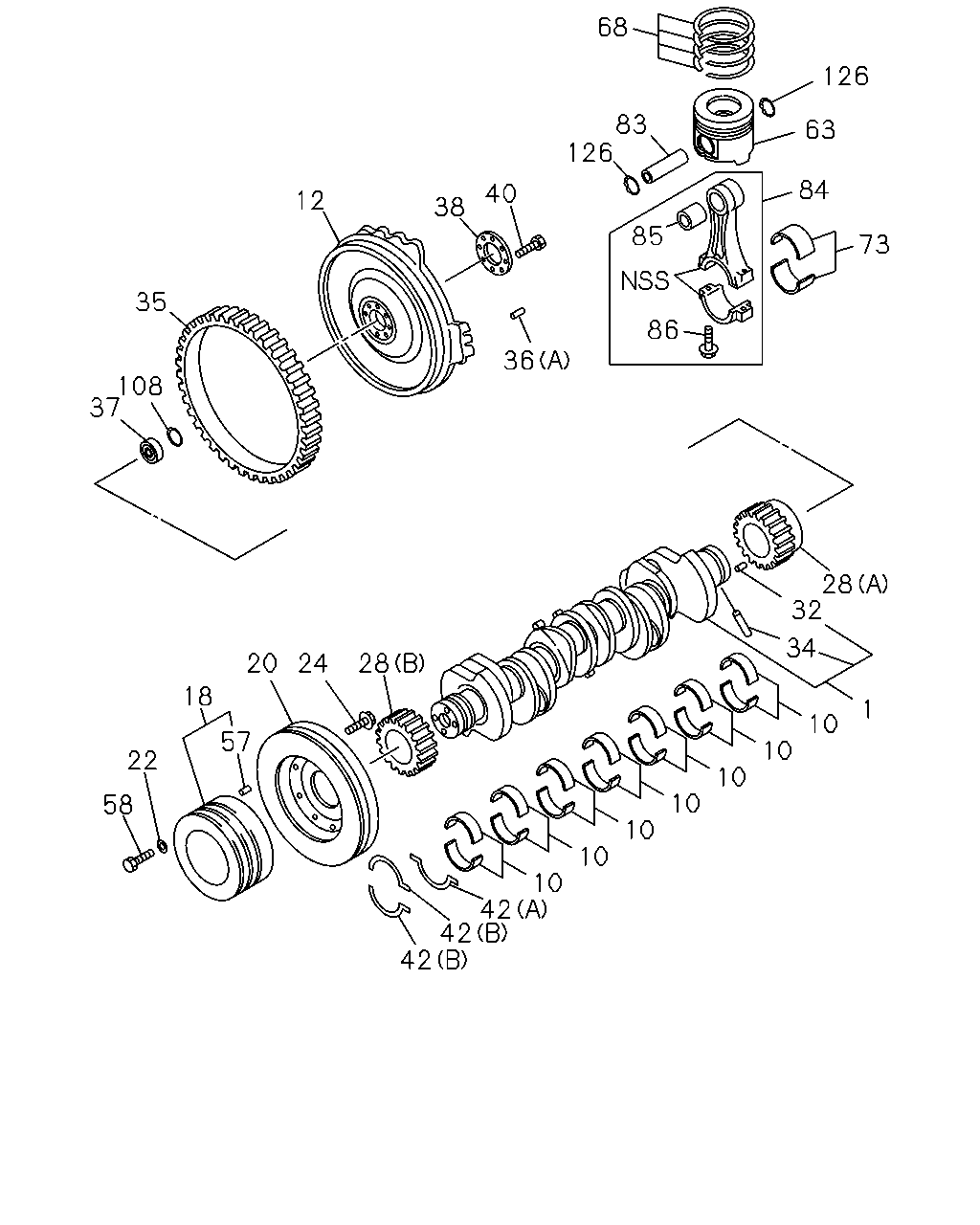

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#5664) — 333 parça

68 126 83 126 63 84 40 12 38 85 73 35 86 36 108 37 28 32 34 20 24 28 18 1 10 57 10 22 10 10 58 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-94396-737-3	01	1	9811-9906	●
1	CRANKSHAFT	8-94396-737-4	01	1	9907-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0610		●
1	CRANKSHAFT	8-97603-004-0	01	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9907-0305		●
12	FLYWHEEL	8-97602-463-2	01	1	0611-			●	●
12	FLYWHEEL	8-94395-450-1	01	1	9811-9906	●
12	FLYWHEEL	8-94390-943-1	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	9811-9906	●
18	PULLEY; CR/SHF 3-GROOVE	8-94392-436-0	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0611-			●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	9811-9906	●
20	DAMPER; CR/SHF	8-94394-354-6	01	1	9907-0610		●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	0611-			●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9811-9906	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9907-0610		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0611-			●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9811-9906	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9907-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-0610		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0611-			●	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	0611-			●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9811-9906	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9907-0610		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0611-			●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9907-0610		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0611-			●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-9906	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9907-0610		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0611-			●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9811-9906	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9907-0610		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=16	9-08160-616-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=24	9-09878-532-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9811-9906	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9907-0610		●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	0611-			●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9811-9901	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-9906	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9907-0610		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0611-			●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9811-9906	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9907-0610		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0611-			●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9811-9906	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9907-0610		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0611-			●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9811-9906	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9907-0610		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0611-			●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9811-9906	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9907-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-0610		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0611-			●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-594-0	06	1	9811-9906	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	9907-0610		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-1	06	1	0611-			●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9811-9906	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	9907-0610		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0611-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BROWN	8-97616-214-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BLUE	8-97616-215-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-			●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9811-9906	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9907-0610		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0611-			●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9811-9906	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9907-0108		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0610		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0611-0706			●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9811-9906	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9907-0108		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0610		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0611-			●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9811-9906	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9907-0610		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0611-			●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9811-9906	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9907-0610		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0611-			●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9811-9906	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9907-0610		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0611-			●	●

40 38 35 36 108 37 12 68 126 83 126 63 85 28 73 84 86 32 24 20 34 18 1 57 22 58 10 10 10 10 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-94396-737-3	01	1	9811-9906	●
1	CRANKSHAFT	8-94396-737-4	01	1	9907-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0610		●
1	CRANKSHAFT	8-97603-004-0	01	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9907-0305		●
12	FLYWHEEL	8-97602-463-2	01	1	0611-			●	●
12	FLYWHEEL	8-94395-450-1	01	1	9811-9906	●
12	FLYWHEEL	8-94390-943-1	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	9811-9906	●
18	PULLEY; CR/SHF 3-GROOVE	8-94392-436-0	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0611-			●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	9811-9906	●
20	DAMPER; CR/SHF	8-94394-354-6	01	1	9907-0610		●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	0611-			●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9811-9906	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9907-0610		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0611-			●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9811-9906	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9907-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-0610		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0611-			●	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	0611-			●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9811-9906	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9907-0610		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0611-			●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9907-0610		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0611-			●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-9906	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9907-0610		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0611-			●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9811-9906	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9907-0610		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=16	9-08160-616-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=24	9-09878-532-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9811-9906	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9907-0610		●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	0611-			●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9811-9901	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-9906	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9907-0610		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0611-			●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9811-9906	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9907-0610		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0611-			●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9811-9906	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9907-0610		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0611-			●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9811-9906	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9907-0610		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0611-			●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9811-9906	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9907-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-0610		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0611-			●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-594-0	06	1	9811-9906	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	9907-0610		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-1	06	1	0611-			●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9811-9906	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	9907-0610		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0611-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BROWN	8-97616-214-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BLUE	8-97616-215-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-			●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9811-9906	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9907-0610		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0611-			●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9811-9906	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9907-0108		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0610		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0611-0706			●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9811-9906	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9907-0108		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0610		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0611-			●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9811-9906	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9907-0610		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0611-			●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9811-9906	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9907-0610		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0611-			●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9811-9906	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9907-0610		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0611-			●	●

68 126 63 83 126 12 40 38 85 73 84 35 86 36 108 37 28 36 32 34 20 28 24 18 1 10 57 10 22 10 42 10 58 10 10 10 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT	8-94396-737-3	01	1	9811-9906	●
1	CRANKSHAFT	8-94396-737-4	01	1	9907-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0610		●
1	CRANKSHAFT	8-97603-004-0	01	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-0610		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0611-			●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9811-9906	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9907-0305		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9907-0305		●
12	FLYWHEEL	8-97602-463-2	01	1	0611-			●	●
12	FLYWHEEL	8-94395-450-1	01	1	9811-9906	●
12	FLYWHEEL	8-94390-943-1	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	9811-9906	●
18	PULLEY; CR/SHF 3-GROOVE	8-94392-436-0	01	1	9907-0610		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0611-			●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	9811-9906	●
20	DAMPER; CR/SHF	8-94394-354-6	01	1	9907-0610		●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	0611-			●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9811-9906	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9907-0610		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0611-			●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9811-9906	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9907-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-0610		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0611-			●	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	0611-			●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9811-9906	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9907-0610		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0611-			●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9811-9906	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9907-0610		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0611-			●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-9906	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9907-0610		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0611-			●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9811-9906	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9907-0610		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=16	9-08160-616-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (B) OD=6 L=24	9-09878-532-0	01	1	0611-			●	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9811-9906	●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	9907-0610		●
36	PIN; FLYWHEEL (A) OD=10 L=22	9-08151-022-0	02	1	0611-			●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9811-9901	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-9906	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9907-0610		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0611-			●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9811-9906	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9907-0610		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0611-			●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9811-9906	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9907-0610		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0611-			●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-9906	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9907-0610		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0611-			●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9811-9906	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9907-0610		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0611-			●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9811-9906	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9907-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-0610		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0611-			●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-594-0	06	1	9811-9906	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	9907-0610		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-1	06	1	0611-			●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9811-9906	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	9907-0610		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0611-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BROWN	8-97616-214-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9811-9906	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	9907-0610		●
73	METAL SET; CONN ROD,STANDARD BLUE	8-97616-215-0	06	1	0611-0706			●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-			●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-			●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9811-9906	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9907-0610		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0611-			●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9811-9906	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9907-0108		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0610		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0611-0706			●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9811-9906	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9907-0108		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0610		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0611-			●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9811-9906	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9907-0610		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0611-			●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9811-9906	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9907-0610		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0611-			●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9811-9906	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9907-0610		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
