Sayfa 6-04 - Isuzu EPC

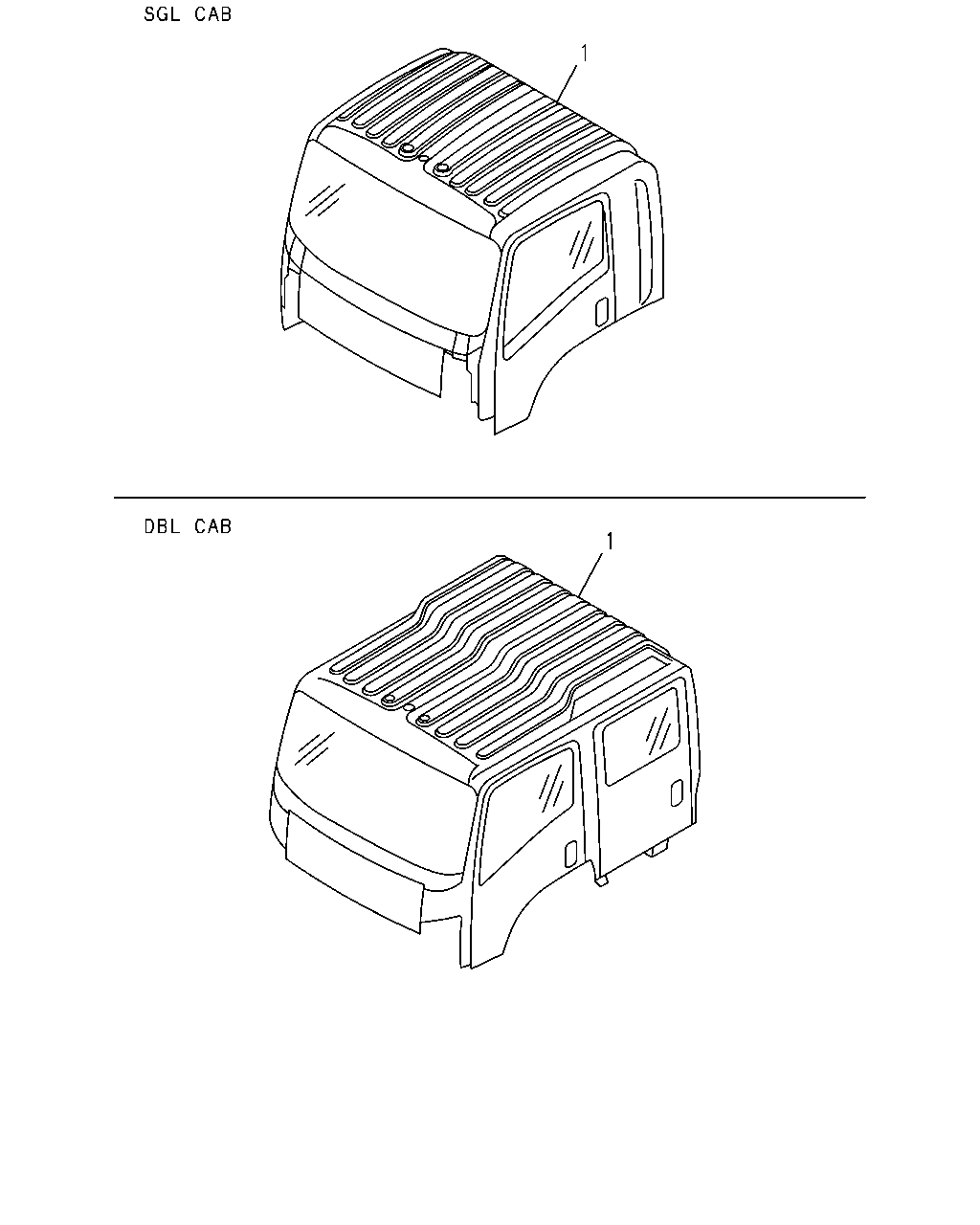

6-04 — CAB ASM (#56639) — 4 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. MIRROR O/S UNDER VIEW<RR9>	1-61087-475-0	01	1	0712-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. MIRROR O/S UNDER VIEW<RR9>	1-61087-477-0	01	1	0712-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),3-SPEAKER SYSTEM FRT<NNR>, FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEMBASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>,IMMOBILIZER SYSTEM<7KC>,ASH TRAY PASSENGER DOOR<8LX>	1-61088-226-0	01	1	1004-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) MANUAL TRANSMISSION<X9C> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),3-SPEAKER SYSTEM FRT<NNR>, FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEMBASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>,IMMOBILIZER SYSTEM<7KC>,ASH TRAY PASSENGER DOOR<8LX>	1-61088-224-0	01	1	1004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
