5-20 — BATTERY CARRIER (#56635) — 154 parça

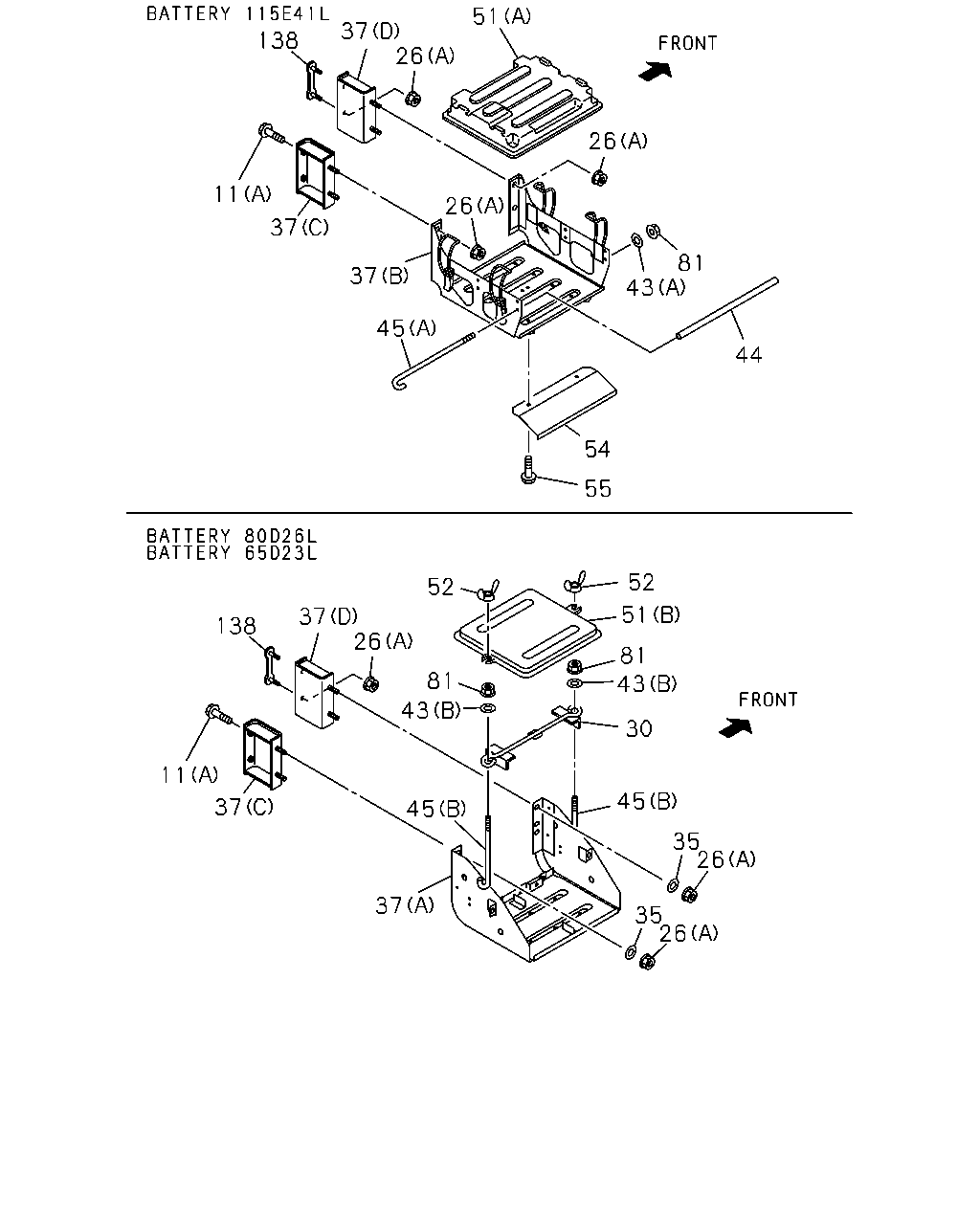

37 45 37 55 54 44 43 81 11 26 26 51 37 26 138 81 52 52 51 81 43 30 45 26 35 26 35 37 45 43 37 11 138 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BOLT; BRKT FIX (B) M14X35	0-20851-435-0	04	1	1004-	●
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
26	NUT; BRKT (B) M14	0-91110-514-0	04	1	1004-	●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0712-		●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-1003		●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1004-	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-1003		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1004-	●	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98167-768-0	01	1	1004-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98261-640-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (G)	8-98097-579-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (J)	8-98152-834-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (H)	8-98097-581-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (K)	8-98152-835-1	01	1	1004-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98091-499-0	01	1	0812-1405		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98261-637-0	01	1	1406-		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0812-1003		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1405		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1004-	●	●	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0712-0906		●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-		●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0712-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1004-	●	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	0812-1003		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1004-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-1003		●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1004-	●	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0812-1003		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	1004-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-1003		●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	1004-	●	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0812-1003		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1004-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-1003		●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1004-	●	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-1003		●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1004-	●	●	●
54	PROTECTOR; HEAT,BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA>	8-98113-142-0	01	1	0812-		●
55	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	02	1	0812-		●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
138	STUD	8-98066-802-0	01	1	0801-1010		●
138	STUD	8-98178-497-0	01	1	1011-1311		●
138	STUD	8-98255-710-0	01	1	1312-		●

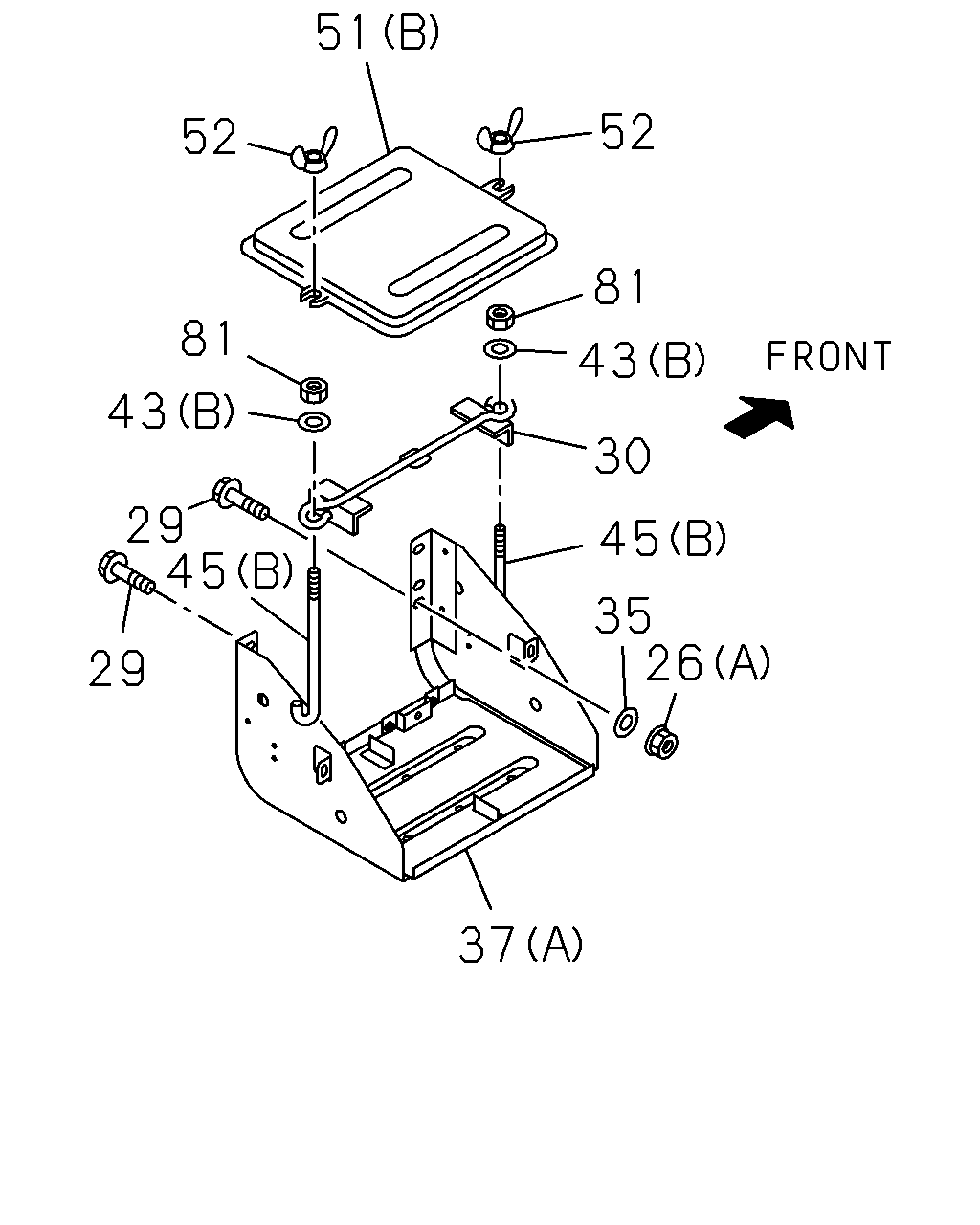

51 52 52 81 81 43 43 30 29 45 45 35 26 29 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	NUT; BRKT (B) M14	0-91110-514-0	04	1	1004-	●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0712-		●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-1003			●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1004-	●		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-1003		●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1004-	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-1003		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1004-	●	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98167-768-0	01	1	1004-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98261-640-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (G)	8-98097-579-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (J)	8-98152-834-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (H)	8-98097-581-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (K)	8-98152-835-1	01	1	1004-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98091-499-0	01	1	0812-1405		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98261-637-0	01	1	1406-		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0812-1003		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1405		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1004-	●	●	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0712-0906		●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-		●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0712-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1004-	●	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	0812-1003		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1004-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-1003		●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1004-	●	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0812-1003		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	1004-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-1003		●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	1004-	●	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0812-1003		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1004-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-1003		●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1004-	●	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-1003		●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1004-	●	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●

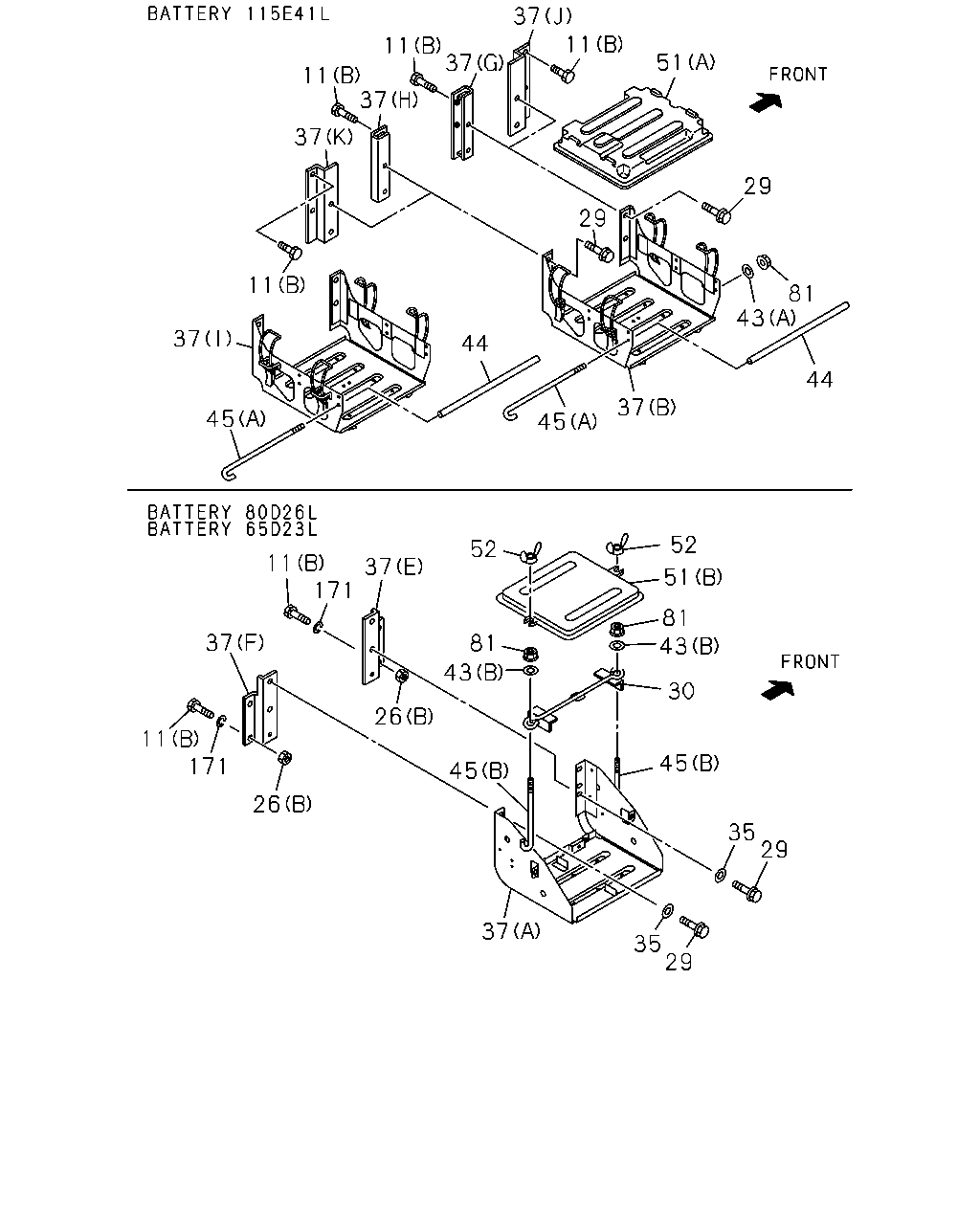

37 37 11 37 11 37 11 37 45 44 45 37 44 43 81 29 29 51 11 11 171 37 11 171 26 26 37 52 81 43 45 37 35 29 29 35 45 30 43 81 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BOLT; BRKT FIX (B) M14X35	0-20851-435-0	04	1	1004-	●
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
26	NUT; BRKT (B) M14	0-91110-514-0	04	1	1004-	●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0712-		●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-1003			●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1004-	●		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-1003		●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1004-	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-1003		●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1004-	●	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98167-768-0	01	1	1004-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98261-640-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (G)	8-98097-579-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (J)	8-98152-834-1	01	1	1004-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (H)	8-98097-581-0	01	1	1004-1004	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (K)	8-98152-835-1	01	1	1004-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98091-499-0	01	1	0812-1405		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (B)	8-98261-637-0	01	1	1406-		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0812-1003		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1004	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1004-1405		●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1004-	●	●	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0712-0906		●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-		●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0712-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-1003		●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1004-	●	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	0812-1003		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1004-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-1003		●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1004-	●	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0812-1003		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	1004-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-1003		●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	1004-	●	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0812-1003		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1004-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-1003		●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1004-	●	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-1003		●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1004-	●	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
171	WASHER; BRKT ID=14.2	0-91510-814-0	04	1	1004-	●
