Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#56630) — 315 parça

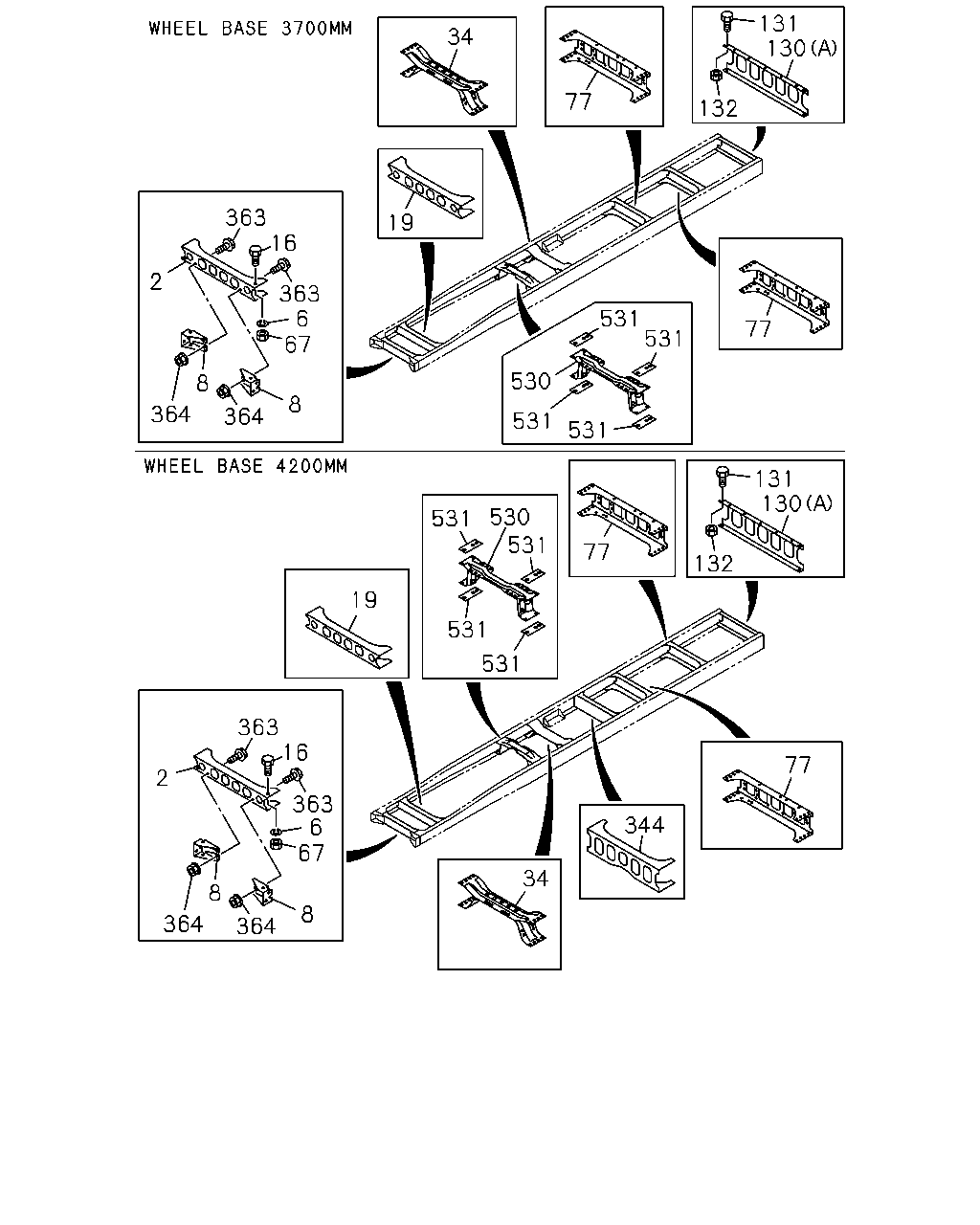

131 130 34 77 132 363 16 19 2 363 6 67 531 531 77 530 8 8 364 364 531 531 131 130 530 531 531 77 132 19 531 531 363 16 77 2 363 6 67 344 34 8 8 364 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-015-2	01	1	0712-0801	●
2	MEMBER; CROSS,1ST	8-98063-015-3	01	1	0802-1003	●	●
2	MEMBER; CROSS,1ST	8-98063-015-4	01	1	1004-	●	●	●
2	MEMBER; CROSS,1ST	8-97615-669-1	01	1	0712-0801		●
2	MEMBER; CROSS,1ST POWER TAKE OFF-FLYWHEEL(6SZ)	8-97615-669-1	01	1	0712-0801	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	0712-1003	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-122-1	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-98063-122-2	01	1	0806-1003	●	●
8	GUSSET; 1ST C/MBR	8-98063-122-2	01	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-123-0	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-98063-123-1	01	1	0806-1003	●	●
8	GUSSET; 1ST C/MBR	8-98063-123-1	01	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR	8-97609-578-0	01	1	0712-0805		●
8	GUSSET; 1ST C/MBR POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-578-0	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-97609-579-1	01	1	0712-0805		●
8	GUSSET; 1ST C/MBR POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-579-1	01	1	0712-0805	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	0712-1003	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1004-	●	●	●
19	MEMBER; CROSS,2ND	8-98063-018-6	01	1	0712-1003	●	●
19	MEMBER; CROSS,2ND	8-98063-018-7	01	1	1004-	●	●	●
34	MEMBER; CROSS,3RD	8-97609-500-2	01	1	0712-1003	●	●
34	MEMBER; CROSS,3RD	8-97609-500-2	01	1	1004-	●	●	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	0712-1003	●	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1004-	●	●	●
77	MEMBER; CROSS,TRUNNION RR	8-97610-935-1	01	1	1004-			●
77	MEMBER; CROSS,TRUNNION RR	8-97610-935-1	02	1	0712-	●	●
130	MEMBER; CROSS,END PINTLE HOOK<PP7> (B)	8-97618-526-0	01	1	1004-			●
130	MEMBER; CROSS,END (A)	8-97609-470-0	01	1	0712-1003	●	●
130	MEMBER; CROSS,END (A)	8-97609-470-0	01	1	1004-	●	●
130	MEMBER; CROSS,END EXC. PINTLE HOOK<PP7> (A)	8-97609-470-0	01	1	1004-			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0712-1003	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1004-	●	●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M10X25 W/LK WASHER	0-50541-025-0	04	1	1004-			●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0712-1003	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1004-	●	●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M10	0-91110-510-0	04	1	1004-			●
344	MEMBER; CROSS,4TH	8-97609-472-2	01	1	0712-	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	0712-1003	●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1004-	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	0712-0910		●
364	NUT; GUSSET POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE	0-91180-212-0	04	1	0712-0910	●
364	NUT; GUSSET EURO4 SPECIFICATION<NT4> M12 FLANGE	0-91180-212-0	04	1	0911-1003		●
364	NUT; GUSSET POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE	0-91180-212-0	04	1	0911-1003	●
530	MEMBER; CROSS,T/M POWER TAKE OFF-FLYWHEEL(6SZ)	8-97615-671-2	01	1	0712-	●	●
530	MEMBER; CROSS,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-809-3	01	1	0712-1003	●	●
530	MEMBER; CROSS,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-809-3	01	1	1004-	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1004-			●
531	SPACER; C/MBR,T/M POWER TAKE OFF-FLYWHEEL(6SZ) UPPER	8-97609-819-2	02	1	0712-	●	●
531	SPACER; C/MBR,T/M POWER TAKE OFF-FLYWHEEL(6SZ) LOWER	8-97616-463-2	02	1	0712-	●	●
531	SPACER; C/MBR,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ) UPPER,LOWER	8-97609-819-2	04	1	0712-1003	●	●
531	SPACER; C/MBR,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ) UPPER,LOWER	8-97609-819-2	04	1	1004-	●	●
531	SPACER; C/MBR,T/M UPPER,LOWER	8-97609-819-2	04	1	1004-			●

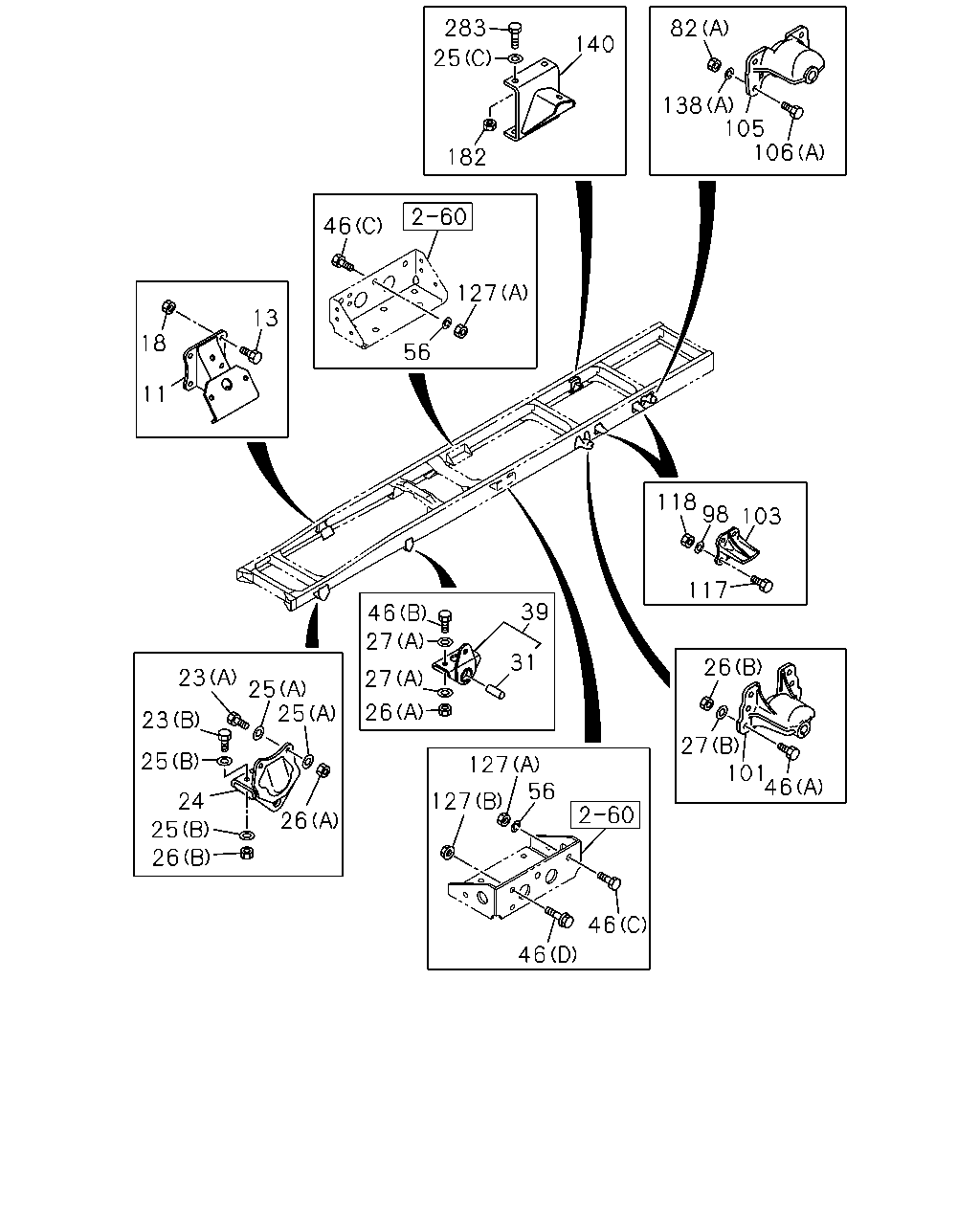

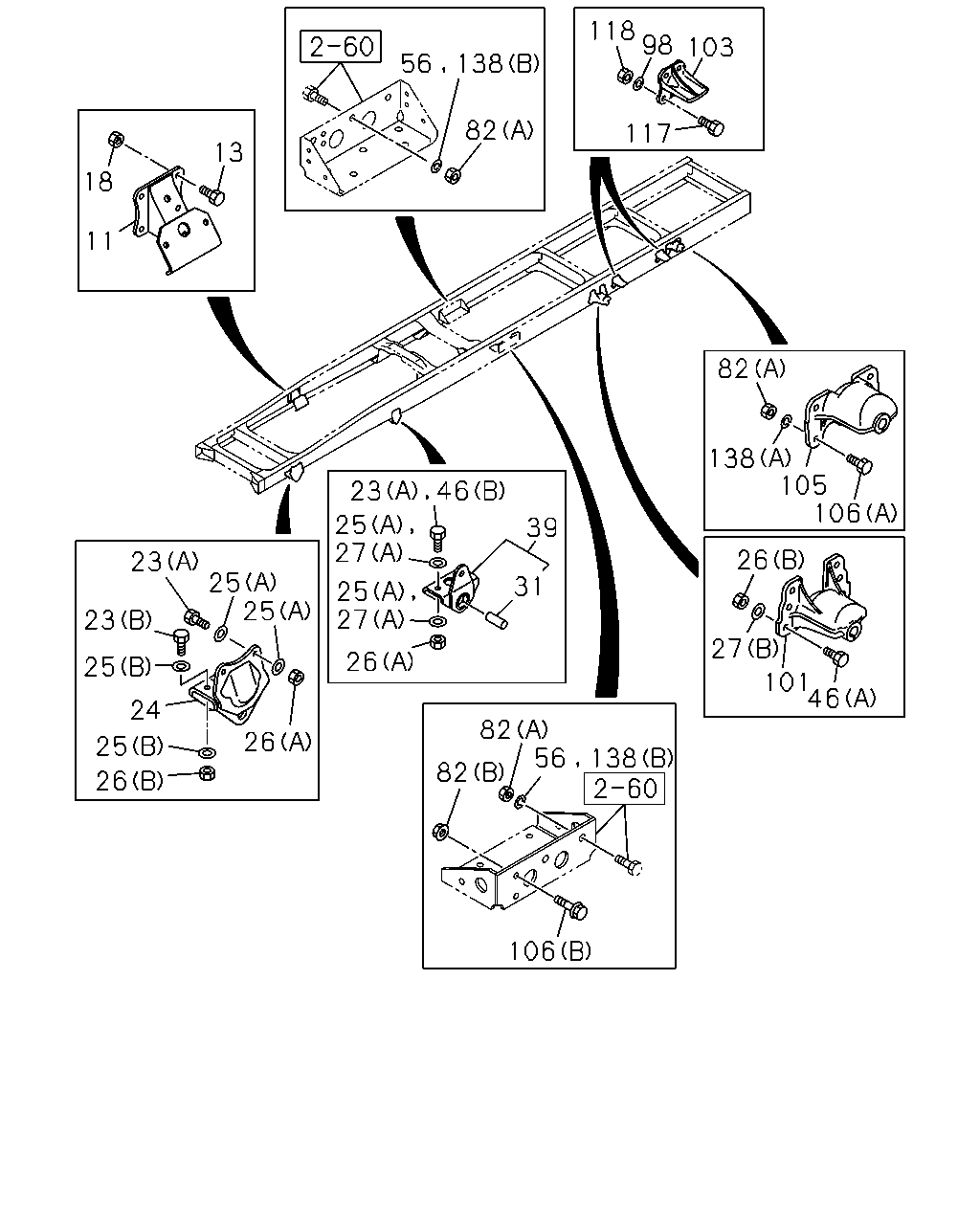

118 98 103 56 138 82 117 13 18 11 82 138 105 106 23 46 25 27 39 26 23 25 25 31 25 27 27 23 26 25 101 46 24 82 56 26 25 138 82 26 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97616-720-0	02	1	0712-1003	●	●
11	BRACKET; ENG MTG	8-97616-720-0	02	1	1004-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0712-1003	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1004-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0712-1003	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1004-	●	●	●
23	BOLT; BRKT,SPR EURO2 SPECIFICATION<NT2> (A) M12X35	0-20951-235-0	04	1	0911-1003		●
23	BOLT; BRKT,SPR EURO2 SPECIFICATION<NT2> (A) M12X35	0-20951-235-0	04	1	1004-		●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	04	1	1004-			●
23	BOLT; BRKT,SPR (B) M14X40	0-20951-440-0	04	1	1004-	●	●	●
23	BOLT; BRKT,SPR (B) M14X40	0-20951-440-0	04	1	0712-1003	●	●
23	BOLT; BRKT,SPR EURO4 SPECIFICATION<NT4> (A) M12X35	0-20951-235-0	10	1	0911-		●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	10	1	0911-	●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	10	1	0712-0910	●	●
24	BRACKET; FRT SPR,FRT	1-53351-258-0	02	1	0712-1003	●	●
24	BRACKET; FRT SPR,FRT	1-53351-258-0	02	1	1004-	●	●	●
25	WASHER; PL,BRKT (C) ID=12.2	0-91510-812-0	08	1	1004-			●
25	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	08	1	0911-1003		●
25	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	08	1	1004-		●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	08	1	1004-			●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1004-	●	●	●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-0	08	1	0712-1003	●	●
25	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4> (A) ID=12.2	8-98010-397-0	20	1	0911-		●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	20	1	0911-	●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	20	1	0712-0910	●	●
26	NUT; BRKT,SPR (A) M12	0-91110-512-0	10	1	1004-	●	●	●
26	NUT; BRKT,SPR (A) M12	0-91110-512-0	10	1	0712-1003	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	16	1	1004-	●	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	16	1	0712-1003	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-814-0	12	1	1004-	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-814-0	12	1	0712-1003	●	●
27	WASHER; LK,BRKT,FRT SPR EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	12	1	0911-1003		●
27	WASHER; LK,BRKT,FRT SPR EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	12	1	1004-		●
27	WASHER; LK,BRKT,FRT SPR (A) ID=12.2	8-98010-397-0	12	1	1004-			●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	0712-1003	●	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1004-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-185-1	02	1	0712-1003	●	●
39	BRACKET; FRT SPR,RR	1-53352-185-1	02	1	1004-	●	●	●
46	BOLT; BRKT FIX (C) M14X40	0-20851-440-0	10	1	1004-			●
46	BOLT; BRKT FIX (D) M10X30 FLANGE	0-28651-030-0	02	1	1004-			●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	12	1	0911-1003		●
46	BOLT; BRKT FIX (A) M14X50	0-20851-450-0	12	1	1004-	●	●	●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (B) M12X35	0-20951-235-0	06	1	0911-1003		●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (B) M12X35	0-20951-235-0	06	1	1004-		●
46	BOLT; BRKT FIX (B) M12X35	0-20951-235-0	06	1	1004-			●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	12	1	0712-0910	●	●
46	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> (A) M14X50	0-20951-450-0	12	1	0911-1003		●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	12	1	0911-1003	●
56	WASHER; LK ID=14.2	0-91510-814-0	10	1	1004-			●
56	WASHER; LK EURO2 SPECIFICATION<NT2> ID=14.2	0-91510-814-0	11	1	0911-		●
82	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	21	1	0712-1003	●
82	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M14	0-91110-514-0	10	1	1004-		●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	1004-			●
82	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10 FLANGE	0-91180-110-0	01	1	0712-1003	●
82	NUT; BRKT EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	0-91180-110-0	01	1	1004-		●
82	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	01	1	1004-	●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	0712-1003		●
82	NUT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	10	1	0712-1003	●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	1004-1004		●	●
82	NUT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	10	1	1004-1004	●
82	NUT; BRKT EURO4 SPECIFICATION<NT4> (A) M14	0-91110-514-0	21	1	1004-		●
82	NUT; BRKT (A) M14	0-91110-514-0	21	1	1004-	●
98	WASHER; LK,STOPPER EURO2 SPECIFICATION<NT2> ID=14.2	0-91510-814-0	16	1	0911-1003		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1004-	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0712-0910	●	●
98	WASHER; LK,STOPPER EURO4 SPECIFICATION<NT4> ID=14.2	0-91510-614-0	16	1	0911-1003		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0911-1003	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0712-1003	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	1004-	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0712-1003	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	1004-	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0712-1003	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	1004-	●	●	●
106	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	10	1	0911-1003		●
106	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	10	1	1004-1004		●
106	BOLT; BRKT (A) M14X50	0-20851-450-0	10	1	1004-1004			●
106	BOLT; BRKT (A) M14X50	0-20851-450-0	10	1	1004-	●	●	●
106	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-1003	●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	10	1	0712-0910	●	●
106	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M14X50	0-20951-450-0	10	1	0911-1003		●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	10	1	0911-1003	●
106	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
106	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
117	BOLT; STOPPER EURO2 SPECIFICATION<NT2> M14X50	0-20851-450-0	16	1	0911-1003		●
117	BOLT; STOPPER M14X50	0-20851-450-0	16	1	1004-	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0712-0910	●	●
117	BOLT; STOPPER EURO4 SPECIFICATION<NT4> M14X50	0-20951-450-0	16	1	0911-1003		●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0911-1003	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0712-1003	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1004-	●	●	●
138	WASHER; LK,BRKT EURO2 SPECIFICATION<NT2> (A) ID=14.2	0-91510-814-0	10	1	0911-1003		●
138	WASHER; LK,BRKT EURO2 SPECIFICATION<NT2> (A) ID=14.2	0-91510-814-0	10	1	1004-		●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-814-0	10	1	1004-			●
138	WASHER; LK,BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=14.2	0-91510-814-0	11	1	0712-1003	●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-614-0	10	1	0712-0910	●	●
138	WASHER; LK,BRKT EURO4 SPECIFICATION<NT4> (A) ID=14.2	0-91510-614-0	10	1	0911-1003		●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-614-0	10	1	0911-1003	●
138	WASHER; LK,BRKT EURO4 SPECIFICATION<NT4> (B) ID=14.2	0-91510-814-0	21	1	1004-		●
138	WASHER; LK,BRKT (B) ID=14.2	0-91510-814-0	21	1	1004-	●

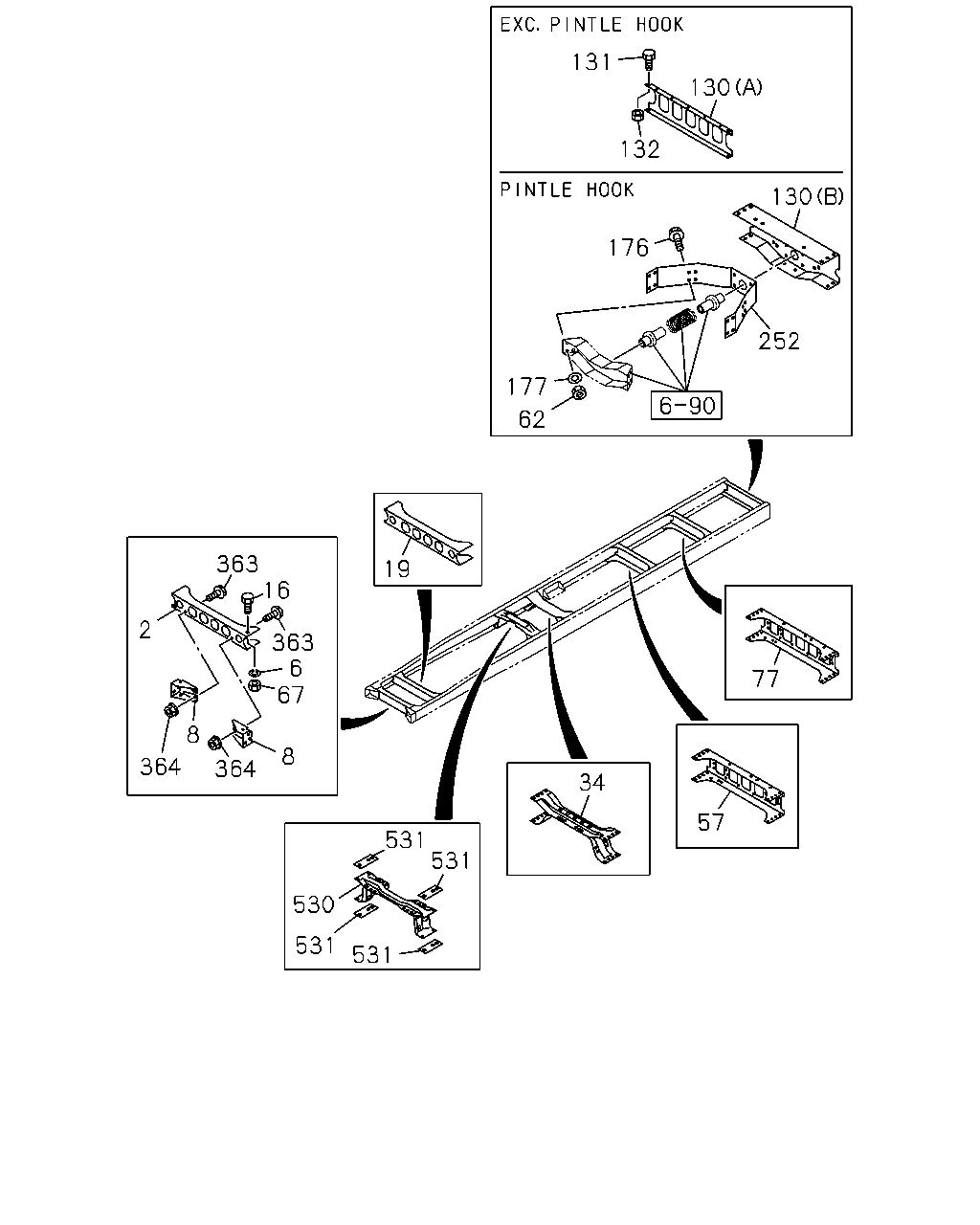

131 130 132 130 176 252 177 62 363 16 19 2 363 6 67 77 8 8 364 364 34 57 531 531 530 531 531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-015-2	01	1	0712-0801	●
2	MEMBER; CROSS,1ST	8-98063-015-3	01	1	0802-1003	●	●
2	MEMBER; CROSS,1ST	8-98063-015-4	01	1	1004-	●	●	●
2	MEMBER; CROSS,1ST	8-97615-669-1	01	1	0712-0801		●
2	MEMBER; CROSS,1ST POWER TAKE OFF-FLYWHEEL(6SZ)	8-97615-669-1	01	1	0712-0801	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	0712-1003	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-122-1	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-98063-122-2	01	1	0806-1003	●	●
8	GUSSET; 1ST C/MBR	8-98063-122-2	01	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98063-123-0	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-98063-123-1	01	1	0806-1003	●	●
8	GUSSET; 1ST C/MBR	8-98063-123-1	01	1	1004-	●	●	●
8	GUSSET; 1ST C/MBR	8-97609-578-0	01	1	0712-0805		●
8	GUSSET; 1ST C/MBR POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-578-0	01	1	0712-0805	●
8	GUSSET; 1ST C/MBR	8-97609-579-1	01	1	0712-0805		●
8	GUSSET; 1ST C/MBR POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-579-1	01	1	0712-0805	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	0712-1003	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1004-	●	●	●
19	MEMBER; CROSS,2ND	8-98063-018-6	01	1	0712-1003	●	●
19	MEMBER; CROSS,2ND	8-98063-018-7	01	1	1004-	●	●	●
34	MEMBER; CROSS,3RD	8-97609-500-2	01	1	0712-1003	●	●
34	MEMBER; CROSS,3RD	8-97609-500-2	01	1	1004-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT STABILIZER REAR LIGHT DUTY<GN1>	8-97620-288-1	01	1	1004-			●
57	MEMBER; CROSS,RR SUSP FRT EXC. STABILIZER REAR LIGHT DUTY<GN1>	8-97610-935-1	01	1	1004-			●
62	NUT; MBR PINTLE HOOK<PP7> M10	0-91110-510-0	08	1	1004-			●
67	NUT; C/MBR M12	0-91110-512-0	02	1	0712-1003	●	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1004-	●	●	●
77	MEMBER; CROSS,TRUNNION RR	8-97610-935-1	01	1	1004-			●
77	MEMBER; CROSS,TRUNNION RR	8-97610-935-1	02	1	0712-	●	●
130	MEMBER; CROSS,END PINTLE HOOK<PP7> (B)	8-97618-526-0	01	1	1004-			●
130	MEMBER; CROSS,END (A)	8-97609-470-0	01	1	0712-1003	●	●
130	MEMBER; CROSS,END (A)	8-97609-470-0	01	1	1004-	●	●
130	MEMBER; CROSS,END EXC. PINTLE HOOK<PP7> (A)	8-97609-470-0	01	1	1004-			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0712-1003	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1004-	●	●
131	BOLT; END C/MBR EXC. PINTLE HOOK<PP7> M10X25 W/LK WASHER	0-50541-025-0	04	1	1004-			●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0712-1003	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1004-	●	●
132	NUT; END C/MBR EXC. PINTLE HOOK<PP7> M10	0-91110-510-0	04	1	1004-			●
176	BOLT; C/MBR,ENG MTG PINTLE HOOK<PP7> M10X35 FLANGE	0-28051-035-0	08	1	1004-			●
177	WASHER; PL ENG MTG MBR PINTLE HOOK<PP7> ID=10.5	0-91610-510-0	08	1	1004-			●
252	STIFFENER; PINTLE HOOK PINTLE HOOK<PP7>	8-97618-529-0	01	1	1004-			●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	0712-1003	●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1004-	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	0712-0910		●
364	NUT; GUSSET POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE	0-91180-212-0	04	1	0712-0910	●
364	NUT; GUSSET EURO4 SPECIFICATION<NT4> M12 FLANGE	0-91180-212-0	04	1	0911-1003		●
364	NUT; GUSSET POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE	0-91180-212-0	04	1	0911-1003	●
530	MEMBER; CROSS,T/M POWER TAKE OFF-FLYWHEEL(6SZ)	8-97615-671-2	01	1	0712-	●	●
530	MEMBER; CROSS,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-809-3	01	1	0712-1003	●	●
530	MEMBER; CROSS,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97609-809-3	01	1	1004-	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1004-			●
531	SPACER; C/MBR,T/M POWER TAKE OFF-FLYWHEEL(6SZ) UPPER	8-97609-819-2	02	1	0712-	●	●
531	SPACER; C/MBR,T/M POWER TAKE OFF-FLYWHEEL(6SZ) LOWER	8-97616-463-2	02	1	0712-	●	●
531	SPACER; C/MBR,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ) UPPER,LOWER	8-97609-819-2	04	1	0712-1003	●	●
531	SPACER; C/MBR,T/M EXC. POWER TAKE OFF-FLYWHEEL(6SZ) UPPER,LOWER	8-97609-819-2	04	1	1004-	●	●
531	SPACER; C/MBR,T/M UPPER,LOWER	8-97609-819-2	04	1	1004-			●

283 82 140 25 138 105 106 182 46 127 13 18 56 11 118 98 103 117 39 46 27 31 26 23 27 25 25 27 101 46 26 23 25 127 56 24 127 26 25 26 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97616-720-0	02	1	0712-1003	●	●
11	BRACKET; ENG MTG	8-97616-720-0	02	1	1004-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0712-1003	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1004-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0712-1003	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1004-	●	●	●
23	BOLT; BRKT,SPR EURO2 SPECIFICATION<NT2> (A) M12X35	0-20951-235-0	04	1	0911-1003		●
23	BOLT; BRKT,SPR EURO2 SPECIFICATION<NT2> (A) M12X35	0-20951-235-0	04	1	1004-		●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	04	1	1004-			●
23	BOLT; BRKT,SPR (B) M14X40	0-20951-440-0	04	1	1004-	●	●	●
23	BOLT; BRKT,SPR (B) M14X40	0-20951-440-0	04	1	0712-1003	●	●
23	BOLT; BRKT,SPR EURO4 SPECIFICATION<NT4> (A) M12X35	0-20951-235-0	10	1	0911-		●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	10	1	0911-	●
23	BOLT; BRKT,SPR (A) M12X35	0-20951-235-0	10	1	0712-0910	●	●
24	BRACKET; FRT SPR,FRT	1-53351-258-0	02	1	0712-1003	●	●
24	BRACKET; FRT SPR,FRT	1-53351-258-0	02	1	1004-	●	●	●
25	WASHER; PL,BRKT (C) ID=12.2	0-91510-812-0	08	1	1004-			●
25	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	08	1	0911-1003		●
25	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	08	1	1004-		●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	08	1	1004-			●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1004-	●	●	●
25	WASHER; PL,BRKT (B) ID=15	8-98010-627-0	08	1	0712-1003	●	●
25	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4> (A) ID=12.2	8-98010-397-0	20	1	0911-		●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	20	1	0911-	●
25	WASHER; PL,BRKT (A) ID=12.2	8-98010-397-0	20	1	0712-0910	●	●
26	NUT; BRKT,SPR (A) M12	0-91110-512-0	10	1	1004-	●	●	●
26	NUT; BRKT,SPR (A) M12	0-91110-512-0	10	1	0712-1003	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	16	1	1004-	●	●	●
26	NUT; BRKT,SPR (B) M14	0-91110-514-0	16	1	0712-1003	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-814-0	12	1	1004-	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=14.2	0-91510-814-0	12	1	0712-1003	●	●
27	WASHER; LK,BRKT,FRT SPR EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	12	1	0911-1003		●
27	WASHER; LK,BRKT,FRT SPR EURO2 SPECIFICATION<NT2> (A) ID=12.2	8-98010-397-0	12	1	1004-		●
27	WASHER; LK,BRKT,FRT SPR (A) ID=12.2	8-98010-397-0	12	1	1004-			●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	0712-1003	●	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1004-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-185-1	02	1	0712-1003	●	●
39	BRACKET; FRT SPR,RR	1-53352-185-1	02	1	1004-	●	●	●
46	BOLT; BRKT FIX (C) M14X40	0-20851-440-0	10	1	1004-			●
46	BOLT; BRKT FIX (D) M10X30 FLANGE	0-28651-030-0	02	1	1004-			●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	12	1	0911-1003		●
46	BOLT; BRKT FIX (A) M14X50	0-20851-450-0	12	1	1004-	●	●	●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (B) M12X35	0-20951-235-0	06	1	0911-1003		●
46	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> (B) M12X35	0-20951-235-0	06	1	1004-		●
46	BOLT; BRKT FIX (B) M12X35	0-20951-235-0	06	1	1004-			●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	12	1	0712-0910	●	●
46	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> (A) M14X50	0-20951-450-0	12	1	0911-1003		●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	12	1	0911-1003	●
56	WASHER; LK ID=14.2	0-91510-814-0	10	1	1004-			●
56	WASHER; LK EURO2 SPECIFICATION<NT2> ID=14.2	0-91510-814-0	11	1	0911-		●
82	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	21	1	0712-1003	●
82	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M14	0-91110-514-0	10	1	1004-		●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	1004-			●
82	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10 FLANGE	0-91180-110-0	01	1	0712-1003	●
82	NUT; BRKT EURO4 SPECIFICATION<NT4> (B) M10 FLANGE	0-91180-110-0	01	1	1004-		●
82	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	01	1	1004-	●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	0712-1003		●
82	NUT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	10	1	0712-1003	●
82	NUT; BRKT (A) M14	0-91110-514-0	10	1	1004-1004		●	●
82	NUT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M14	0-91110-514-0	10	1	1004-1004	●
82	NUT; BRKT EURO4 SPECIFICATION<NT4> (A) M14	0-91110-514-0	21	1	1004-		●
82	NUT; BRKT (A) M14	0-91110-514-0	21	1	1004-	●
98	WASHER; LK,STOPPER EURO2 SPECIFICATION<NT2> ID=14.2	0-91510-814-0	16	1	0911-1003		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1004-	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0712-0910	●	●
98	WASHER; LK,STOPPER EURO4 SPECIFICATION<NT4> ID=14.2	0-91510-614-0	16	1	0911-1003		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0911-1003	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0712-1003	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	1004-	●	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	0712-1003	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	1004-	●	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0712-1003	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	1004-	●	●	●
106	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	10	1	0911-1003		●
106	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M14X50	0-20851-450-0	10	1	1004-1004		●
106	BOLT; BRKT (A) M14X50	0-20851-450-0	10	1	1004-1004			●
106	BOLT; BRKT (A) M14X50	0-20851-450-0	10	1	1004-	●	●	●
106	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-1003	●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	10	1	0712-0910	●	●
106	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M14X50	0-20951-450-0	10	1	0911-1003		●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	10	1	0911-1003	●
106	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
106	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
117	BOLT; STOPPER EURO2 SPECIFICATION<NT2> M14X50	0-20851-450-0	16	1	0911-1003		●
117	BOLT; STOPPER M14X50	0-20851-450-0	16	1	1004-	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0712-0910	●	●
117	BOLT; STOPPER EURO4 SPECIFICATION<NT4> M14X50	0-20951-450-0	16	1	0911-1003		●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0911-1003	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0712-1003	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1004-	●	●	●
127	NUT; BRKT (A) M14	0-91110-514-0	10	1	1004-			●
127	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	01	1	1004-			●
138	WASHER; LK,BRKT EURO2 SPECIFICATION<NT2> (A) ID=14.2	0-91510-814-0	10	1	0911-1003		●
138	WASHER; LK,BRKT EURO2 SPECIFICATION<NT2> (A) ID=14.2	0-91510-814-0	10	1	1004-		●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-814-0	10	1	1004-			●
138	WASHER; LK,BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=14.2	0-91510-814-0	11	1	0712-1003	●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-614-0	10	1	0712-0910	●	●
138	WASHER; LK,BRKT EURO4 SPECIFICATION<NT4> (A) ID=14.2	0-91510-614-0	10	1	0911-1003		●
138	WASHER; LK,BRKT (A) ID=14.2	0-91510-614-0	10	1	0911-1003	●
138	WASHER; LK,BRKT EURO4 SPECIFICATION<NT4> (B) ID=14.2	0-91510-814-0	21	1	1004-		●
138	WASHER; LK,BRKT (B) ID=14.2	0-91510-814-0	21	1	1004-	●
140	BRACKET; S/ABS,RR	1-53381-020-0	01	1	1004-			●
140	BRACKET; S/ABS,RR	1-53381-021-0	01	1	1004-			●
182	NUT; S/ABS BRKT TO FRAME M12	0-91110-512-0	08	1	1004-			●
283	BOLT; BRKT,S/ABS M12X35	0-20851-235-0	08	1	1004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
