◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#5663) — 280 parça

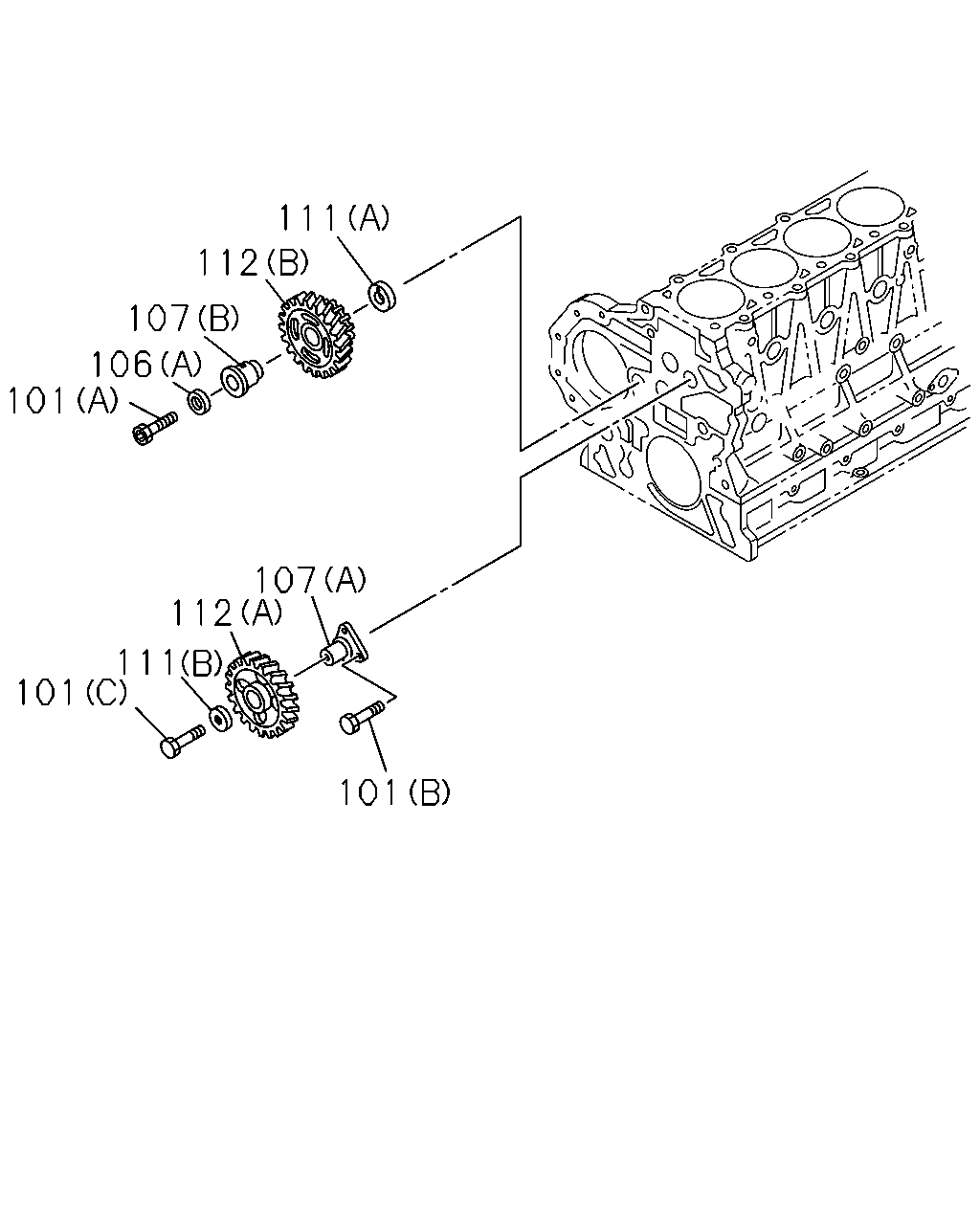

çizim 25870
111 112 107 106 101 107 112 101 101 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9907-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601-0610 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0611- ● ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9907-0610 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0611- ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9907-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601-0610 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0611- ● ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9907-0610 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9907-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206-0610 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9907-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0610 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9907-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305-0610 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0611- ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 02 1 9811-9906 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 03 1 0611- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9907-0610 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9811-9906 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9907-0610 ●
112 GEAR; IDLE
(B) Z=72-60-30 		8-97600-586-1 01 1 0611- ● ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9811-9906 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9907-0610 ●
112 GEAR; IDLE
(A) Z=61 		8-97606-767-0 01 1 0611- ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9907-0610 ●
112 GEAR; IDLE
(C) Z=34 		8-97606-771-0 01 1 0611- ● ●

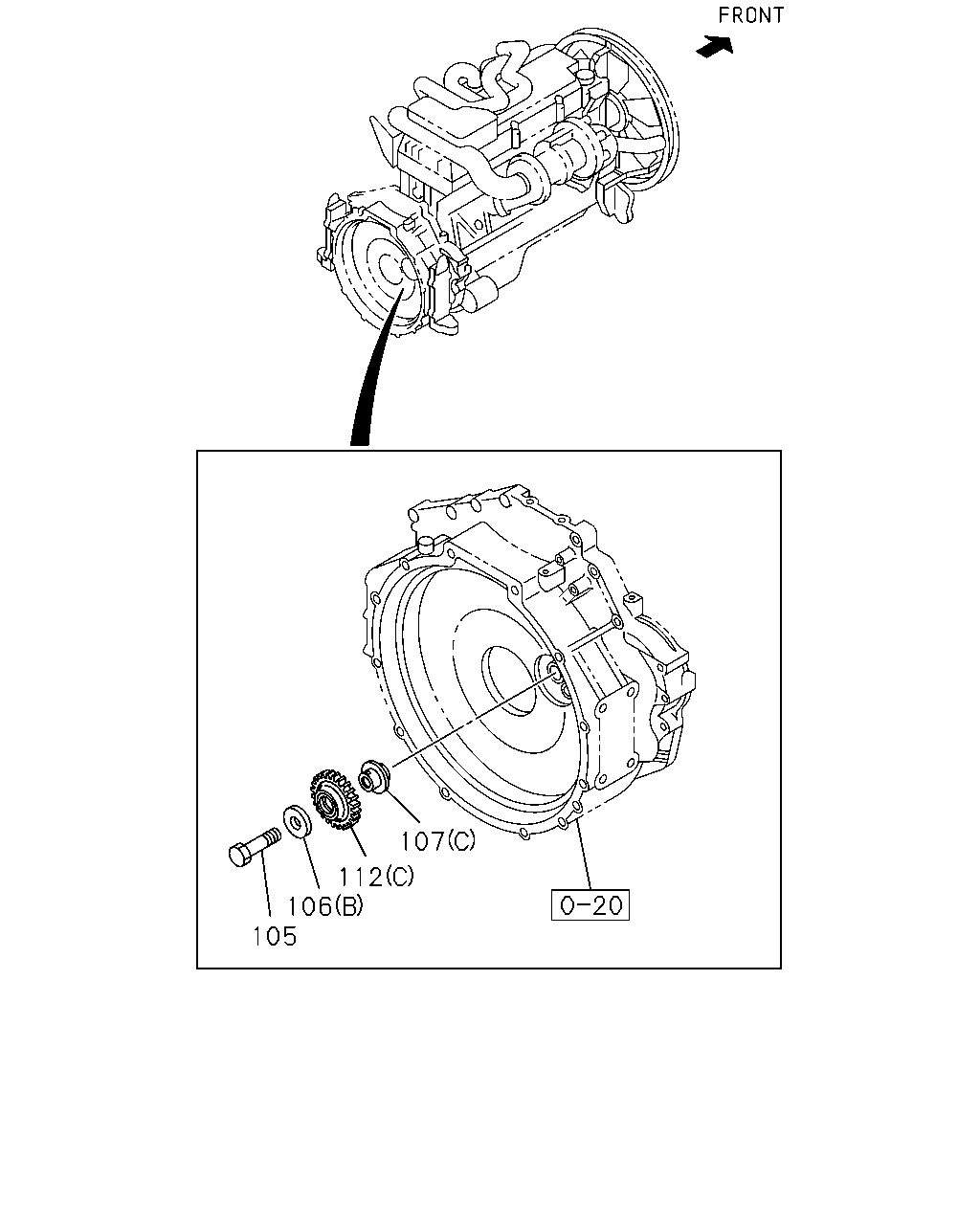

çizim 25872
107 112 106 105
BalonParca AdiParca NoAdetTipApplied Date A B C D
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9907-0610 ●
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 0611- ● ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9907-0610 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9907-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206-0610 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9907-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0610 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9907-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305-0610 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0611- ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9811-9906 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9907-0610 ●
112 GEAR; IDLE
(B) Z=72-60-30 		8-97600-586-1 01 1 0611- ● ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9811-9906 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9907-0610 ●
112 GEAR; IDLE
(A) Z=61 		8-97606-767-0 01 1 0611- ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9907-0610 ●
112 GEAR; IDLE
(C) Z=34 		8-97606-771-0 01 1 0611- ● ●

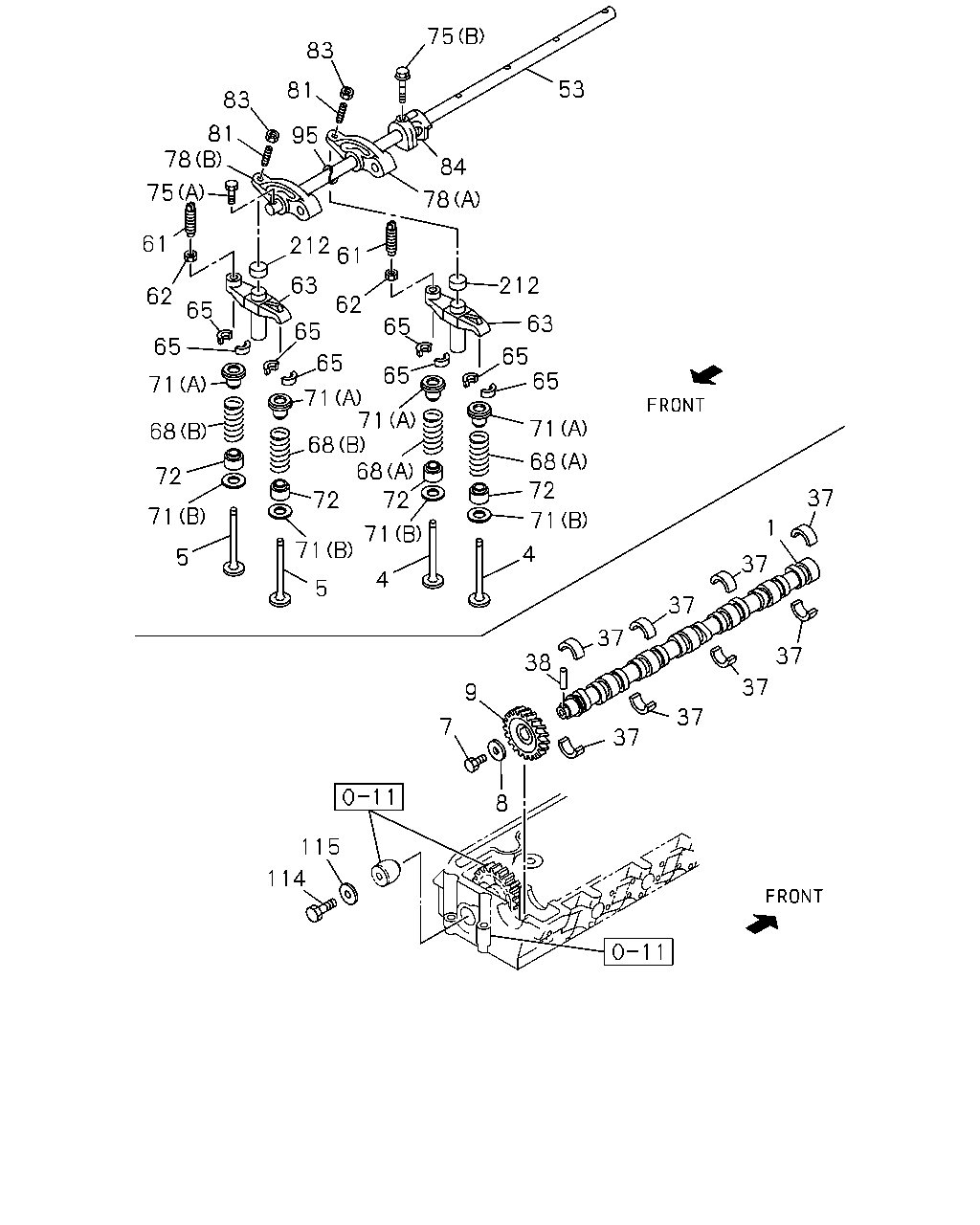

çizim 99113
75 83 53 81 83 81 78 95 84 75 78 61 212 61 63 212 62 62 65 63 65 65 65 65 65 65 65 71 71 71 68 68 71 68 68 72 72 37 72 72 71 71 1 71 71 4 5 37 4 5 37 37 37 38 37 9 37 7 37 8 115 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAMSHAFT 8-94395-758-2 01 1 9811-9906 ●
1 CAMSHAFT 8-94390-469-1 01 1 9907-0610 ●
1 CAMSHAFT 8-97601-438-0 01 1 0611- ● ●
4 VALVE; INL 8-94395-113-1 06 1 9811-9906 ●
4 VALVE; INL 8-94395-882-0 12 1 9907-0610 ●
4 VALVE; INL 8-94395-882-2 12 1 0611- ● ●
5 VALVE; EXH 8-94395-462-0 06 1 9811-9906 ●
5 VALVE; EXH 8-94395-883-2 12 1 9907-0402 ●
5 VALVE; EXH 8-97209-876-2 12 1 0403-0610 ●
5 VALVE; EXH 8-97209-876-3 12 1 0611- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9811-9906 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9907-0610 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0611- ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9811-9906 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9907-0610 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0611- ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9811-9906 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9907-0610 ●
9 GEAR; CM/SHF
Z=35 		8-98018-934-3 01 1 0611- ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0610 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0611- ● ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9811-9906 ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9907-0206 ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307-0610 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0611- ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9811-9906 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9907-0610 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0611- ● ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9811-9906 ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9907-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 9907-0610 ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 0611- ● ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 9907-0610 ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 0611- ● ●
63 BRIDGE 8-94392-002-3 12 1 9907-0610 ●
63 BRIDGE 8-94392-002-3 12 1 0611- ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9811-9906 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9907-0610 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0611- ● ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 9907-0610 ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-97352-888-0 12 1 0611- ● ●
68 SPRING; VLV
(B) EXHAUST MARK WHITE 		8-94395-885-1 12 1 9907-0610 ●
68 SPRING; VLV
(B) EXHAUST MARK RED 		8-97210-682-0 12 1 0611- ● ●
71 SEAT; SPR
(A) UPPER OD=38 		8-94385-029-1 12 1 9811-9906 ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9907-0610 ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 0611- ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=0.5 		8-94396-014-0 12 1 9811-9906 ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9907-0610 ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 0611- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9811-9906 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9907-0610 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0611- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9907-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0610 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0611- ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9811-9906 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9811-9906 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9907-0610 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0611- ● ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 9811-9906 ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 9811-9906 ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 9907-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-2 06 1 0212-0610 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0611- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 9907-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-2 06 1 0212-0610 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0611- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9811-9906 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9907-0610 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0611- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9907-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601-0610 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0611- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9811-9906 ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9811-9906 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9907-0610 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0611- ● ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9811-9906 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9907-0610 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0611- ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9811-9906 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9907-0610 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0611- ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9811-9906 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0611- ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9811-9906 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9907-0610 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0611- ● ●

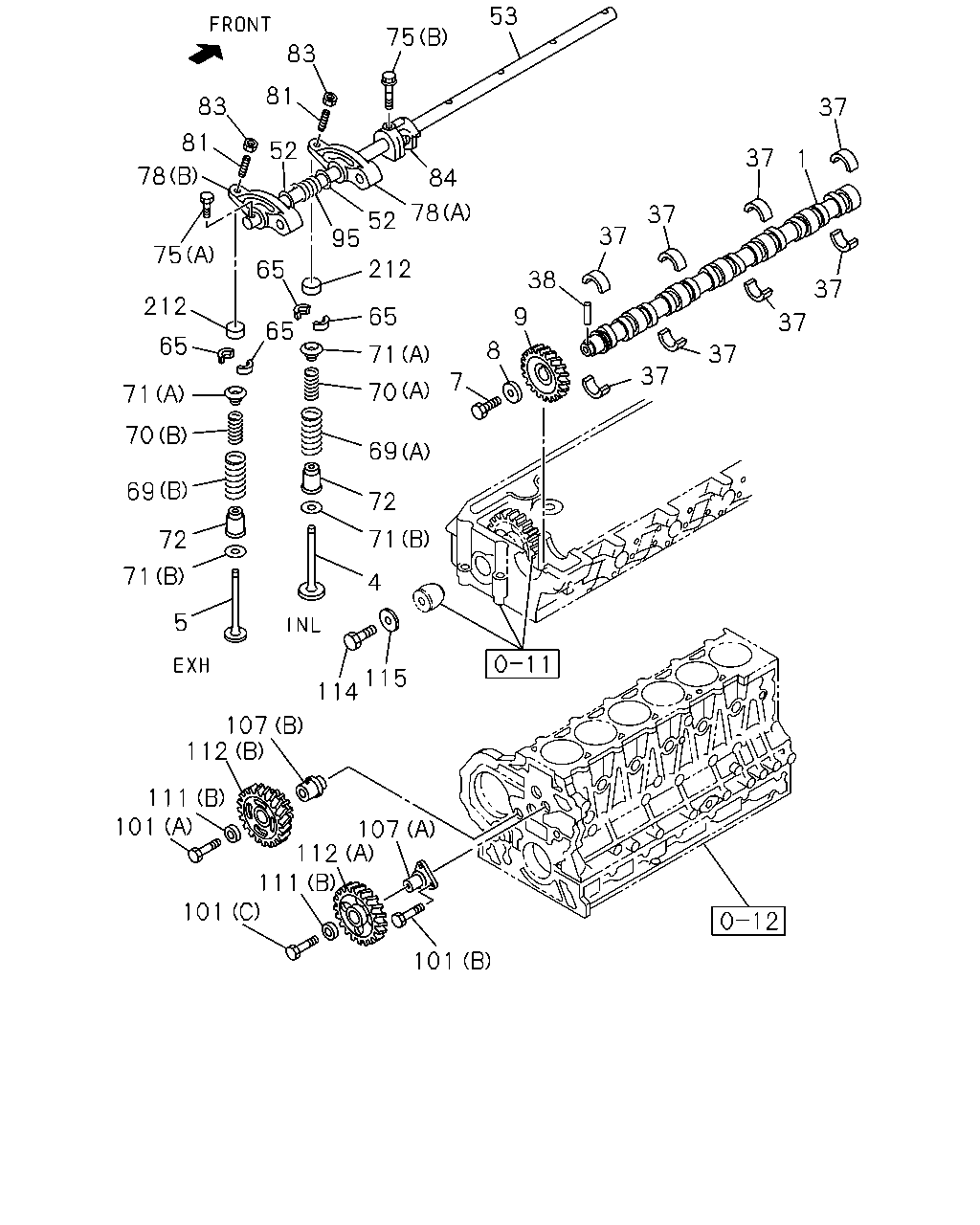

çizim 99169
53 75 83 81 83 37 81 52 37 1 78 84 78 37 52 95 37 75 212 65 38 37 212 65 9 37 65 65 8 37 71 37 7 71 72 71 72 71 4 5 115 114 107 112 111 101 107 112 111 101 101 70 69 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAMSHAFT 8-94395-758-2 01 1 9811-9906 ●
1 CAMSHAFT 8-94390-469-1 01 1 9907-0610 ●
1 CAMSHAFT 8-97601-438-0 01 1 0611- ● ●
4 VALVE; INL 8-94395-113-1 06 1 9811-9906 ●
4 VALVE; INL 8-94395-882-0 12 1 9907-0610 ●
4 VALVE; INL 8-94395-882-2 12 1 0611- ● ●
5 VALVE; EXH 8-94395-462-0 06 1 9811-9906 ●
5 VALVE; EXH 8-94395-883-2 12 1 9907-0402 ●
5 VALVE; EXH 8-97209-876-2 12 1 0403-0610 ●
5 VALVE; EXH 8-97209-876-3 12 1 0611- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9811-9906 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9907-0610 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0611- ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9811-9906 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9907-0610 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0611- ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9811-9906 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9907-0610 ●
9 GEAR; CM/SHF
Z=35 		8-98018-934-3 01 1 0611- ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307-0610 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0611- ● ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9811-9906 ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9907-0206 ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307-0610 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0611- ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9811-9906 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9907-0610 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0611- ● ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9811-9906 ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9811-9906 ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9907-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9811-9906 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9907-0610 ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 0611- ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9811-9906 ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9811-9906 ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9811-9906 ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9811-9906 ●
71 SEAT; SPR
(A) UPPER OD=38 		8-94385-029-1 12 1 9811-9906 ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9907-0610 ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 0611- ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=0.5 		8-94396-014-0 12 1 9811-9906 ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9907-0610 ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 0611- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9811-9906 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9907-0610 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 24 1 0611- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9907-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0610 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0611- ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9811-9906 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9811-9906 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9907-0610 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0611- ● ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 9811-9906 ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 9811-9906 ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 9907-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-2 06 1 0212-0610 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0611- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 9907-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-2 06 1 0212-0610 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0611- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9811-9906 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9907-0610 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0611- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9907-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601-0610 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0611- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9811-9906 ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9811-9906 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9907-0610 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 0611- ● ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9811-9906 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9907-0610 ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 0611- ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9907-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601-0610 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0611- ● ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9907-0610 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0611- ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9811-9906 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9907-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601-0610 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9907-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206-0610 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9811-9906 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9907-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0610 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0611- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9907-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305-0610 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0611- ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 02 1 9811-9906 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 03 1 0611- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9907-0610 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9811-9906 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9907-0610 ●
112 GEAR; IDLE
(B) Z=72-60-30 		8-97600-586-1 01 1 0611- ● ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9811-9906 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9907-0610 ●
112 GEAR; IDLE
(A) Z=61 		8-97606-767-0 01 1 0611- ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9907-0610 ●
112 GEAR; IDLE
(C) Z=34 		8-97606-771-0 01 1 0611- ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9811-9906 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9907-0610 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0611- ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9811-9906 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9907-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307-0610 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0611- ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9811-9906 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9907-0610 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
