Sayfa 4-80 - Isuzu EPC

4-80 — ROAD WHEEL (#56629) — 211 parça

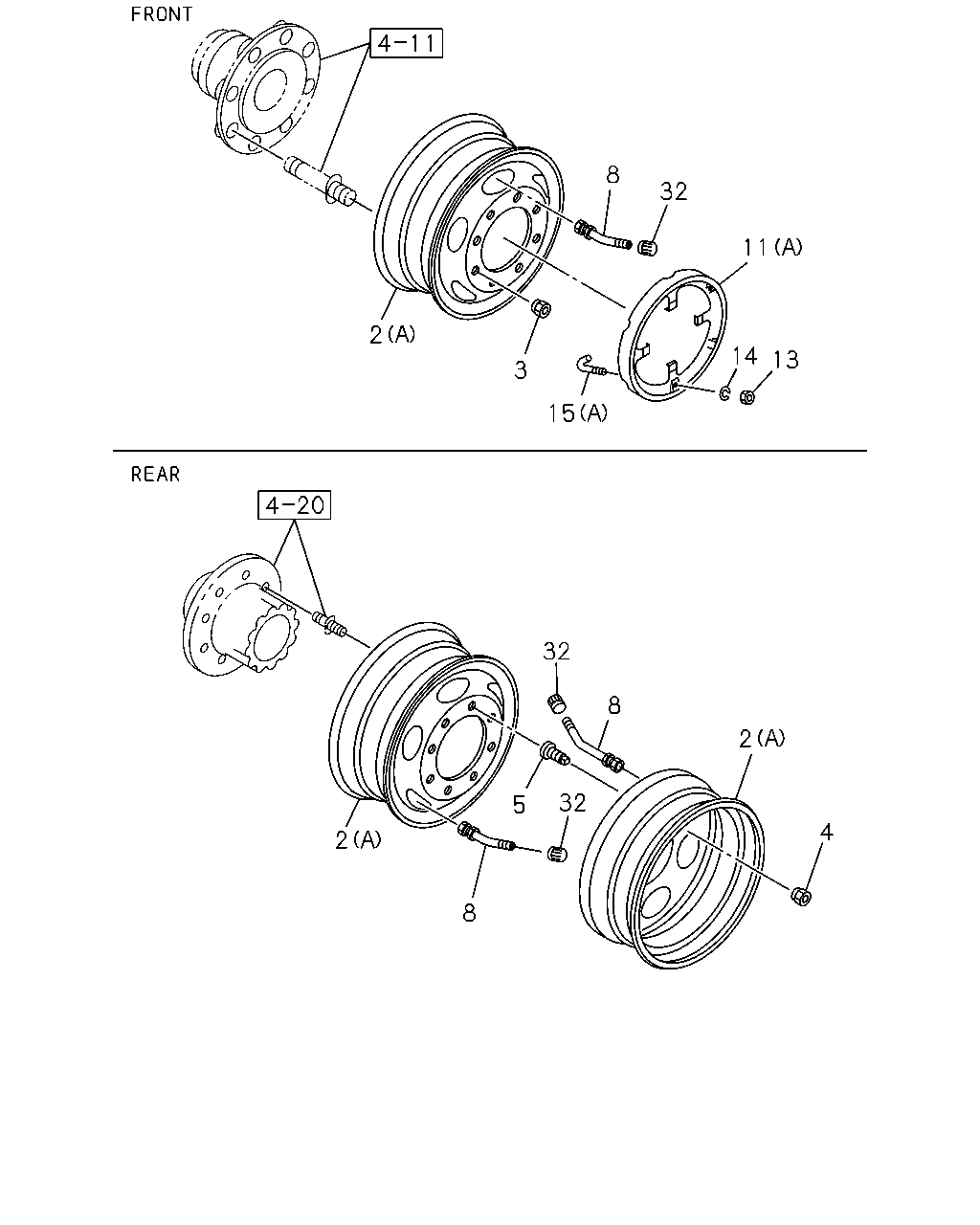

8 32 11 2 14 13 3 15 32 8 2 32 5 4 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-407-1	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-641-0	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-197-0	01	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-407-1	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-407-1	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-641-0	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-641-0	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-197-0	02	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-197-0	04	1	0812-0812		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-408-0	02	1	0812-		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0812-			●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-408-0	04	1	0812-		●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0812-			●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-408-0	01	1	0812-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0812-			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-2	08	1	0712-0812		●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0712-1003		●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1004-	●	●	●
4	NUT; WHEEL,RR AXLE M24	1-42333-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0712-		●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0712-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0712-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0712-		●	●
8	VALVE; TIRE SPARE	1-42370-020-3	01	1	0712-0811		●	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0812-		●
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	0812-		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0812-			●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	0712-0811		●	●
8	VALVE; TIRE WHEEL 8STUD 6.75X22.5 145-11(PT1) FRONT,REAR	1-42370-020-3	06	1	0812-		●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	0812-			●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (B)	1-43139-019-1	02	1	1004-	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	0812-		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	0812-1003		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1004-	●	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	0812-1003		●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	1004-	●	●
15	BOLT; STEP DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60	1-43139-016-0	06	1	0812-		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0812-0812		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0901-1003		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-		●
15	BOLT; STEP DISC DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1004-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1004-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-			●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-			●

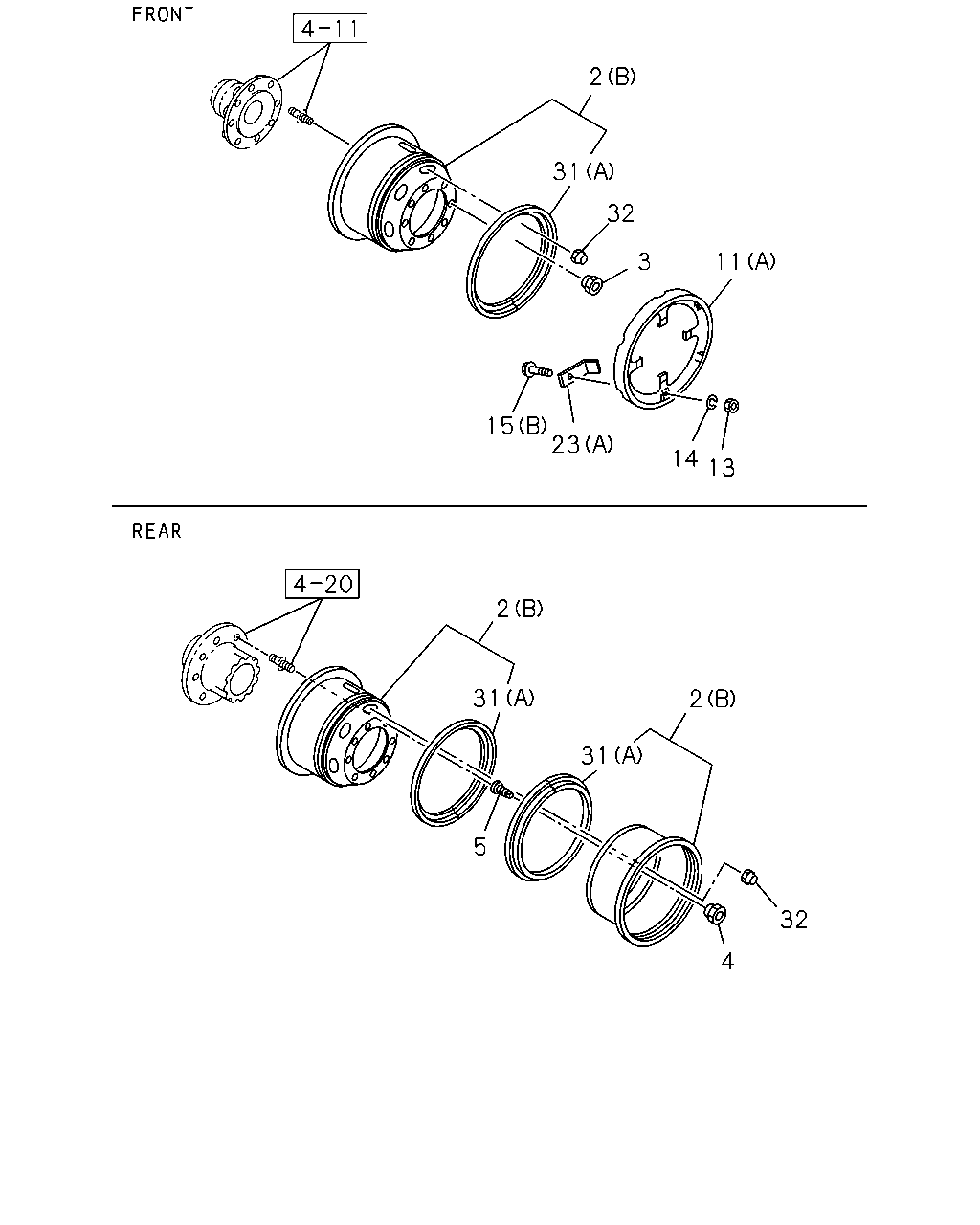

2 31 32 3 11 15 23 14 13 2 31 2 31 5 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-407-1	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-641-0	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-197-0	01	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-407-1	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-407-1	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-641-0	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-641-0	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-197-0	02	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-197-0	04	1	0812-0812		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-408-0	02	1	0812-		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0812-			●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-408-0	04	1	0812-		●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0812-			●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-408-0	01	1	0812-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0812-			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-2	08	1	0712-0812		●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0712-1003		●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1004-	●	●	●
4	NUT; WHEEL,RR AXLE M24	1-42333-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0712-		●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0712-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0712-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0712-		●	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (B)	1-43139-019-1	02	1	1004-	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	0812-		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	0812-1003		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1004-	●	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	0812-1003		●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	1004-	●	●
15	BOLT; STEP DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60	1-43139-016-0	06	1	0812-		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0812-0812		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0901-1003		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-		●
15	BOLT; STEP DISC DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-	●
23	PLATE; CLAMP,STEP DISC DISC WHEEL STEP<W66> (B)	1-43139-020-0	06	1	1004-	●
23	PLATE; CLAMP,STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (A)	1-43139-013-0	06	1	0812-		●
23	PLATE; CLAMP,STEP DISC WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (A)	1-43139-020-0	06	1	0812-0812		●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42355-004-1	01	1	1004-	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42355-004-1	01	1	1004-	●
31	RING; SIDE,DISC WHEEL (B) FRONT,REAR	1-42355-004-1	02	1	1004-	●
31	RING; SIDE,DISC WHEEL (B) FRONT,REAR	1-42355-004-1	02	1	1004-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42355-012-1	01	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42355-002-0	01	1	0812-0812		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42355-012-1	02	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42355-012-1	04	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42355-002-0	02	1	0812-0812		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42355-002-0	04	1	0812-0812		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1004-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1004-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-			●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-			●

15 23 32 11 14 13 3 31 2 32 4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (C) SPARE	1-42350-189-1	01	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC (C) FRONT,REAR	1-42350-189-1	02	1	1004-	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-407-1	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-641-0	01	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-197-0	01	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-407-1	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-407-1	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-641-0	02	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-641-0	04	1	0812-		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT	1-42350-197-0	02	1	0812-0812		●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) REAR	1-42350-197-0	04	1	0812-0812		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42350-408-0	02	1	0812-		●
2	WHEEL; DISC (A) FRONT	1-42350-408-0	02	1	0812-			●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42350-408-0	04	1	0812-		●
2	WHEEL; DISC (A) REAR	1-42350-408-0	04	1	0812-			●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC (A) SPARE	1-42350-408-0	01	1	0712-0811		●	●
2	WHEEL; DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-408-0	01	1	0812-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-408-0	01	1	0812-			●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-2	08	1	0712-0812		●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0712-1003		●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1004-	●	●	●
4	NUT; WHEEL,RR AXLE M24	1-42333-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M24 LH THREAD	1-42334-022-3	08	1	1004-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0712-		●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0712-		●	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (B)	1-43139-019-1	02	1	1004-	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	0812-		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	0812-1003		●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1004-	●	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	0812-1003		●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-510-0	06	1	1004-	●	●
15	BOLT; STEP DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60	1-43139-016-0	06	1	0812-		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0812-0812		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	0901-1003		●
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-		●
15	BOLT; STEP DISC DISC WHEEL STEP<W66> (B) M10X45 FLANGE	0-28051-045-0	06	1	1004-	●
23	PLATE; CLAMP,STEP DISC DISC WHEEL STEP<W66> (B)	1-43139-020-0	06	1	1004-	●
23	PLATE; CLAMP,STEP DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (A)	1-43139-013-0	06	1	0812-		●
23	PLATE; CLAMP,STEP DISC WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (A)	1-43139-020-0	06	1	0812-0812		●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42355-004-1	01	1	1004-	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42355-004-1	01	1	1004-	●
31	RING; SIDE,DISC WHEEL (B) FRONT,REAR	1-42355-004-1	02	1	1004-	●
31	RING; SIDE,DISC WHEEL (B) FRONT,REAR	1-42355-004-1	02	1	1004-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42355-012-1	01	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42355-002-0	01	1	0812-0812		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42355-012-1	02	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42355-012-1	04	1	0812-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42355-002-0	02	1	0812-0812		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42355-002-0	04	1	0812-0812		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1004-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1004-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	0901-			●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0712-0811		●	●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0812-0812			●
32	CAP; VALVE WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	0901-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
