◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#56626) — 70 parça

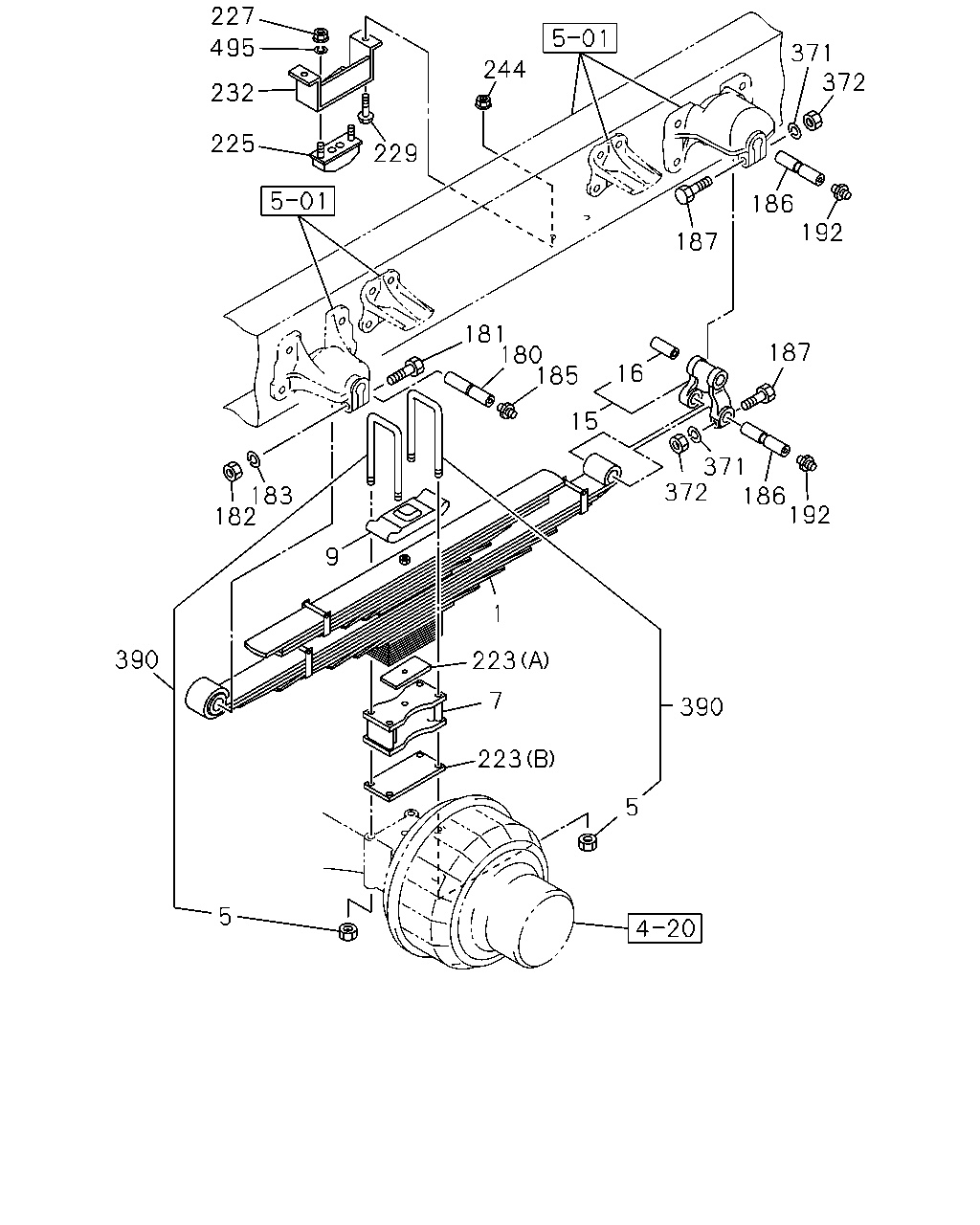

çizim 182000
227 495 371 372 244 232 225 229 186 192 187 181 180 185 187 16 15 371 372 183 182 186 192 9 1 390 223 7 390 223 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		8-98050-307-0 02 1 1004- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		8-98050-306-0 02 1 0712- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0712-1003 ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1004- ● ● ●
7 SEAT; SPR,LWR 1-51385-087-1 02 1 1004- ●
7 SEAT; SPR,LWR 1-51385-090-1 02 1 0712- ● ●
9 PAD; U BOLT,RR SPR 1-51372-066-0 02 1 1004- ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 0712- ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0712-1003 ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1004- ● ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0712-0902 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903-1003 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1004- ● ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0712-1003 ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 1004- ● ● ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 0712-1003 ● ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1004- ● ● ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 0712-1003 ● ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 1004- ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0712-1003 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1004- ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712-1003 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1004- ● ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 0712-1003 ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1004- ● ● ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 0712-1003 ● ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1004- ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0712-1003 ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1004- ● ● ●
223 SPACER; U BOLT,RR SPR
(A) 		8-98063-307-0 02 1 1007-1212 ● ●
223 SPACER; U BOLT,RR SPR
(B) T=4.5 		1-51377-307-0 01 1 1004- ●
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-329-1 02 1 0712-1003 ● ●
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-329-1 02 1 1004-1006 ● ● ●
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-329-1 02 1 1007- ●
225 RUBBER; CUSHION,RR SPR
REAR SHOCK ABSORBER<GL6> 		9-53366-021-1 02 1 1004- ●
227 NUT; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> M10 FLANGE 		0-91180-210-0 04 1 1004- ●
229 BOLT; BRKT
REAR SHOCK ABSORBER<GL6> M12X35 FLANGE 		0-28651-235-0 04 1 1004- ●
232 BRACKET; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> 		8-98050-661-0 02 1 1004- ●
244 NUT; BRKT
REAR SHOCK ABSORBER<GL6> M12 FLANGE 		0-91180-212-0 04 1 1004- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0712-1003 ● ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 1004- ● ● ●
390 U-BOLT SET; RR SPRING
STABILIZER REAR LIGHT DUTY<GN1> L=555 		1-87870-487-0 04 1 1004- ●
390 U-BOLT SET; RR SPRING
L=540 		1-87870-429-0 04 1 0712-1003 ● ●
390 U-BOLT SET; RR SPRING
L=540 		1-87870-429-0 04 1 1004- ● ●
390 U-BOLT SET; RR SPRING
EXC. STABILIZER REAR LIGHT DUTY<GN1> L=540 		1-87870-429-0 04 1 1004- ●
495 WASHER; RUBBER
REAR SHOCK ABSORBER<GL6> ID=10.2 		0-91510-510-0 04 1 1004- ●

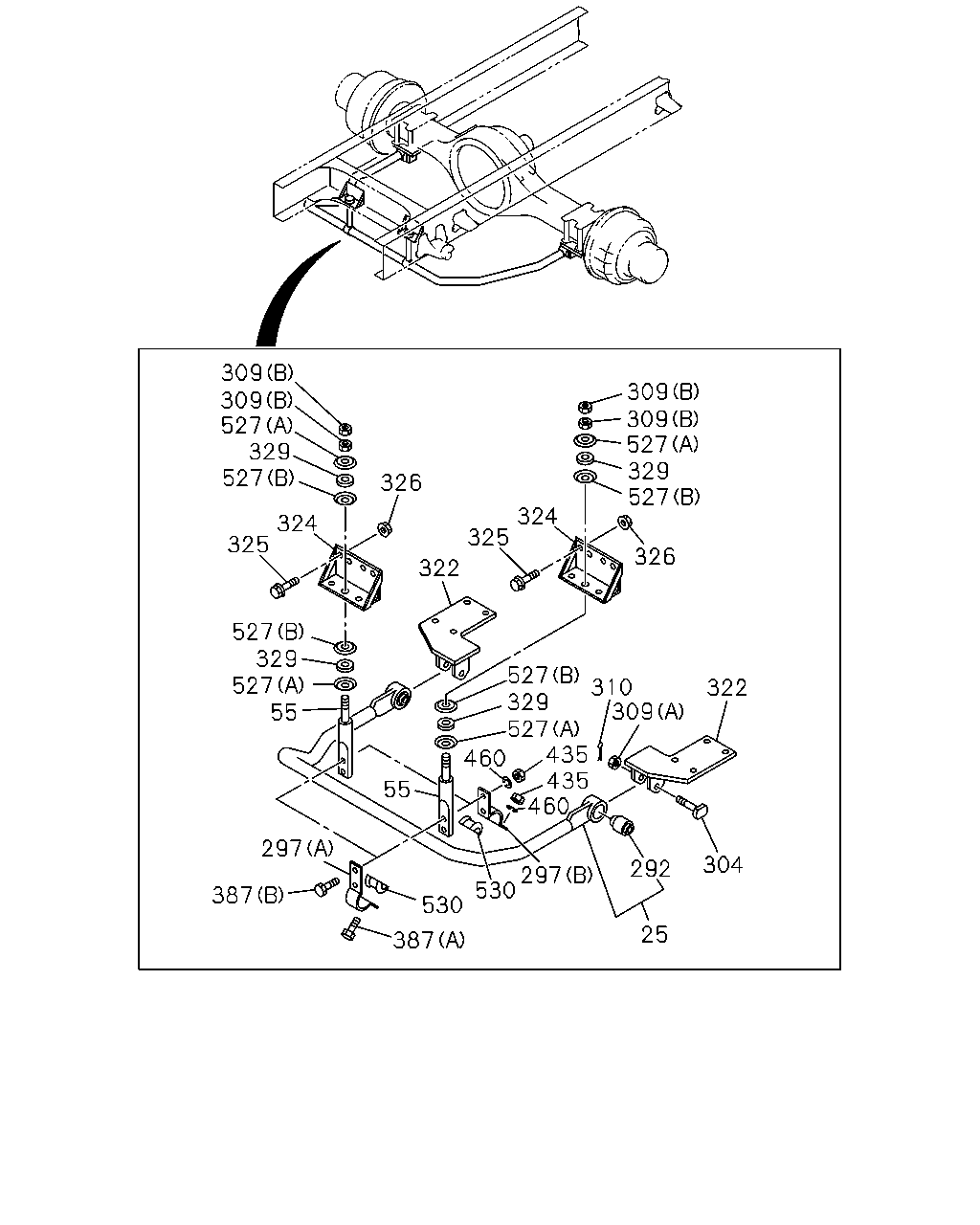

çizim 182101
309 309 527 329 527 309 309 527 329 527 326 324 325 324 325 326 322 527 329 527 55 527 329 527 435 435 460 310 309 322 460 55 297 304 292 297 530 387 530 25 387
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-166-0 01 1 1004- ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51773-082-0 02 1 1004- ●
292 BUSHING; RUBBER,STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-066-0 02 1 1004- ●
297 CAP; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-027-2 02 1 1004- ●
297 CAP; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-028-1 02 1 1004- ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51682-159-0 02 1 1004- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) M14 		0-91111-514-0 04 1 1004- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) M22 		0-91116-522-0 02 1 1004- ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 02 1 1004- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-140-0 01 1 1004- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-141-0 01 1 1004- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-142-0 02 1 1004- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M10X30 FLANGE 		0-28051-030-0 08 1 1004- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M10 FLANGE 		0-91180-210-0 08 1 1004- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		9-51631-050-0 04 1 1004- ●
387 BOLT; CAP FIX,STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> (A) M12X30 FLANGE 		0-28051-230-0 02 1 1004- ●
387 BOLT; CAP FIX,STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> (B) M12X50 FLANGE 		0-28051-250-0 04 1 1004- ●
435 NUT; CAP
STABILIZER REAR LIGHT DUTY<GN1> M12 		0-91110-512-0 06 1 1004- ●
460 WASHER; CAP
STABILIZER REAR LIGHT DUTY<GN1> ID=12.2 		0-91510-512-0 06 1 1004- ●
527 WASHER; STABILIZER
STABILIZER REAR LIGHT DUTY<GN1> (B) ID=16.8 		1-51631-022-0 04 1 1004- ●
527 WASHER; STABILIZER
STABILIZER REAR LIGHT DUTY<GN1> (A) ID=14.5 		9-51631-051-0 04 1 1004- ●
530 BUSHING; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-079-1 04 1 1004- ●
