◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#56625) — 51 parça

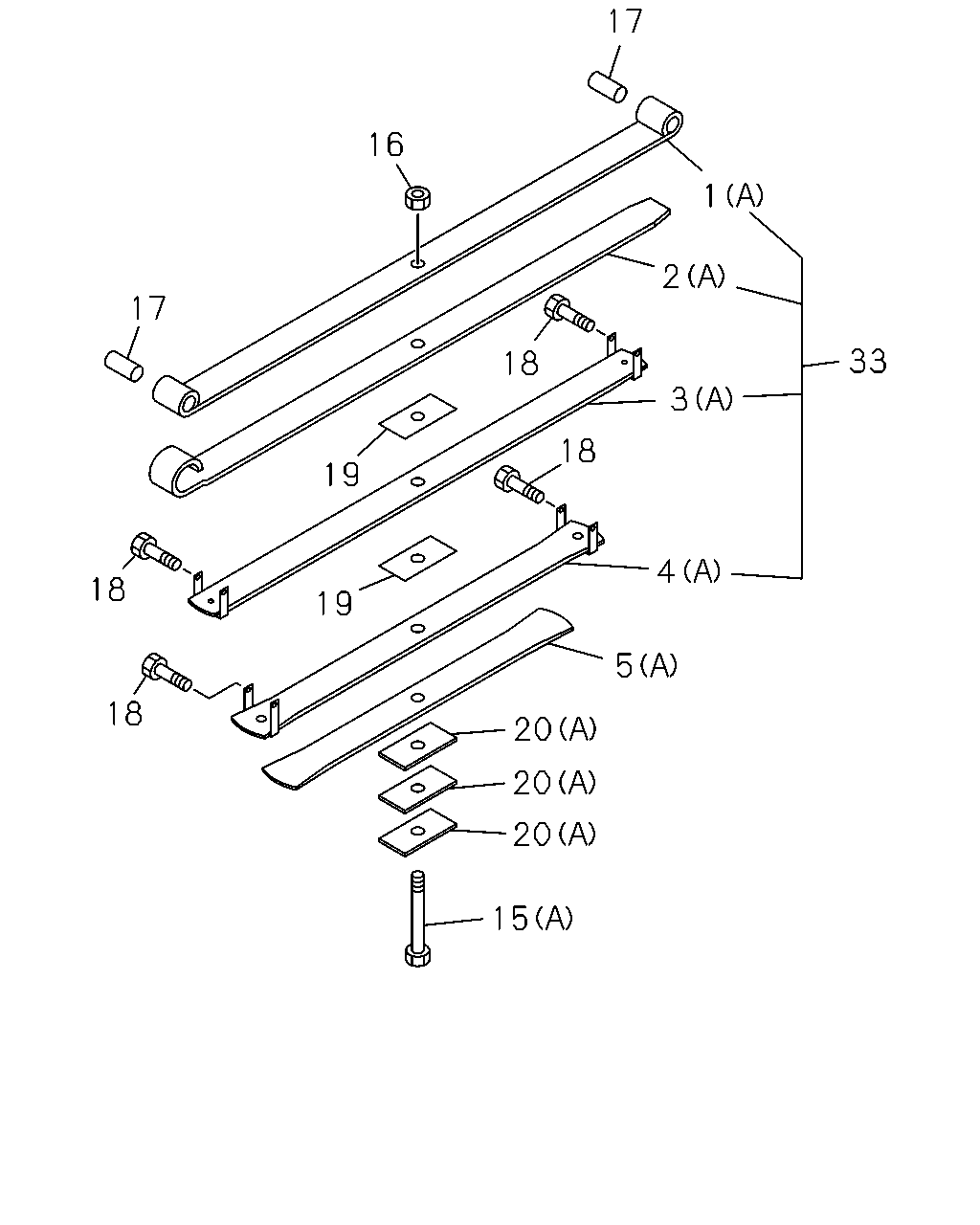

çizim 181968
17 16 1 2 17 33 18 3 18 19 4 18 19 5 18 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-828-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-988-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-217-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-829-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-989-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-218-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-830-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-990-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-219-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-831-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-991-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-832-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-992-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=115 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0 		8-98082-085-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: D = 8-98147-528-0 		8-98147-995-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X87 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		1-09000-600-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0 		8-94448-734-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=10 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0 		1-51177-216-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: D = 8-98147-528-0 		8-98041-367-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: D = 8-98147-528-0 		8-98083-223-0 02 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-398-0 01 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98138-338-0 		8-98136-827-0 01 1 -

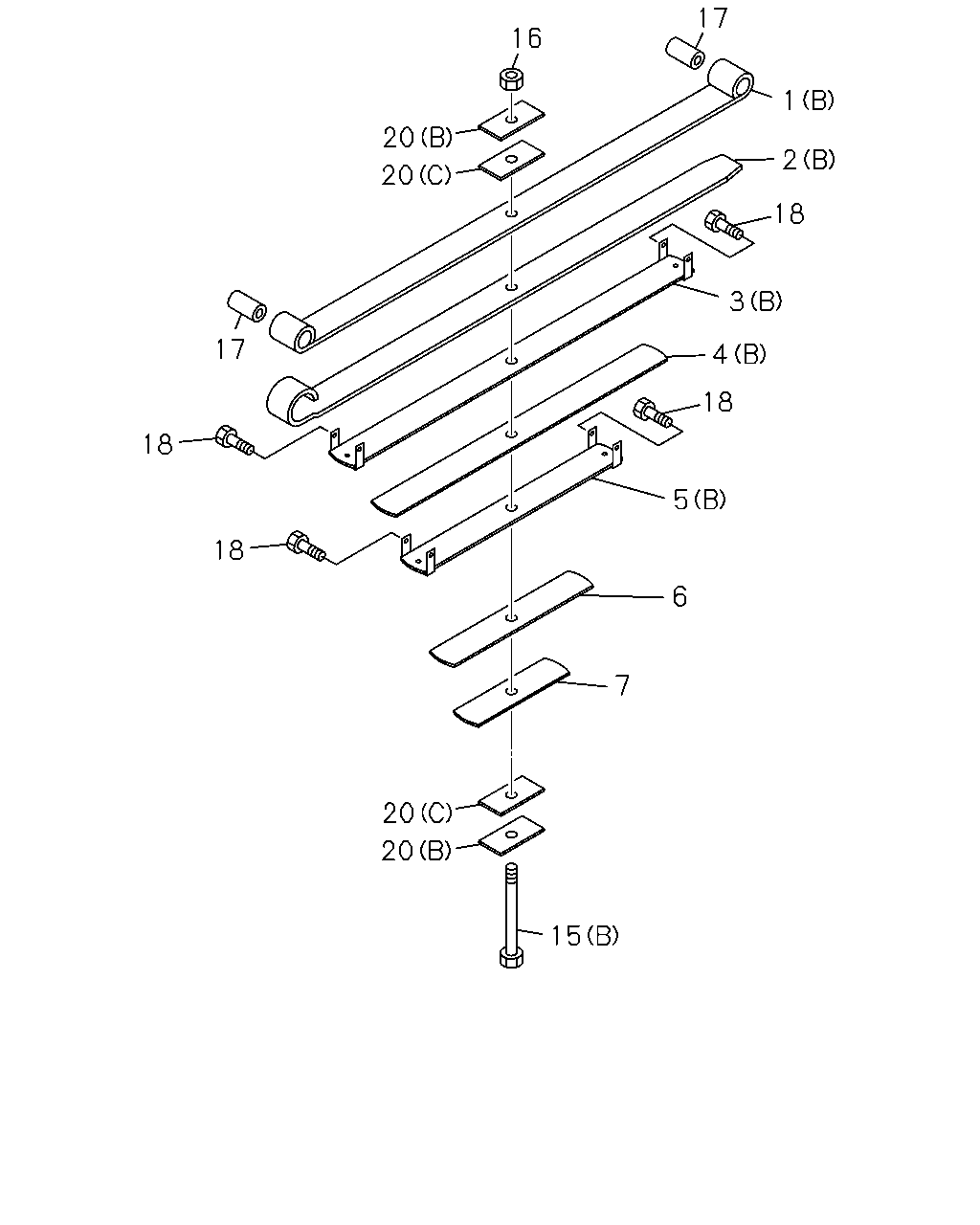

çizim 182096
17 16 1 20 2 20 18 3 17 4 18 18 5 18 6 7 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-828-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-988-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-217-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-829-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-989-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-218-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-830-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-990-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		8-98097-219-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-831-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-991-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98073-724-1, C = 8-98138-339-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: B = 8-98138-338-0 		8-98136-832-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: D = 8-98147-528-0 		8-98147-992-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98147-528-0 		8-98147-993-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: D = 8-98147-528-0 		8-98147-994-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=115 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0 		8-98082-085-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=130 ASM PART: D = 8-98147-528-0 		8-98147-995-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X87 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0, D = 8-98147-528-0 		1-09000-600-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=10 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0, C = 8-98138-339-0 		1-51177-216-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: D = 8-98147-528-0 		8-98041-367-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: D = 8-98147-528-0 		8-98083-223-0 02 1 -
