◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#56624) — 149 parça

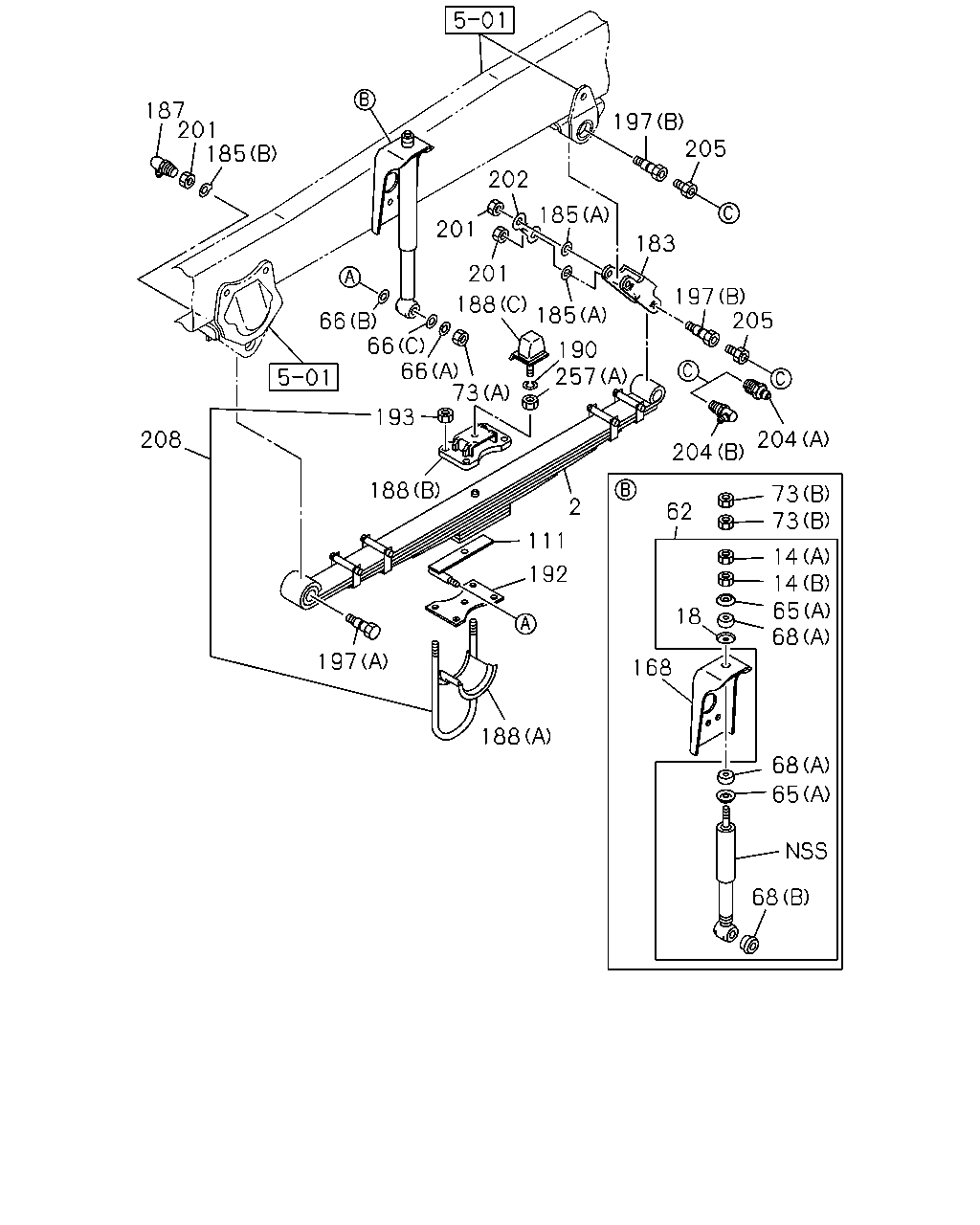

çizim 181972
187 201 185 197 205 202 185 201 183 201 197 205 188 185 66 66 66 190 257 73 193 208 204 188 73 73 2 2 111 14 14 65 68 192 18 197 168 188 68 65 68 204
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98147-528-0 02 1 1004- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-339-0 01 1 0902- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98073-724-1 02 1 0712-0901 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-338-0 01 1 0902- ● ●
14 NUT; S/ABS,UPR
(A) M10 		0-91111-510-0 02 1 0712- ● ●
14 NUT; S/ABS,UPR
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 0712- ● ●
65 WASHER; S/ABS
(C) ID=16.8 		1-51631-022-0 04 1 1004- ●
65 WASHER; S/ABS
(B) ID=14.5 		9-51631-051-0 04 1 1004- ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1004- ●
66 WASHER; LK,S/ABS SETTING
(E) ID=17 		1-51631-020-0 02 1 1004- ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		8-98010-406-0 02 1 0712-0802 ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 0803- ● ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 0712- ● ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 0712- ● ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		0-91116-516-0 02 1 1004-1204 ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
73 NUT; BRKT,SHOCK
(D) M12 		8-98010-412-0 04 1 1004- ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 0712- ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 1004- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 1004- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 0712- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 1004- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0712- ● ●
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 1004- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0712- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0712-1003 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1004- ● ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0712-1003 ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1004- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(D) 		1-43219-029-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(E) 		1-51173-019-0 02 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-008-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-009-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 0712-1003 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1004- ● ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 0712-1003 ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1004- ● ● ●
192 PIECE; DIST 1-51177-207-2 01 1 1004- ●
192 PIECE; DIST 1-51177-215-1 01 1 1004- ●
192 PIECE; DIST 1-51177-218-1 01 1 0712- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 0712- ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0712-1003 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1004- ● ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0712-1003 ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1004- ● ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0712-1003 ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1004- ● ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0712-1003 ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1004- ● ● ●
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 1004- ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0712- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712-1003 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1004- ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1004- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0712-1003 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1004- ● ● ●
208 U-BOLT SET; FRT SPRING
L=320 		1-87870-490-0 02 1 1004- ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 0712- ● ●
257 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91180-108-0 04 1 1004- ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 0712-1003 ● ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 1004- ● ● ●

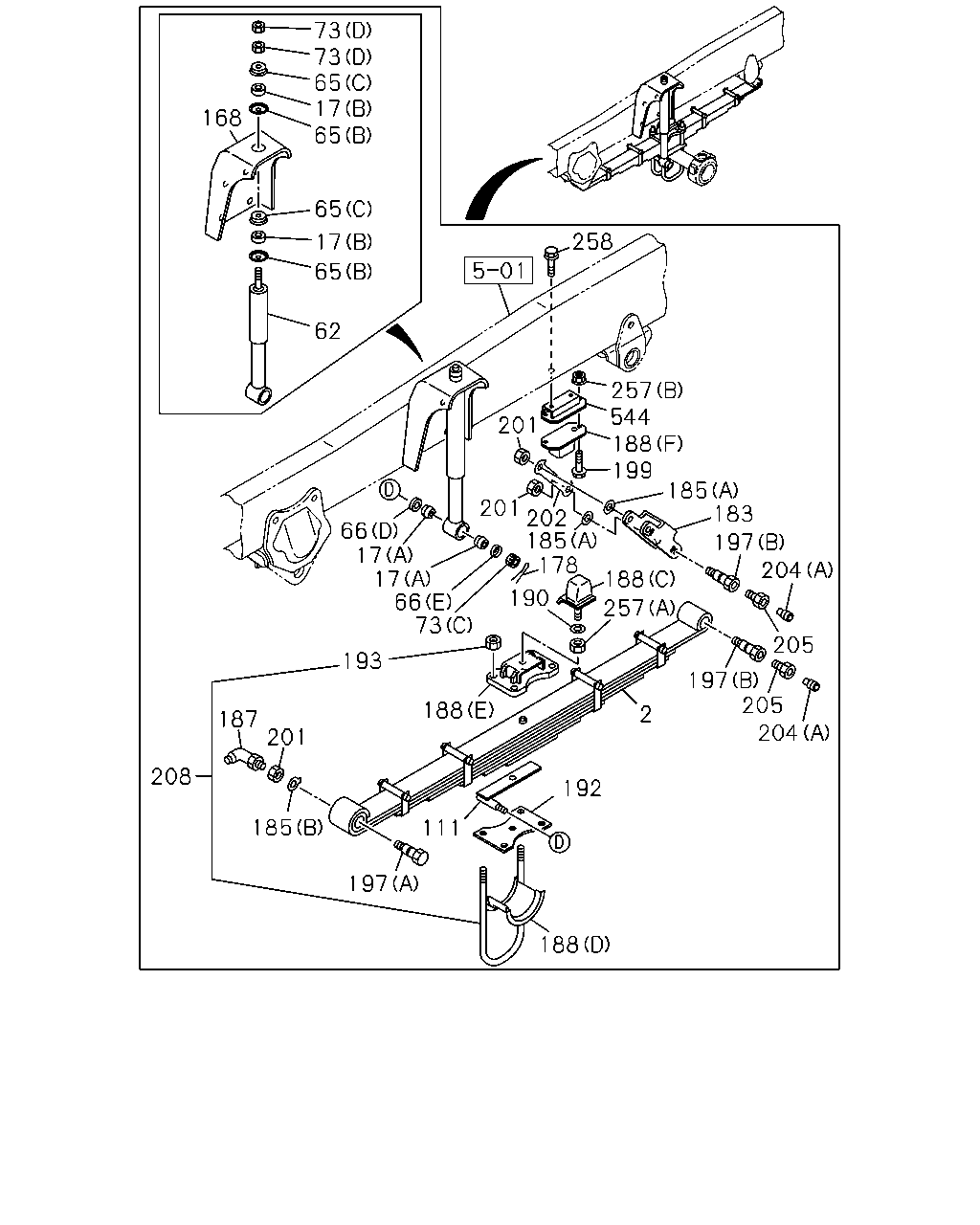

çizim 182119
73 73 65 17 65 168 65 258 17 65 62 257 544 188 199 201 185 183 201 202 185 178 66 17 17 66 73 197 204 188 190 257 205 193 197 205 204 188 2 187 201 208 192 185 111 197 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98147-528-0 02 1 1004- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-339-0 01 1 0902- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98073-724-1 02 1 0712-0901 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-338-0 01 1 0902- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1004- ●
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1004- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1004- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1004-1412 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-851-0 02 1 0712- ● ●
65 WASHER; S/ABS
(C) ID=16.8 		1-51631-022-0 04 1 1004- ●
65 WASHER; S/ABS
(B) ID=14.5 		9-51631-051-0 04 1 1004- ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1004- ●
66 WASHER; LK,S/ABS SETTING
(E) ID=17 		1-51631-020-0 02 1 1004- ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		8-98010-406-0 02 1 0712-0802 ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 0803- ● ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		0-91116-516-0 02 1 1004-1204 ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
73 NUT; BRKT,SHOCK
(D) M12 		8-98010-412-0 04 1 1004- ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 0712- ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 1004- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 1004- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 0712- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 1004- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0712- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1004- ●
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 1004- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0712- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0712-1003 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1004- ● ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0712-1003 ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1004- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(D) 		1-43219-029-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(E) 		1-51173-019-0 02 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-008-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-009-2 01 1 1004- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 0712-1003 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1004- ● ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 0712-1003 ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1004- ● ● ●
192 PIECE; DIST 1-51177-207-2 01 1 1004- ●
192 PIECE; DIST 1-51177-215-1 01 1 1004- ●
192 PIECE; DIST 1-51177-218-1 01 1 0712- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 0712- ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0712-1003 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1004- ● ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0712-1003 ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1004- ● ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0712-1003 ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1004- ● ● ●
199 BOLT
M8X20 FLANGE 		0-28650-820-0 04 1 1004- ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0712-1003 ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1004- ● ● ●
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 1004- ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0712- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712-1003 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1004- ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1004- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0712-1003 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1004- ● ● ●
208 U-BOLT SET; FRT SPRING
L=320 		1-87870-490-0 02 1 1004- ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 0712- ● ●
257 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91180-108-0 04 1 1004- ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 0712-1003 ● ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 1004- ● ● ●
258 BOLT; CUSHION,WIND UP
M10X25 FLANGE 		0-28651-025-0 04 1 1004- ●
544 BRACKET; RUBBER 8-98147-398-0 01 1 1004- ●
544 BRACKET; RUBBER 8-98147-399-0 01 1 1004- ●
