◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#56622) — 128 parça

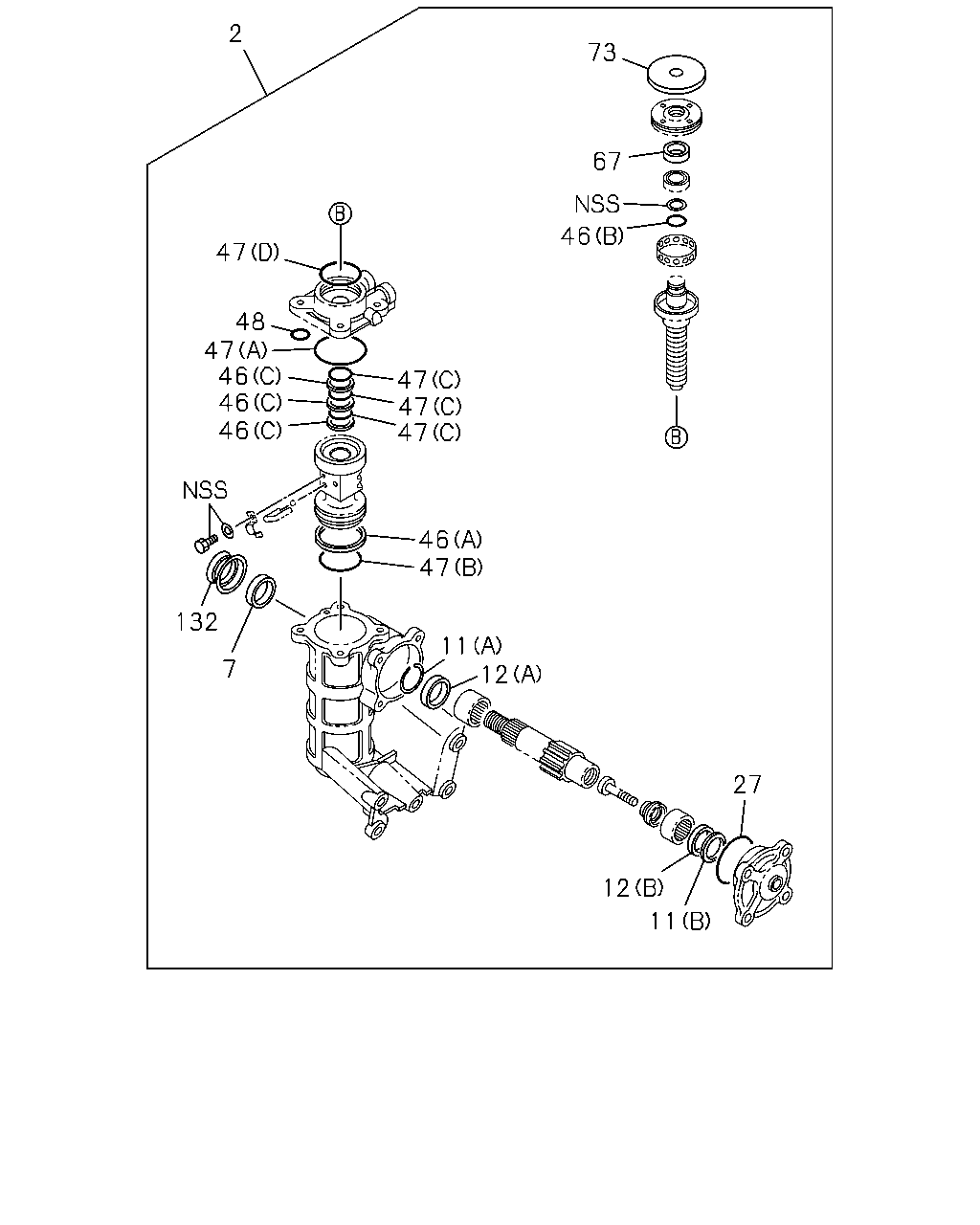

çizim 181959
2 73 67 46 47 48 47 46 46 46 47 47 47 46 47 132 11 12 7 27 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-85574-090-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-303-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-119-0 01 1 -

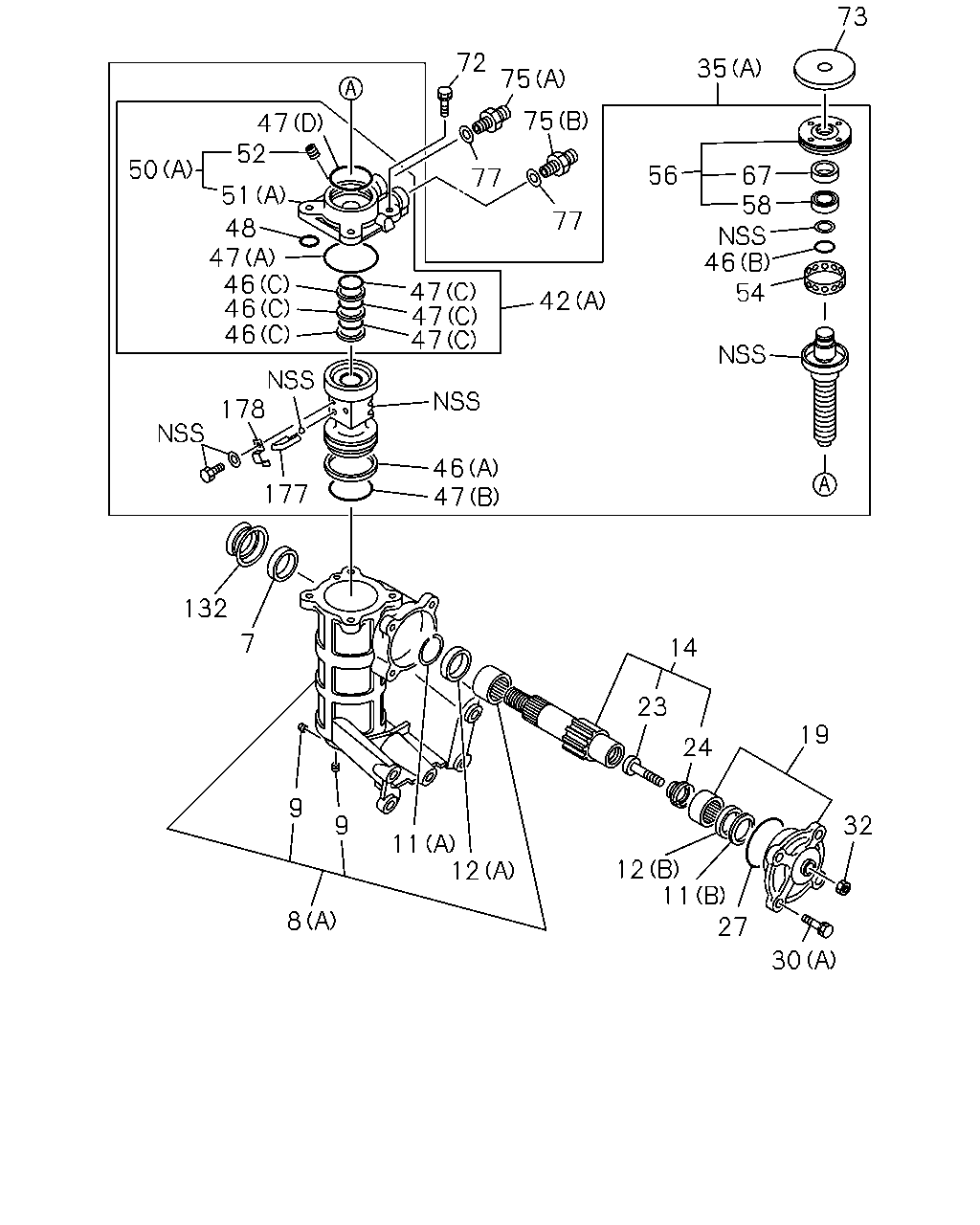

çizim 181971
73 72 35 75 75 47 52 50 56 67 58 46 54 77 51 77 48 47 46 46 46 47 47 47 42 178 46 47 177 132 7 14 23 19 24 9 9 32 11 12 12 11 27 8 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44240-159-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44320-012-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-19519-121-0 02 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-925-4 		1-44569-103-0 02 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		8-98081-755-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		8-98095-566-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44560-069-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44560-068-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44561-017-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-303-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-064-0 01 1 -

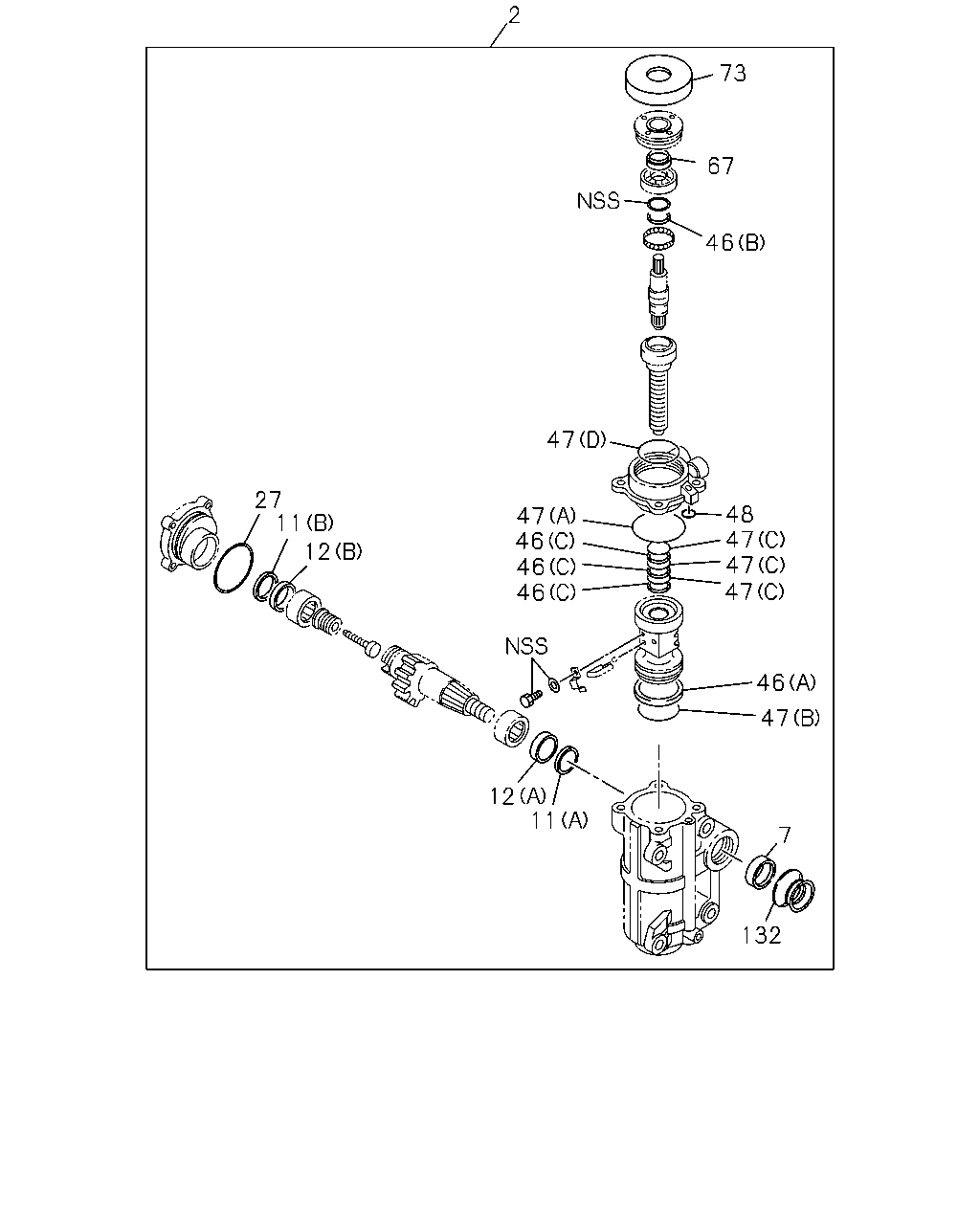

çizim 182089
2 73 67 46 47 27 11 12 48 47 47 47 47 46 46 46 46 47 12 11 7 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-85574-090-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-303-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-119-0 01 1 -

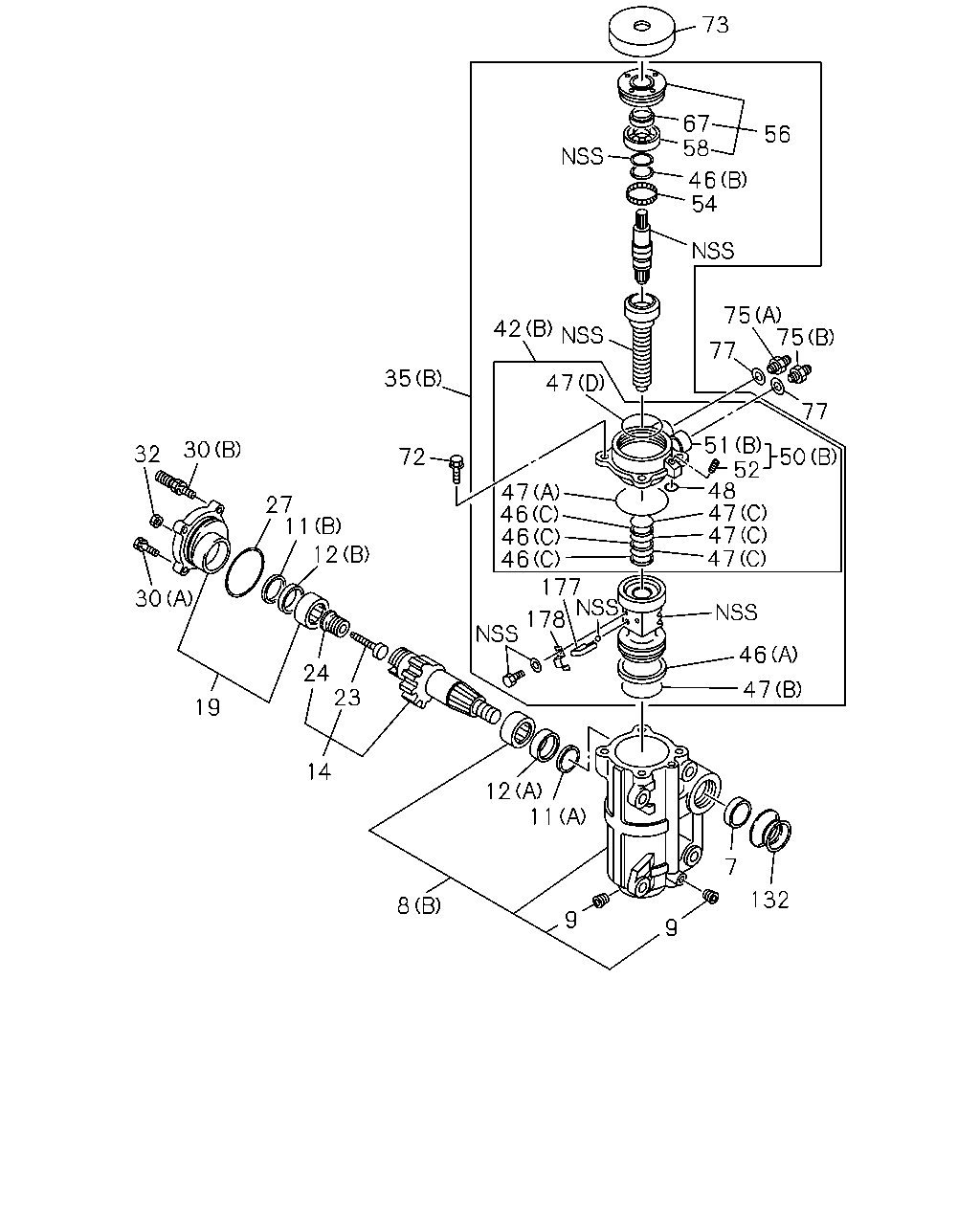

çizim 182107
73 67 58 56 46 54 75 75 42 77 35 47 77 51 52 48 47 47 47 30 32 72 50 47 46 46 46 177 27 11 12 30 178 46 24 23 47 19 14 12 11 7 132 8 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44240-159-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44320-012-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-19519-121-0 02 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-925-4 		1-44569-103-0 02 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		8-98081-755-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		8-98095-566-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44560-069-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44560-068-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-951-1 		1-44561-017-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-925-4 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44519-303-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-925-4, B = 1-44000-951-1 		1-44159-064-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
