◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#56621) — 112 parça

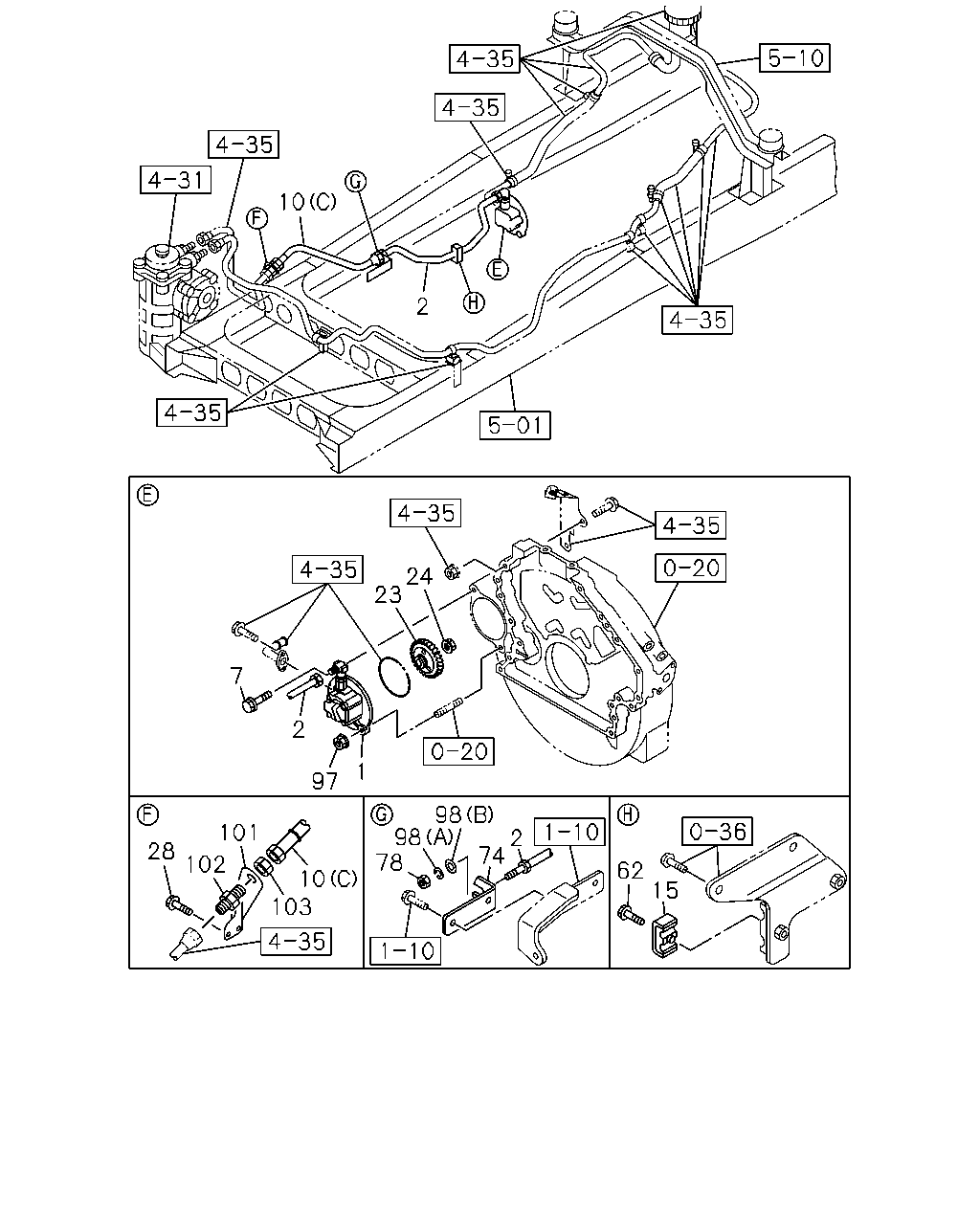

çizim 181969
10 2 24 23 7 2 1 97 98 98 78 101 2 74 28 102 62 10 103 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1103- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 0712-1003 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1004-1101 ● ● ●
2 PIPE ASM; OIL,SUCTION
GENERATOR 24V90A(K44) 		8-98086-995-0 01 1 0712- ● ●
2 PIPE ASM; OIL,SUCTION
EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 0712-1003 ● ●
2 PIPE ASM; OIL,SUCTION
EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 1004- ● ●
2 PIPE ASM; OIL,SUCTION 8-98086-746-0 01 1 1004- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 0712-1003 ● ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 1004- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO2 SPECIFICATION<NT2> (A) 		1-21115-205-0 01 1 0812-1003 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO2 SPECIFICATION<NT2> (A) 		1-21115-205-0 01 1 1004- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98078-740-0 01 1 0712- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(C) L=500 		1-09364-957-2 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. GENERATOR 24V90A(K44) (C) L=500 		1-09364-957-2 01 1 0803-1003 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. GENERATOR 24V90A(K44) (C) L=500 		1-09364-957-2 01 1 1004- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(C) L=500 		1-09364-957-2 01 1 1004- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(B) L=340 		1-09365-317-0 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
GENERATOR 24V90A(K44) (C) L=460 		1-09365-026-0 01 1 0803- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98071-168-0 01 1 0712-0811 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98071-168-0 01 1 0812- ●
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-1003 ● ●
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 1004- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1103- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0712-1003 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1004-1101 ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1103- ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0712-1003 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1004-1101 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1003 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 0712-1003 ● ●
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 1004- ● ● ●
74 BRACKET; PIPE
GENERATOR 24V90A(K44) 		8-98073-737-0 01 1 0712- ● ●
74 BRACKET; PIPE
EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 0712-1003 ● ●
74 BRACKET; PIPE
EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 1004- ● ●
74 BRACKET; PIPE 8-98060-044-1 01 1 1004- ●
78 NUT; BRKT
M20 		0-91111-520-0 01 1 0712-1003 ● ●
78 NUT; BRKT
M20 		0-91111-520-0 01 1 1004- ● ● ●
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 0712-1003 ● ●
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 1004- ● ● ●
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 0712-1003 ● ●
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 1004- ● ● ●
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 0712-1003 ● ●
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 1004- ● ● ●
101 BRACKET; UNION 8-98076-297-0 01 1 0712-0802 ●
101 BRACKET; UNION
EXC. GENERATOR 24V90A(K44) 		8-98076-297-0 01 1 0803-1003 ● ●
101 BRACKET; UNION
EXC. GENERATOR 24V90A(K44) 		8-98076-297-0 01 1 1004- ● ●
101 BRACKET; UNION 8-98076-297-0 01 1 1004- ●
101 BRACKET; UNION
GENERATOR 24V90A(K44) 		8-98077-651-0 01 1 0803- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0803-1003 ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1004- ● ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0803-1003 ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1004- ● ● ●

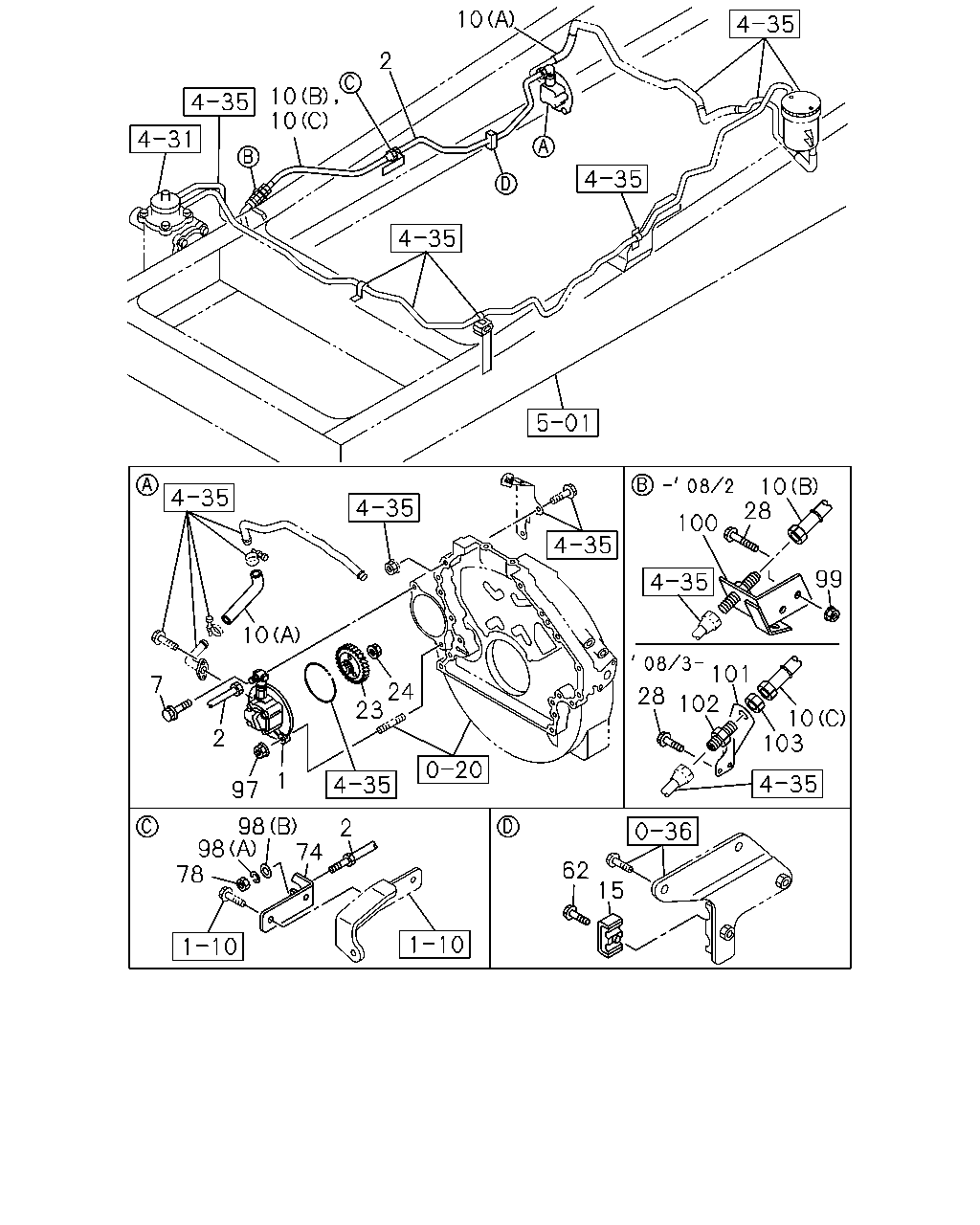

çizim 181989
10 2 10 10 10 28 100 99 10 101 7 24 23 28 102 10 103 2 1 97 98 98 74 78 2 62 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1103- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 0712-1003 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1004-1101 ● ● ●
2 PIPE ASM; OIL,SUCTION
GENERATOR 24V90A(K44) 		8-98086-995-0 01 1 0712- ● ●
2 PIPE ASM; OIL,SUCTION
EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 0712-1003 ● ●
2 PIPE ASM; OIL,SUCTION
EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 1004- ● ●
2 PIPE ASM; OIL,SUCTION 8-98086-746-0 01 1 1004- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 0712-1003 ● ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 1004- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO2 SPECIFICATION<NT2> (A) 		1-21115-205-0 01 1 0812-1003 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO2 SPECIFICATION<NT2> (A) 		1-21115-205-0 01 1 1004- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98078-740-0 01 1 0712- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(C) L=500 		1-09364-957-2 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. GENERATOR 24V90A(K44) (C) L=500 		1-09364-957-2 01 1 0803-1003 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. GENERATOR 24V90A(K44) (C) L=500 		1-09364-957-2 01 1 1004- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(C) L=500 		1-09364-957-2 01 1 1004- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(B) L=340 		1-09365-317-0 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
GENERATOR 24V90A(K44) (C) L=460 		1-09365-026-0 01 1 0803- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98071-168-0 01 1 0712-0811 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98071-168-0 01 1 0812- ●
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-1003 ● ●
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 1004- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1103- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0712-1003 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1004-1101 ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1103- ● ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0712-1003 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1004-1101 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1003 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 0712-1003 ● ●
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 1004- ● ● ●
74 BRACKET; PIPE
GENERATOR 24V90A(K44) 		8-98073-737-0 01 1 0712- ● ●
74 BRACKET; PIPE
EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 0712-1003 ● ●
74 BRACKET; PIPE
EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 1004- ● ●
74 BRACKET; PIPE 8-98060-044-1 01 1 1004- ●
78 NUT; BRKT
M20 		0-91111-520-0 01 1 0712-1003 ● ●
78 NUT; BRKT
M20 		0-91111-520-0 01 1 1004- ● ● ●
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 0712-1003 ● ●
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 1004- ● ● ●
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 0712-1003 ● ●
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 1004- ● ● ●
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 0712-1003 ● ●
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 1004- ● ● ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
100 UNION; FLEX HOSE 8-98021-770-0 01 1 0712-0802 ●
101 BRACKET; UNION 8-98076-297-0 01 1 0712-0802 ●
101 BRACKET; UNION
EXC. GENERATOR 24V90A(K44) 		8-98076-297-0 01 1 0803-1003 ● ●
101 BRACKET; UNION
EXC. GENERATOR 24V90A(K44) 		8-98076-297-0 01 1 1004- ● ●
101 BRACKET; UNION 8-98076-297-0 01 1 1004- ●
101 BRACKET; UNION
GENERATOR 24V90A(K44) 		8-98077-651-0 01 1 0803- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0803-1003 ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1004- ● ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0803-1003 ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1004- ● ● ●
