Sayfa 4-35 - Isuzu EPC

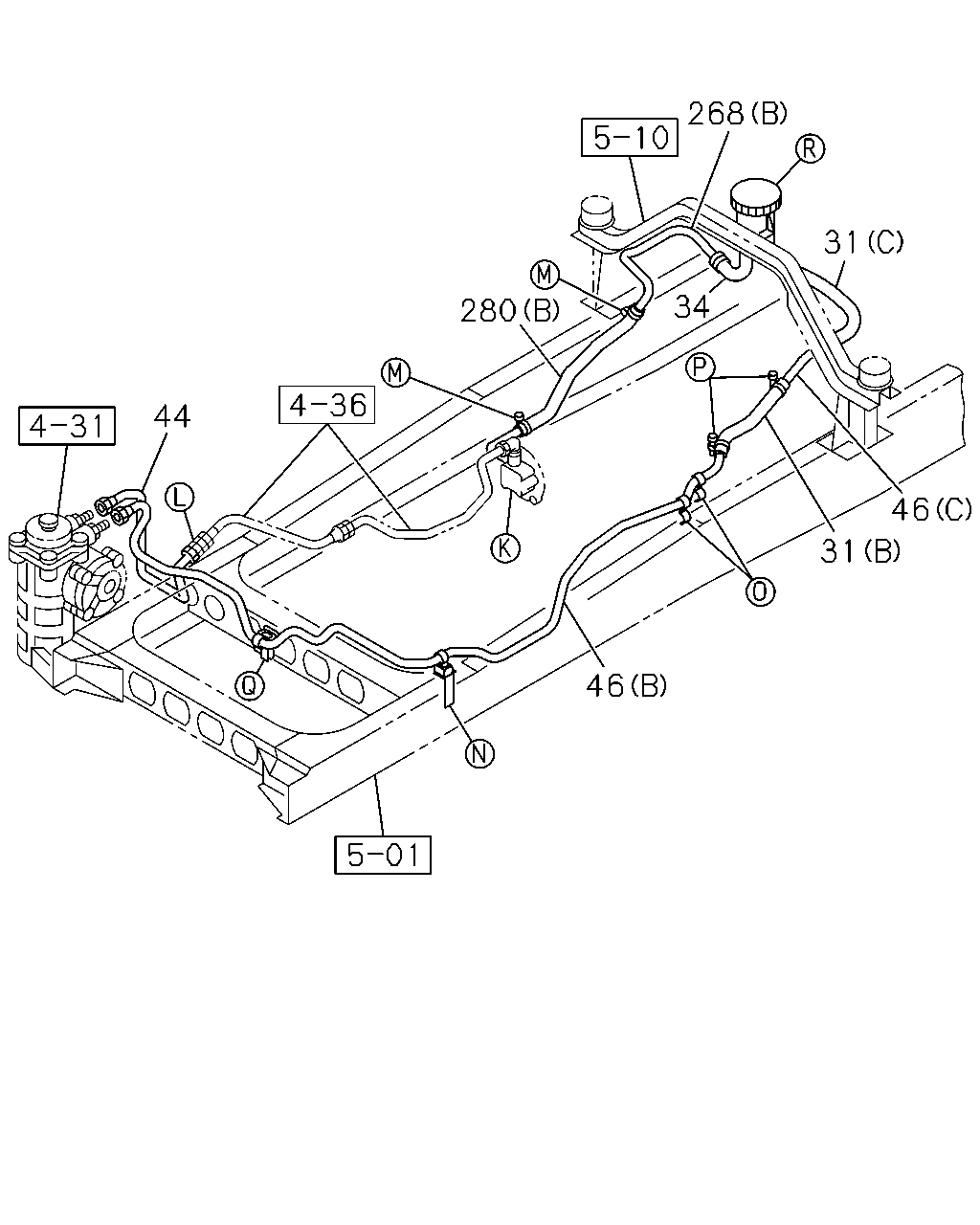

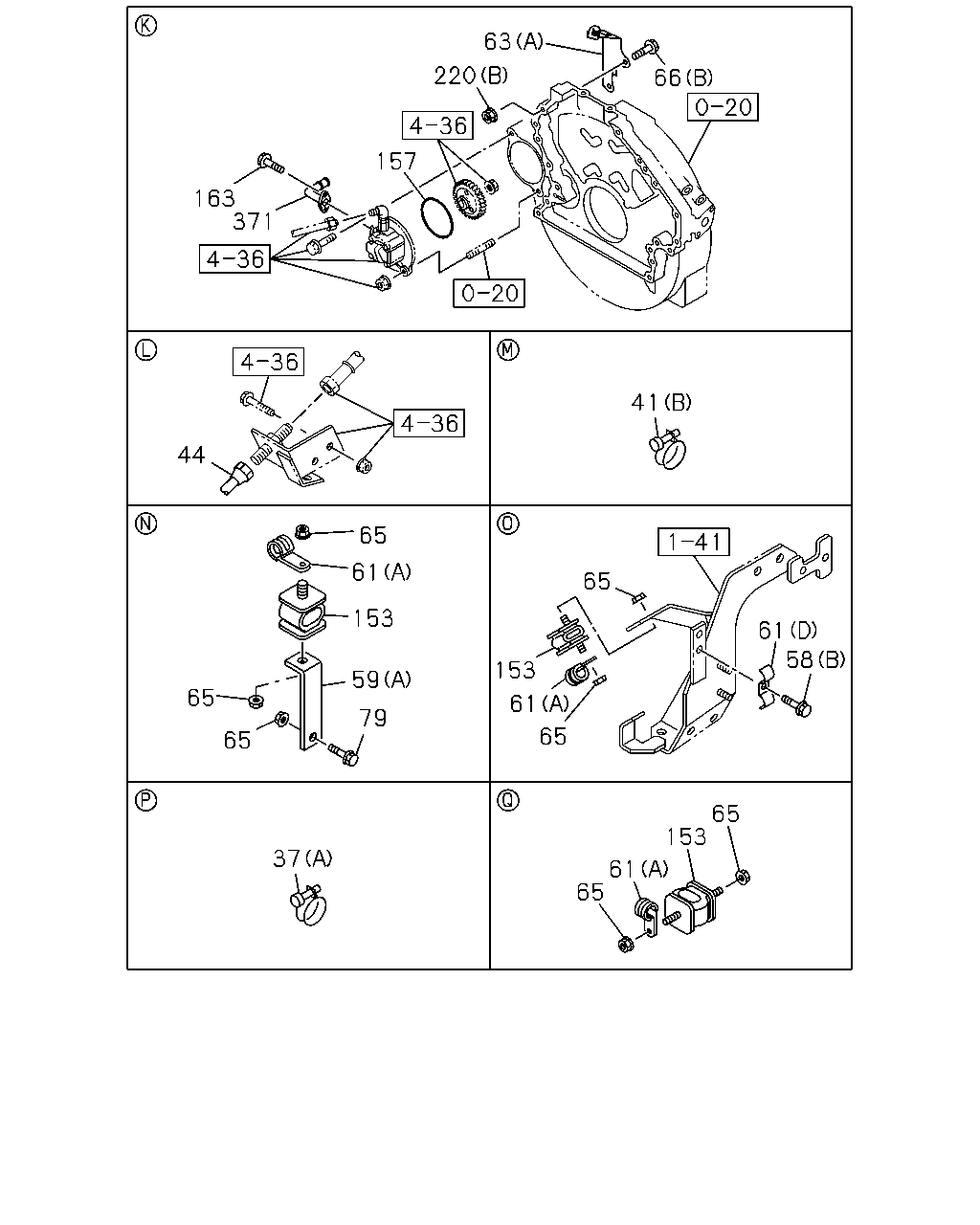

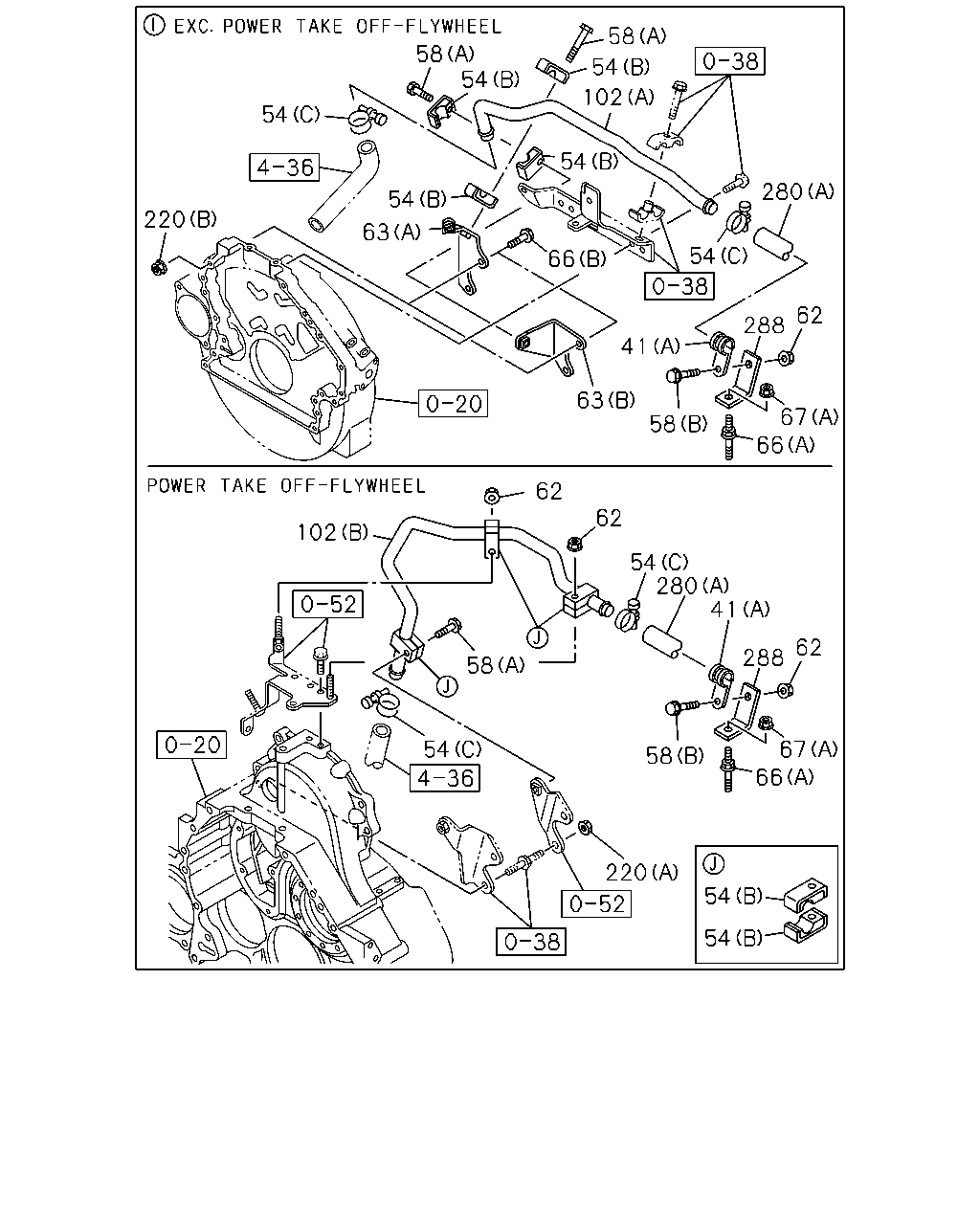

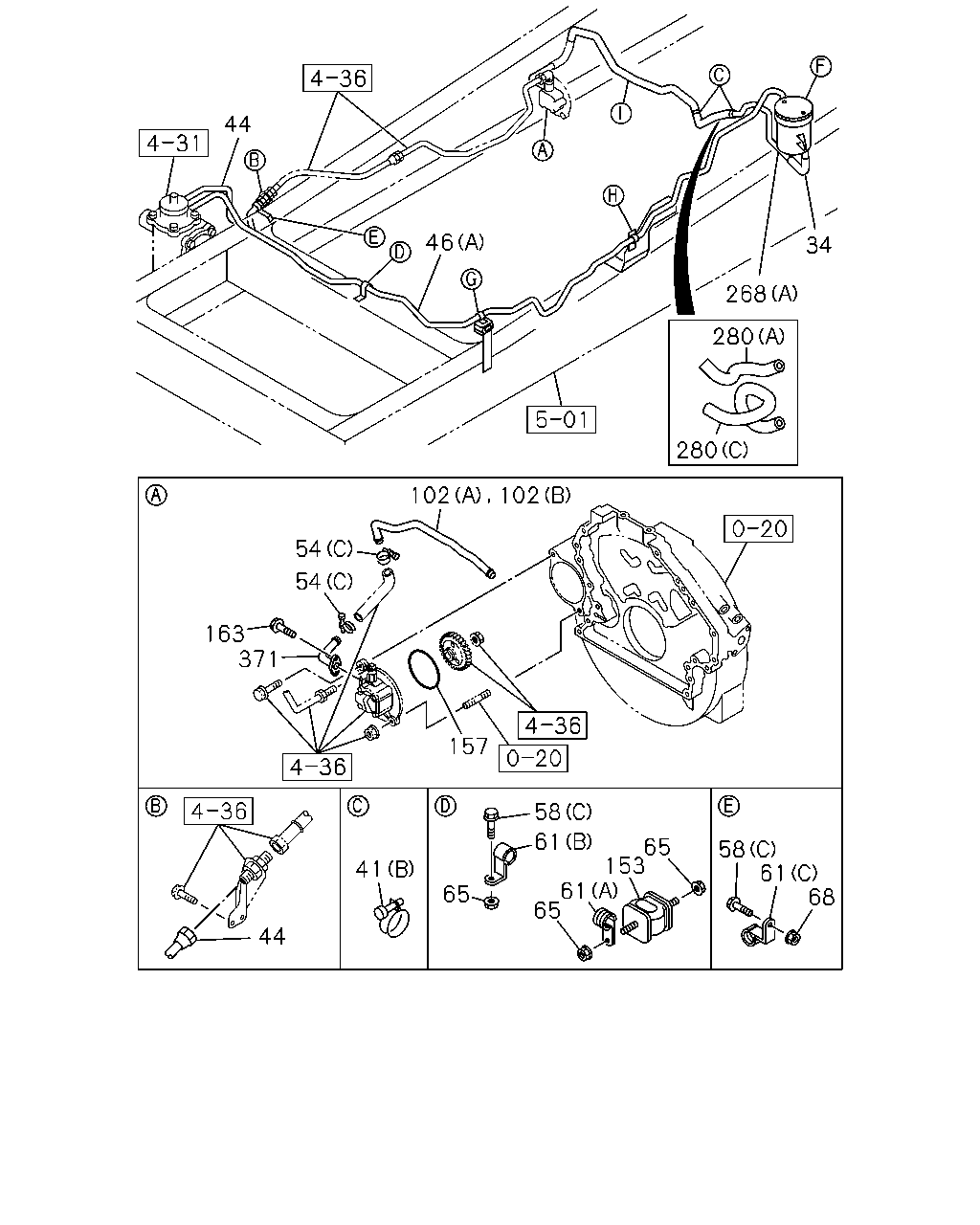

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#56620) — 513 parça

2 3 1 5 19 12 15 19 25 15 23 1 25 54 37 264 26 54 31 37 65 284 268 58 37 34 37 61 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

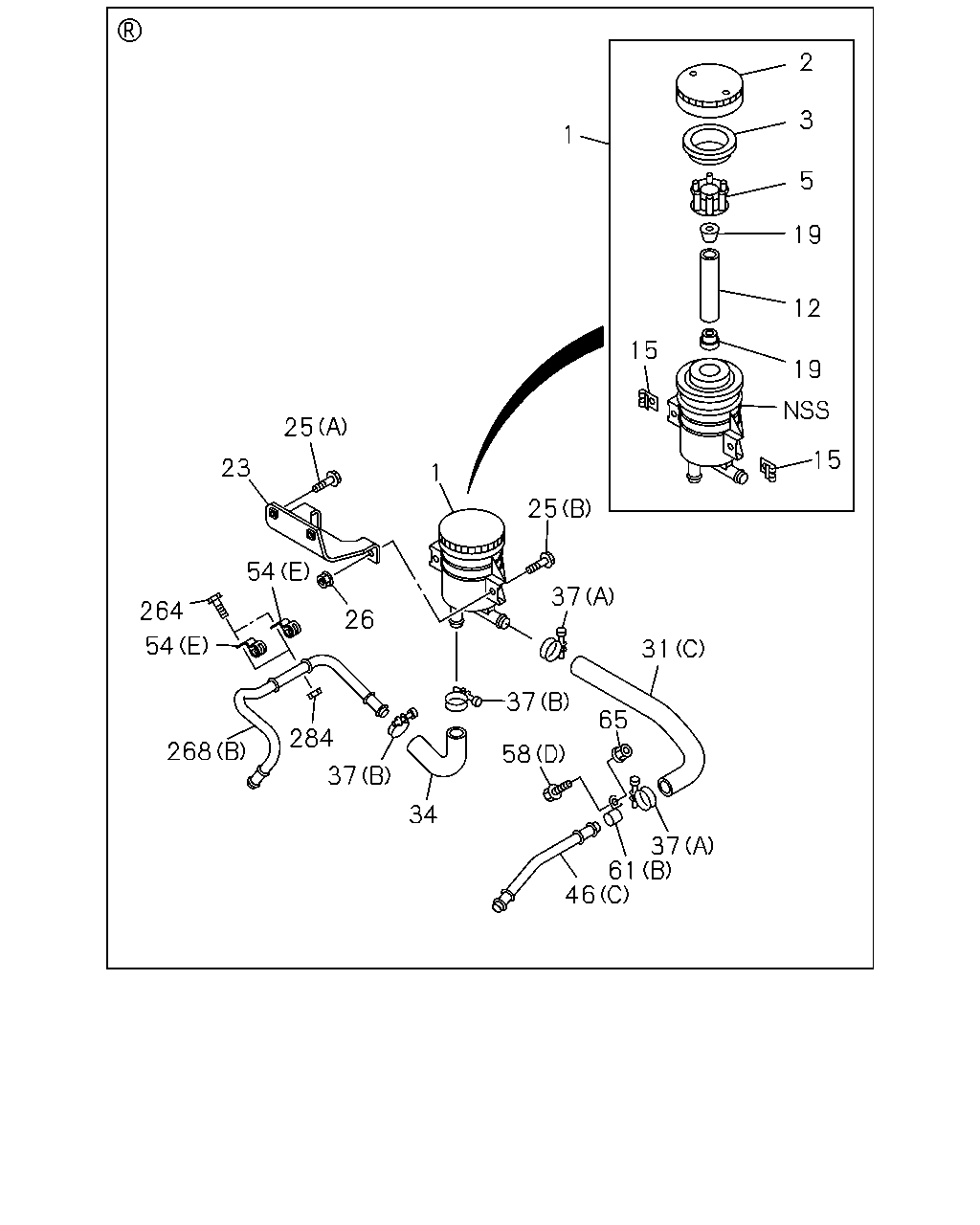

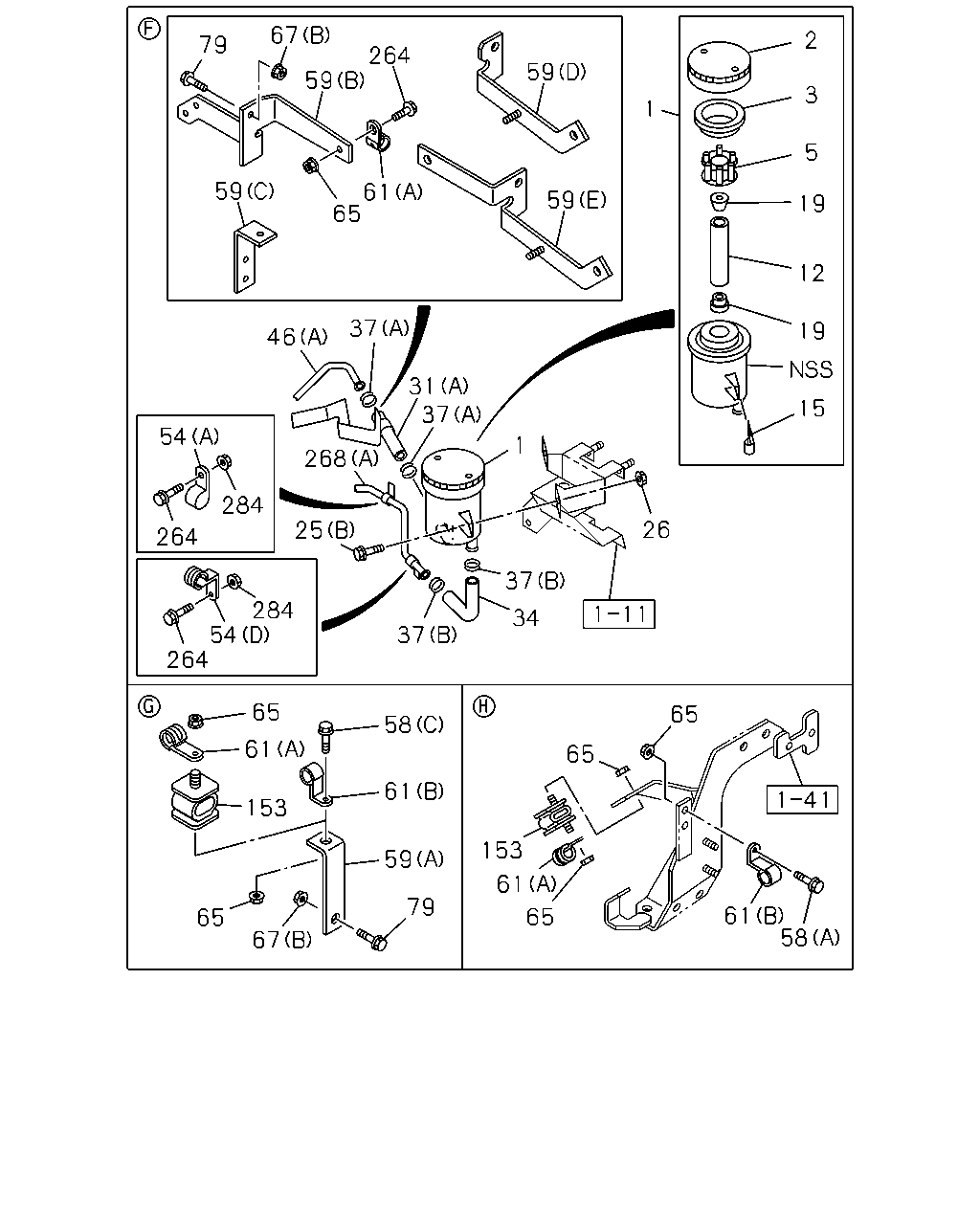

1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1003	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1004-1006	●	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1003	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1004-1006	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-1003	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1004-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-1003	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1004-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-1003	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1004-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-1003	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1004-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-1003	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1004-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98060-024-0	01	1	0712-1003		●
23	BRACKET; OIL TANK,P/S	8-98060-024-0	01	1	1004-		●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-1003		●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-1003	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	0803-	●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	0712-0802	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	0803-1003	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1004-	●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	1004-			●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0712-1003	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1004-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	0712-1003		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1004-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-1003	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1004-	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=3046	8-98089-651-0	01	1	1004-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2984	8-98028-674-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	0803-1003	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	1004-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0712-	●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-1003		●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	1004-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0803-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1004-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1004-			●
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	0712-0802	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	0803-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0712-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	1004-1006	●		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-	●		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0712-1003	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1004-	●		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-1003		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-1003		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0712-1003	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1004-1006	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0712-0802		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0803-1003		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1004-		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-1003		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1004-		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-1003		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1004-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0712-0802	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	0803-1003	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1004-	●		●
61	CLIP; OIL PIPE (C) ID=13 H=40 L=25	1-09700-620-0	02	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-1003		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1004-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0803-1003	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1004-	●		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-1003		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
264	BOLT; PIPE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	0803-1003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	1004-1004	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98077-737-1	01	1	1004-1004			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1004-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98165-444-0	01	1	1004-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	0712-1003		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	1004-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98028-676-0	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	0803-	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0803-1003	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●

67 2 79 264 59 59 3 1 5 59 61 65 59 19 12 37 19 46 31 37 15 54 1 268 284 26 25 264 37 284 54 264 34 37 65 65 58 61 65 61 153 153 59 61 79 61 58 65 65 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1003	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1004-1006	●	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1003	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1004-1006	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-1003	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1004-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-1003	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1004-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-1003	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1004-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-1003	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1004-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-1003	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1004-	●	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-1003		●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-1003	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	0803-	●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	0712-0802	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	0803-1003	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1004-	●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	1004-			●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0712-1003	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1004-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	0712-1003		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1004-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-1003	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1004-	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=3046	8-98089-651-0	01	1	1004-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2984	8-98028-674-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	0803-1003	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	1004-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0712-	●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-1003		●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	1004-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0803-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1004-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1004-			●
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	0712-0802	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	0803-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0712-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	1004-1006	●		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-	●		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0712-1003	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1004-	●		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-1003		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-1003		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0712-1003	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1004-1006	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-1003	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1004-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98028-677-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98083-329-0	01	1	0803-	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98029-300-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98064-809-1	01	1	0803-1003	●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98064-809-1	01	1	1004-	●
59	BRACKET; CLIP,OIL PIPE (E)	8-98064-809-1	01	1	1004-			●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0712-0802		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0803-1003		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1004-		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-1003		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1004-		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-1003		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1004-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0712-0802	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	0803-1003	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1004-	●		●
61	CLIP; OIL PIPE (C) ID=13 H=40 L=25	1-09700-620-0	02	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-1003		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1004-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0803-1003	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1004-	●		●
67	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0712-1003	●
67	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1004-	●		●
67	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-0802	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0906		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0906	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0907-1003	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1004-	●		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0712-0802		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0803-1003	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1004-	●	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-1003		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
264	BOLT; PIPE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	0803-1003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	1004-1004	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98077-737-1	01	1	1004-1004			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1004-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98165-444-0	01	1	1004-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	0712-1003		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	1004-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98028-676-0	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	0803-	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0803-1003	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●

44 46 34 268 280 280 102 102 54 54 163 371 157 58 61 65 153 61 65 58 61 68 41 65 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0712-1003	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1004-	●	●	●
41	CLIP; HOSE,P/S (A) ID=35 L=33	1-09700-945-0	02	1	0712-0802	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98082-432-0	01	1	1004-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-055-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	0803-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98021-751-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	0803-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=3046	8-98089-651-0	01	1	1004-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2984	8-98028-674-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	0803-1003	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	1004-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0712-	●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-1003		●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	1004-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0803-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1004-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1004-			●
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	0712-0802	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	0803-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0712-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	1004-1006	●		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-	●		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0712-1003	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1004-	●		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-1003		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-1003		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0712-1003	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1004-1006	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0712-0802		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0803-1003		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1004-		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-1003		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1004-		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-1003		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1004-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0712-0802	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	0803-1003	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1004-	●		●
61	CLIP; OIL PIPE (C) ID=13 H=40 L=25	1-09700-620-0	02	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-1003		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1004-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0803-1003	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1004-	●		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	0812-1003	●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	1004-	●		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	0712-	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0712-0811	●
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0812-	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0712-0802		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0803-1003	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1004-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	0712-1003	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1004-	●	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-1003	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1004-	●	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	0803-1003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	1004-1004	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98077-737-1	01	1	1004-1004			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1004-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98165-444-0	01	1	1004-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	0712-1003		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	1004-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98028-676-0	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	0803-	●
280	HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98165-266-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (C)	8-98165-266-1	01	1	1004-			●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	0803-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	0803-1003	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-1004	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98053-039-1	01	1	1004-1004			●
280	HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	0712-1003		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1004-		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	0712-1003	●	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1004-	●	●	●

268 31 280 34 44 46 31 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	0803-	●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (C) L=400	0-09814-400-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	0712-1003		●
31	HOSE; P/S OIL TANK,INL (B)	8-98086-809-0	01	1	1004-		●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	0712-0802	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	0803-1003	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1004-	●
31	HOSE; P/S OIL TANK,INL (A)	0-09814-080-0	01	1	1004-			●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0712-1003	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1004-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98082-432-0	01	1	1004-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-055-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	0803-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98021-751-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	0803-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=3046	8-98089-651-0	01	1	1004-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98086-808-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	0712-1003		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2428	8-98099-056-0	01	1	1004-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2984	8-98028-674-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	0803-1003	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2940	8-98089-650-0	01	1	1004-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	0803-1003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98077-737-1	01	1	1004-1004	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98077-737-1	01	1	1004-1004			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1004-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98165-444-0	01	1	1004-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	0712-1003		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98091-217-0	01	1	1004-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98028-676-0	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	0803-	●
280	HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98165-266-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (C)	8-98165-266-1	01	1	1004-			●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	0803-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	0803-1003	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-1004	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98053-039-1	01	1	1004-1004			●
280	HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	0712-1003		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1004-		●

58 58 54 54 102 54 54 280 54 220 63 54 66 62 288 41 63 67 66 58 62 62 102 54 280 41 62 288 58 54 67 66 58 220 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; HOSE,P/S (A) ID=35 L=33	1-09700-945-0	02	1	0712-0802	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0712-	●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-1003		●
54	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	1004-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0803-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1004-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1004-			●
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21	1-09700-109-1	02	1	0712-0802	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	0803-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0712-1003	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	1004-1006	●		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-	●		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0712-1003	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1004-	●		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-1003		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-1003		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0712-1003	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1004-1006	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
62	NUT; CLIP FIX POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
62	NUT; CLIP FIX POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	0803-	●
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	0812-1003	●
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1004-	●		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0712-0803	●	●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0804-0811	●
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0812-1004	●
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	1005-	●	●
66	BOLT; BRKT,OIL PIPE (A) M10X15,M14X75 L=103	8-97212-602-0	02	1	0712-0802	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-1003	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-1004	●		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	1005-	●	●	●
67	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0712-1003	●
67	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1004-	●		●
67	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-0802	●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	0812-1003	●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	1004-	●		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	0712-	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0712-0811	●
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0812-	●
220	NUT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
220	NUT; BRKT,OIL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0712-0803	●	●
280	HOSE; P/S OIL PUMP,INL EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98165-266-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (C)	8-98165-266-1	01	1	1004-			●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	0803-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	0803-1003	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-1004	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98053-039-1	01	1	1004-1004			●
280	HOSE; P/S OIL PUMP,INL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1004-	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	0712-1003		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1004-		●
288	BRACKET; CLIP,P/S	8-98021-766-0	02	1	0712-0802	●

63 220 66 157 163 371 41 44 65 61 65 153 61 58 153 59 65 61 79 65 65 65 153 37 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	0712-1003		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1004-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-1003	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1004-	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
41	CLIP; HOSE,P/S (A) ID=35 L=33	1-09700-945-0	02	1	0712-0802	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-1003	●	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1004-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98082-432-0	01	1	1004-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-055-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	0803-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98021-751-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	0803-	●	●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-1003		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-1003		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0712-1003	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1004-1006	●		●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-1003	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1004-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98028-677-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98083-329-0	01	1	0803-	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98029-300-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98064-809-1	01	1	0803-1003	●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98064-809-1	01	1	1004-	●
59	BRACKET; CLIP,OIL PIPE (E)	8-98064-809-1	01	1	1004-			●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0712-0802		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0803-1003		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1004-		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-1003		●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1004-		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-1003		●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1004-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0712-0802	●	●
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	0803-1003	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1004-	●		●
61	CLIP; OIL PIPE (C) ID=13 H=40 L=25	1-09700-620-0	02	1	0712-0802	●
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	0812-1003	●
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1004-	●		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0712-0803	●	●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0804-0811	●
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0812-1004	●
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	1005-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-1003		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1004-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0803-1003	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1004-	●		●
66	BOLT; BRKT,OIL PIPE (A) M10X15,M14X75 L=103	8-97212-602-0	02	1	0712-0802	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-1003	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-1004	●		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE	0-28050-816-0	02	1	1005-	●	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0906		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0906	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0907-1003	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1004-	●		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0712-0802		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0803-1003	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1004-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	0712-1003	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1004-	●	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-1003	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1004-	●	●	●
220	NUT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
220	NUT; BRKT,OIL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0712-0803	●	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	0712-1003	●	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1004-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
