Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#5662) — 253 parça

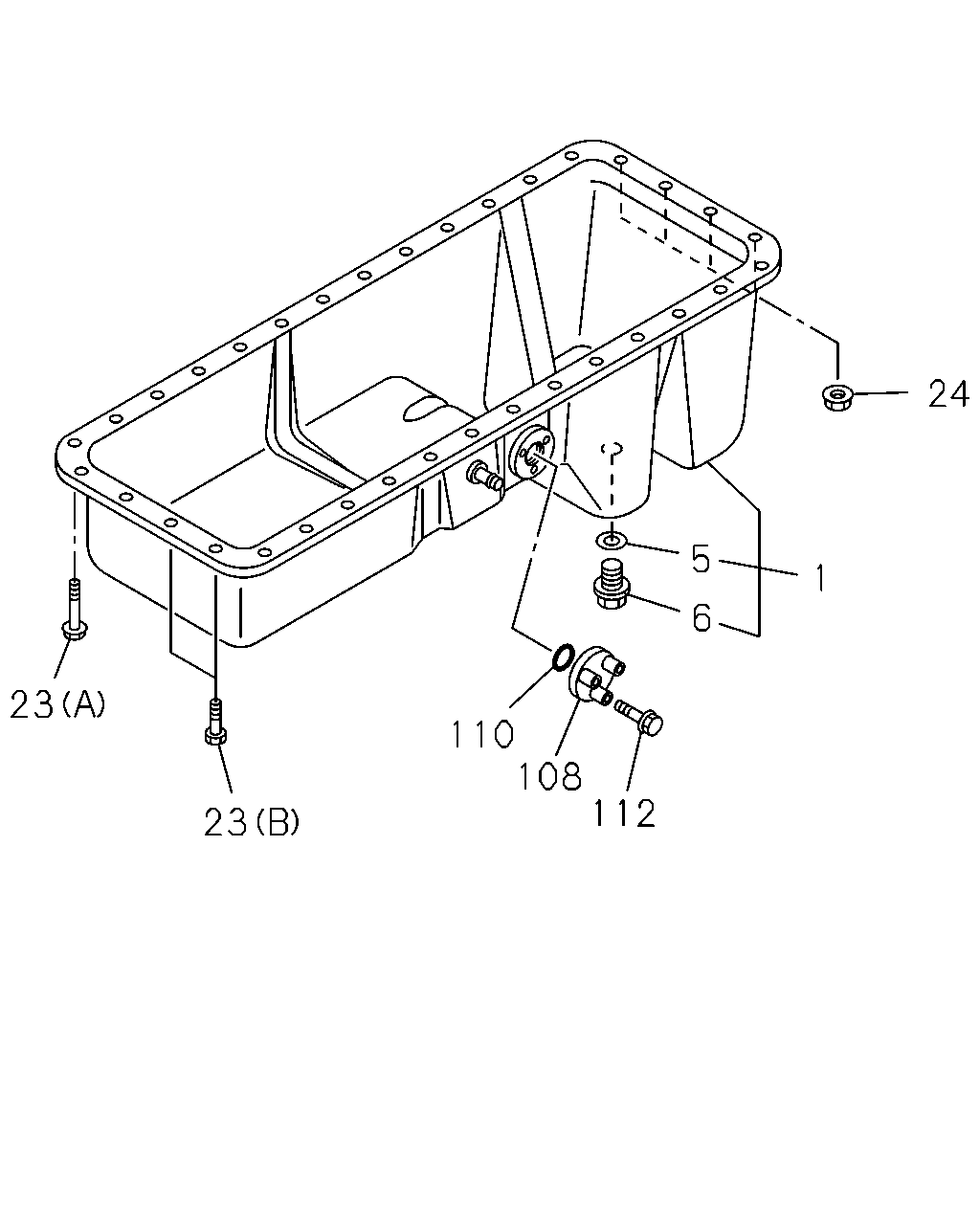

24 5 1 6 23 110 108 112 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-98021-315-0	01	1	0611-0612	●
1	PAN ASM; OIL	8-98061-544-0	01	1	0701-0701	●
1	PAN ASM; OIL	8-98071-469-0	01	1	0701-	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9811-9906		●
1	PAN ASM; OIL	8-94394-711-1	01	1	9907-0610			●
1	PAN ASM; OIL	8-97603-410-0	01	1	0611-0612				●
1	PAN ASM; OIL	8-98071-467-0	01	1	0701-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9811-9906		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9907-0610			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0611-	●			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9811-9906		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9907-0610			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0611-	●			●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0702-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9811-9906		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9907-0610			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0611-0701	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	26	1	0702-	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9811-9906		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9907-0610			●
23	BOLT; OIL PAN (B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0611-				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	06	1	0611-	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9811-9906		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9907-0602			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0610			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0611-				●
108	COVER; OIL PAN	8-97609-994-0	01	1	0611-	●
110	GASKET; SW,OIL LEVEL ID=27	8-98056-488-0	01	1	0611-	●
112	BOLT; SW,OIL LEVEL M6X25 FLANGE	0-28050-625-0	03	1	0611-	●

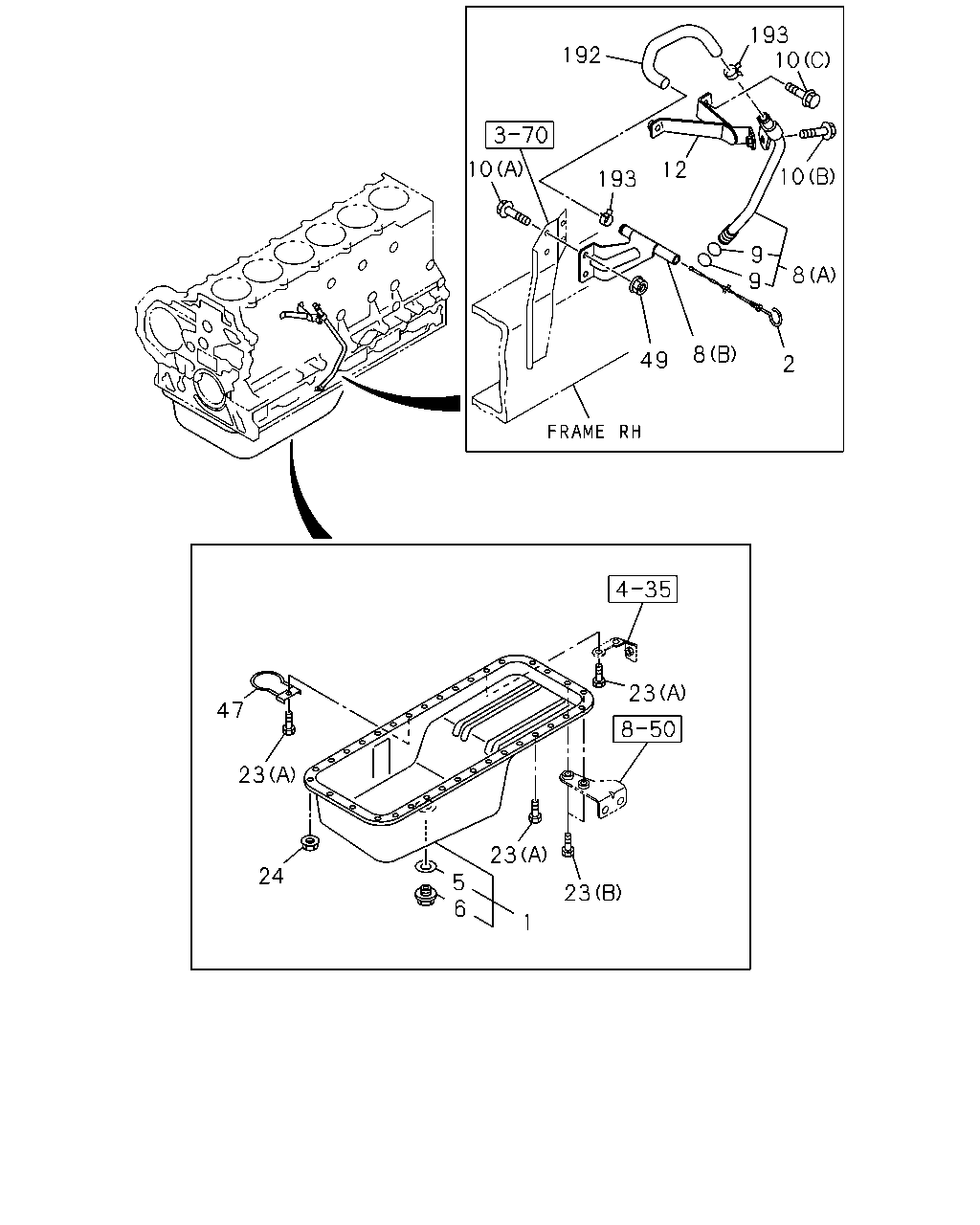

193 10 192 10 12 10 193 9 9 8 8 49 2 23 47 23 23 24 5 6 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-98021-315-0	01	1	0611-0612	●
1	PAN ASM; OIL	8-98061-544-0	01	1	0701-0701	●
1	PAN ASM; OIL	8-98071-469-0	01	1	0701-	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9811-9906		●
1	PAN ASM; OIL	8-94394-711-1	01	1	9907-0610			●
1	PAN ASM; OIL	8-97603-410-0	01	1	0611-0612				●
1	PAN ASM; OIL	8-98071-467-0	01	1	0701-				●
2	GAUGE; OIL LEVEL	8-98054-702-0	01	1	0611-	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9811-9906		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	9907-0610			●
2	GAUGE; OIL LEVEL	8-98054-703-0	01	1	0611-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9811-9906		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9907-0610			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0611-	●			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9811-9906		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9907-0610			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98024-021-1	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98041-061-0	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9907-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-9906		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9907-0112			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9907-0512			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-	●			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94395-150-0	01	1	9811-9906		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-600-0	01	1	9907-0610			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-98041-063-0	01	1	0611-	●			●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0702-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9811-9906		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9907-0610			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0611-0701	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	26	1	0702-	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9811-9906		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9907-0610			●
23	BOLT; OIL PAN (B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0611-				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	06	1	0611-	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9811-9906		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9907-0602			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0610			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0611-				●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9811-9906		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9907-0610			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9811-9906		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9907-0602			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-0610			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0611-	●			●
192	HOSE; GUIDE TUBE L=277	8-98054-809-0	01	1	0611-0702	●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9811-9906		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9907-0305			●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-0610			●
192	HOSE; GUIDE TUBE	8-98054-810-0	01	1	0611-0702				●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0703-	●			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9811-9906		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9907-0610			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0611-	●			●

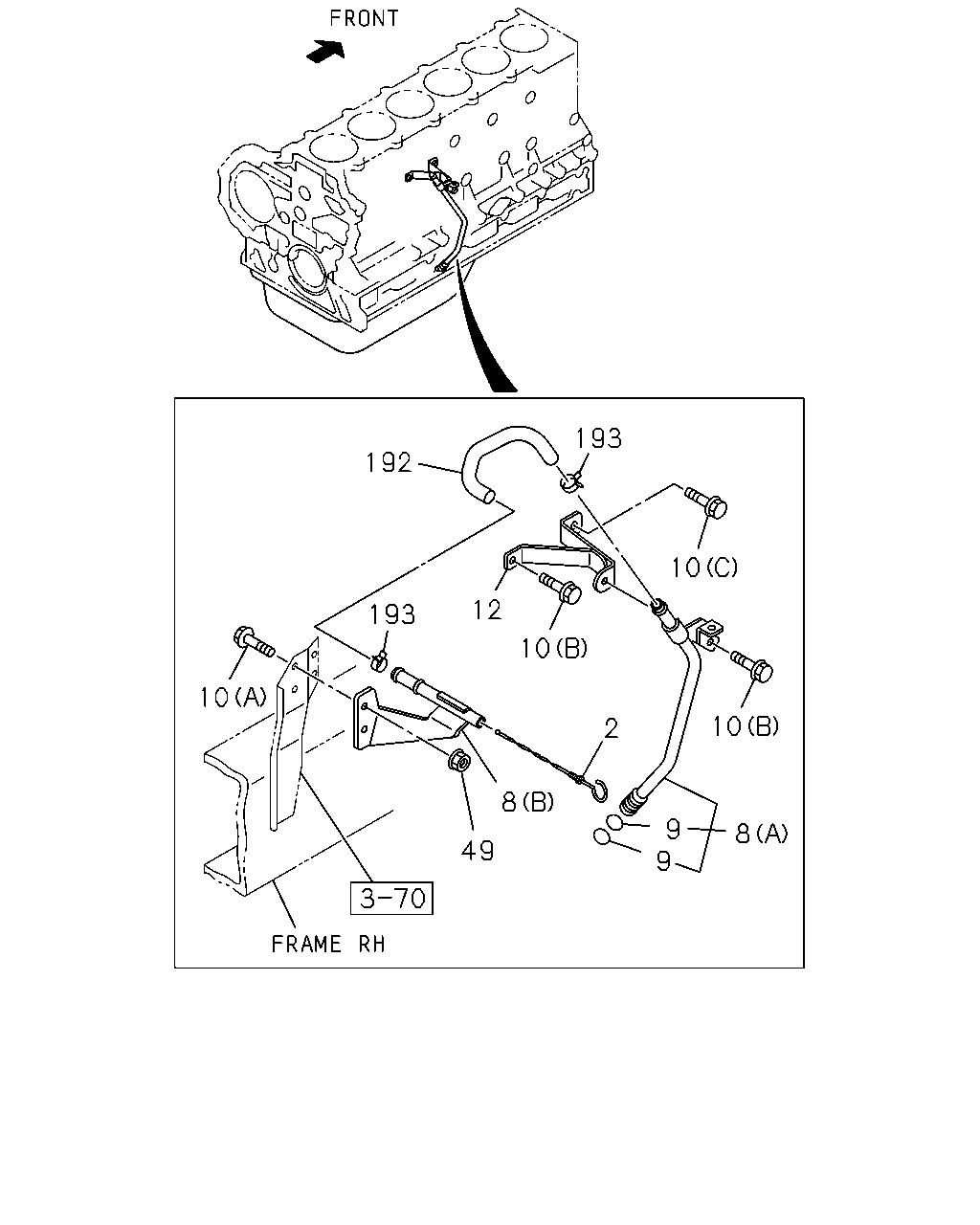

193 192 10 12 193 10 10 10 2 8 9 9 8 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GAUGE; OIL LEVEL	8-98054-702-0	01	1	0611-	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9811-9906		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	9907-0610			●
2	GAUGE; OIL LEVEL	8-98054-703-0	01	1	0611-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98024-021-1	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98041-061-0	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9907-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-9906		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9907-0112			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9907-0512			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-	●			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94395-150-0	01	1	9811-9906		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-600-0	01	1	9907-0610			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-98041-063-0	01	1	0611-	●			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9811-9906		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9907-0602			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-0610			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0611-	●			●
192	HOSE; GUIDE TUBE L=277	8-98054-809-0	01	1	0611-0702	●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9811-9906		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9907-0305			●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-0610			●
192	HOSE; GUIDE TUBE	8-98054-810-0	01	1	0611-0702				●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0703-	●			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9811-9906		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9907-0610			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0611-	●			●

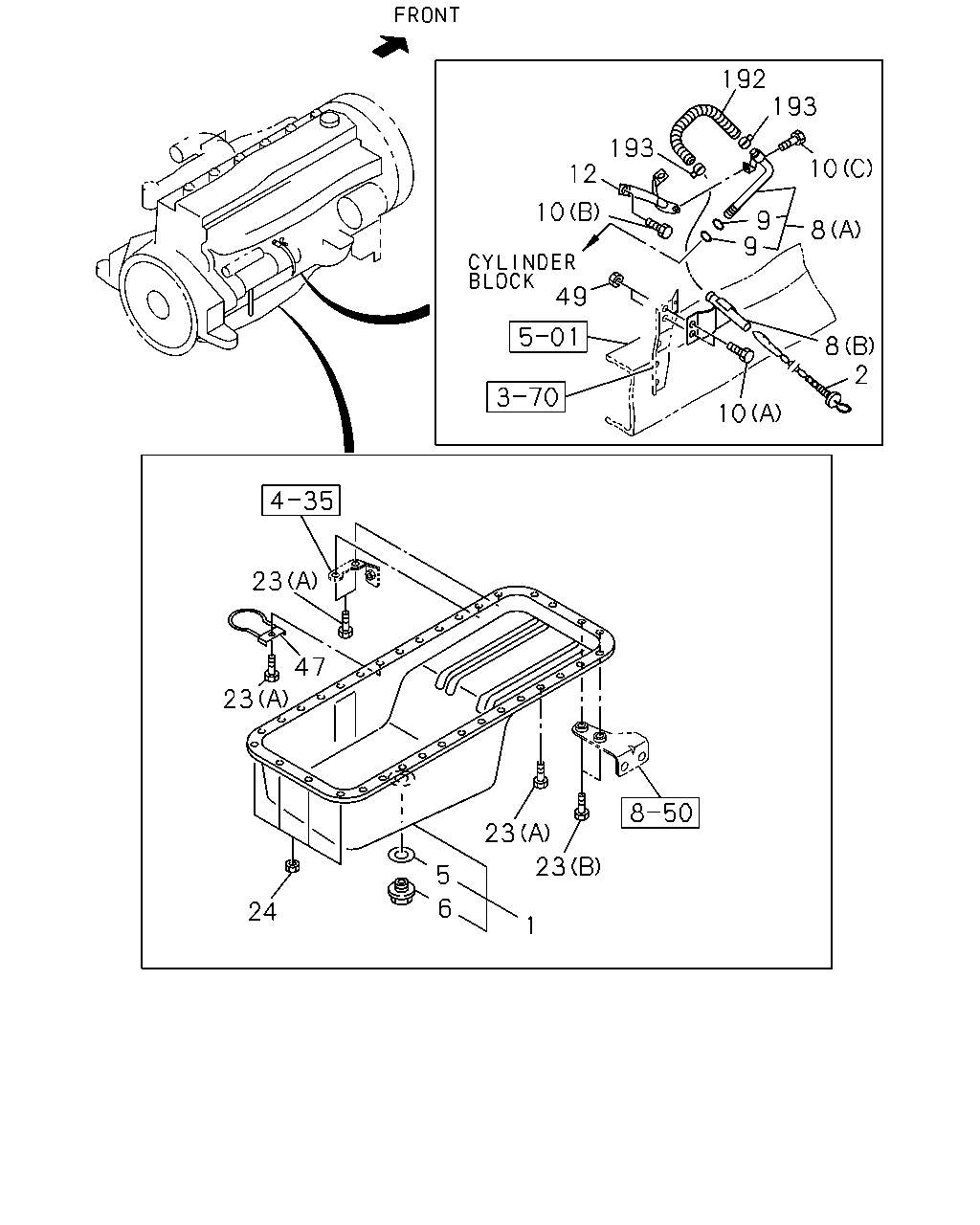

192 193 193 10 12 10 9 9 8 49 8 2 10 23 47 23 23 23 5 6 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-98021-315-0	01	1	0611-0612	●
1	PAN ASM; OIL	8-98061-544-0	01	1	0701-0701	●
1	PAN ASM; OIL	8-98071-469-0	01	1	0701-	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9811-9906		●
1	PAN ASM; OIL	8-94394-711-1	01	1	9907-0610			●
1	PAN ASM; OIL	8-97603-410-0	01	1	0611-0612				●
1	PAN ASM; OIL	8-98071-467-0	01	1	0701-				●
2	GAUGE; OIL LEVEL	8-98054-702-0	01	1	0611-	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9811-9906		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	9907-0610			●
2	GAUGE; OIL LEVEL	8-98054-703-0	01	1	0611-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9811-9906		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9907-0610			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0611-	●			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9811-9906		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9907-0610			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98024-021-1	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FRR MIDDLE CHASSIS(FR****) (B)	1-11766-452-0	01	1	9907-0610			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98041-061-0	01	1	0611-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9811-9906		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FVR MIDDLE CHASSIS(FV****) (B)	1-11766-453-0	01	1	9907-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-9906		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9907-0112			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0610			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	02	1	0611-	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9907-0512			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0610			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0611-	●			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-9906		●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9907-0512			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-	●			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94395-150-0	01	1	9811-9906		●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-94392-600-0	01	1	9907-0610			●
12	BRACKET; TUBE,OIL LEVEL GAUGE	8-98041-063-0	01	1	0611-	●			●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0702-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9811-9906		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9907-0610			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0611-0701	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	26	1	0702-	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9811-9906		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9907-0610			●
23	BOLT; OIL PAN (B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0611-				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	06	1	0611-	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9811-9906		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9907-0602			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0610			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0611-				●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9811-9906		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9907-0610			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9811-9906		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9907-0602			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-0610			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0611-	●			●
192	HOSE; GUIDE TUBE L=277	8-98054-809-0	01	1	0611-0702	●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9811-9906		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9907-0305			●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-0610			●
192	HOSE; GUIDE TUBE	8-98054-810-0	01	1	0611-0702				●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0703-	●			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9811-9906		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9907-0610			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0611-	●			●

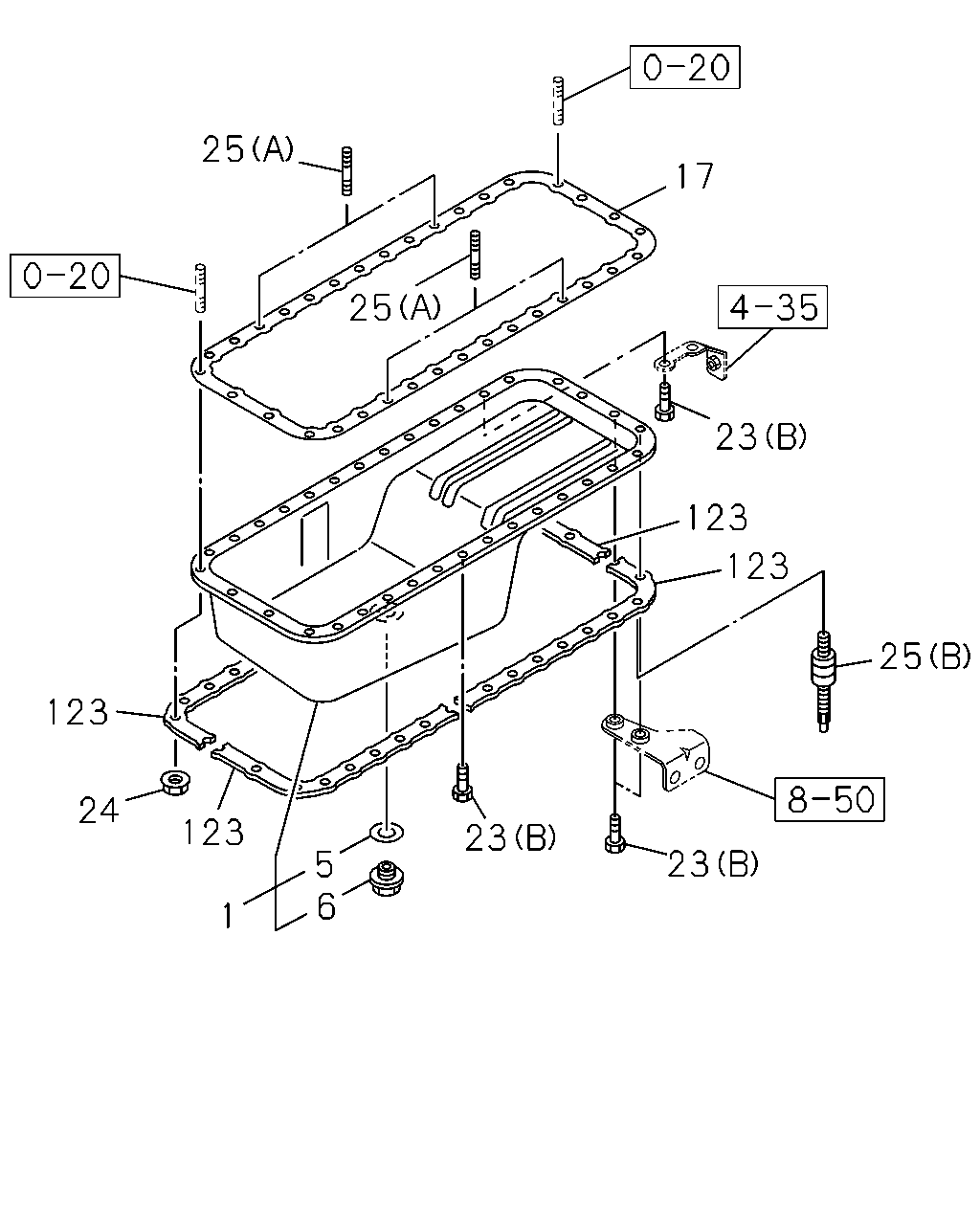

25 17 25 23 123 123 25 123 24 123 23 23 5 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-98021-315-0	01	1	0611-0612	●
1	PAN ASM; OIL	8-98061-544-0	01	1	0701-0701	●
1	PAN ASM; OIL	8-98071-469-0	01	1	0701-	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9811-9906		●
1	PAN ASM; OIL	8-94394-711-1	01	1	9907-0610			●
1	PAN ASM; OIL	8-97603-410-0	01	1	0611-0612				●
1	PAN ASM; OIL	8-98071-467-0	01	1	0701-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9811-9906		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9907-0610			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0611-	●			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9811-9906		●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9907-0610			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0611-	●			●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	0611-				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0702-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9811-9906		●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	9907-0610			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0611-0701	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	26	1	0702-	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9811-9906		●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	9907-0610			●
23	BOLT; OIL PAN (B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0611-				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	06	1	0611-	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9811-9906		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9907-0602			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0610			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0611-				●
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	0611-				●
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	0611-				●
123	RUBBER; SEAL OIL FRONT	8-94391-755-0	01	1	0611-				●
123	RUBBER; SEAL OIL REAR	8-94391-757-0	01	1	0611-				●
123	RUBBER; SEAL OIL REAR	8-94391-758-0	01	1	0611-				●
123	RUBBER; SEAL OIL FRONT	8-94392-548-0	01	1	0611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
