4-31 — STEERING COLUMN AND SHAFT (#56618) — 59 parça

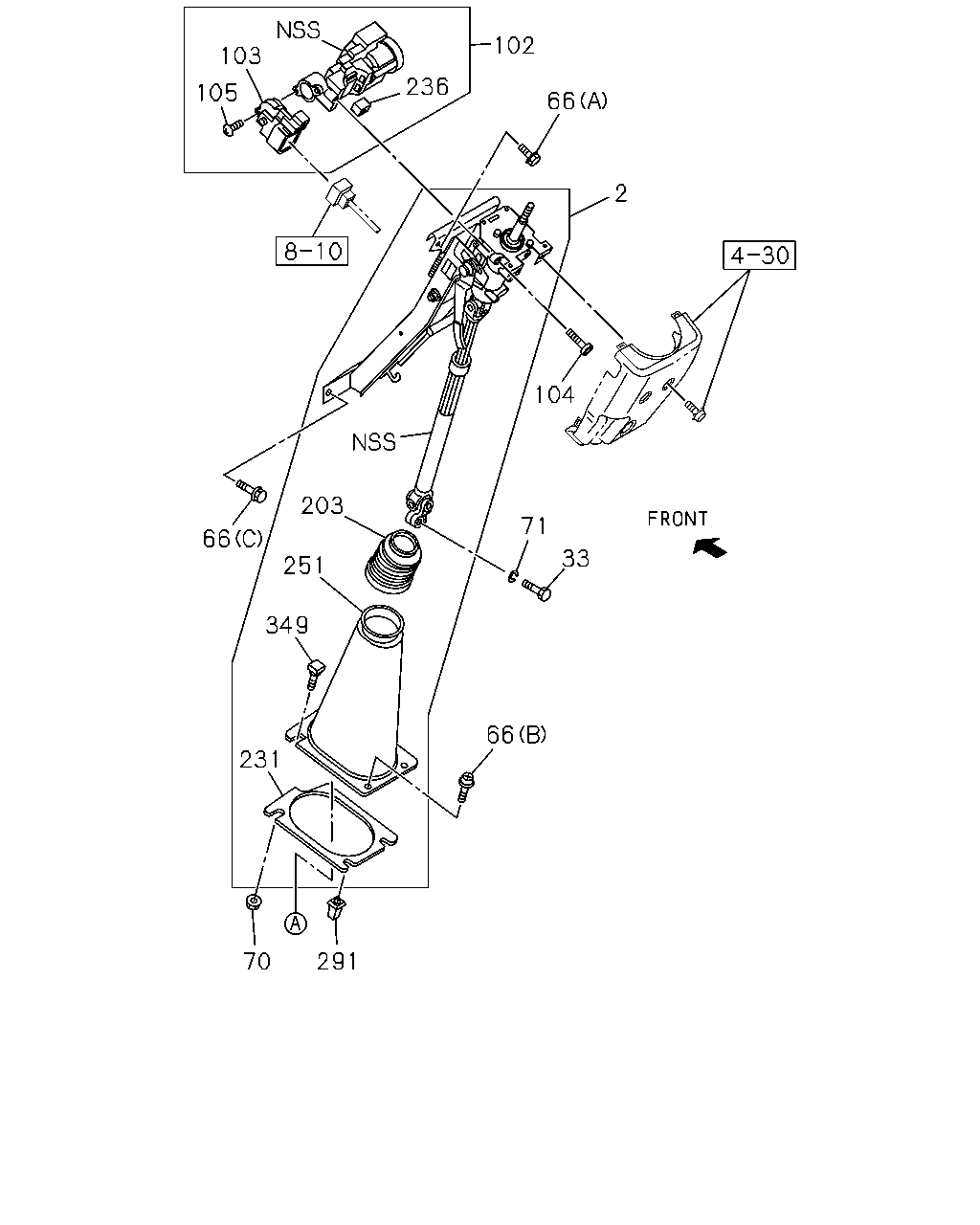

çizim 181957
102 103 236 105 66 2 104 203 71 66 33 251 349 66 231 70 291
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-617-2 01 1 0812-1003 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-617-2 01 1 1004- ● ●
2 SHAFT ASM; STRG
BLACK 		8-97409-814-3 01 1 0712-0801 ● ●
2 SHAFT ASM; STRG
BLACK 		8-97415-619-1 01 1 0802-0811 ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-619-2 01 1 0812-1003 ●
2 SHAFT ASM; STRG
BLACK 		8-97415-619-2 01 1 0812-1003 ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-619-2 01 1 1004- ● ●
2 SHAFT ASM; STRG
BLACK 		8-97415-619-2 01 1 1004- ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 0712-1003 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 1004- ● ● ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-1003 ● ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004- ● ● ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 0712-1003 ● ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1004- ● ● ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 0712-1003 ● ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1004- ● ● ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0712-1003 ● ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1004- ● ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0712-1003 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1004- ● ● ●
102 LOCK ASM; STRG
EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98006-150-0 01 1 0812-1003 ●
102 LOCK ASM; STRG
EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98006-150-0 01 1 1004- ●
102 LOCK ASM; STRG 8-98006-150-0 01 1 1004- ●
102 LOCK ASM; STRG 8-97387-036-0 01 1 0712-0811 ● ●
102 LOCK ASM; STRG
REMOTE CONT DOOR LOCK<6NF> 		8-97387-036-0 01 1 0812- ●
102 LOCK ASM; STRG 8-97387-036-0 01 1 0812- ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 0712-1003 ● ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1004- ● ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0712-1003 ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1004- ● ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 0712-1003 ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1004- ● ● ●
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 0712-1003 ● ●
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 1004- ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 0712-1003 ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 1004- ● ● ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0712-0811 ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98045-350-0 01 1 0812- ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0812- ●
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 0712-1003 ● ●
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 1004- ● ● ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0712-1003 ● ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1004- ● ● ●
349 BOLT; COVER 8-98137-334-0 02 1 0712-1003 ● ●
349 BOLT; COVER 8-98137-334-0 02 1 1004- ● ● ●

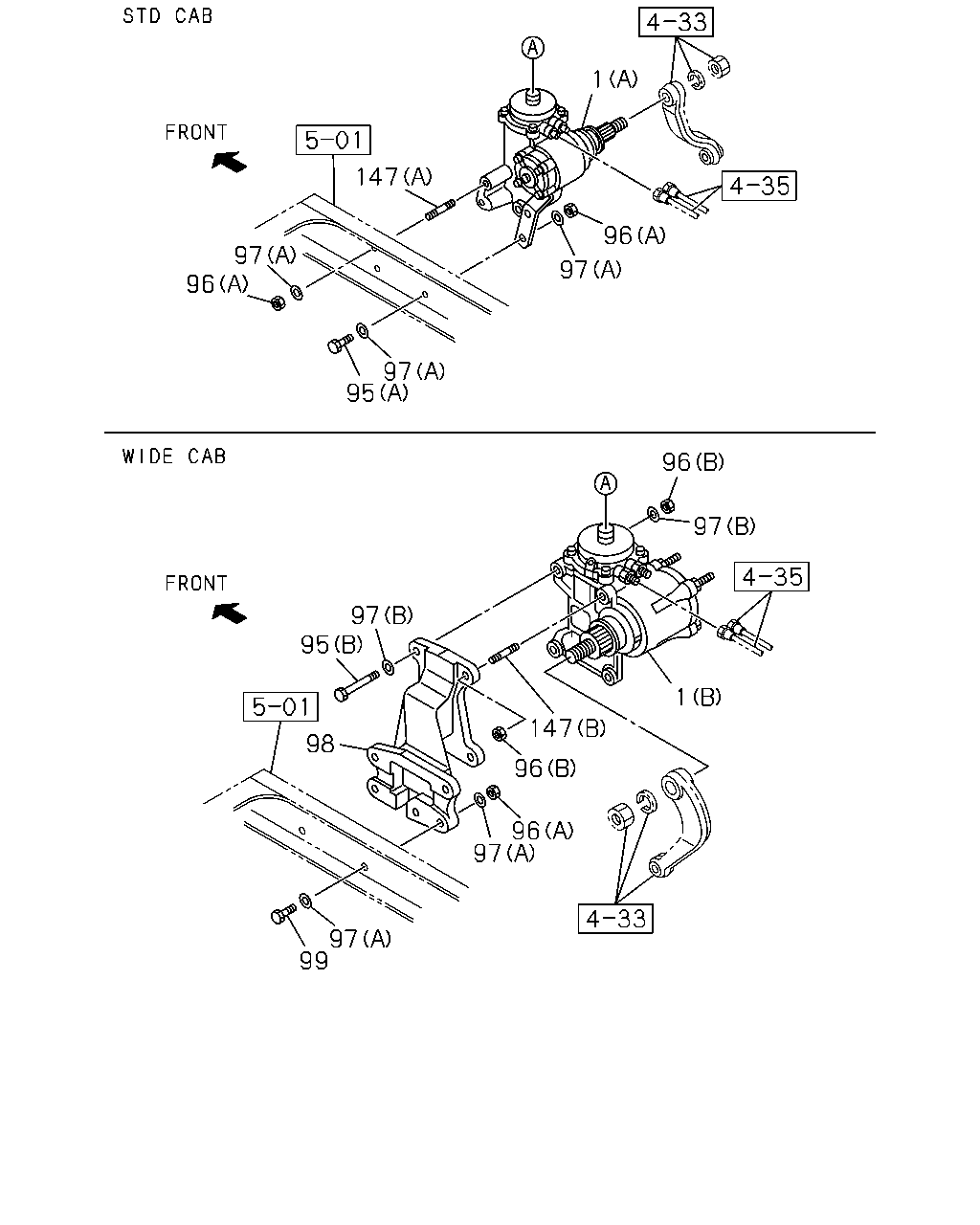

çizim 182100
1 147 96 97 96 97 97 95 96 97 97 95 1 147 98 96 96 97 97 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (B) 		1-44000-925-4 01 1 1004- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		1-44000-951-1 01 1 0712- ● ●
95 BOLT; STRG UNIT
(B) M16X60 		0-20951-660-0 03 1 1004- ●
95 BOLT; STRG UNIT
(A) M14X50 		1-09000-787-1 04 1 0712- ● ●
96 NUT; STRG UNIT
(B) M16 		0-91110-516-0 03 1 1004- ●
96 NUT; STRG UNIT
(A) M14 		1-09440-097-0 05 1 0712-1003 ● ●
96 NUT; STRG UNIT
(A) M14 		1-09440-097-0 05 1 1004- ● ● ●
97 WASHER; PL,STRG UNIT
(B) ID=16.2 		1-09503-316-0 06 1 1004- ●
97 WASHER; PL,STRG UNIT
(A) ID=15 		8-98010-627-1 10 1 1004- ●
97 WASHER; PL,STRG UNIT
(A) ID=15 		8-98010-627-1 09 1 0712- ● ●
98 BRACKET; STRG GEAR BOX 8-98073-644-0 01 1 1004- ●
99 BOLT; BRKT TO FRAME
M14X50 		1-09000-787-1 05 1 1004- ●
147 STUD; STRG UNIT
(B) M16X37 L=61 		1-09300-126-0 01 1 1004- ●
147 STUD; STRG UNIT
(A) M14X37 L=66 		1-09300-125-0 01 1 0712- ● ●
