4-30 — STEERING WHEEL AND COWL (#56617) — 63 parça

30 33 106 26 44 1 5 20 81 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97407-720-0	01	1	0712-1210	●	●
1	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) DARK GRAY	8-97423-998-0	01	1	1211-	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-555-1	01	1	0712-1003	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-555-1	01	1	1004-	●	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1004-			●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0712-1003	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1004-	●	●	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X12	8-97167-588-0	04	1	0712-1003	●	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X12	8-97167-588-0	04	1	1004-	●	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1004-			●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0712-1003	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1004-	●	●
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1004-			●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97405-841-0	01	1	0712-1210	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97421-978-0	01	1	1211-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97409-275-2	01	1	0712-1003	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97409-275-2	01	1	1004-	●	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1004-			●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	0812-1003	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1004-	●		●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0712-0811	●	●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	0812-1003	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0812-1003		●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	1004-	●		●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	1004-		●
33	COVER; STRG COWL EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97409-495-0	01	1	0812-1003	●
33	COVER; STRG COWL EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97409-495-0	01	1	1004-	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1004-			●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0712-1003	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1004-	●	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	0712-1003	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	1004-	●	●
81	EMBLEM; STRG WHEEL DARK GRAY	8-97405-986-0	01	1	1004-			●
106	BOLT; TORX	8-98231-397-0	02	1	0907-1003	●	●
106	BOLT; TORX	8-98231-397-0	02	1	1004-	●	●	●

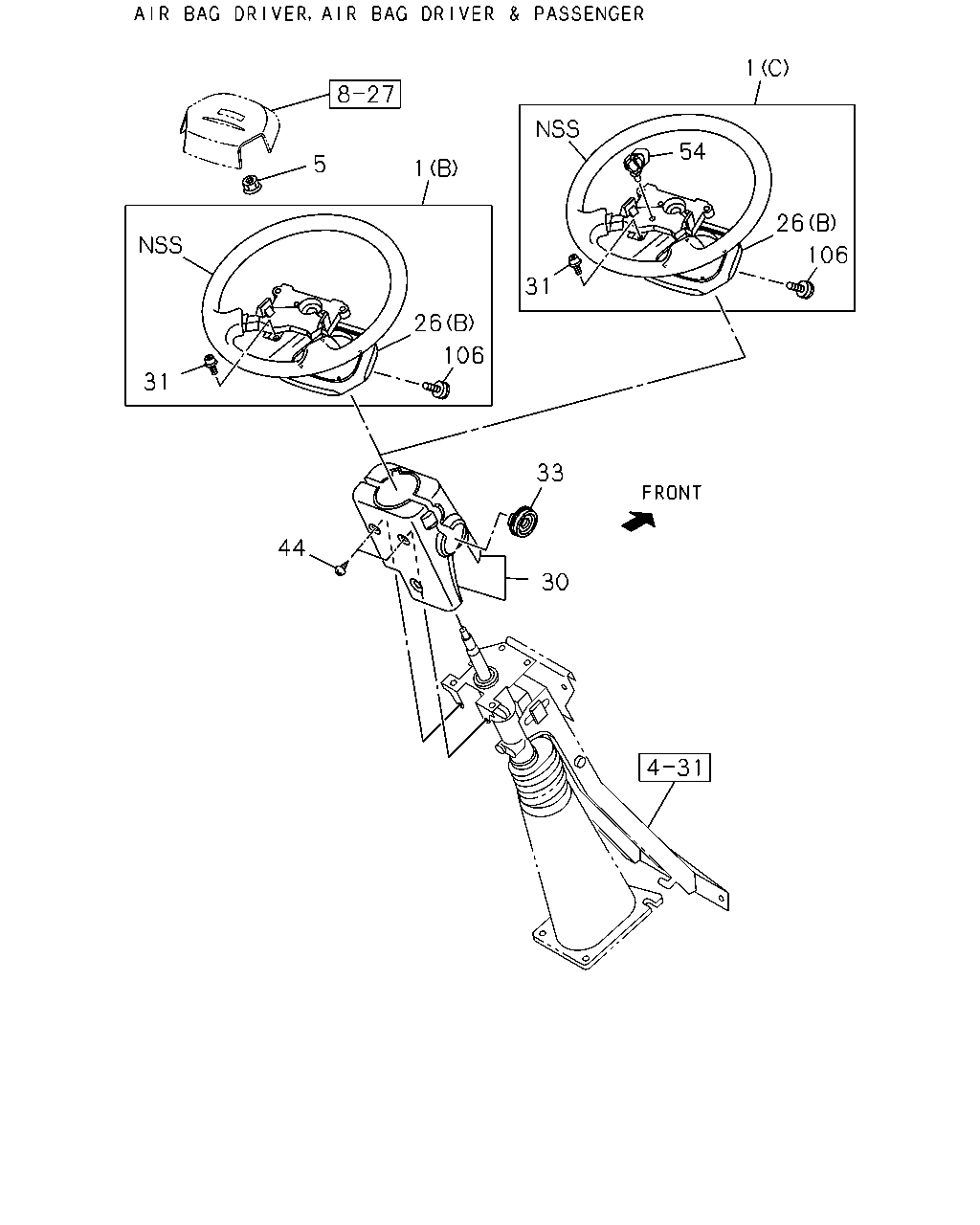

5 1 31 26 106 44 33 30 54 31 26 106 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97407-720-0	01	1	0712-1210	●	●
1	WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) DARK GRAY	8-97423-998-0	01	1	1211-	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-555-1	01	1	0712-1003	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-555-1	01	1	1004-	●	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1004-			●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0712-1003	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1004-	●	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97405-841-0	01	1	0712-1210	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97421-978-0	01	1	1211-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97409-275-2	01	1	0712-1003	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97409-275-2	01	1	1004-	●	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1004-			●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	0812-1003	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1004-	●		●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0712-0811	●	●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	0812-1003	●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	0812-1003		●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	1004-	●		●
30	COWL; STEERING DARK GRAY	8-97411-503-1	01	1	1004-		●
31	SCREW; BOSS TO COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X12	8-97167-588-0	04	1	0712-	●	●
33	COVER; STRG COWL EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97409-495-0	01	1	0812-1003	●
33	COVER; STRG COWL EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97409-495-0	01	1	1004-	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1004-			●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0712-1003	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1004-	●	●	●
54	CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-	●	●
106	BOLT; TORX	8-98231-397-0	02	1	0907-1003	●	●
106	BOLT; TORX	8-98231-397-0	02	1	1004-	●	●	●
