Sayfa 4-25 - Isuzu EPC

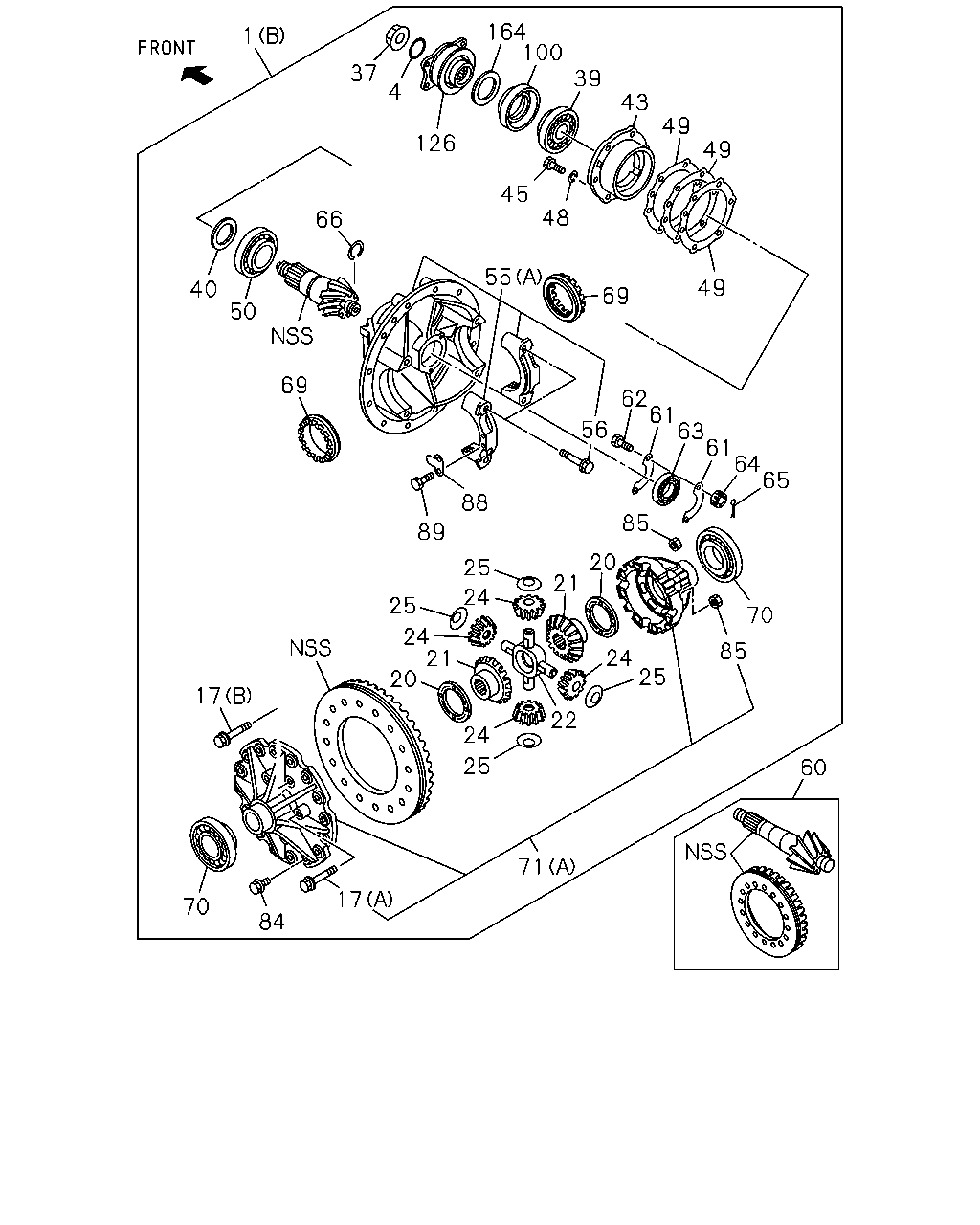

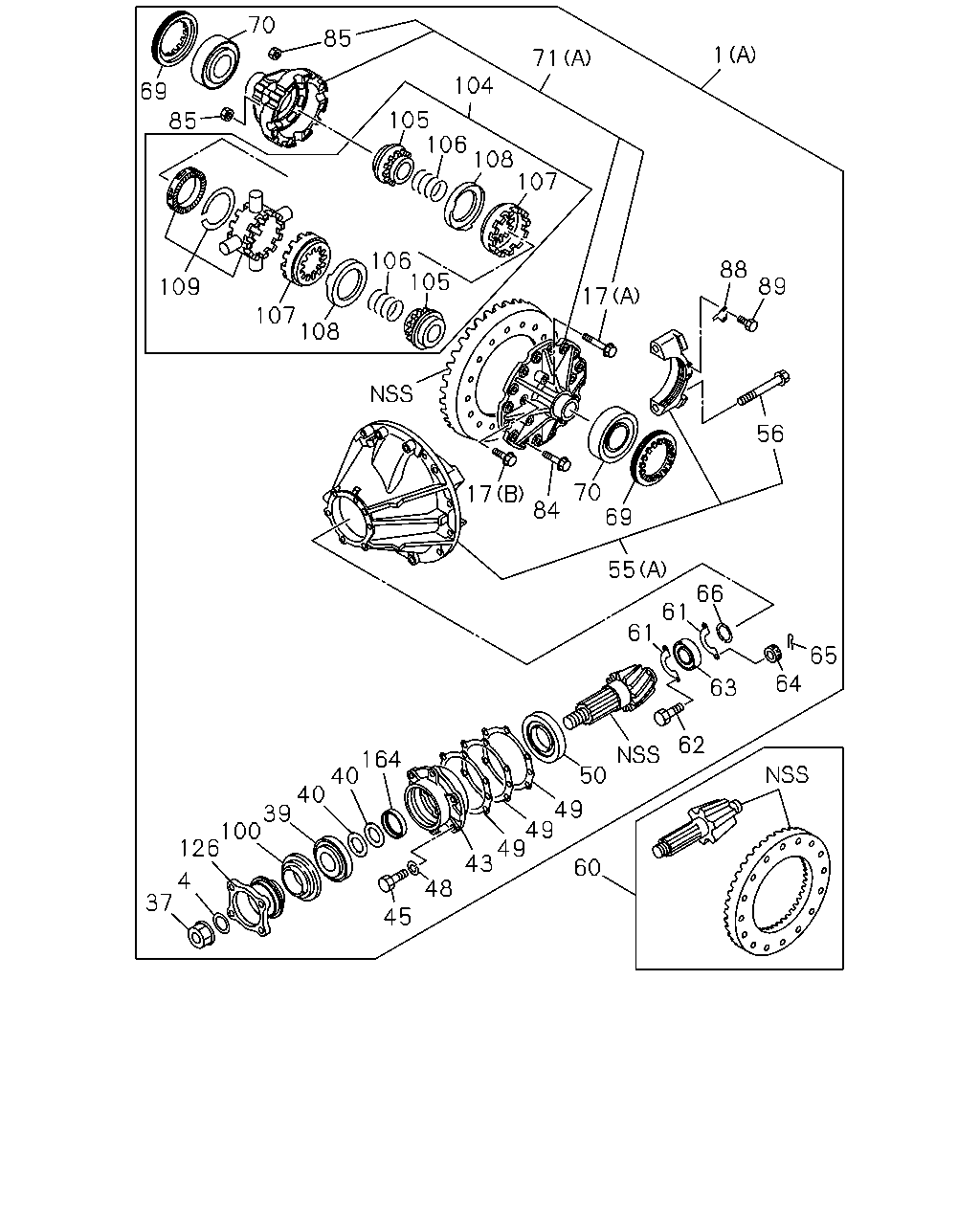

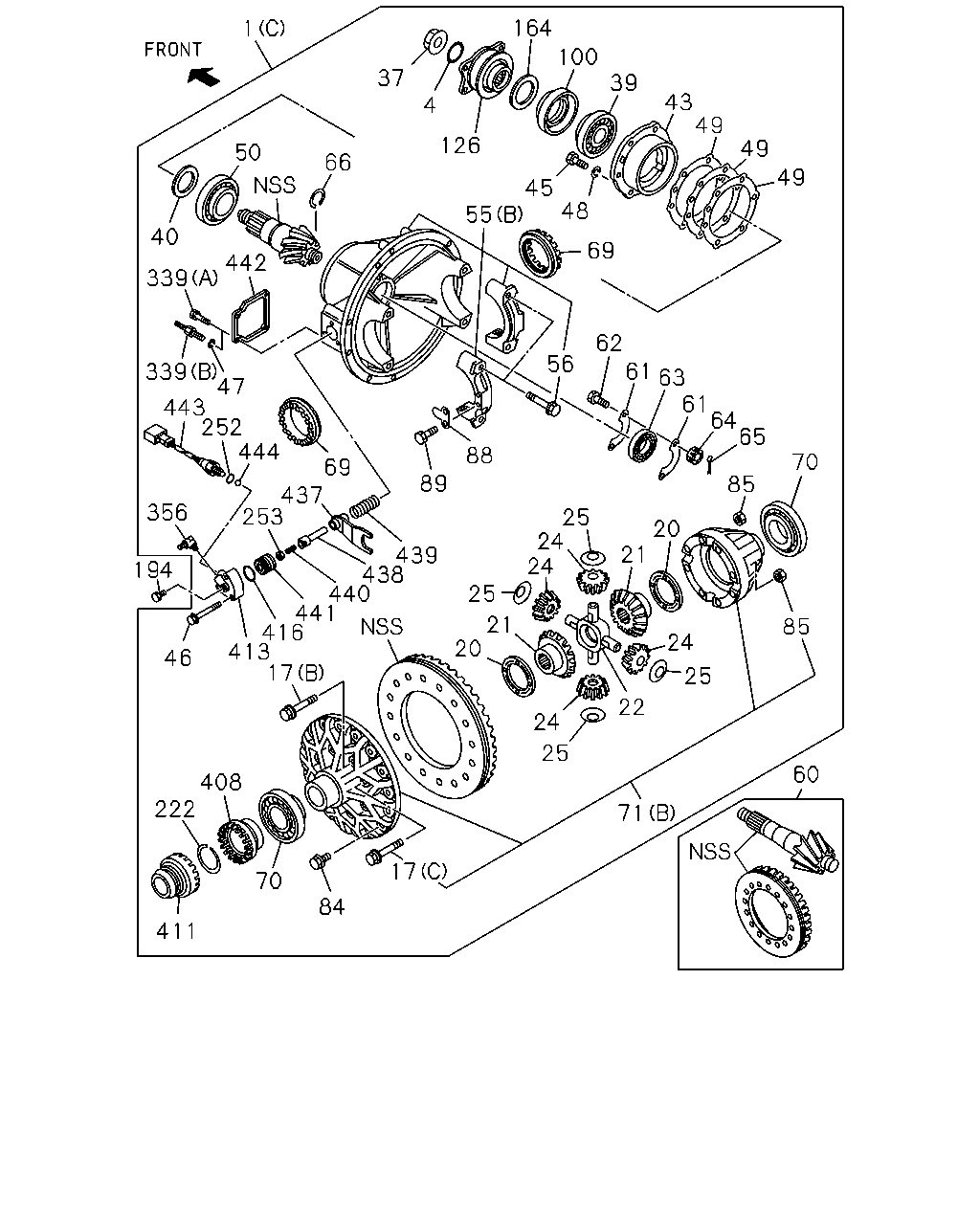

4-25 — REAR FINAL DRIVE (#56616) — 348 parça

70 85 1 71 104 69 105 106 108 107 85 106 105 88 89 109 17 107 108 56 17 84 70 69 55 66 61 61 65 64 63 62 164 40 40 39 100 126 50 49 49 49 43 60 4 37 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/7	1-41003-342-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/6	1-41003-386-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	0812-1003	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	0812-1003		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41003-295-0	01	1	0712-0811	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41003-295-0	01	1	0812-	●
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41003-306-0	01	1	0712-0811		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/6	1-41003-306-0	01	1	0812-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0712-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	0712-1003	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0712-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0712-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0712-1001	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	0712-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0712-	●	●
45	BOLT; FINAL PINION CAGE M12X40	0-23951-240-0	06	1	0712-0712	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0801-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0712-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1004-	●	●
55	CARRIER; DIFF (A)	1-41110-048-1	01	1	0712-1003	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-048-1	01	1	1004-1006	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1007-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0712-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	0712-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	0712-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0712-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0712-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0712-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0712-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	0712-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1004-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0712-1410	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1411-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0712-1003	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1004-1410	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-335-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-112-0	01	1	0712-1003	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-112-0	01	1	1004-1006	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1007-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0712-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0712-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	0712-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	0712-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0712-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0712-	●	●
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	0712-0811	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-053-0	01	1	0812-	●	●
105	GEAR; SIDE	1-41539-043-0	02	1	0712-0811	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41539-043-0	02	1	0812-	●	●
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	0712-0811	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-006-0	02	1	0812-	●	●
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	0712-0811	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41539-003-0	02	1	0812-	●	●
108	RING; HOLD OUT	1-41539-004-1	02	1	0712-0811	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-004-1	02	1	0812-	●	●
109	SPIDER; DIFF	1-41539-014-0	01	1	0712-0811	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-014-0	01	1	0812-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0712-	●	●

164 100 1 37 39 4 43 49 126 49 45 48 66 55 49 40 69 50 69 62 61 63 61 64 65 56 88 85 89 20 25 21 24 25 70 24 21 20 85 24 25 24 17 22 25 60 71 17 70 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/7	1-41003-342-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/6	1-41003-386-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	0812-1003	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	0812-1003		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41003-295-0	01	1	0712-0811	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41003-295-0	01	1	0812-	●
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41003-306-0	01	1	0712-0811		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/6	1-41003-306-0	01	1	0812-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0712-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	0712-1003	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0712-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-061-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-062-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-063-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-064-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-080-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-081-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-082-0	AR	1	0812-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-125-0	02	1	0812-0905	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-149-0	02	1	0906-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-050-2	01	1	0812-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-042-0	04	1	0812-0905	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-049-0	04	1	0906-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=29 OD=60	1-41562-119-0	04	1	0812-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0712-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0712-1001	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	0712-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0712-	●	●
45	BOLT; FINAL PINION CAGE M12X40	0-23951-240-0	06	1	0712-0712	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0801-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0712-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1004-	●	●
55	CARRIER; DIFF (A)	1-41110-048-1	01	1	0712-1003	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-048-1	01	1	1004-1006	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1007-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0712-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	0712-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	0712-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0712-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0712-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0712-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0712-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	0712-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1004-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0712-1410	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1411-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0712-1003	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1004-1410	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-335-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-112-0	01	1	0712-1003	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-112-0	01	1	1004-1006	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1007-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0712-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0712-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	0712-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	0712-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0712-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0712-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0712-	●	●

1 37 4 164 126 100 39 43 49 49 49 45 48 69 55 62 61 63 61 64 65 70 85 56 88 89 69 437 444 252 443 339 47 442 66 50 40 339 356 253 194 46 413 416 441 440 438 439 17 408 222 411 70 84 17 71 60 85 20 21 25 24 24 25 21 20 24 25 22 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/7	1-41003-342-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (C) 39/6	1-41003-386-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	0812-1003	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41003-255-0	01	1	1004-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	0812-1003		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N>,LIMITED SLIP DIFF VAR2<G86> (B) 39/6	1-41003-303-0	01	1	1004-		●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41003-295-0	01	1	0712-0811	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41003-295-0	01	1	0812-	●
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41003-306-0	01	1	0712-0811		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/6	1-41003-306-0	01	1	0812-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0712-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	0712-1003	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1004-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0712-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-061-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-062-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-063-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-064-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-080-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-081-0	AR	1	0812-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-082-0	AR	1	0812-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-125-0	02	1	0812-0905	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-149-0	02	1	0906-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-050-2	01	1	0812-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-042-0	04	1	0812-0905	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-049-0	04	1	0906-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=29 OD=60	1-41562-119-0	04	1	0812-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0712-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0712-1001	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	0712-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	0712-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0712-	●	●
45	BOLT; FINAL PINION CAGE M12X40	0-23951-240-0	06	1	0712-0712	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0801-	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1004-	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1204-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0712-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0712-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1004-	●	●
55	CARRIER; DIFF (A)	1-41110-048-1	01	1	0712-1003	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-048-1	01	1	1004-1006	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1007-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0712-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	0712-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	0712-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0712-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0712-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0712-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0712-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	0712-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1004-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0712-1410	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1411-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0712-1003	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1004-1410	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1004-1410	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1411-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0712-1003	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1411-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1004-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-335-0	01	1	1004-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-112-0	01	1	0712-1003	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-112-0	01	1	1004-1006	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1007-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0712-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0712-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	0712-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	0712-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0712-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0712-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0712-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0712-	●	●
194	PLUG DIFF LOCK<C3N> M12X9	9-99202-312-0	01	1	1004-1304	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1305-	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1004-	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1004-	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1004-	●	●
339	BOLT; COVER DIFF LOCK<C3N> (A) M8X16 W/LK WASHER	0-50540-816-0	04	1	1004-1203	●	●
339	BOLT; COVER DIFF LOCK<C3N> (B) M6X14,M8X17 L=42	5-09309-006-1	04	1	1204-	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1004-	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1004-	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1004-	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1004-	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1004-	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1004-	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1004-	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1004-	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1004-	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1004-	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1004-	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1004-	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
