4-20 — REAR AXLE CASE AND SHAFT (#56615) — 168 parça

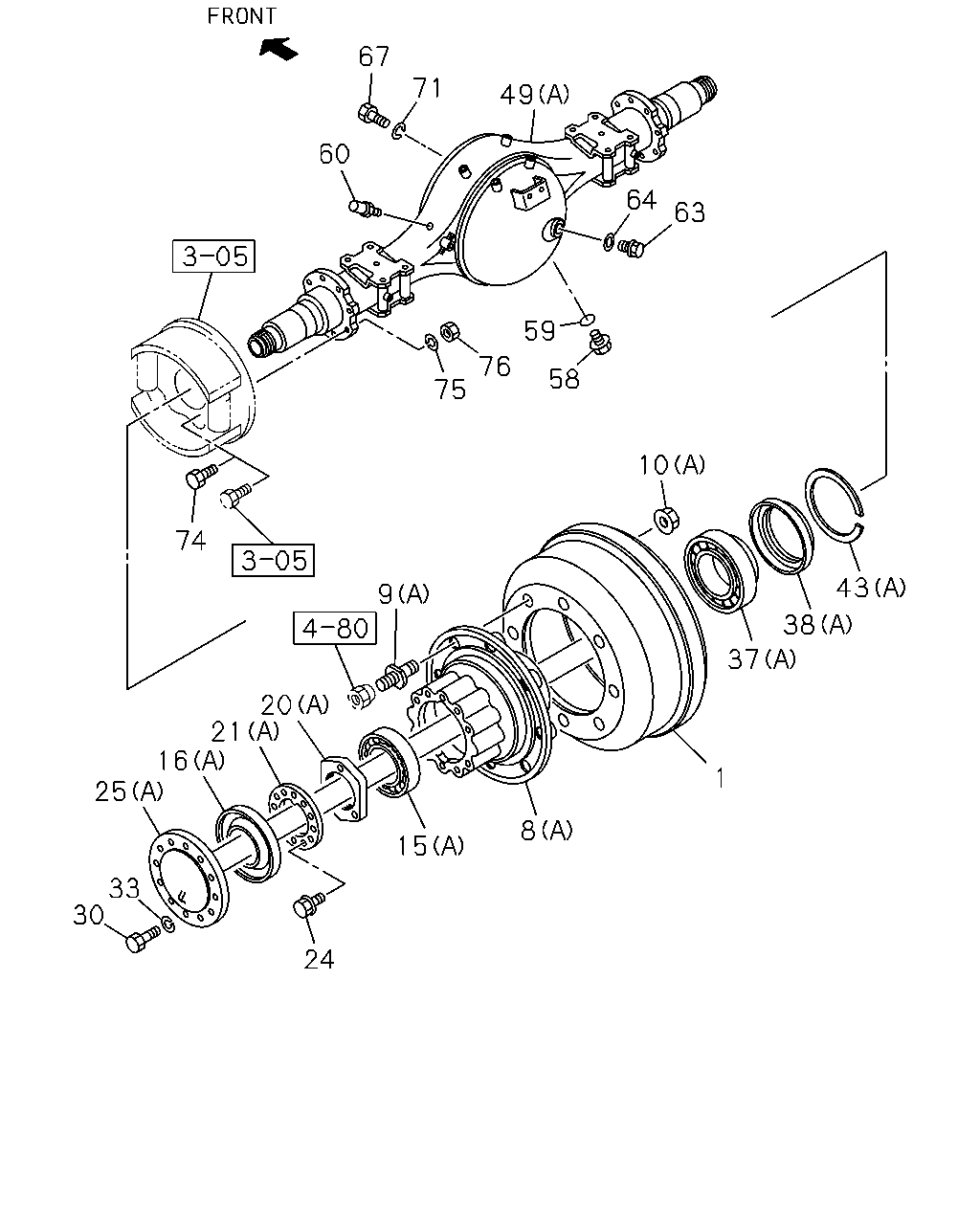

67 71 49 60 64 63 59 76 58 75 10 74 43 9 38 37 20 21 16 1 25 8 15 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR	1-42315-355-0	02	1	0712-1003	●	●
1	DRUM; BRK,RR	1-42315-355-0	02	1	1004-	●	●	●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (B)	9-42311-099-2	02	1	1004-			●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (B)	1-42311-124-0	02	1	1004-			●
8	HUB; RR AXLE (A)	8-97379-875-1	02	1	0712-	●	●
9	PIN; WHEEL,RR AXLE (B) M24X37.5,M22X33.5 RH THREAD	1-42331-142-1	08	1	1004-			●
9	PIN; WHEEL,RR AXLE (B) M24X37.5 LH THREAD,M22X33.5 RH THREAD	1-42332-142-1	08	1	1004-			●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0712-	●	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0712-	●	●
10	NUT; WHEEL PIN,RR AXLE (B) M22	1-09400-037-0	32	1	1004-			●
10	NUT; WHEEL PIN,RR AXLE (A) M22 FLANGE	1-09440-065-0	16	1	0712-	●	●
15	BEARING; HUB OUTER,RR AXLE (B) NSK	1-09812-153-0	02	1	1004-			●
15	BEARING; HUB OUTER,RR AXLE (B) JTEKT	1-09812-154-0	02	1	1004-			●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-049-0	02	1	0712-1002	●	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	8-98156-814-0	02	1	1003-	●	●
15	BEARING; HUB OUTER,RR AXLE (A) NSK	9-00093-159-0	02	1	0712-	●	●
15	BEARING; HUB OUTER,RR AXLE (A) BEST VALUE PARTS	1-87610-016-0	02	1	1003-	●	●
16	SEAL; OIL,RR HUB,OUTER (B) NOK	9-09924-468-0	02	1	1004-			●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-331-1	02	1	0712-	●	●
20	NUT; BRG,RR HUB (B) M74.6	9-09843-064-2	02	1	1004-			●
20	NUT; BRG,RR HUB (A) M64	9-09843-721-2	02	1	0712-	●	●
21	WASHER; LK,BRG NUT (B) ID=74.6	1-09533-008-0	02	1	1004-			●
21	WASHER; LK,BRG NUT (A) ID=64	9-09854-122-0	02	1	0712-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0712-1003	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1004-	●	●	●
25	SHAFT; AXLE,RR (B) L=1051	8-98030-751-0	01	1	1004-			●
25	SHAFT; AXLE,RR DIFF LOCK<C3N> (B) L=1139	8-98087-323-0	01	1	1004-			●
25	SHAFT; AXLE,RR EXC. DIFF LOCK<C3N> (B) L=1139	8-98139-713-0	01	1	1004-			●
25	SHAFT; AXLE,RR (A) L=945	8-97380-684-0	02	1	0712-	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0712-1003	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	1004-	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0712-1003	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	1004-	●	●	●
37	BEARING; HUB INNER,RR AXLE (B) NSK	1-09812-150-0	02	1	1004-			●
37	BEARING; HUB INNER,RR AXLE (B) NACHI	1-09812-151-0	02	1	1004-			●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-044-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-154-0	02	1	1003-	●	●
37	BEARING; HUB INNER,RR AXLE (A) NACHI	1-09812-053-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) NSK	9-00093-161-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) NSK	1-09812-153-0	02	1	1003-	●	●
38	SEAL; OIL,RR HUB,INNER (B) TKK	9-09924-415-0	02	1	1004-			●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-569-0	02	1	0712-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE (B) OD=150	9-09950-147-0	02	1	1004-			●
43	RING; SNAP,HUB SEAL,RR AXLE (A)	9-09950-201-0	02	1	0712-	●	●
49	CASE; RR AXLE DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98139-156-2	01	1	1004-			●
49	CASE; RR AXLE EXC. DIFF LOCK<C3N> (B)	8-98139-157-1	01	1	1004-			●
49	CASE; RR AXLE ANTI LOCK BRAKE<JE5> (C)	8-98024-649-0	01	1	1004-			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-625-0	01	1	0812-	●
49	CASE; RR AXLE (A)	8-98029-627-1	01	1	0712-0811	●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-627-1	01	1	0812-	●
49	CASE; RR AXLE (A)	8-98029-627-1	01	1	0812-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-1003	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1004-	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-1003	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1004-	●	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0712-1003	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	1004-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0712-1003	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1004-	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0712-1003	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1004-	●	●	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1004-			●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1004-			●
67	BOLT; FINAL DRIVE SETTING M12X60	0-10956-260-0	04	1	0712-1003	●	●
67	BOLT; FINAL DRIVE SETTING M12X60	0-10956-260-0	04	1	1004-	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0712-1003	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	1004-	●	●
67	BOLT; FINAL DRIVE SETTING EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1004-			●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0712-1003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1004-	●	●	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1004-			●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1004-			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	0812-1003	●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1004-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1004-			●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0712-0811	●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	0812-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0812-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0712-1003	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1004-	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0712-1003	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1004-	●	●	●

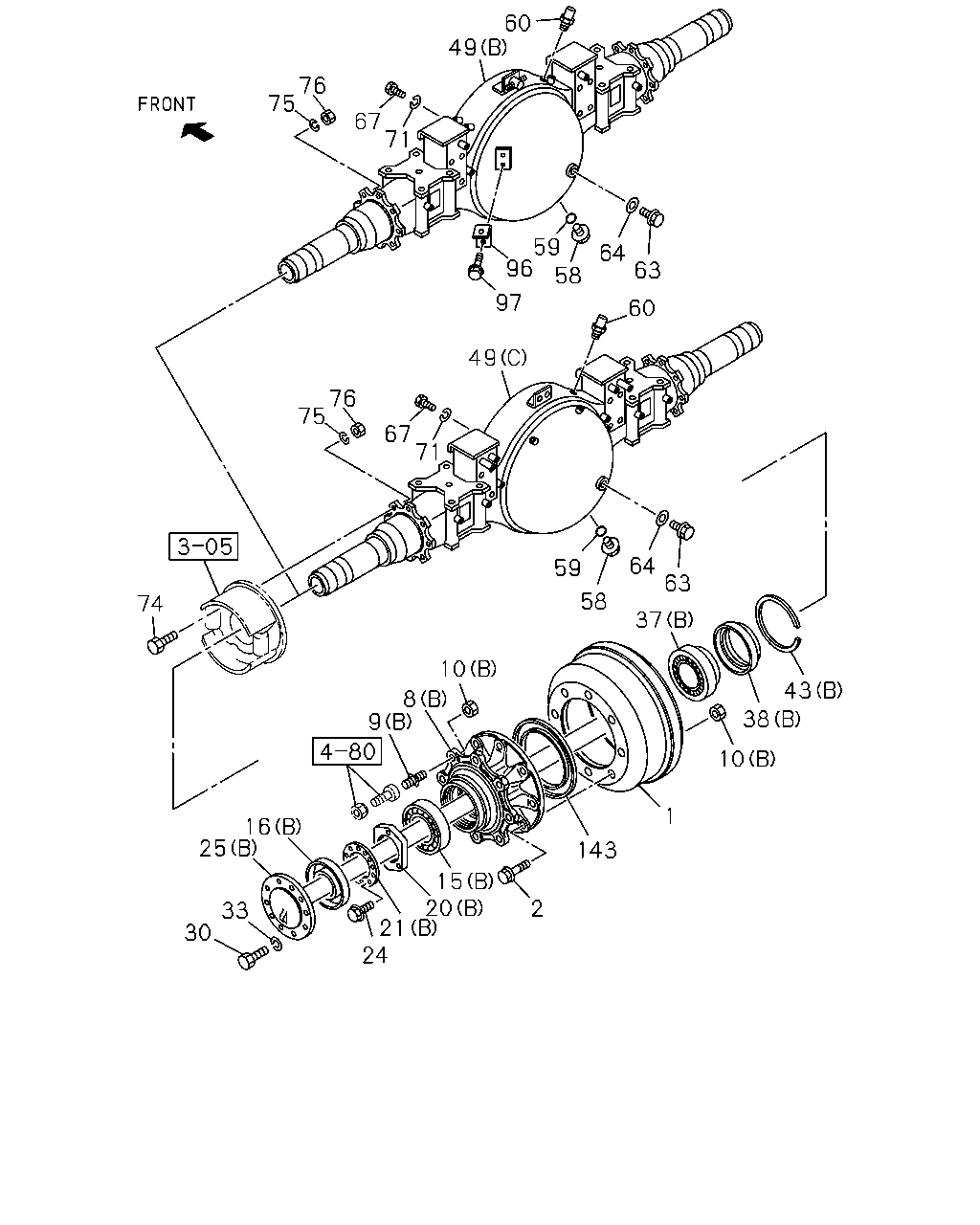

60 49 76 75 67 71 59 96 64 63 58 97 60 49 76 75 67 71 64 63 59 58 74 37 10 43 8 9 38 10 1 16 25 143 15 20 21 24 2 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR	1-42315-355-0	02	1	0712-1003	●	●
1	DRUM; BRK,RR	1-42315-355-0	02	1	1004-	●	●	●
2	BOLT; BRK DRUM M22X54	1-09000-275-1	16	1	1004-			●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE<JE5> (B)	9-42311-099-2	02	1	1004-			●
8	HUB; RR AXLE ANTI LOCK BRAKE<JE5> (B)	1-42311-124-0	02	1	1004-			●
8	HUB; RR AXLE (A)	8-97379-875-1	02	1	0712-	●	●
9	PIN; WHEEL,RR AXLE (B) M24X37.5,M22X33.5 RH THREAD	1-42331-142-1	08	1	1004-			●
9	PIN; WHEEL,RR AXLE (B) M24X37.5 LH THREAD,M22X33.5 RH THREAD	1-42332-142-1	08	1	1004-			●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0712-	●	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0712-	●	●
10	NUT; WHEEL PIN,RR AXLE (B) M22	1-09400-037-0	32	1	1004-			●
10	NUT; WHEEL PIN,RR AXLE (A) M22 FLANGE	1-09440-065-0	16	1	0712-	●	●
15	BEARING; HUB OUTER,RR AXLE (B) NSK	1-09812-153-0	02	1	1004-			●
15	BEARING; HUB OUTER,RR AXLE (B) JTEKT	1-09812-154-0	02	1	1004-			●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-049-0	02	1	0712-1002	●	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	8-98156-814-0	02	1	1003-	●	●
15	BEARING; HUB OUTER,RR AXLE (A) NSK	9-00093-159-0	02	1	0712-	●	●
15	BEARING; HUB OUTER,RR AXLE (A) BEST VALUE PARTS	1-87610-016-0	02	1	1003-	●	●
16	SEAL; OIL,RR HUB,OUTER (B) NOK	9-09924-468-0	02	1	1004-			●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-331-1	02	1	0712-	●	●
20	NUT; BRG,RR HUB (B) M74.6	9-09843-064-2	02	1	1004-			●
20	NUT; BRG,RR HUB (A) M64	9-09843-721-2	02	1	0712-	●	●
21	WASHER; LK,BRG NUT (B) ID=74.6	1-09533-008-0	02	1	1004-			●
21	WASHER; LK,BRG NUT (A) ID=64	9-09854-122-0	02	1	0712-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0712-1003	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1004-	●	●	●
25	SHAFT; AXLE,RR (B) L=1051	8-98030-751-0	01	1	1004-			●
25	SHAFT; AXLE,RR DIFF LOCK<C3N> (B) L=1139	8-98087-323-0	01	1	1004-			●
25	SHAFT; AXLE,RR EXC. DIFF LOCK<C3N> (B) L=1139	8-98139-713-0	01	1	1004-			●
25	SHAFT; AXLE,RR (A) L=945	8-97380-684-0	02	1	0712-	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0712-1003	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	1004-	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0712-1003	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	1004-	●	●	●
37	BEARING; HUB INNER,RR AXLE (B) NSK	1-09812-150-0	02	1	1004-			●
37	BEARING; HUB INNER,RR AXLE (B) NACHI	1-09812-151-0	02	1	1004-			●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-044-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-154-0	02	1	1003-	●	●
37	BEARING; HUB INNER,RR AXLE (A) NACHI	1-09812-053-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) NSK	9-00093-161-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE (A) NSK	1-09812-153-0	02	1	1003-	●	●
38	SEAL; OIL,RR HUB,INNER (B) TKK	9-09924-415-0	02	1	1004-			●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-569-0	02	1	0712-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE (B) OD=150	9-09950-147-0	02	1	1004-			●
43	RING; SNAP,HUB SEAL,RR AXLE (A)	9-09950-201-0	02	1	0712-	●	●
49	CASE; RR AXLE DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98139-156-2	01	1	1004-			●
49	CASE; RR AXLE EXC. DIFF LOCK<C3N> (B)	8-98139-157-1	01	1	1004-			●
49	CASE; RR AXLE ANTI LOCK BRAKE<JE5> (C)	8-98024-649-0	01	1	1004-			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-625-0	01	1	0812-	●
49	CASE; RR AXLE (A)	8-98029-627-1	01	1	0712-0811	●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-627-1	01	1	0812-	●
49	CASE; RR AXLE (A)	8-98029-627-1	01	1	0812-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-1003	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1004-	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-1003	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1004-	●	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0712-1003	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	1004-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0712-1003	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1004-	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0712-1003	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1004-	●	●	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1004-			●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1004-			●
67	BOLT; FINAL DRIVE SETTING M12X60	0-10956-260-0	04	1	0712-1003	●	●
67	BOLT; FINAL DRIVE SETTING M12X60	0-10956-260-0	04	1	1004-	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0712-1003	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	1004-	●	●
67	BOLT; FINAL DRIVE SETTING EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1004-			●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0712-1003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1004-	●	●	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1004-			●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1004-			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	0812-1003	●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1004-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1004-			●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0712-0811	●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	0812-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0812-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0712-1003	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1004-	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0712-1003	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1004-	●	●	●
96	BRACKET; LSPV,AXLE CASE EXC. ANTI LOCK BRAKE<JE5>	1-47475-073-0	01	1	1004-			●
97	BOLT; BRKT,LSPV EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
143	RING; EXCITER ANTI LOCK BRAKE<JE5>	1-42319-198-0	02	1	1004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
