◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#56611) — 42 parça

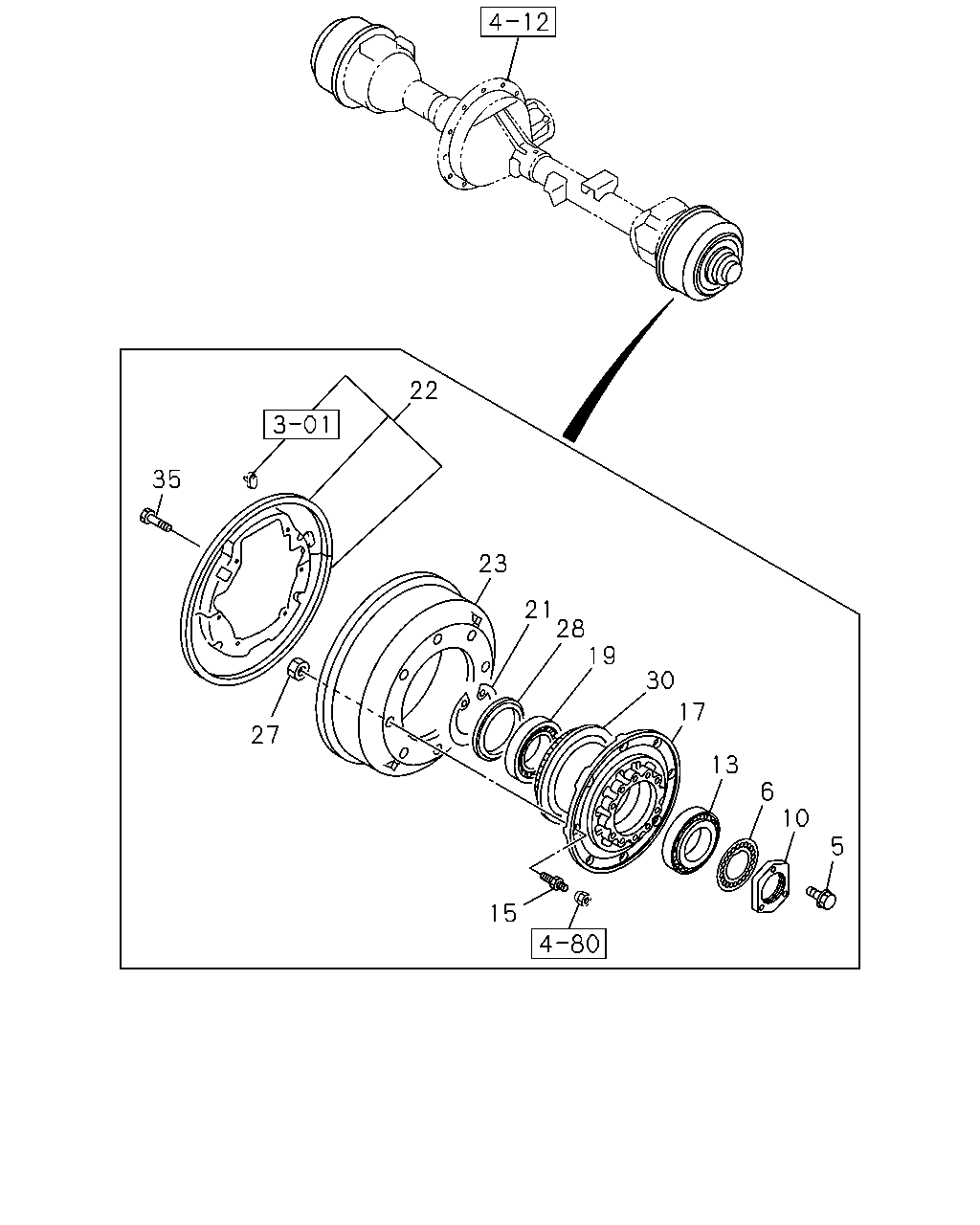

çizim 181946
22 35 23 21 28 19 30 17 27 13 6 10 5 15
BalonParca AdiParca NoAdetTipApplied Date A B C
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 06 1 0712-1003 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 06 1 1004-1201 ● ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 06 1 1202- ● ● ●
6 WASHER; LK,FRT HUB
ID=74.6 		1-09533-008-0 02 1 0712-1003 ● ●
6 WASHER; LK,FRT HUB
ID=74.6 		1-09533-008-0 02 1 1004- ● ● ●
10 NUT; FRT HUB BRG
M74.6 		9-09843-064-2 02 1 0712-1003 ● ●
10 NUT; FRT HUB BRG
M74.6 		9-09843-064-2 02 1 1004- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-044-0 02 1 0712-1002 ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-154-0 02 1 1003-1003 ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-154-0 02 1 1004- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NACHI 		1-09812-053-0 02 1 0712-1002 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-161-0 02 1 0712-1002 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-153-0 02 1 1003-1003 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-153-0 02 1 1004- ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0712-1003 ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1004- ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0712-1003 ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1004- ● ● ●
17 HUB; FRT AXLE
ANTI LOCK BRAKE<JE5> 		1-42312-144-1 02 1 1004- ●
17 HUB; FRT AXLE 1-42312-143-1 02 1 0712-1003 ● ●
17 HUB; FRT AXLE 1-42312-143-1 02 1 1004- ● ●
17 HUB; FRT AXLE
EXC. ANTI LOCK BRAKE<JE5> 		1-42312-143-1 02 1 1004- ●
19 BEARING; HUB INNER,FRT AXLE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 0712-1002 ● ●
19 BEARING; HUB INNER,FRT AXLE
NACHI 		1-09812-151-0 02 1 1003-1003 ● ●
19 BEARING; HUB INNER,FRT AXLE
NACHI 		1-09812-151-0 02 1 1004- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0712-1002 ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0712-1002 ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-150-0 02 1 1003-1003 ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-150-0 02 1 1004- ● ● ●
21 RING; SNAP,HUB
OD=150 		9-09950-147-0 02 1 0712-1003 ● ●
21 RING; SNAP,HUB
OD=150 		9-09950-147-0 02 1 1004- ● ● ●
22 COVER SET; FRT BRK DRUM 1-85576-014-1 02 1 0712-1003 ● ●
22 COVER SET; FRT BRK DRUM 1-85576-014-1 02 1 1004- ● ● ●
23 DRUM; BRK,FRT 1-42315-362-1 02 1 0712-1003 ● ●
23 DRUM; BRK,FRT 1-42315-362-1 02 1 1004- ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 0712-1003 ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 1004- ● ● ●
28 SEAL; OIL,FRT HUB
TKK 		9-09924-415-0 02 1 0712-1003 ● ●
28 SEAL; OIL,FRT HUB
TKK 		9-09924-415-0 02 1 1004- ● ● ●
30 RING; EXCITER,FRT HUB
ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 1004- ●
35 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0712-1003 ● ●
35 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
