◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#56610) — 126 parça

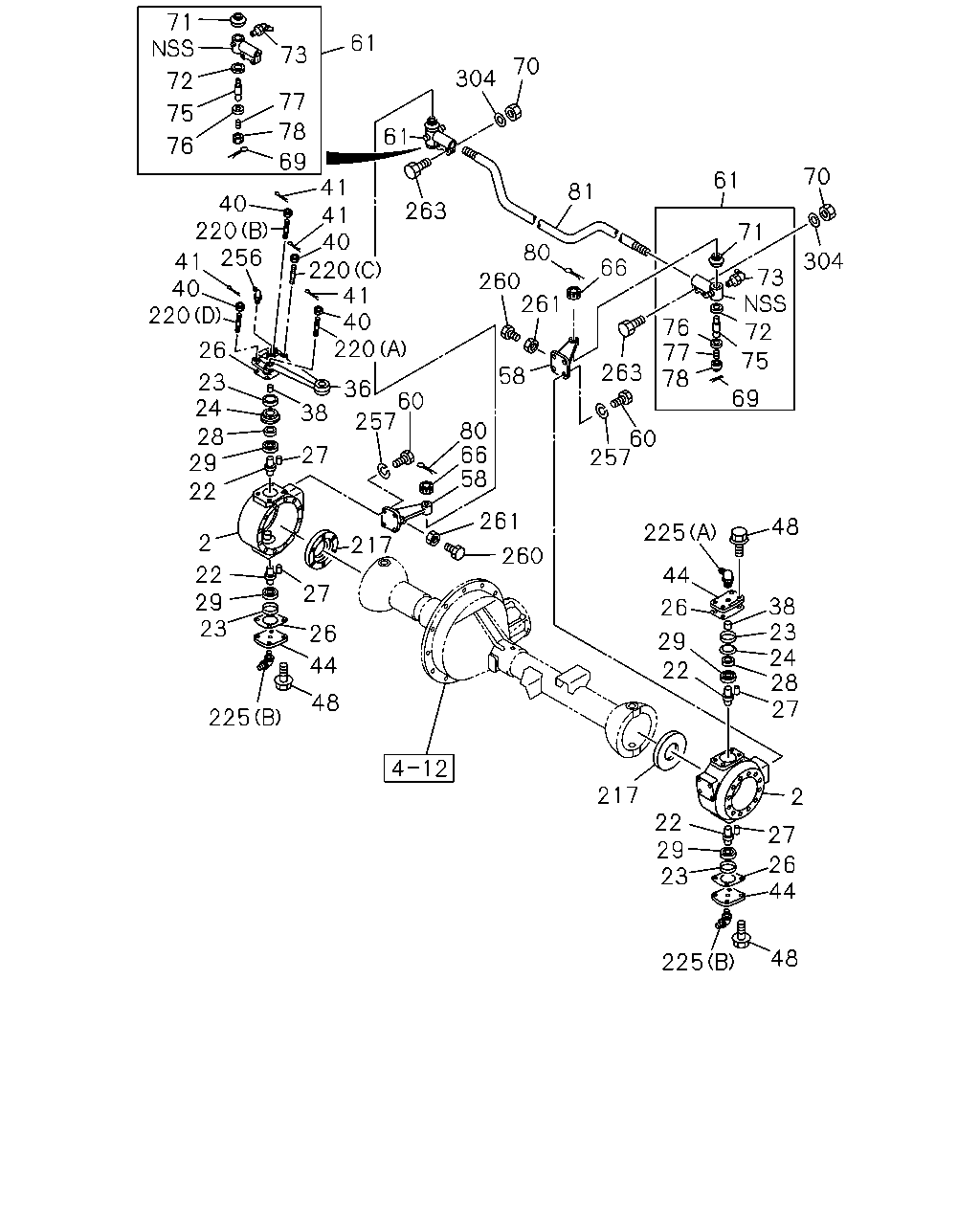

çizim 181954
71 61 73 70 304 72 77 75 78 61 76 69 70 61 41 41 40 220 41 40 220 81 40 220 256 263 71 80 304 41 40 220 73 72 66 260 261 76 77 78 26 75 263 58 23 24 36 69 60 257 38 80 66 58 28 29 60 257 27 22 261 48 225 2 217 260 22 29 23 44 27 38 23 24 28 27 26 26 29 44 22 48 225 217 2 22 29 23 27 26 44 48 225
BalonParca AdiParca NoAdetTipApplied Date A B C
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 0712-1003 ● ●
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1004- ● ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 0712-1003 ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1004- ● ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 0712-1003 ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 1004- ● ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 0712-1003 ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 1004- ● ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 0712-1003 ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 1004- ● ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 0712-1003 ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 1004- ● ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 0712-1003 ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 1004- ● ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 0712-1003 ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 1004- ● ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 0712-1003 ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 1004- ● ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 0712-1003 ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 1004- ● ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 0712-1003 ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 1004- ● ● ●
36 ARM; KNUCKLE 1-43261-035-0 01 1 1004- ●
36 ARM; KNUCKLE 1-43261-025-0 01 1 0712- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 0712-1003 ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 1004- ● ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 0712-1003 ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 1004- ● ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 0712-1003 ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 1004- ● ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 0712-1003 ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 1004- ● ● ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 0712-1003 ● ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 1004- ● ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 0712-1003 ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 1004- ● ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 0712-1003 ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 1004- ● ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 0712-1003 ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 1004- ● ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 0712-1003 ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 1004- ● ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 0712-1003 ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 1004- ● ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 0712-1003 ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 1004- ● ● ●
69 PIN; SPLIT,TIE ROD END 9-08114-065-0 02 1 0712-0808 ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 0809-1003 ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 1004- ● ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0712-1003 ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1004- ● ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1203-1206 ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 0712-1003 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1004-1202 ● ● ●
71 BOOT; TIE ROD END 1-43159-009-0 04 1 1203-1206 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1207- ● ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 0712-1003 ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 1004- ● ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 0712-1003 ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 1004- ● ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 0712-1003 ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 1004- ● ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 0712-1003 ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 1004- ● ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 0712-1003 ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 1004- ● ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 0712-1003 ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 1004- ● ● ●
81 ROD; TIE 1-43151-069-0 01 1 1004- ●
81 ROD; TIE 1-43151-048-0 01 1 0712- ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 0712-1003 ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 1004- ● ● ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 0712-1003 ● ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 1004- ● ● ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 0712-1003 ● ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 1004- ● ● ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 0712-1003 ● ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 1004- ● ● ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 0712-1003 ● ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 1004- ● ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1003 ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ● ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1003 ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ● ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 0712-1003 ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 1004- ● ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 0712-1003 ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 1004- ● ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 0712-1003 ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 1004- ● ● ●
263 BOLT; ROD END
M12X45 		9-92061-245-0 04 1 0712-0808 ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 0809-1003 ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 1004- ● ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0712-0808 ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 0809-1003 ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1004- ● ● ●

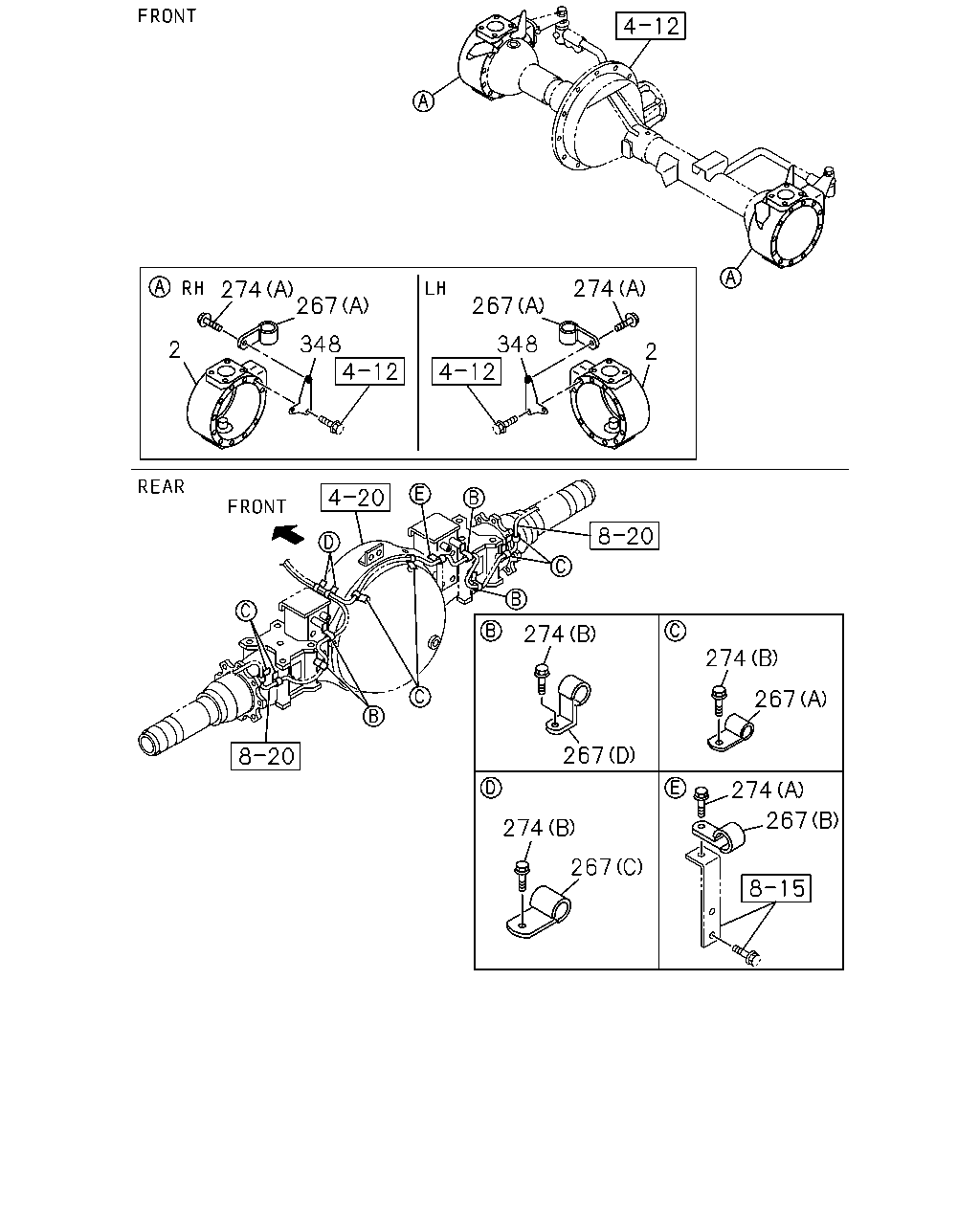

çizim 182084
274 274 267 267 348 348 2 2 274 274 267 267 274 267 274 267
BalonParca AdiParca NoAdetTipApplied Date A B C
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 0712-1003 ● ●
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1004- ● ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 0712-1003 ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1004- ● ● ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 06 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (D) ID=11 H=20 L=20 		8-98033-780-0 04 1 1004- ●
267 CLIP; HARNESS
DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (E) ID=11 L=20 		0-95235-035-0 02 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (B) ID=11 L=50 		0-95235-085-0 01 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=19 L=20 		0-95235-836-0 02 1 1004- ●
274 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X10 FLANGE 		0-28050-810-0 02 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE 		0-28050-810-0 10 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1004- ●
348 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47477-539-0 01 1 1004- ●
348 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47477-540-0 01 1 1004- ●

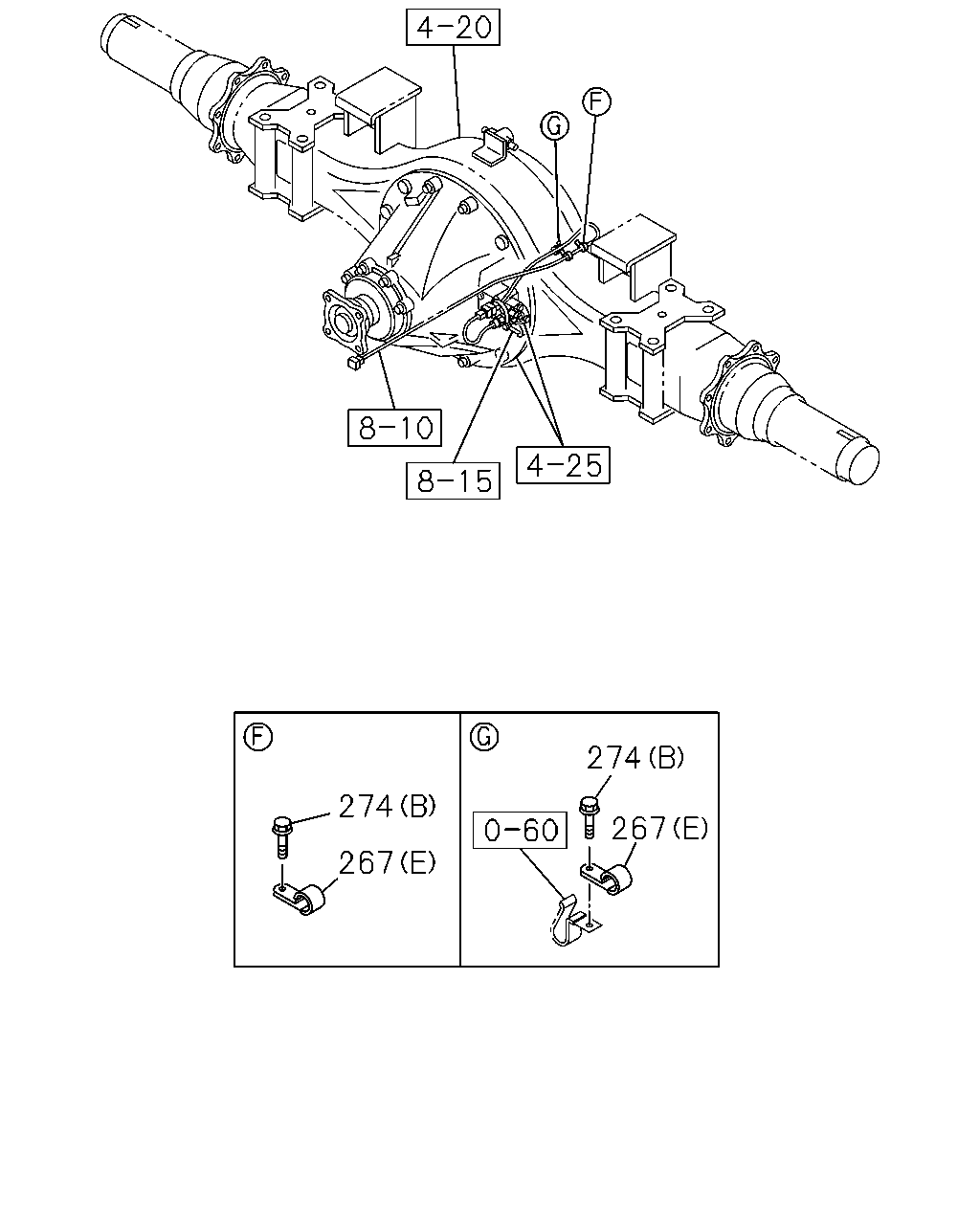

çizim 182105
274 274 267 267
BalonParca AdiParca NoAdetTipApplied Date A B C
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 06 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (D) ID=11 H=20 L=20 		8-98033-780-0 04 1 1004- ●
267 CLIP; HARNESS
DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (E) ID=11 L=20 		0-95235-035-0 02 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (B) ID=11 L=50 		0-95235-085-0 01 1 1004- ●
267 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=19 L=20 		0-95235-836-0 02 1 1004- ●
274 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X10 FLANGE 		0-28050-810-0 02 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE 		0-28050-810-0 10 1 1004- ●
274 BOLT; CLIP
ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1004- ●
