Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#5661) — 368 parça

163 215 214 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-050-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-4	06	1	0701-			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-051-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-4	06	1	0701-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0611-			●	●
163	COVER ASM; C/BL SKIRT (B)	8-97601-248-0	01	1	0611-			●	●
163	COVER ASM; C/BL SKIRT (A)	8-94394-989-1	01	1	9811-9906	●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	0611-			●	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	01	1	9811-9906	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=40 T=3.2	9-09651-094-0	02	1	0611-0702			●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	0703-			●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906	●

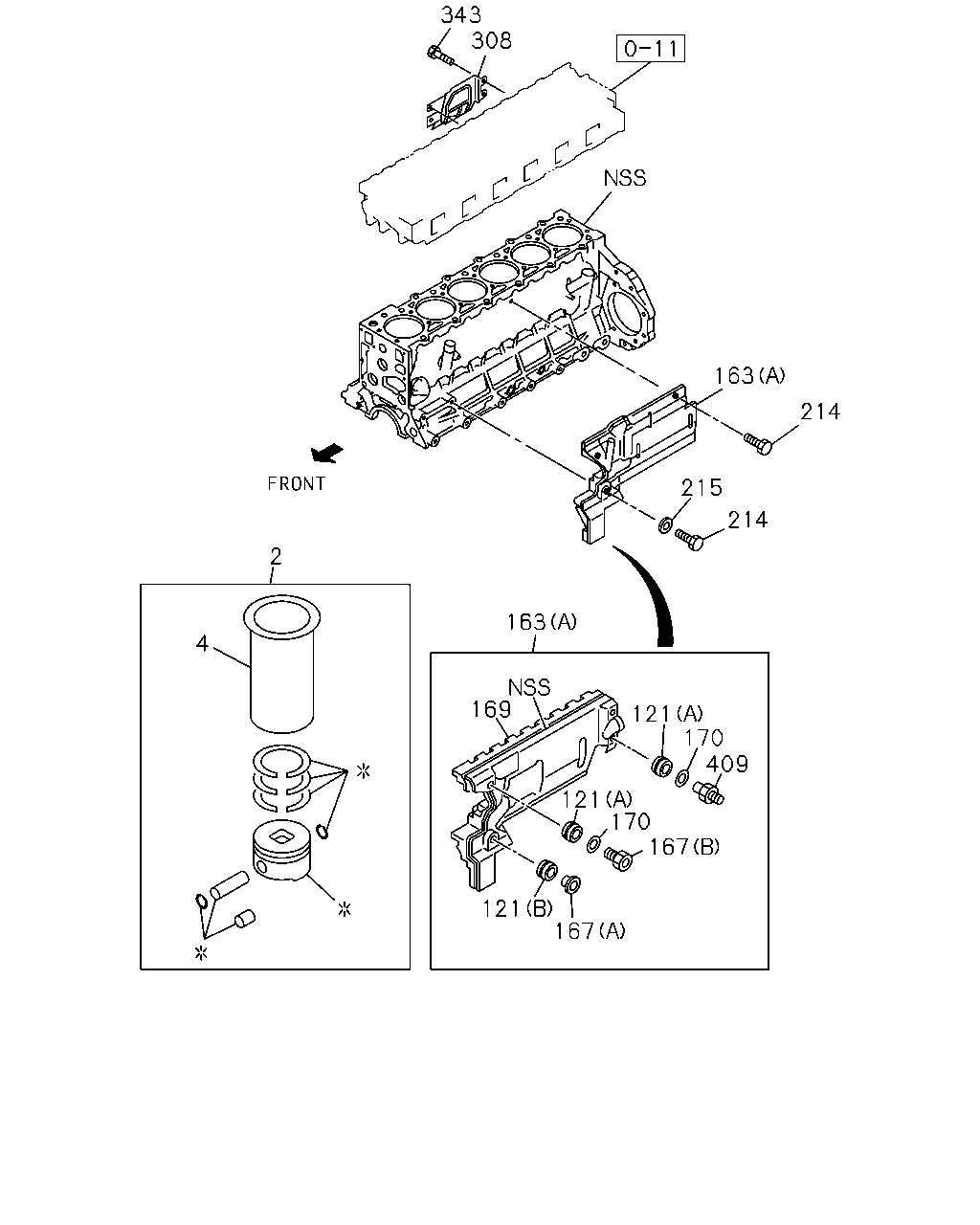

343 308 163 214 215 214 2 163 4 169 121 170 409 121 170 167 121 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-050-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-4	06	1	0701-			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-051-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-4	06	1	0701-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0611-			●	●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	04	1	9811-9906	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	9811-9906	●
163	COVER ASM; C/BL SKIRT (B)	8-97601-248-0	01	1	0611-			●	●
163	COVER ASM; C/BL SKIRT (A)	8-94394-989-1	01	1	9811-9906	●
167	TUBE; DIST,SIDE COVER (B) M10	8-94393-791-2	03	1	9811-9906	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9811-9906	●
169	INSULATOR; SIDE COVER	8-94394-121-0	01	1	9811-9906	●
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	04	1	9811-9906	●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	0611-			●	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	01	1	9811-9906	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=40 T=3.2	9-09651-094-0	02	1	0611-0702			●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	0703-			●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906	●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9811-9906	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9811-9906	●
409	SPACER; COVER	8-94394-990-1	01	1	9811-9906	●

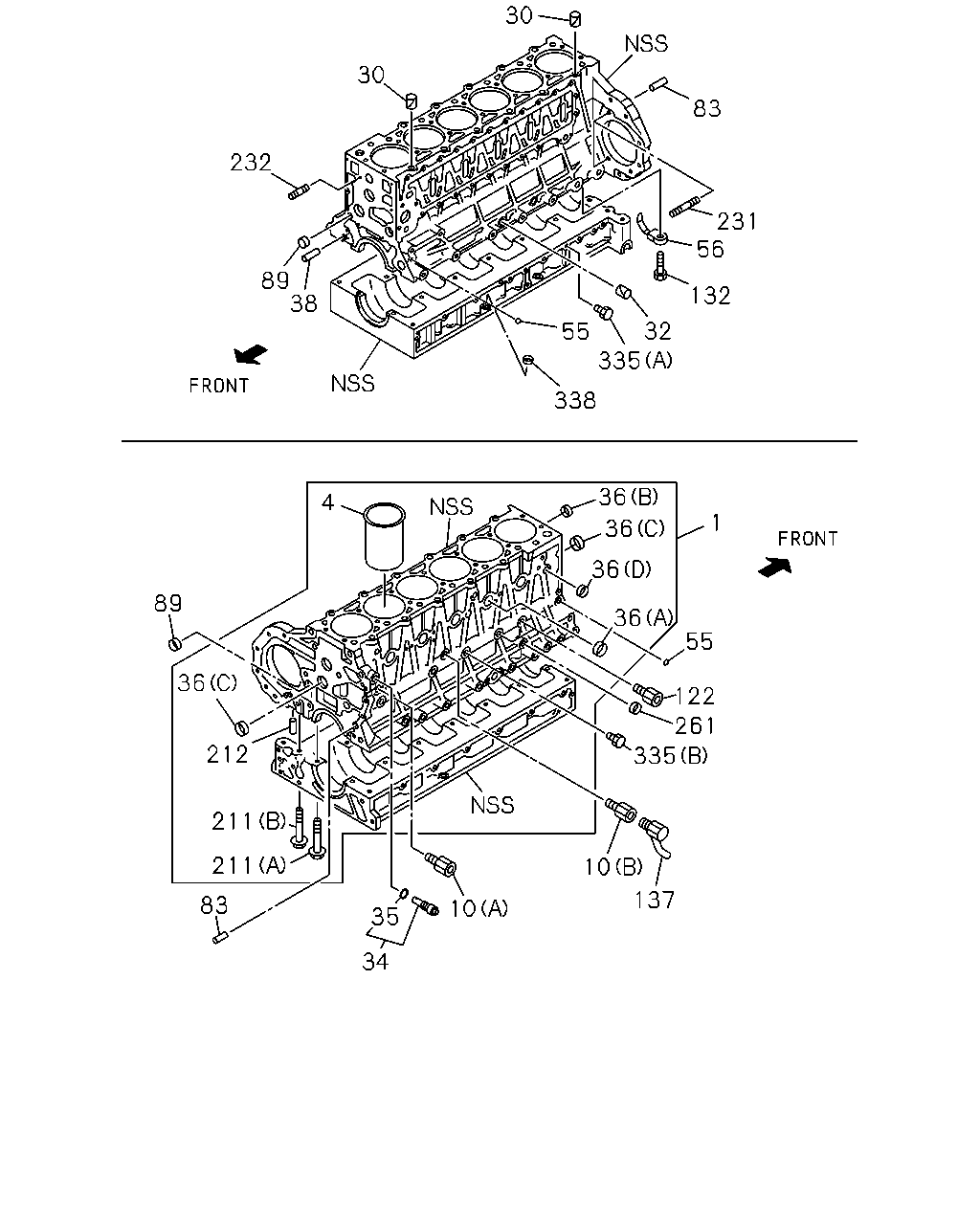

30 30 2 4 83 232 231 56 89 38 132 335 338 32 55 403 1 36 4 36 36 36 122 36 261 89 335 212 81 211 211 137 335 83 162 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9811-9906	●
1	BLOCK ASM; CYL	8-97600-119-0	01	1	9907-0103		●
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0104-0504		●
1	BLOCK ASM; CYL	8-98005-410-0	01	1	0505-0610		●
1	BLOCK ASM; CYL	8-97618-663-3	01	1	0611-			●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-050-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-4	06	1	0701-			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9811-9906	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-1	06	1	9907-0108		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-0610		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-051-0	06	1	0611-0612			●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-4	06	1	0701-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0611-			●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9811-9906	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9907-0610		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0611-			●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9811-9906	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9907-0610		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9811-9906	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9907-0610		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0611-			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9811-9906	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9907-0610		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9907-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0610		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0611-			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9811-9906	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9907-0610		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0611-			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9811-9906	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9907-0610		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0611-			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9811-9906	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9907-0610		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0611-			●	●
81	PLUG; WATER JACKET (B) M14X14 USA	9-09862-156-0	01	1	0611-			●	●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9907-0610		●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	0611-			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9811-9906	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9907-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20 USA	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0610		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0611-			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9811-9906	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9907-0610		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0611-			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9811-9906	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9907-0610		●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0611-			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9811-9906	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9907-0610		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0611-			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9811-9906	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9907-0610		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0611-			●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9907-0206		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0610		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9811-9906	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9907-0610		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0611-			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9811-9906	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9907-0610		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0611-			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9811-9906	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9907-0306		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0307-0610		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9811-9906	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	9907-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0610		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9811-9906	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9907-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-0610		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0611-			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9811-9906	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9907-0307		●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0611-			●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9811-9906	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	9907-0610		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0611-			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9811-9906	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9907-0501		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0610		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0611-			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9811-9906	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9907-0607		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-0610		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0611-			●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9907-0610		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0611-			●	●

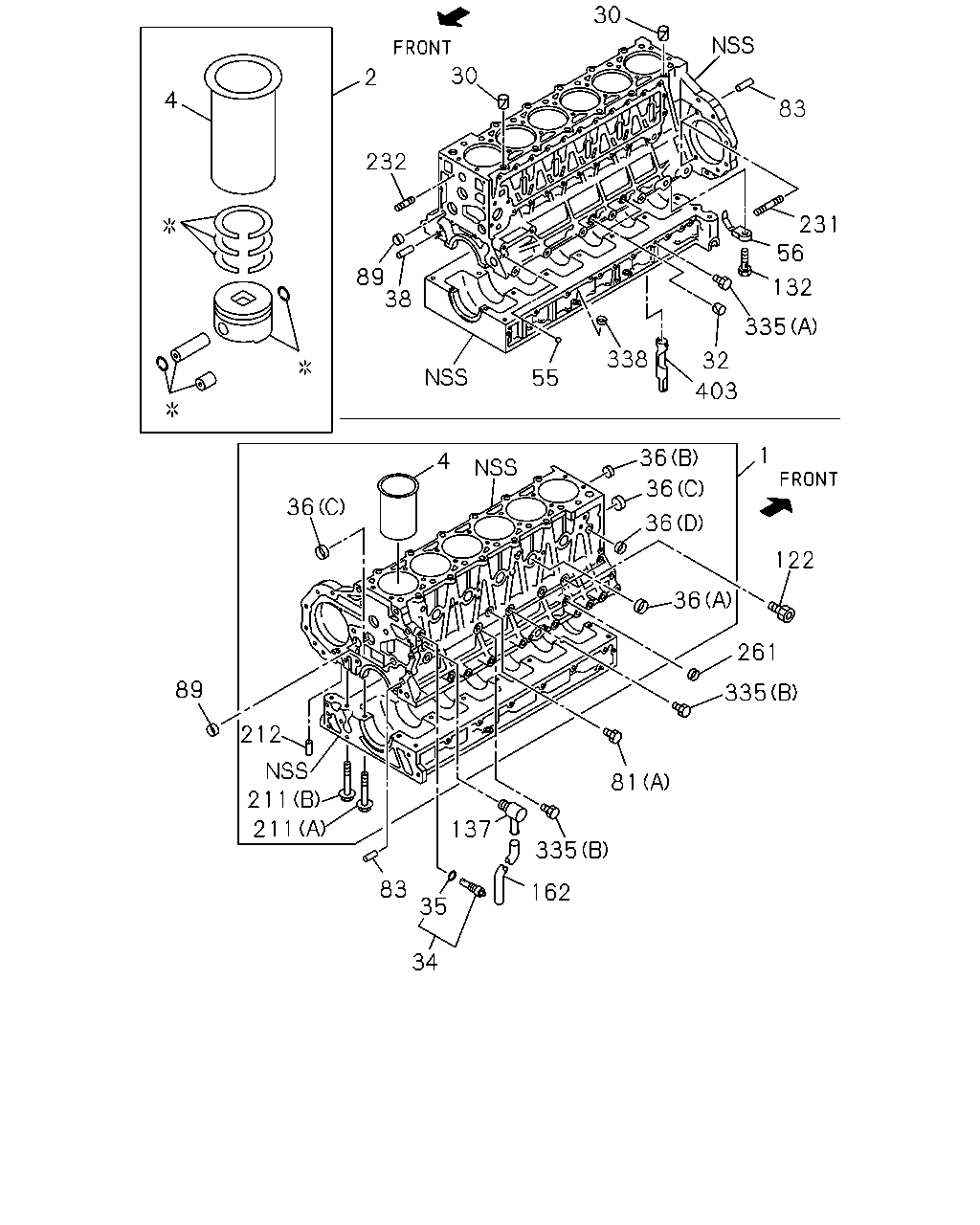

30 30 83 232 231 56 89 38 132 32 55 335 338 36 4 1 36 36 89 36 55 36 122 261 212 335 211 211 10 137 83 10 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9811-9906	●
1	BLOCK ASM; CYL	8-97600-119-0	01	1	9907-0103		●
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0104-0504		●
1	BLOCK ASM; CYL	8-98005-410-0	01	1	0505-0610		●
1	BLOCK ASM; CYL	8-97618-663-3	01	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0611-			●	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	0611-			●	●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9811-9906	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9811-9906	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9811-9906	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9907-0610		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0611-			●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9811-9906	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9907-0610		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9811-9906	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9907-0610		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0611-			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9811-9906	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9907-0610		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9907-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0610		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0611-			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9811-9906	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9907-0610		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0611-			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9811-9906	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9907-0610		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0611-			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9811-9906	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9907-0610		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0611-			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9811-9906	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9907-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20 USA	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0610		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0611-			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9811-9906	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9907-0610		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0611-			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9811-9906	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9907-0610		●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0611-			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9811-9906	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9907-0610		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0611-			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9811-9906	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9907-0610		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0611-			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9811-9906	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9907-0610		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0611-			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9811-9906	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9907-0610		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0611-			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9811-9906	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9907-0306		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0307-0610		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9811-9906	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	9907-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-0610		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9811-9906	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9907-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-0610		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0611-			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9811-9906	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9907-0307		●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0611-			●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9811-9906	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	9907-0610		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0611-			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9811-9906	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9907-0501		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0610		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0611-			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9811-9906	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9907-0607		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-0610		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0611-			●	●

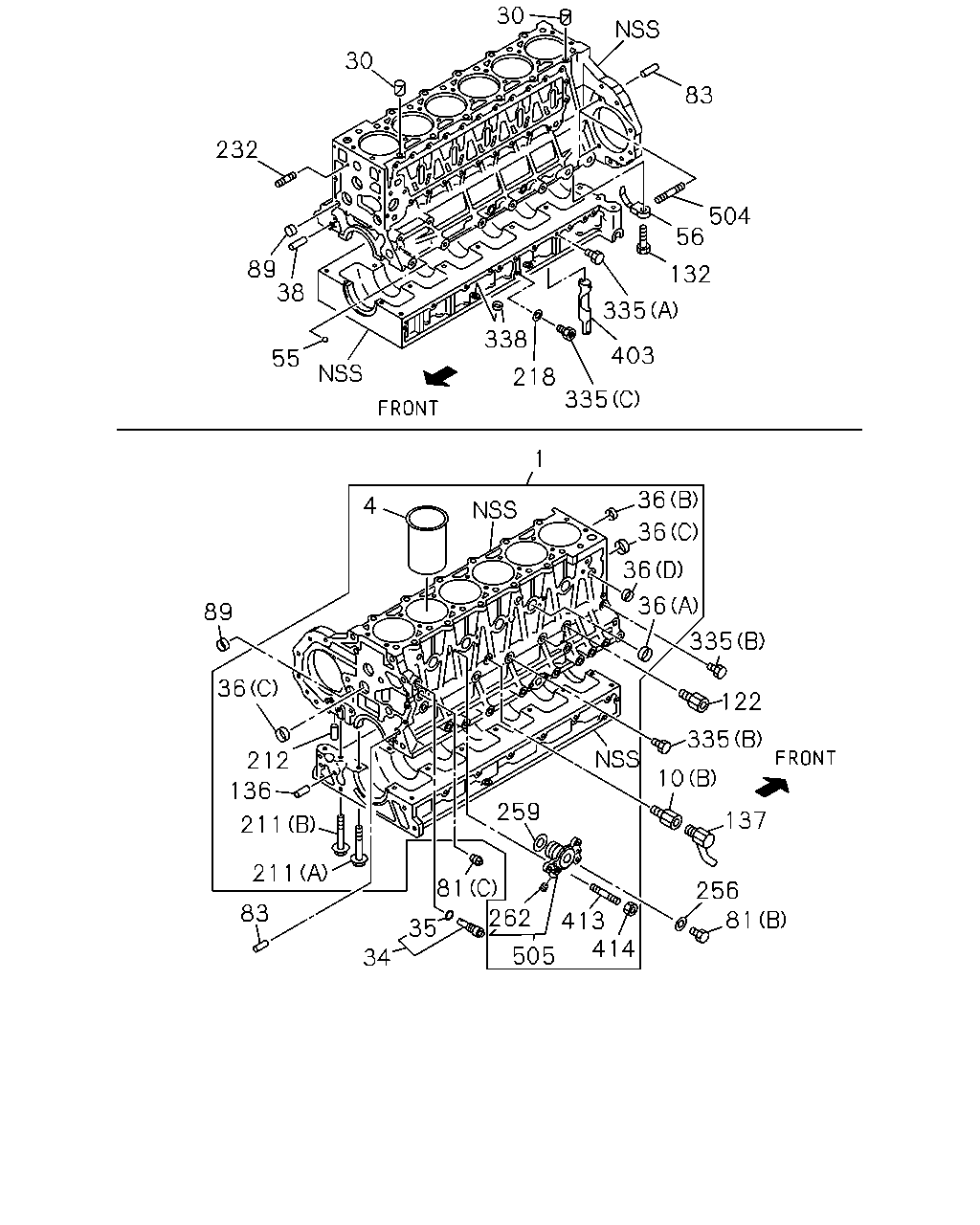

30 30 83 232 504 56 89 38 132 335 338 403 55 218 335 1 36 4 36 36 36 89 335 36 122 335 212 10 136 259 137 211 211 81 256 81 83 262 413 414 35 505 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9811-9906	●
1	BLOCK ASM; CYL	8-97600-119-0	01	1	9907-0103		●
1	BLOCK ASM; CYL	8-97602-024-2	01	1	0104-0504		●
1	BLOCK ASM; CYL	8-98005-410-0	01	1	0505-0610		●
1	BLOCK ASM; CYL	8-97618-663-3	01	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0611-			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9906	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9907-0610		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0611-			●	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	0611-			●	●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9811-9906	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9811-9906	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9811-9906	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9907-0610		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0611-			●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9811-9906	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9907-0610		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0611-			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9811-9906	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9907-0610		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9907-0610		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0611-			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9811-9906	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9907-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0610		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0611-			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9811-9906	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9907-0610		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0611-			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9811-9906	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9907-0610		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0611-			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9811-9906	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9907-0610		●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0611-			●	●
81	PLUG; WATER JACKET (B) M14X14 USA	9-09862-156-0	01	1	0611-			●	●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9907-0610		●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	0611-			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9811-9906	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9907-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20 USA	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0610		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0611-			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9811-9906	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9907-0610		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0611-			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9811-9906	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9907-0610		●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0611-			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9811-9906	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9907-0610		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0611-			●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	9907-0610		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0611-			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9811-9906	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9907-0610		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0611-			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9811-9906	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9907-0610		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0611-			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9811-9906	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9907-0610		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0611-			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9811-9906	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9907-0306		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0307-0610		●
212	PIN; CRANKCASE OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0611-			●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9811-9906	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9907-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-0610		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0611-			●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0611-			●	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	02	1	0611-			●	●
262	PLUG; ADAPTER M14X14 USA	9-09862-156-0	01	1	0611-			●	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0611-			●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9811-9906	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	9907-0610		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0611-			●	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9811-9906	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9907-0501		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0610		●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0611-			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9811-9906	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9907-0607		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-0610		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0611-			●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9907-0610		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0611-			●	●
413	STUD; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0611-			●	●
414	NUT; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0611-			●	●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0611-			●	●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
