◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#56609) — 511 parça

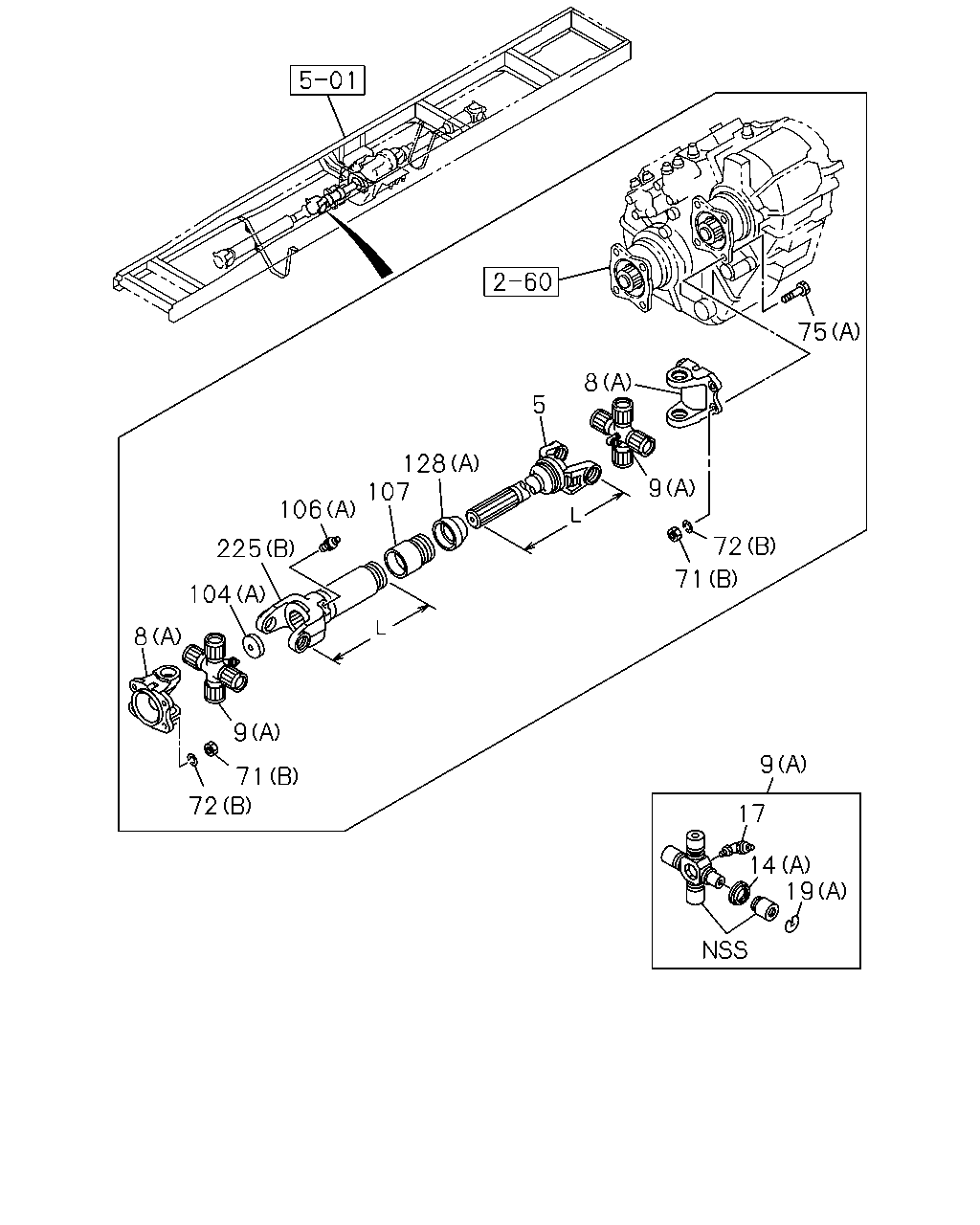

çizim 181949
75 8 5 128 107 9 106 72 225 71 104 8 9 9 71 72 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
5 YOKE; STUB,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 0712-0804 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 0805-0906 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 0907-1003 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 1004- ● ● ●
5 YOKE; STUB,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 0712-0804 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 0805-0906 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 0907-1003 ● ●
5 YOKE; STUB,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0712-0804 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW) (A) 		1-37300-102-1 AR 1 0805-0906 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 0907-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 1004-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0712-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1004-1106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0712-0805 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-1 02 1 1004- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0712-1003 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1004-1106 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0712-0804 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW) (A) 		1-37319-012-0 08 1 0805-0906 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 0907-1003 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0712-0805 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0712-0805 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
107 COVER; RET,SLEEVE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 0712-0804 ● ●
107 COVER; RET,SLEEVE
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 0805-0906 ● ●
107 COVER; RET,SLEEVE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 0907-1003 ● ●
107 COVER; RET,SLEEVE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0712-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0712-0805 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1004- ● ● ●

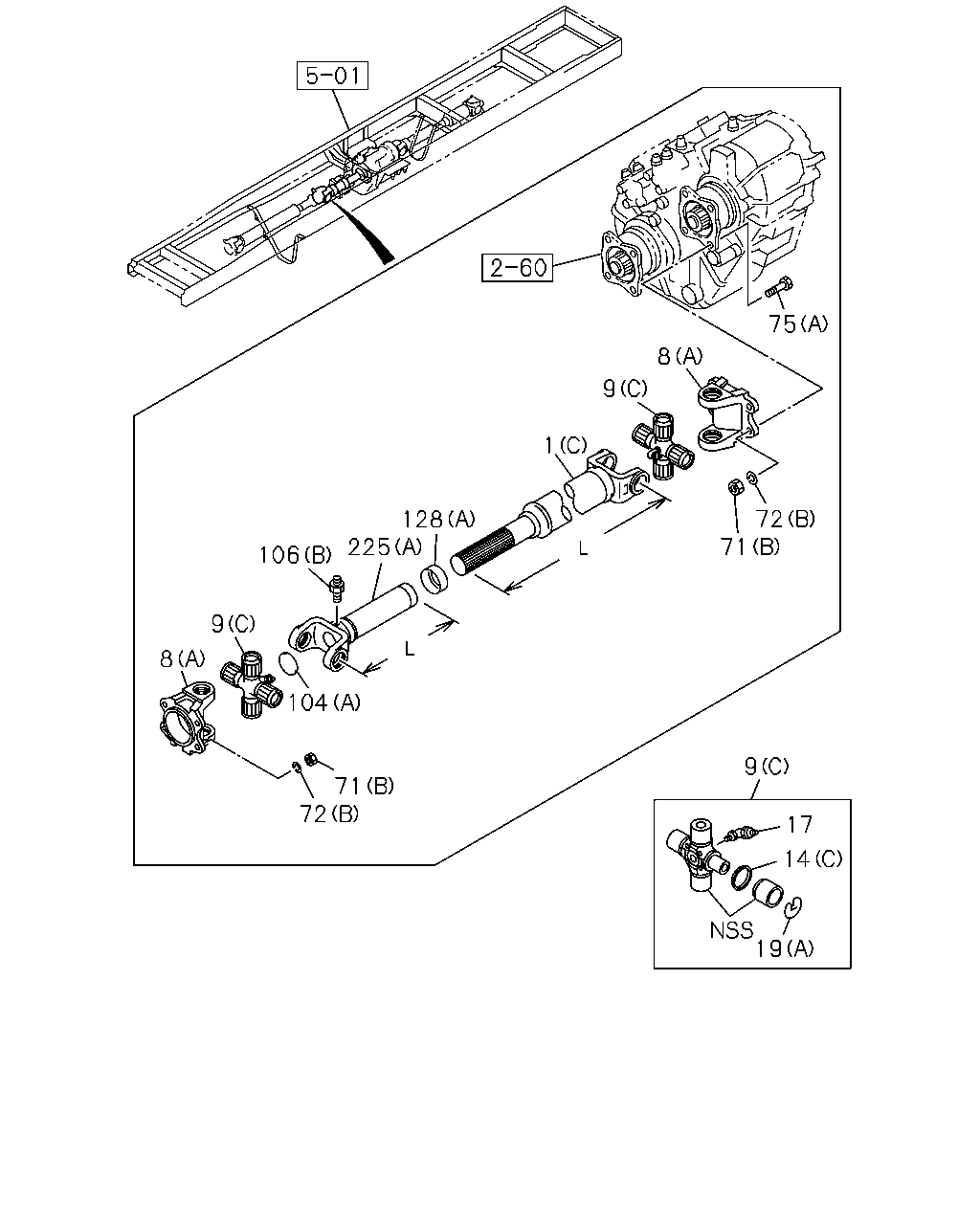

çizim 181950
75 8 9 1 72 71 128 225 106 9 8 104 9 71 72 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=801 		8-98069-652-0 01 1 1004- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 1004- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=706 		8-98069-691-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=721 		8-98069-696-0 01 1 1010- ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 0712-1003 ● ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=1201 		8-98069-656-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=1231 		8-98069-680-0 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0712-0804 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW) (A) 		1-37300-102-1 AR 1 0805-0906 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 0907-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 1004-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0712-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1004-1106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0712-0805 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-1 02 1 1004- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0712-1003 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1004-1106 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0712-0804 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW) (A) 		1-37319-012-0 08 1 0805-0906 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 0907-1003 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0712-0805 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0712-0805 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0712-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0712-0805 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1004- ● ● ●

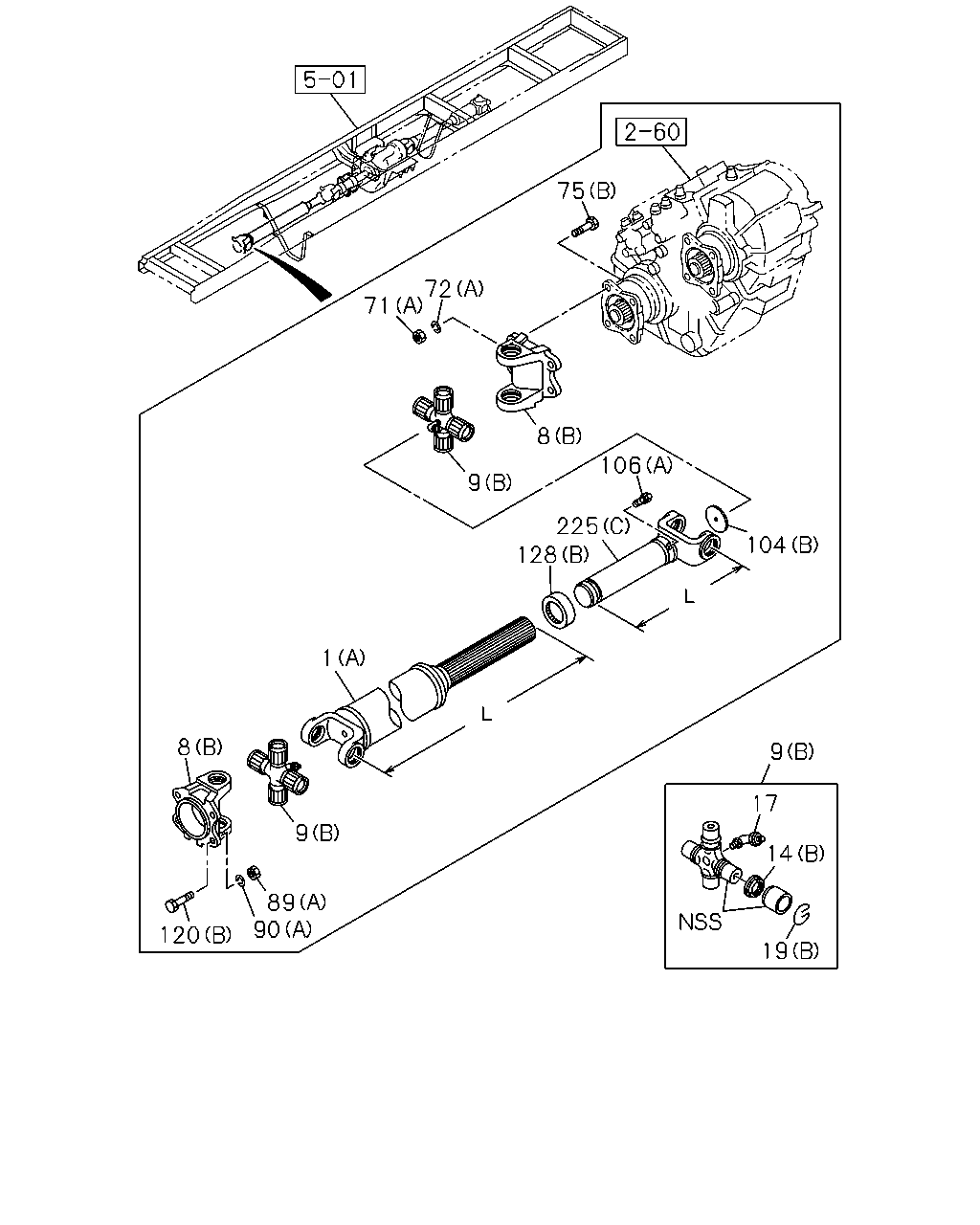

çizim 181965
75 72 71 8 106 9 225 128 104 1 8 9 17 9 14 89 90 120 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=801 		8-98069-652-0 01 1 1004- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 1004- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=706 		8-98069-691-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=721 		8-98069-696-0 01 1 1010- ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 0712-1003 ● ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=1201 		8-98069-656-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=1231 		8-98069-680-0 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0712-0804 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW) (A) 		1-37300-102-1 AR 1 0805-0906 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 0907-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 1004-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0712-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1004-1106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0712-0805 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-1 02 1 1004- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0712-1003 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1004-1106 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0712-0804 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW) (A) 		1-37319-012-0 08 1 0805-0906 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 0907-1003 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0712-0805 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1004- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1004- ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 0712-1003 ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1004- ● ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0712-0805 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 0712-1003 ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1004- ● ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1004- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0712-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0712-0805 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1004- ● ● ●

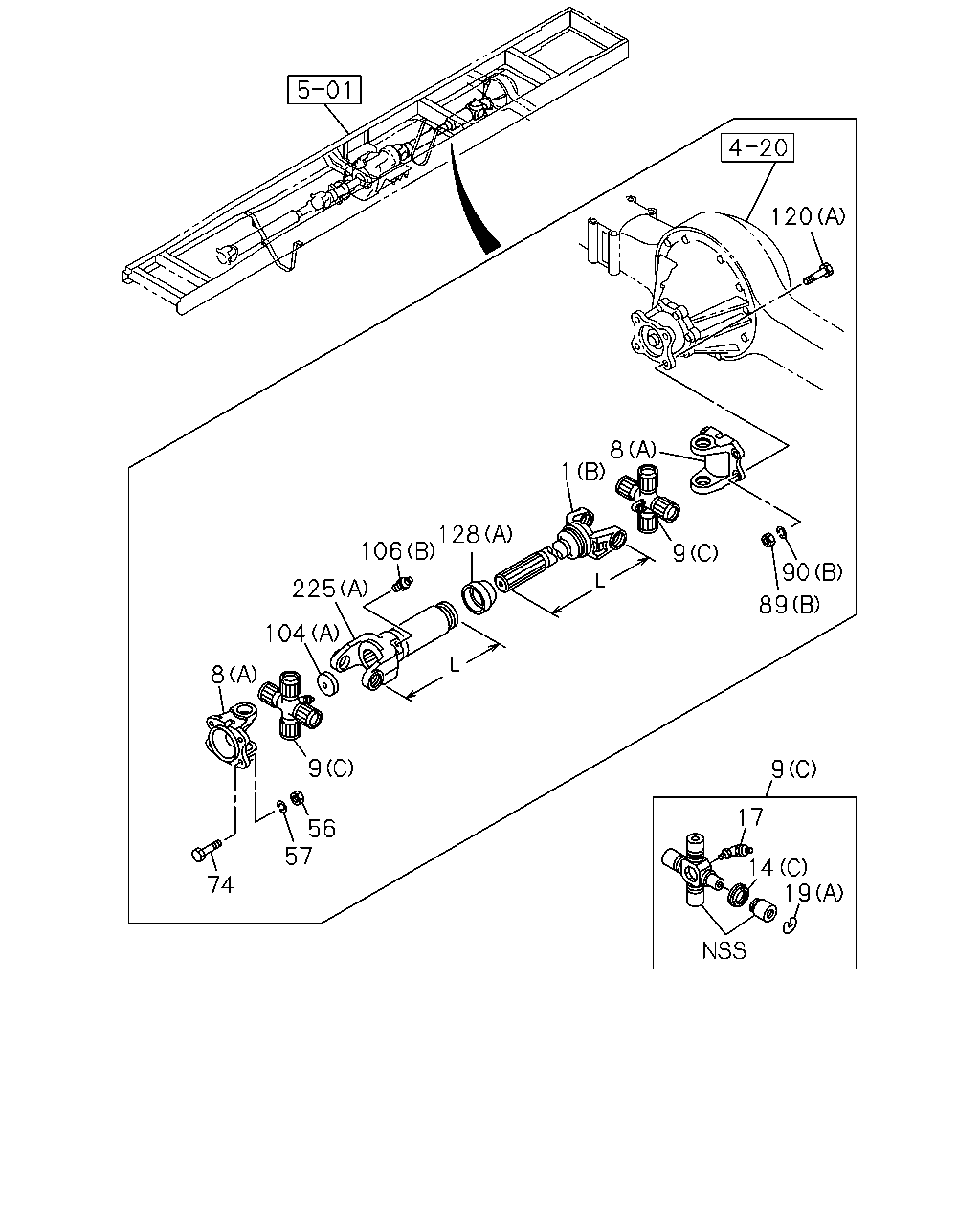

çizim 182022
120 8 1 128 106 9 90 225 89 104 8 9 9 17 56 57 14 19 74
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=801 		8-98069-652-0 01 1 1004- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466 		8-98116-108-0 01 1 1004- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 0806-1003 ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526 		8-98114-837-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=706 		8-98069-691-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=721 		8-98069-696-0 01 1 1010- ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 0712-1003 ● ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1004- ● ● ●
1 SHAFT; PROP
(B) L=1201 		8-98069-656-0 01 1 0712-1009 ●
1 SHAFT; PROP
(B) L=1231 		8-98069-680-0 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0712-1003 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0712-0804 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW) (A) 		1-37300-102-1 AR 1 0805-0906 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 0907-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37300-102-1 AR 1 1004-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0712-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1004-1106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0712-0805 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-0 02 1 0806-1003 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1004- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98048-925-1 02 1 1004- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0712-1003 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1004-1106 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0712-0804 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW) (A) 		1-37319-012-0 08 1 0805-0906 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 0907-1003 ● ●
14 COVER; DUST,SPIDER
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		1-37319-012-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0712-0805 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 0806-1003 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1004-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-1003 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-1003 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1004- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-1003 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1004- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1004- ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 0712-1003 ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1004- ● ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 0712-1003 ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1004- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 0712-1003 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1004- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 0712-1003 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0712-1003 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0712-0805 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 0806-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD6Q M/T(X5J) (B) M6 STRAIGHT 		0-90301-406-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-0804 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0805-0906 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0907-1003 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1004- ● ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 0712-1003 ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1004- ● ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 0712-1003 ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1004- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0712-1003 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0712-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0712-0805 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 0806-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) (A) L=254 		8-98020-885-0 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1004- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0712-0804 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0805-0906 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 0907-1003 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
