Isuzu WW
▶
TRUCKS
▶
FSS
▶
11124 - FSS(RHD)EURO2/4
▶
3 - Brakes, Brake System
▶

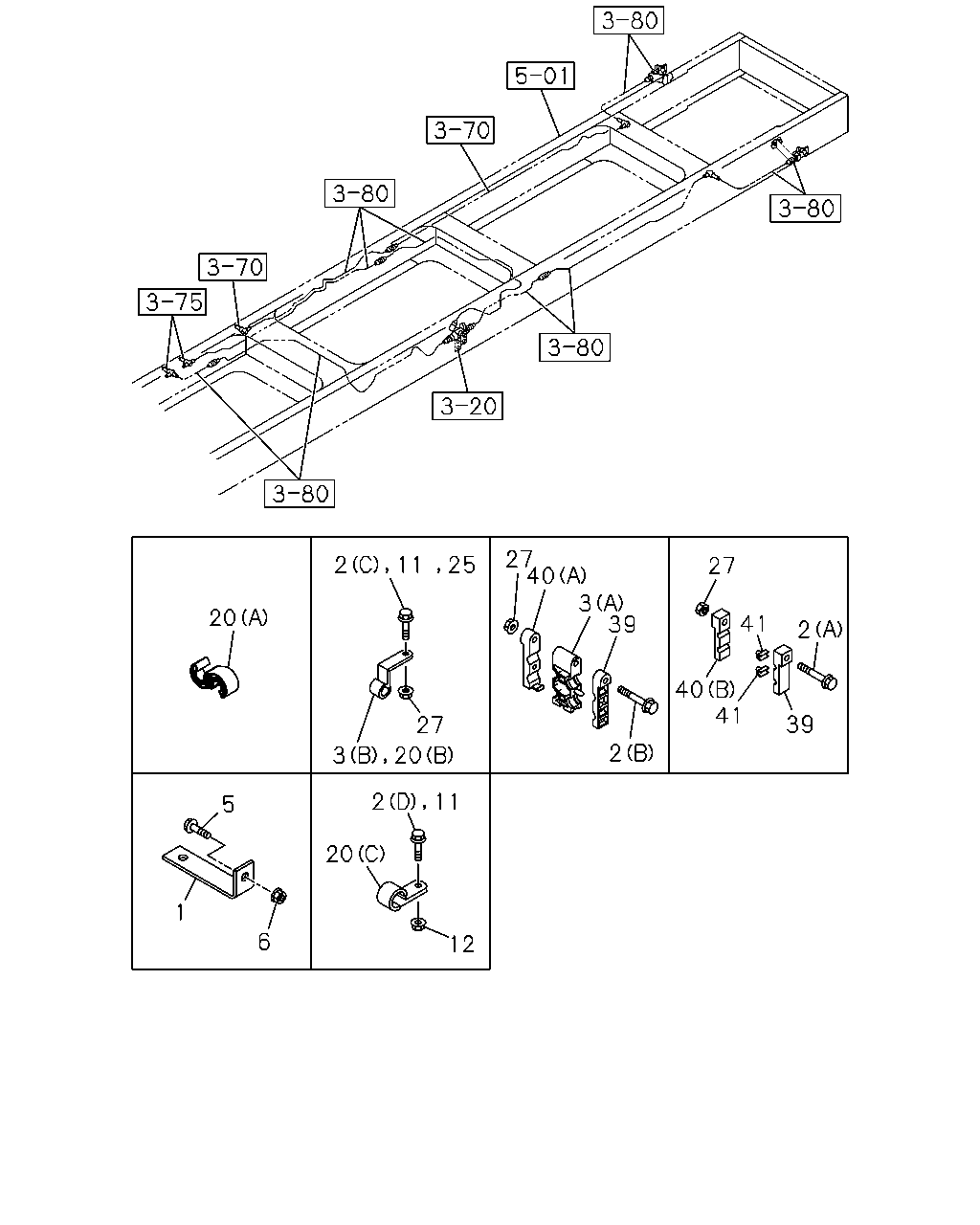

3-83 - FIXING PARTS; TRAILER PIPING
▶
3-83 — FIXING PARTS; TRAILER PIPING
(#56608) — 24 parça
27
40
2
11
25
27
3
39
20
41
2
40
41
39
27
2
2
11
5
20
1
6
12
3
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
TRAILER BRAKE CONTROL<J91>
1-34656-009-0
01
1
1004-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (D) M8X20 FLANGE
0-28650-820-0
02
1
1004-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (A) M8X50 FLANGE
0-28050-850-0
03
1
1004-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (B) M8X70 FLANGE
0-28050-870-0
01
1
1004-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (C) M8X25 FLANGE
0-28650-825-0
04
1
1004-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) ID=10
1-09709-242-0
01
1
1004-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=11 H=20 L=20
8-98033-780-0
04
1
1004-
5
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE
0-28650-825-0
01
1
1004-
6
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
01
1
1004-
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X20 FLANGE
0-28650-820-0
01
1
1004-
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE
0-28650-825-0
04
1
1004-
12
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
05
1
1004-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (C) ID=11 L=16
0-95235-025-0
03
1
1004-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) ID=10 & 10
1-09709-277-1
01
1
1004-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=11 H=20 L=20
8-98033-780-0
09
1
1004-1004
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=11 H=20 L=20
8-98033-780-0
08
1
1005-
25
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE
0-28650-825-0
05
1
1004-1004
25
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE
0-28650-825-0
04
1
1005-
27
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
15
1
1004-1004
27
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
14
1
1005-
39
CLIP; UPR
TRAILER BRAKE CONTROL<J91> ID=10 & 10
1-09709-241-0
04
1
1004-
40
CLIP; LWR
TRAILER BRAKE CONTROL<J91> (A) ID=10 & 10
1-09709-241-0
01
1
1004-
40
CLIP; LWR
TRAILER BRAKE CONTROL<J91> (B) ID=10 & 10
1-09709-243-0
03
1
1004-
41
COLLAR
TRAILER BRAKE CONTROL<J91> ID=6
1-47459-010-0
04
1
1004-
