Isuzu WW
▶
TRUCKS
▶
FSS
▶
11124 - FSS(RHD)EURO2/4
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#56607) — 29 parça
◀

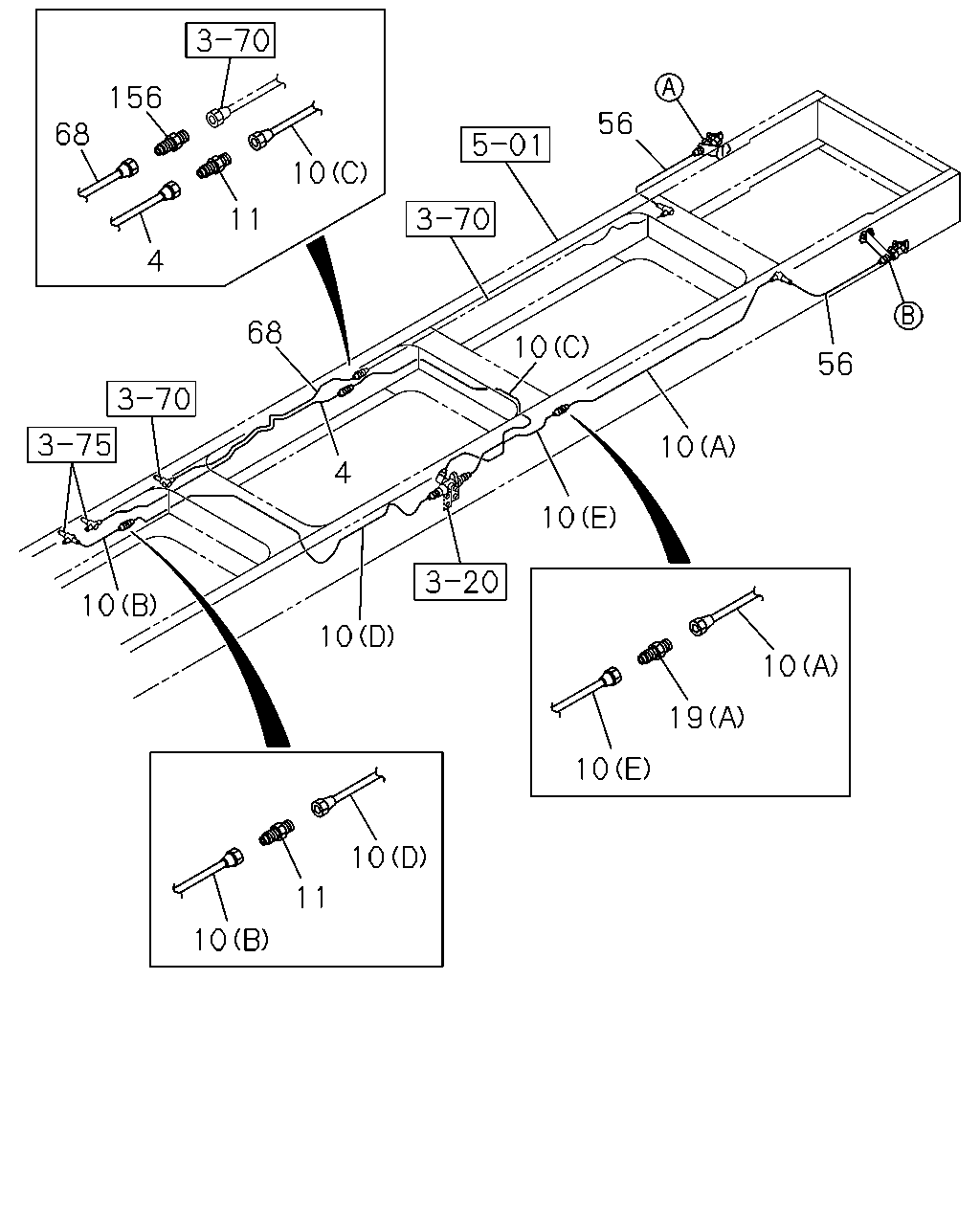

[380A] NO.2 (17 parça)
[380A] NO.1 (12 parça)
▶
81
29
84
3
56
18
16
121
19
18
42
81
29
84
3
56
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; COCK
TRAILER BRAKE CONTROL<J91> M16
0-91111-516-0
02
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (D) L=1992 SERVICED BY L=2100
1-47428-882-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=1277 SERVICED BY L=1300
1-47428-877-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=295
8-98166-344-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1532 SERVICED BY L=1550
1-47428-879-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (E) L=720 SERVICED BY L=730
1-47428-871-0
01
1
1004-
16
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1004-
18
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16
0-91111-516-0
02
1
1004-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW
0-92135-210-0
01
1
1004-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 L=42
0-92123-010-0
01
1
1004-
29
CONNECTOR; COCK
TRAILER BRAKE CONTROL<J91>
1-09650-121-1
02
1
1004-
42
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE
0-28651-030-0
02
1
1004-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> L=464
8-98165-426-0
02
1
1004-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> RED
1-47478-466-1
01
1
1004-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> YELLOW
1-47478-467-1
01
1
1004-
84
BRACKET; COUPLER
TRAILER BRAKE CONTROL<J91>
8-98154-702-0
02
1
1004-
121
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE
0-91180-210-0
02
1
1004-
156
56
68
10
11
4
68
10
56
10
4
10
10
10
10
19
10
10
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1507 SERVICED BY L=1550
1-47428-879-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (D) L=1992 SERVICED BY L=2100
1-47428-882-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=1277 SERVICED BY L=1300
1-47428-877-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=295
8-98166-344-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1532 SERVICED BY L=1550
1-47428-879-0
01
1
1004-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (E) L=720 SERVICED BY L=730
1-47428-871-0
01
1
1004-
11
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 L=42
0-92123-010-0
02
1
1004-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW
0-92135-210-0
01
1
1004-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 L=42
0-92123-010-0
01
1
1004-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> L=464
8-98165-426-0
02
1
1004-
68
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1156 SERVICED BY L=1250
1-47428-876-0
01
1
1004-
156
UNION
TRAILER BRAKE CONTROL<J91> M16 L=42
0-92123-010-0
01
1
1004-
