Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#56605) — 841 parça

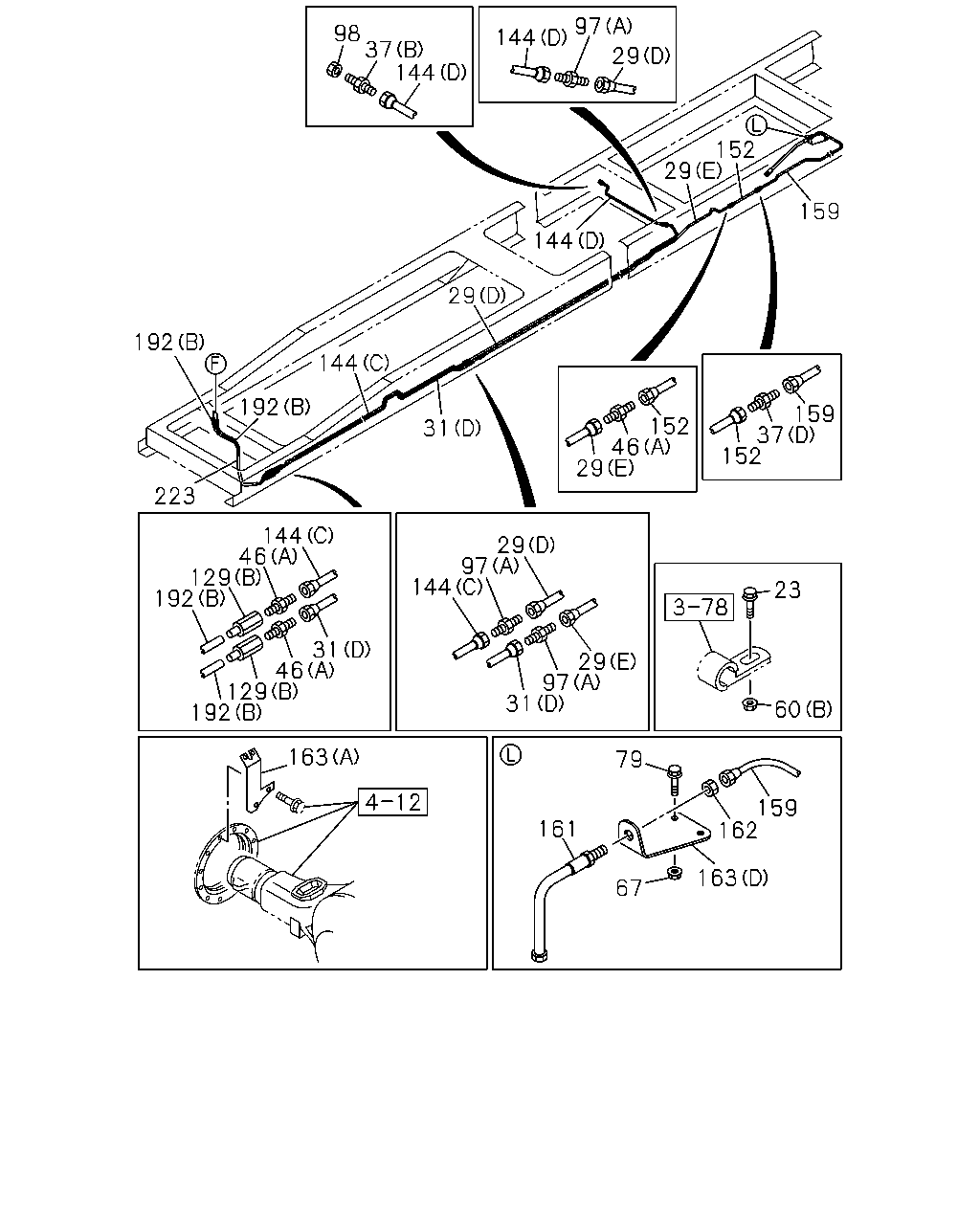

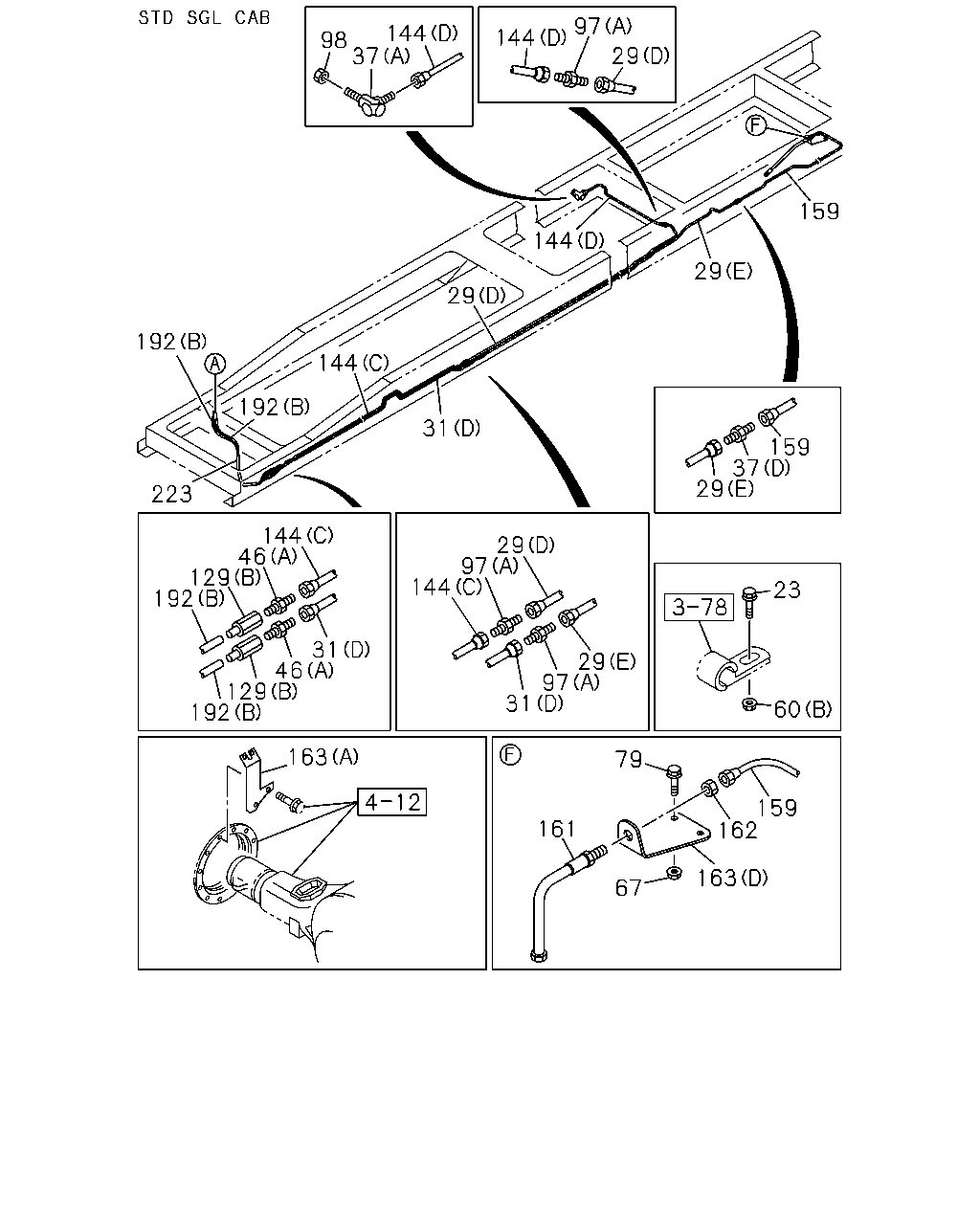

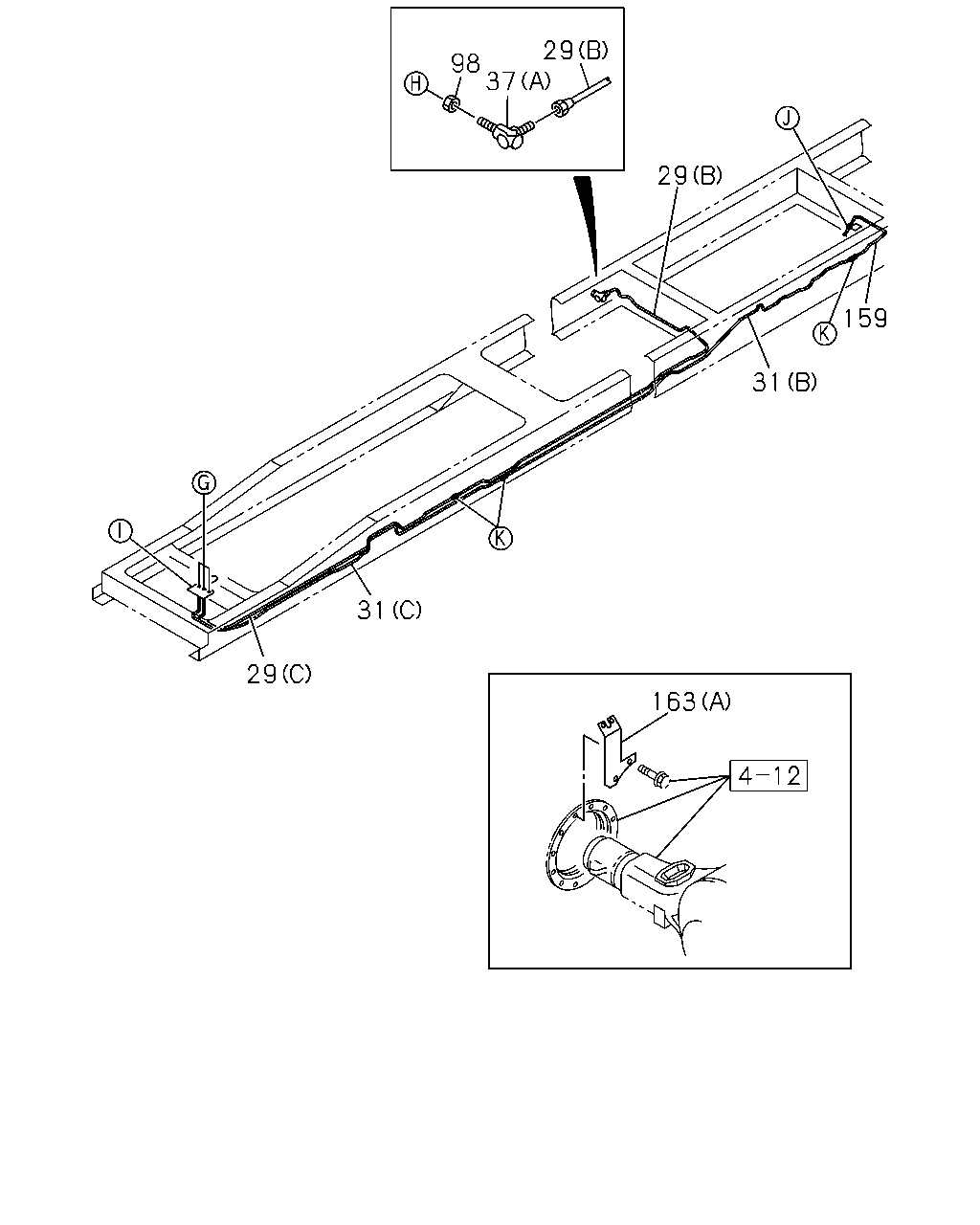

274 31 19 475 144 19 475 178 72 142 159 79 100 280 2 161 67 163 23 97 72 60 175 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	0712-0802	●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
31	PIPE; AIR,UNION TO UNION (C) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (B) L=3216 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (A) L=2185 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=1919 SERVICED BY L=2100	1-47428-882-0	01	1	0803-0811	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1584	8-98122-840-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (D) L=1584	8-98122-840-0	01	1	0812-		●
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE (A) M16	0-91111-516-0	01	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B)	9-14149-158-0	03	1	0803-0803	●	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0804-0811	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	02	1	0812-	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0812-		●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0811	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0812-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
72	NUT; BRKT DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	1004-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0907-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0907-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0803	●
100	NUT; UNION DIFF LOCK<C3N> (C) M12	9-09840-280-0	01	1	1004-			●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802		●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802		●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802	●	●
142	HOSE; FLEX,MAXI L=600	1-09363-732-0	02	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (D) L=648	8-98111-603-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION (A) L=1820 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0812-0906	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790	8-98111-602-1	01	1	0907-	●
144	PIPE; AIR,UNION TO UNION (B) L=2287 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1736 SERVICED BY L=1900	1-47428-881-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=1537	8-98122-839-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1537	8-98122-839-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-921-0	01	1	0712-0802		●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-746-0	01	1	0712-0802	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0803-0811	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	1-09363-732-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0812-		●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
178	BRACKET; UNION DIFF LOCK<C3N> (D)	8-98156-572-0	01	1	1004-			●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0812-1003	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1004-	●
178	BRACKET; UNION (A)	8-98017-052-1	01	1	1004-			●
178	BRACKET; UNION (C)	1-47475-427-1	02	1	0712-0802		●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802	●
178	BRACKET; UNION (A)	8-98017-054-0	01	1	0712-0811	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0812-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0812-		●
274	BOLT; BRKT DIFF LOCK<C3N> M8X25 FLANGE	0-28650-825-0	02	1	1004-			●
274	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802		●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802		●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802	●
475	WASHER; FLEX HOSE ID=16.2	0-91510-516-0	02	1	0712-0802	●

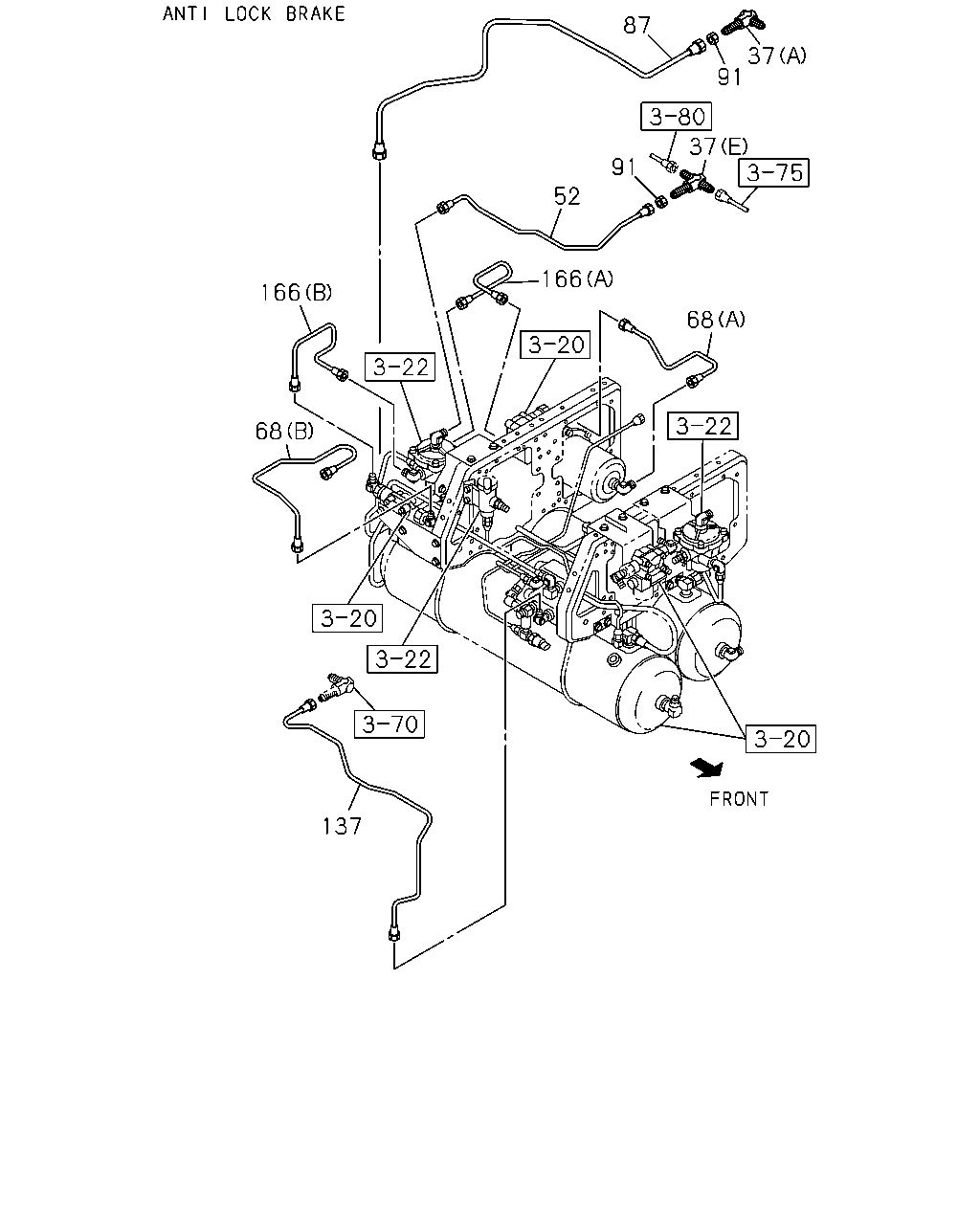

87 37 91 37 91 52 166 166 68 68 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
52	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> L=672 SERVICED BY L=700	1-47428-870-0	01	1	1004-			●
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (A)	8-98167-302-0	01	1	1004-			●
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (B)	8-98147-519-0	01	1	1004-			●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> L=1056 SERVICED BY L=1100	1-47428-875-0	01	1	1004-			●
87	PIPE; AIR,AIR TANK TO UNION L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	0803-		●
87	PIPE; AIR,AIR TANK TO UNION L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION L=934 SERVICED BY L=1000	1-47428-874-0	01	1	0803-0805	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	0806-1003	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-			●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-1003	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1004-	●	●	●
137	PIPE; AIR,PROTECTION VLV TO UNION ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> L=1155 SERVICED BY L=1250	1-47428-876-0	01	1	1004-			●
137	PIPE; AIR,PROTECTION VLV TO UNION TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> L=753 SERVICED BY L=800	1-47428-872-0	01	1	1004-			●
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (A) L=345	8-98147-516-0	01	1	1004-			●
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (B) L=428	8-98147-517-0	01	1	1004-			●

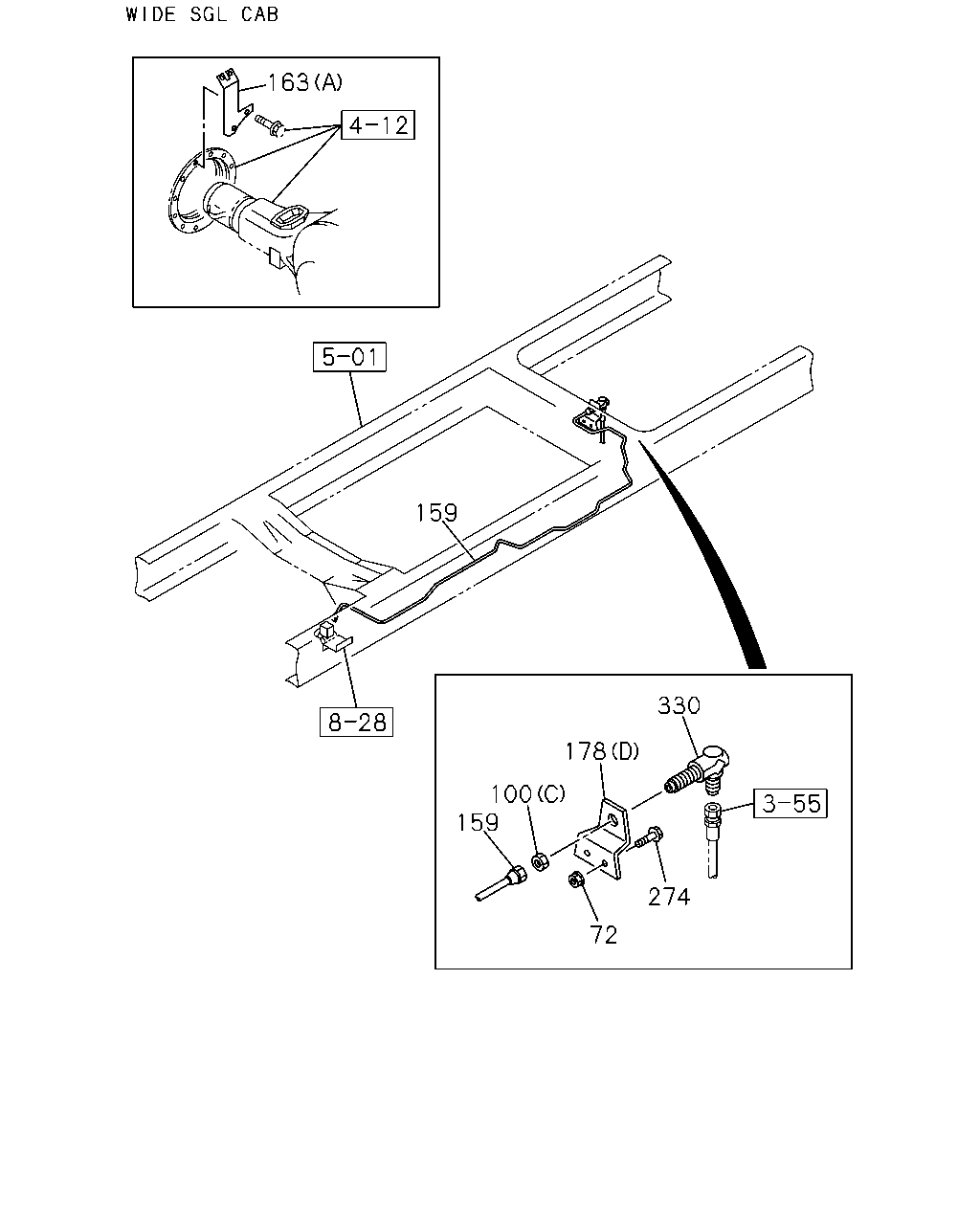

163 159 330 178 100 159 274 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	NUT; BRKT DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	1004-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
100	NUT; UNION DIFF LOCK<C3N> (C) M12	9-09840-280-0	01	1	1004-			●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802		●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802		●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●
178	BRACKET; UNION DIFF LOCK<C3N> (D)	8-98156-572-0	01	1	1004-			●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0812-1003	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1004-	●
178	BRACKET; UNION (A)	8-98017-052-1	01	1	1004-			●
178	BRACKET; UNION (C)	1-47475-427-1	02	1	0712-0802		●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802	●
178	BRACKET; UNION (A)	8-98017-054-0	01	1	0712-0811	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0812-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0812-		●
274	BOLT; BRKT DIFF LOCK<C3N> M8X25 FLANGE	0-28650-825-0	02	1	1004-			●
274	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
330	UNION; FLEX HOSE DIFF LOCK<C3N> M12 ELBOW	0-92125-006-0	01	1	1004-			●

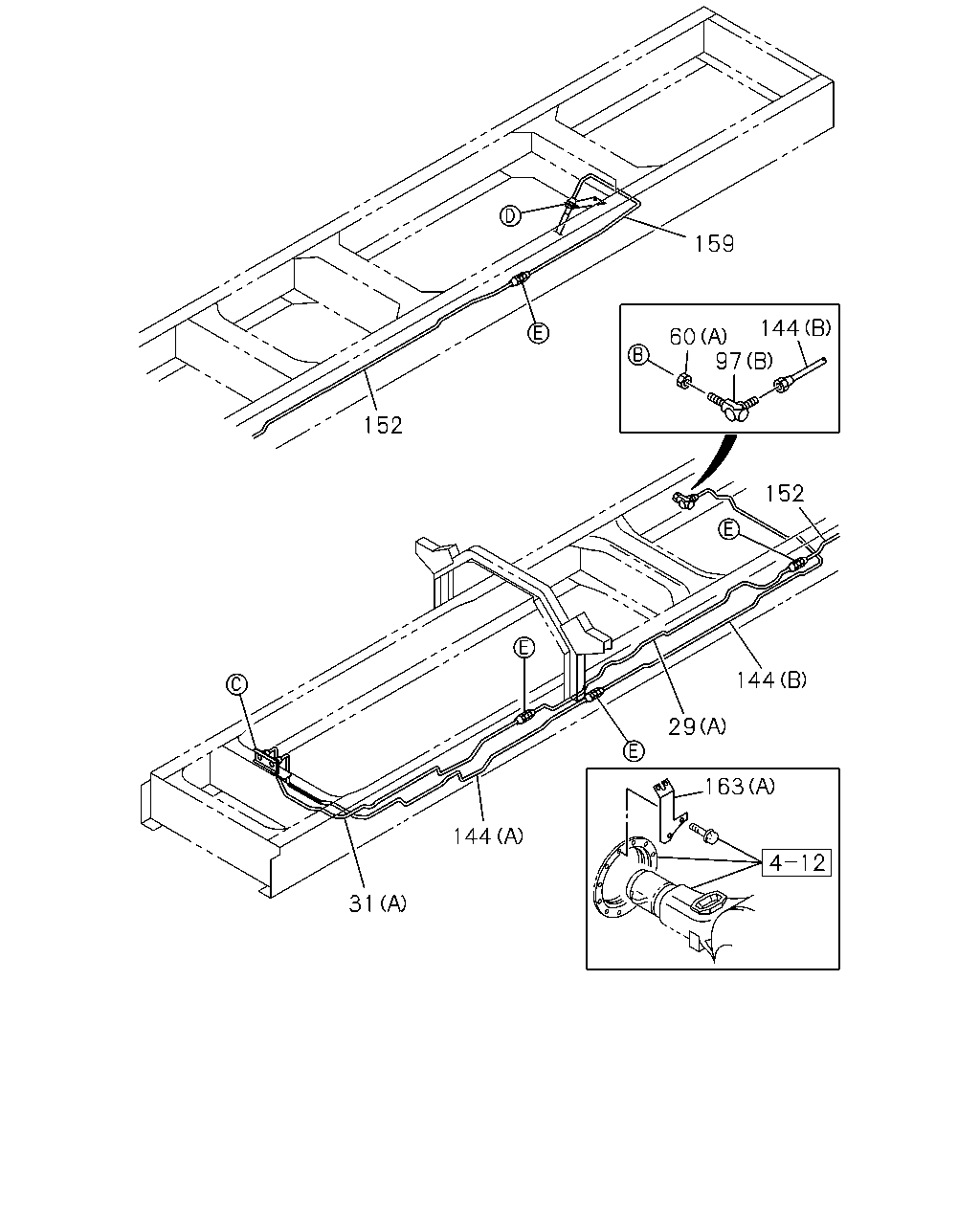

29 98 37 29 159 31 31 29 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	PIPE; AIR,UNION TO UNION (C) L=1974 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (D) L=1181 SERVICED BY L=1250	1-47428-876-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1395	8-98122-841-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION (D) L=1395	8-98122-841-0	01	1	0812-		●
29	PIPE; AIR,UNION TO UNION (B) L=2290 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (A) L=1839 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (E) L=1580 SERVICED BY L=1700	1-47428-880-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1774	8-98122-842-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (B) L=3216 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (A) L=2185 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=1919 SERVICED BY L=2100	1-47428-882-0	01	1	0803-0811	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1584	8-98122-840-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (D) L=1584	8-98122-840-0	01	1	0812-		●
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0811	●	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0812-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●

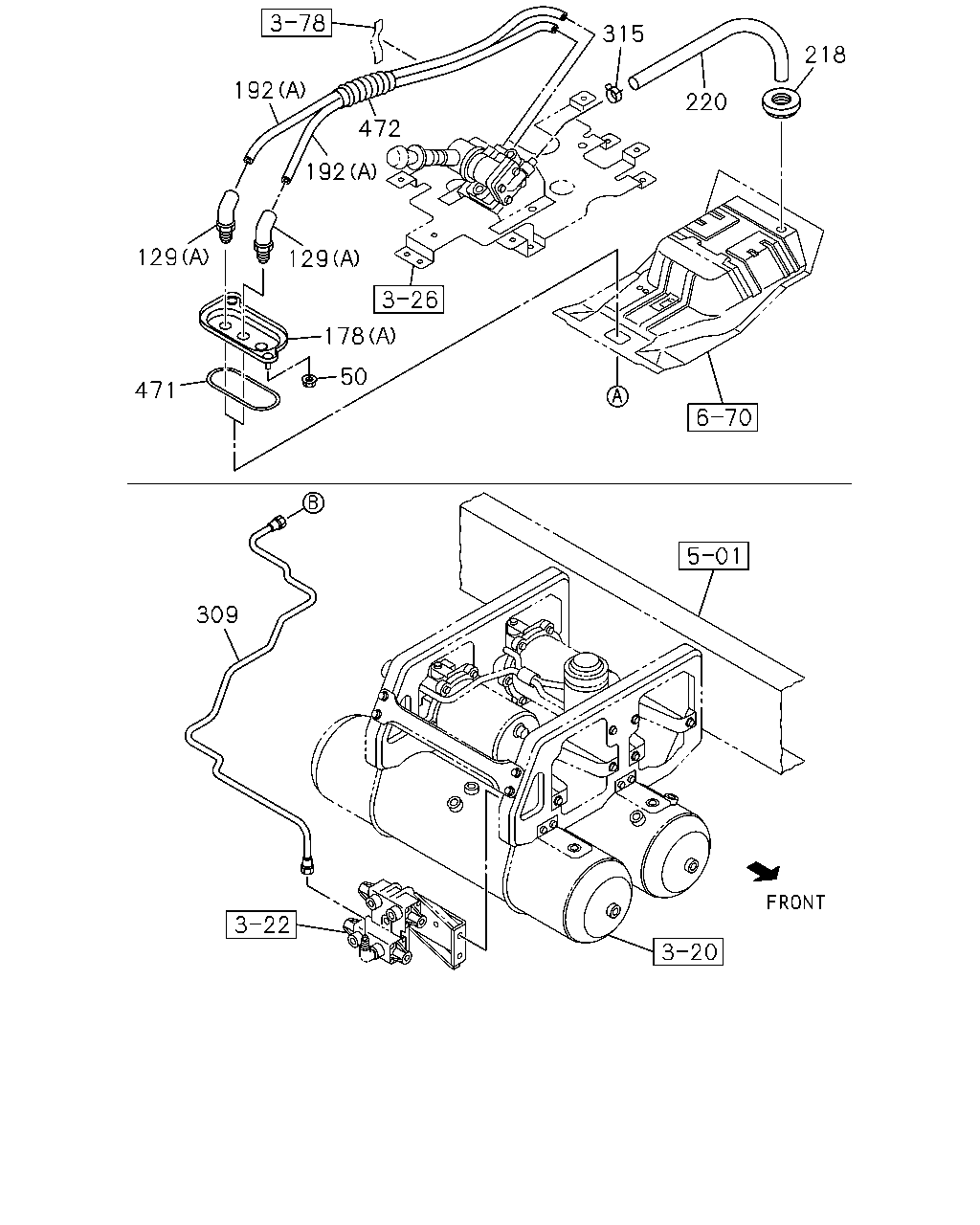

315 218 192 220 472 192 129 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-		●
178	BRACKET; UNION DIFF LOCK<C3N> (D)	8-98156-572-0	01	1	1004-			●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0812-1003	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1004-	●
178	BRACKET; UNION (A)	8-98017-052-1	01	1	1004-			●
178	BRACKET; UNION (C)	1-47475-427-1	02	1	0712-0802		●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802	●
178	BRACKET; UNION (A)	8-98017-054-0	01	1	0712-0811	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0812-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0812-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802		●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98115-589-0	01	1	0812-0906	●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0812-0906		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-0811	●	●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0812-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0812-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-0811	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0812-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0812-		●
309	PIPE; AIR,MPV TO UNION L=1233 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	0803-		●
309	PIPE; AIR,MPV TO UNION L=1159 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=753 SERVICED BY L=800	1-47428-872-0	01	1	0812-	●
315	CLIP ID=14	8-94238-572-0	01	1	0712-0811	●	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0812-	●
315	CLIP ID=14	8-94238-572-0	01	1	0812-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-1003	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1004-	●	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-0811	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0812-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0812-		●

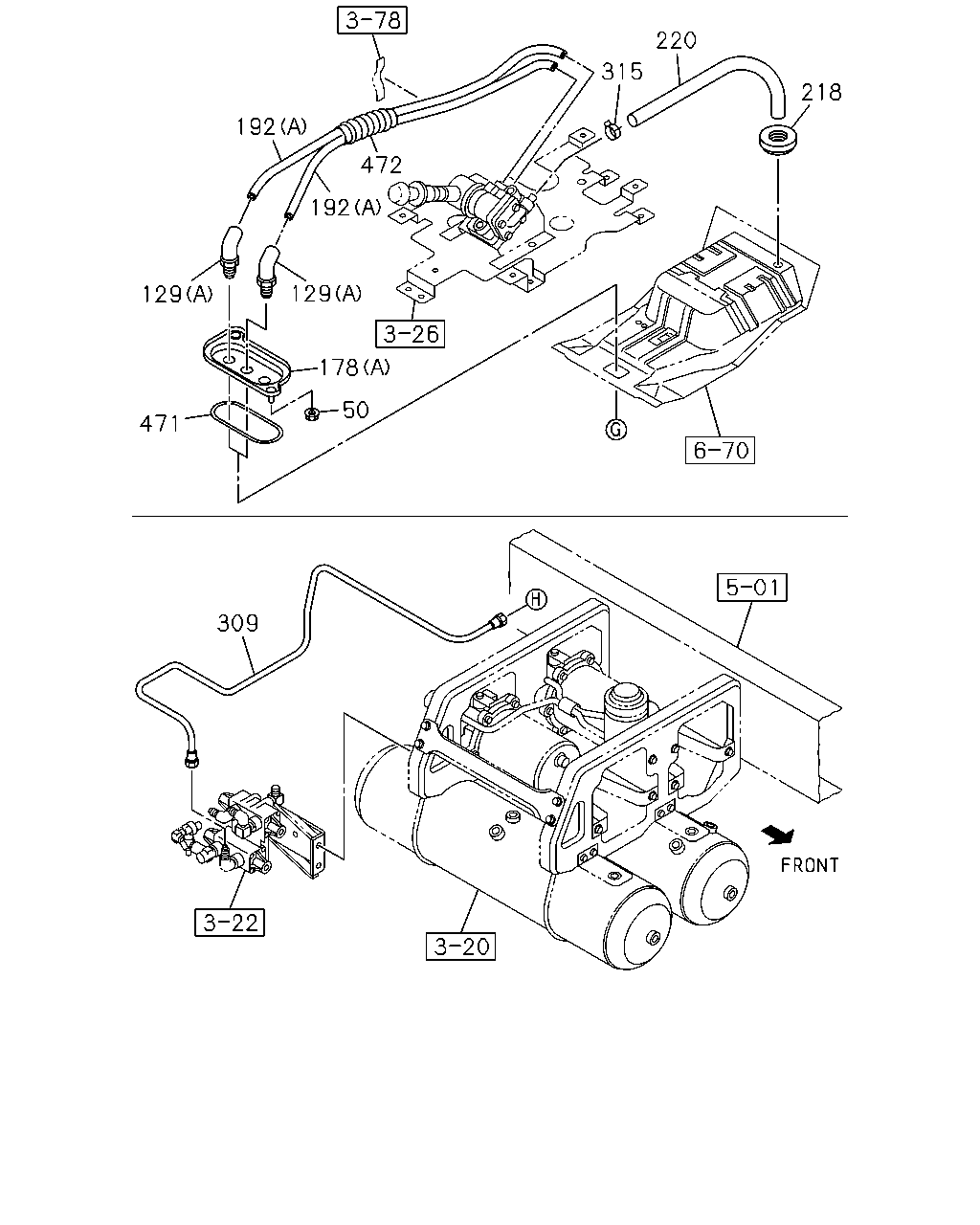

220 315 218 192 472 192 129 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-		●
178	BRACKET; UNION DIFF LOCK<C3N> (D)	8-98156-572-0	01	1	1004-			●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0812-1003	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1004-	●
178	BRACKET; UNION (A)	8-98017-052-1	01	1	1004-			●
178	BRACKET; UNION (C)	1-47475-427-1	02	1	0712-0802		●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802	●
178	BRACKET; UNION (A)	8-98017-054-0	01	1	0712-0811	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0812-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0812-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802		●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98115-589-0	01	1	0812-0906	●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0812-0906		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-0811	●	●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0812-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0812-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-0811	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0812-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0812-		●
309	PIPE; AIR,MPV TO UNION L=1233 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	0803-		●
309	PIPE; AIR,MPV TO UNION L=1159 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=753 SERVICED BY L=800	1-47428-872-0	01	1	0812-	●
315	CLIP ID=14	8-94238-572-0	01	1	0712-0811	●	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0812-	●
315	CLIP ID=14	8-94238-572-0	01	1	0812-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-1003	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1004-	●	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-0811	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0812-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0812-		●

159 144 60 97 152 152 144 29 163 144 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	PIPE; AIR,UNION TO UNION (C) L=1974 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (D) L=1181 SERVICED BY L=1250	1-47428-876-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1395	8-98122-841-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION (D) L=1395	8-98122-841-0	01	1	0812-		●
29	PIPE; AIR,UNION TO UNION (B) L=2290 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (A) L=1839 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (E) L=1580 SERVICED BY L=1700	1-47428-880-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1774	8-98122-842-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (B) L=3216 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (A) L=2185 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=1919 SERVICED BY L=2100	1-47428-882-0	01	1	0803-0811	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1584	8-98122-840-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (D) L=1584	8-98122-840-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE (A) M16	0-91111-516-0	01	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B)	9-14149-158-0	03	1	0803-0803	●	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0804-0811	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	02	1	0812-	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0812-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0907-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0907-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0803	●
144	PIPE; AIR,UNION TO UNION (D) L=648	8-98111-603-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION (A) L=1820 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0812-0906	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790	8-98111-602-1	01	1	0907-	●
144	PIPE; AIR,UNION TO UNION (B) L=2287 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1736 SERVICED BY L=1900	1-47428-881-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=1537	8-98122-839-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1537	8-98122-839-0	01	1	0812-		●
152	PIPE; AIR,UNION TO UNION L=953 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
152	PIPE; AIR,UNION TO UNION	8-98111-623-0	01	1	0803-0811		●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●

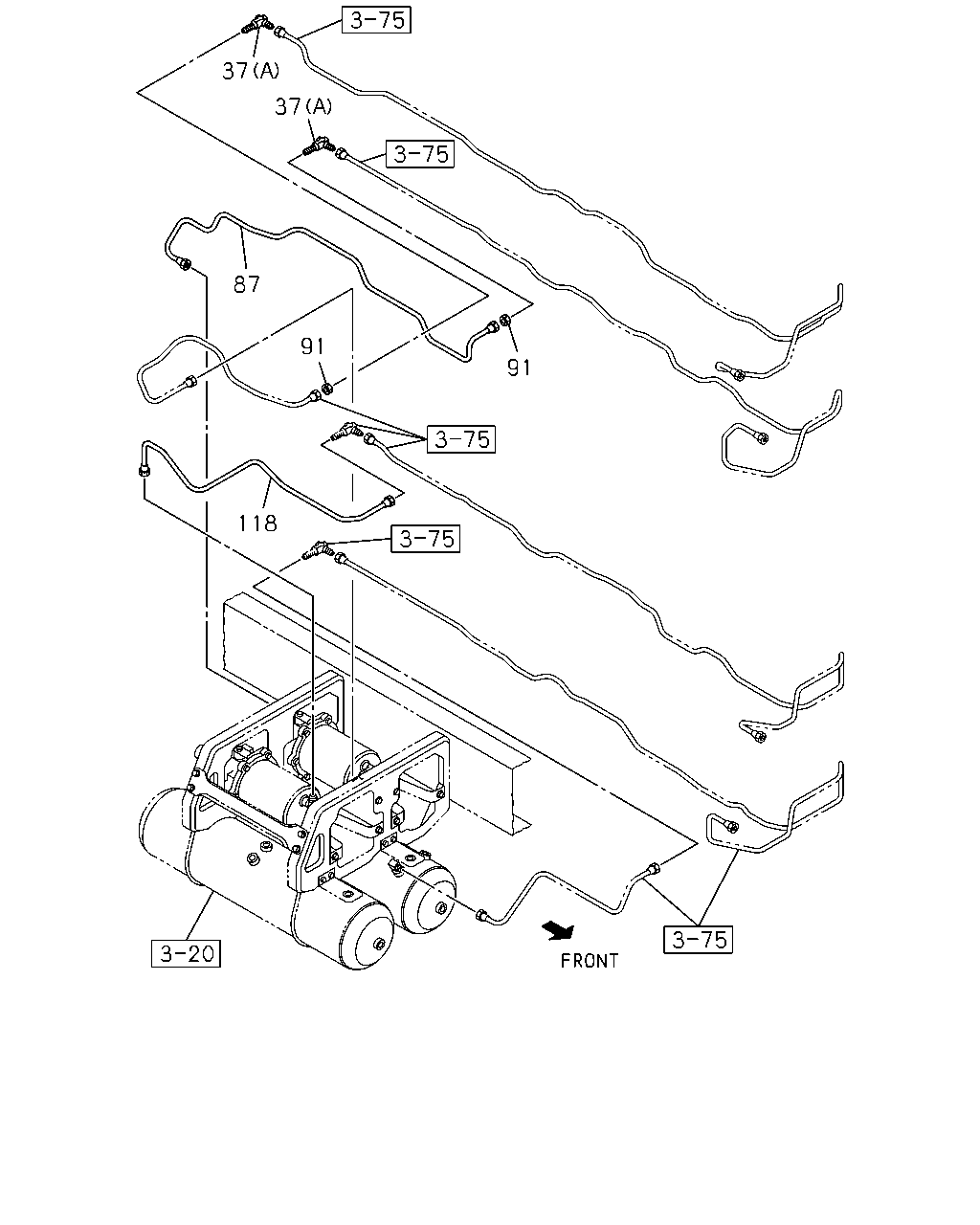

37 37 101 87 91 91 59 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
59	PIPE; AIR,UNION TO FLEX HOSE L=2735 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> L=1056 SERVICED BY L=1100	1-47428-875-0	01	1	1004-			●
87	PIPE; AIR,AIR TANK TO UNION L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	0803-		●
87	PIPE; AIR,AIR TANK TO UNION L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION L=934 SERVICED BY L=1000	1-47428-874-0	01	1	0803-0805	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	0806-1003	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-			●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-1003	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1004-	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2916 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=764 SERVICED BY L=800	1-47428-872-0	01	1	0812-1003	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=764 SERVICED BY L=800	1-47428-872-0	01	1	1004-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> L=764 SERVICED BY L=800	1-47428-872-0	01	1	1004-			●
118	PIPE; AIR,UNION TO AIR MASTER L=747 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU> L=747 SERVICED BY L=800	1-47428-872-0	01	1	0812-	●
118	PIPE; AIR,UNION TO AIR MASTER L=654 SERVICED BY L=660	1-47428-869-0	01	1	0803-		●
118	PIPE; AIR,UNION TO AIR MASTER L=897 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●	●

97 144 144 98 37 29 159 144 29 29 192 144 192 31 159 37 29 223 144 46 129 192 29 97 144 23 31 46 129 192 29 97 31 60 163 79 159 162 161 163 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
29	PIPE; AIR,UNION TO UNION (C) L=1974 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (D) L=1181 SERVICED BY L=1250	1-47428-876-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1395	8-98122-841-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION (D) L=1395	8-98122-841-0	01	1	0812-		●
29	PIPE; AIR,UNION TO UNION (B) L=2290 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (A) L=1839 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (E) L=1580 SERVICED BY L=1700	1-47428-880-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1774	8-98122-842-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (B) L=3216 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (A) L=2185 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=1919 SERVICED BY L=2100	1-47428-882-0	01	1	0803-0811	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1584	8-98122-840-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (D) L=1584	8-98122-840-0	01	1	0812-		●
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE (A) M16	0-91111-516-0	01	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B)	9-14149-158-0	03	1	0803-0803	●	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0804-0811	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	02	1	0812-	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0812-		●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0811	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0812-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0907-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0907-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0803	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0811	●	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0812-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0812-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-		●
144	PIPE; AIR,UNION TO UNION (D) L=648	8-98111-603-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION (A) L=1820 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0812-0906	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790	8-98111-602-1	01	1	0907-	●
144	PIPE; AIR,UNION TO UNION (B) L=2287 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1736 SERVICED BY L=1900	1-47428-881-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=1537	8-98122-839-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1537	8-98122-839-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-921-0	01	1	0712-0802		●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-746-0	01	1	0712-0802	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0803-0811	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	1-09363-732-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0812-		●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-0811	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0812-	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0812-		●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802		●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98115-589-0	01	1	0812-0906	●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0812-0906		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0907-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0907-		●

37 37 87 91 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> L=1056 SERVICED BY L=1100	1-47428-875-0	01	1	1004-			●
87	PIPE; AIR,AIR TANK TO UNION L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	0803-		●
87	PIPE; AIR,AIR TANK TO UNION L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION L=934 SERVICED BY L=1000	1-47428-874-0	01	1	0803-0805	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	0806-1003	●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1004-			●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-1003	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1004-	●	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=764 SERVICED BY L=800	1-47428-872-0	01	1	0812-1003	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=764 SERVICED BY L=800	1-47428-872-0	01	1	1004-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> L=764 SERVICED BY L=800	1-47428-872-0	01	1	1004-			●
118	PIPE; AIR,UNION TO AIR MASTER L=747 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU> L=747 SERVICED BY L=800	1-47428-872-0	01	1	0812-	●
118	PIPE; AIR,UNION TO AIR MASTER L=654 SERVICED BY L=660	1-47428-869-0	01	1	0803-		●
118	PIPE; AIR,UNION TO AIR MASTER L=897 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●	●

192 46 100 280 192 46 100 280 226 192 46 100 280 163 37 37 37 159 100 280 161 23 17 46 60 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-0802		●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE (A) M16	0-91111-516-0	01	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B)	9-14149-158-0	03	1	0803-0803	●	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0804-0811	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	02	1	0812-	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0812-		●
100	NUT; UNION DIFF LOCK<C3N> (C) M12	9-09840-280-0	01	1	1004-			●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802		●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802		●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-921-0	01	1	0712-0802		●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-746-0	01	1	0712-0802	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0803-0811	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	1-09363-732-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0812-		●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●
178	BRACKET; UNION DIFF LOCK<C3N> (D)	8-98156-572-0	01	1	1004-			●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0812-1003	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1004-	●
178	BRACKET; UNION (A)	8-98017-052-1	01	1	1004-			●
178	BRACKET; UNION (C)	1-47475-427-1	02	1	0712-0802		●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802	●
178	BRACKET; UNION (A)	8-98017-054-0	01	1	0712-0811	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0812-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0812-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802		●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98115-589-0	01	1	0812-0906	●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0812-0906		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802		●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802		●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802	●

97 144 98 37 144 29 152 29 159 144 29 192 144 192 159 37 152 152 46 29 31 223 144 46 129 192 29 97 144 23 31 46 129 192 29 97 31 60 163 79 159 162 161 163 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
29	PIPE; AIR,UNION TO UNION (C) L=1974 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (D) L=1181 SERVICED BY L=1250	1-47428-876-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1395	8-98122-841-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION (D) L=1395	8-98122-841-0	01	1	0812-		●
29	PIPE; AIR,UNION TO UNION (B) L=2290 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (A) L=1839 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (E) L=1580 SERVICED BY L=1700	1-47428-880-0	01	1	0803-0811	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1774	8-98122-842-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (B) L=3216 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (A) L=2185 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=1919 SERVICED BY L=2100	1-47428-882-0	01	1	0803-0811	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1584	8-98122-840-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (D) L=1584	8-98122-840-0	01	1	0812-		●
37	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> (E) M16 3WAY	0-92148-610-0	01	1	1004-			●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802		●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16 L=42	0-92123-010-0	01	1	0803-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0811	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0812-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1003	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1004-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1004-			●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE (A) M16	0-91111-516-0	01	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
60	NUT; NIPPLE,AIR PIPE (B)	9-14149-158-0	03	1	0803-0803	●	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0804-0811	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	02	1	0812-	●
60	NUT; NIPPLE,AIR PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0812-		●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0811	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0812-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0907-		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-0811	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-0906	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-0906		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	02	1	0907-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0907-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0803	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0811	●	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0812-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0812-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0812-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-0811	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0812-		●
144	PIPE; AIR,UNION TO UNION (D) L=648	8-98111-603-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION (A) L=1820 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790 SERVICED BY L=800	1-47428-872-0	01	1	0812-0906	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=790	8-98111-602-1	01	1	0907-	●
144	PIPE; AIR,UNION TO UNION (B) L=2287 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1736 SERVICED BY L=1900	1-47428-881-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=1537	8-98122-839-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1537	8-98122-839-0	01	1	0812-		●
152	PIPE; AIR,UNION TO UNION L=953 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
152	PIPE; AIR,UNION TO UNION	8-98111-623-0	01	1	0803-0811		●
159	PIPE; AIR,UNION TO FLEX HOSE DIFF LOCK<C3N> L=2314 SERVICED BY L=2350	1-47428-825-0	01	1	1004-			●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1147 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-624-0	01	1	0803-0811	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-921-0	01	1	0712-0802		●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-746-0	01	1	0712-0802	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0803-0811	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	1-09363-732-0	01	1	0812-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	0812-		●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-0811	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0812-	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0812-		●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	0712-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	0804-1003	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1004-	●	●	●
163	BRACKET; FLEX HOSE (C)	8-98098-182-0	01	1	0712-0802		●
163	BRACKET; FLEX HOSE (B)	1-47475-464-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0803-0811	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98044-842-0	01	1	0812-	●
163	BRACKET; FLEX HOSE (D)	8-98044-842-0	01	1	0812-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802		●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98115-589-0	01	1	0812-0906	●
192	TUBE; NYLON (B)	8-98115-589-0	01	1	0812-0906		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-0906		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0907-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0907-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0907-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
