◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#56603) — 858 parça

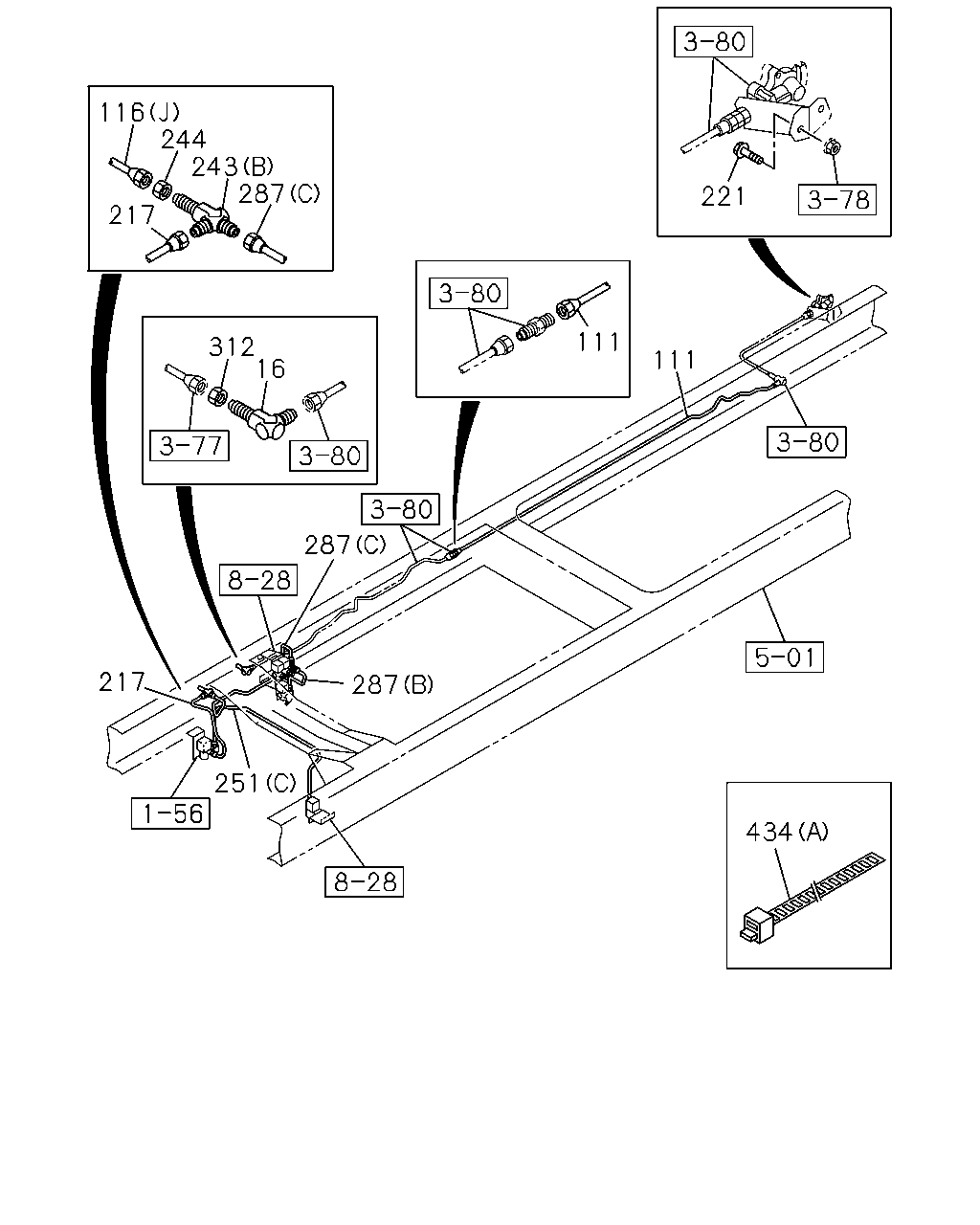

çizim 181780
116 244 243 287 217 221 111 312 16 111 287 217 287 251 434
BalonParca AdiParca NoAdetTipApplied Date A B C
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		0-92135-210-0 01 1 1004- ●
111 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1729 SERVICED BY L=1900 		1-47428-881-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (H) 		8-98147-506-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (I) 		8-98147-508-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (J) L=1091 SERVICED BY L=1100 		1-47428-815-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (J) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (E) L=704 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) L=701 SERVICED BY L=800 		1-47428-812-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
EXC. BRAKE REGULATION ADR<TDU> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0902- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (F) 		8-98108-563-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0902-0905 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (G) 		8-98108-561-0 01 1 1004- ●
217 PIPE; VAC,UNION TO MAG VLV
L=413 		8-98147-700-0 01 1 1004- ●
217 PIPE; VAC,UNION TO MAG VLV
L=262 		8-98054-511-0 01 1 0712-0802 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0803-1003 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 1004- ●
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28651-030-0 02 1 1004- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-0811 ● ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(B) L=236 		8-98093-529-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(C) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(A) L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0803-0811 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-0906 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 		8-98138-240-1 01 1 0907- ●
287 PIPE; AIR,MAG VLV
(A) L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 0803- ●
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 		0-91111-516-0 01 1 1004- ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-1003 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1004- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-1003 ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1004- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●

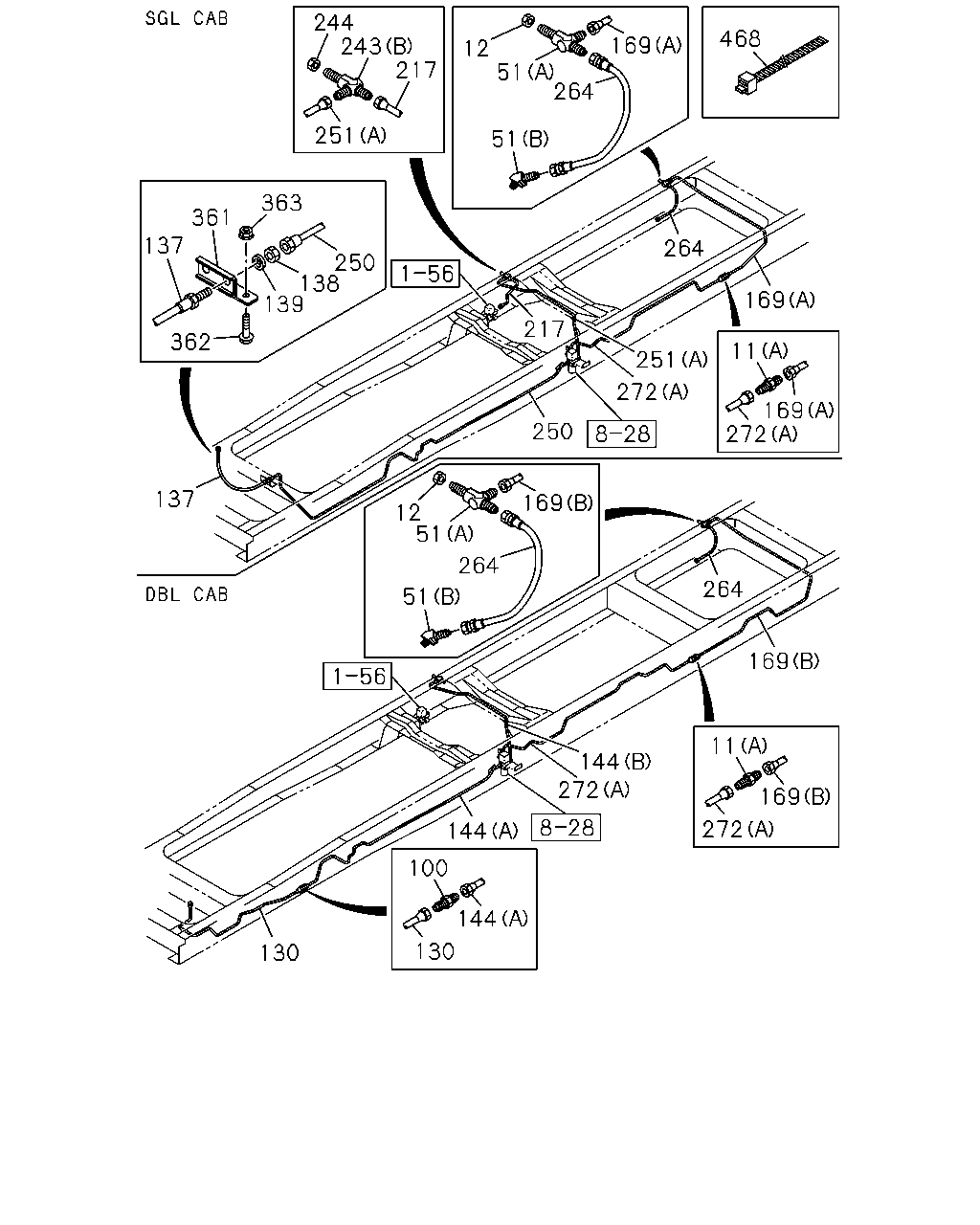

çizim 181782
244 243 217 468 169 12 51 264 251 51 363 361 137 264 250 138 139 169 217 362 11 251 272 169 272 250 137 169 12 51 264 264 51 169 11 144 272 169 272 144 100 144 130 130
BalonParca AdiParca NoAdetTipApplied Date A B C
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712-0811 ● ●
11 UNION; AIR PIPE
EURO4 SPECIFICATION<NT4> (A) M12 L=40 		0-92113-006-0 01 1 0812- ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0812- ●
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> M12 		0-91111-512-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803-0811 ● ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
100 CONNECTOR; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 0712-0802 ●
130 PIPE; AIR,UNION TO UNION
L=1052 SERVICED BY L=1100 		1-47428-815-0 01 1 0712-0802 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=560 		1-09363-654-0 01 1 0712-0802 ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0712-0802 ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0712-0802 ●
144 PIPE; AIR,UNION TO UNION
(A) L=1940 SERVICED BY L=2000 		1-47428-823-0 01 1 0712-0802 ●
144 PIPE; AIR,UNION TO UNION
(B) L=904 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803-0811 ●
169 PIPE; AIR,UNION TO FLEX HOSE
EURO4 SPECIFICATION<NT4> (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0812- ●
217 PIPE; VAC,UNION TO MAG VLV
L=413 		8-98147-700-0 01 1 1004- ●
217 PIPE; VAC,UNION TO MAG VLV
L=262 		8-98054-511-0 01 1 0712-0802 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0803-1003 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 1004- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2844 SERVICED BY L=2900 		1-47428-828-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-0811 ● ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803-0811 ● ●
264 HOSE; FLEX
CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09363-877-0 01 1 0812- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2407 		8-98132-312-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) L=2473 		8-98132-313-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> (B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
361 BRACKET; FLEX HOSE,AIR GOV 1-47476-781-0 01 1 0712-0802 ●
362 BOLT; BRKT,FLEX HOSE,AIR GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
363 NUT; BRKT,FLEX HOSE,AIR GOV
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
468 CLIP; BAND
L=250 		1-09707-126-0 01 1 0712-0802 ●

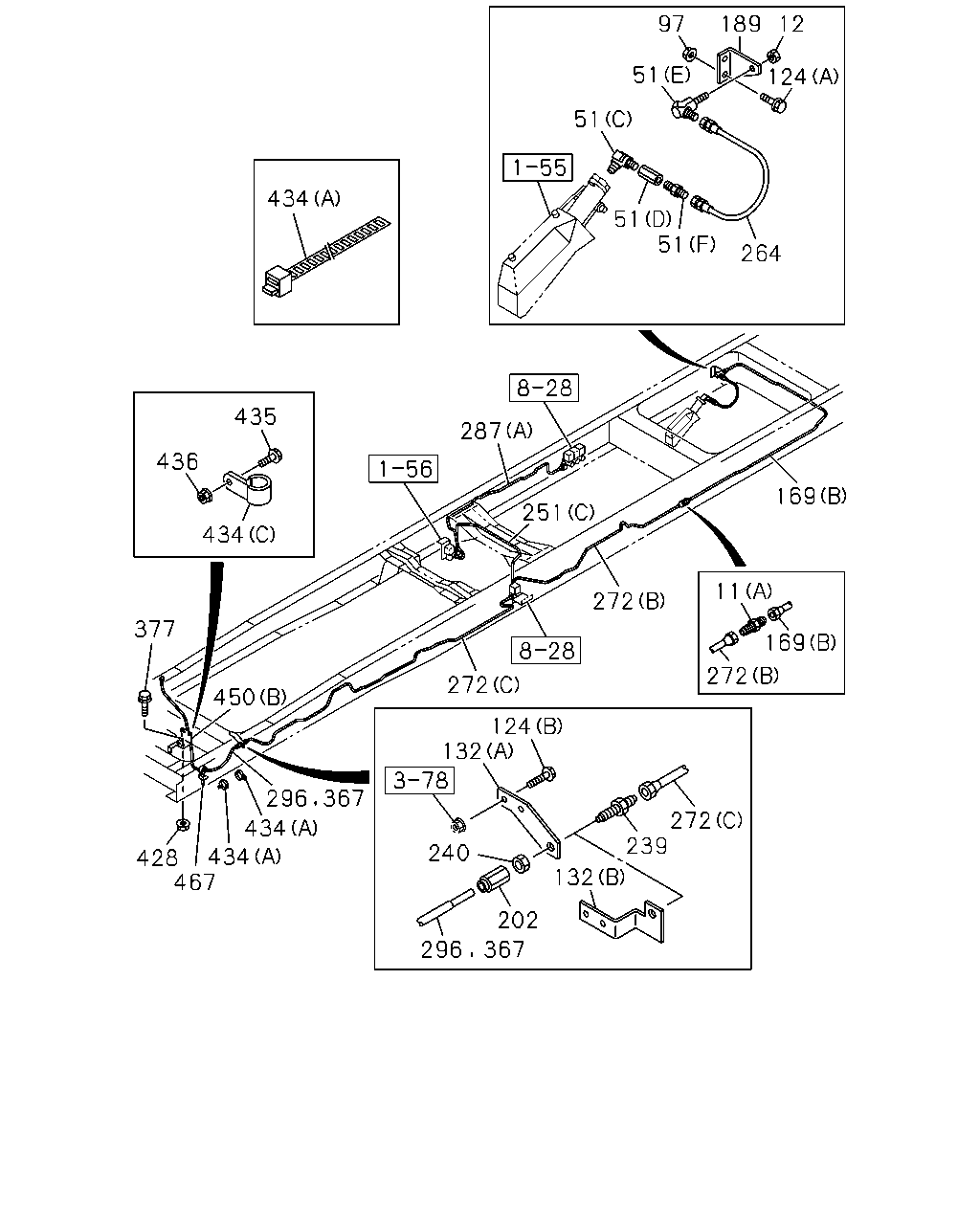

çizim 181920
97 189 12 51 124 51 434 51 51 264 435 287 436 169 251 434 11 272 377 169 272 272 450 124 132 272 239 132 434 240 467 202 296 367 296 367 434 428
BalonParca AdiParca NoAdetTipApplied Date A B C
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712-0811 ● ●
11 UNION; AIR PIPE
EURO4 SPECIFICATION<NT4> (A) M12 L=40 		0-92113-006-0 01 1 0812- ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0812- ●
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> M12 		0-91111-512-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803-0811 ● ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
97 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0812- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0812- ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812- ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812- ●
124 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
132 BRACKET; PIPE UNION
(A) 		8-98114-415-0 01 1 0803-0811 ● ●
132 BRACKET; PIPE UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98122-875-0 01 1 0812- ●
132 BRACKET; PIPE UNION
(B) 		8-98122-875-0 01 1 0812- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803-0811 ●
169 PIPE; AIR,UNION TO FLEX HOSE
EURO4 SPECIFICATION<NT4> (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0812- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803-0811 ● ●
189 BRACKET; FLEX HOSE
EURO4 SPECIFICATION<NT4> 		8-98054-640-0 01 1 0812- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0812- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0811 ● ●
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812- ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0803-0811 ● ●
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 L=56.5 		0-92113-106-0 01 1 0812- ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0812- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803-0811 ● ●
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		9-09840-280-0 01 1 0812- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-0811 ● ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803-0811 ● ●
264 HOSE; FLEX
CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09363-877-0 01 1 0812- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2407 		8-98132-312-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) L=2473 		8-98132-313-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> (B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
287 PIPE; AIR,MAG VLV
(B) L=236 		8-98093-529-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(C) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(A) L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0803-0811 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-0906 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 		8-98138-240-1 01 1 0907- ●
287 PIPE; AIR,MAG VLV
(A) L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 0803- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0803-0811 ● ●
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0803-0811 ● ●
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0812- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-1003 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1004- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-1003 ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1004- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-0811 ● ●
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0805-0811 ● ●
467 CLIP; NYLON TUBE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 0812- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0812- ●

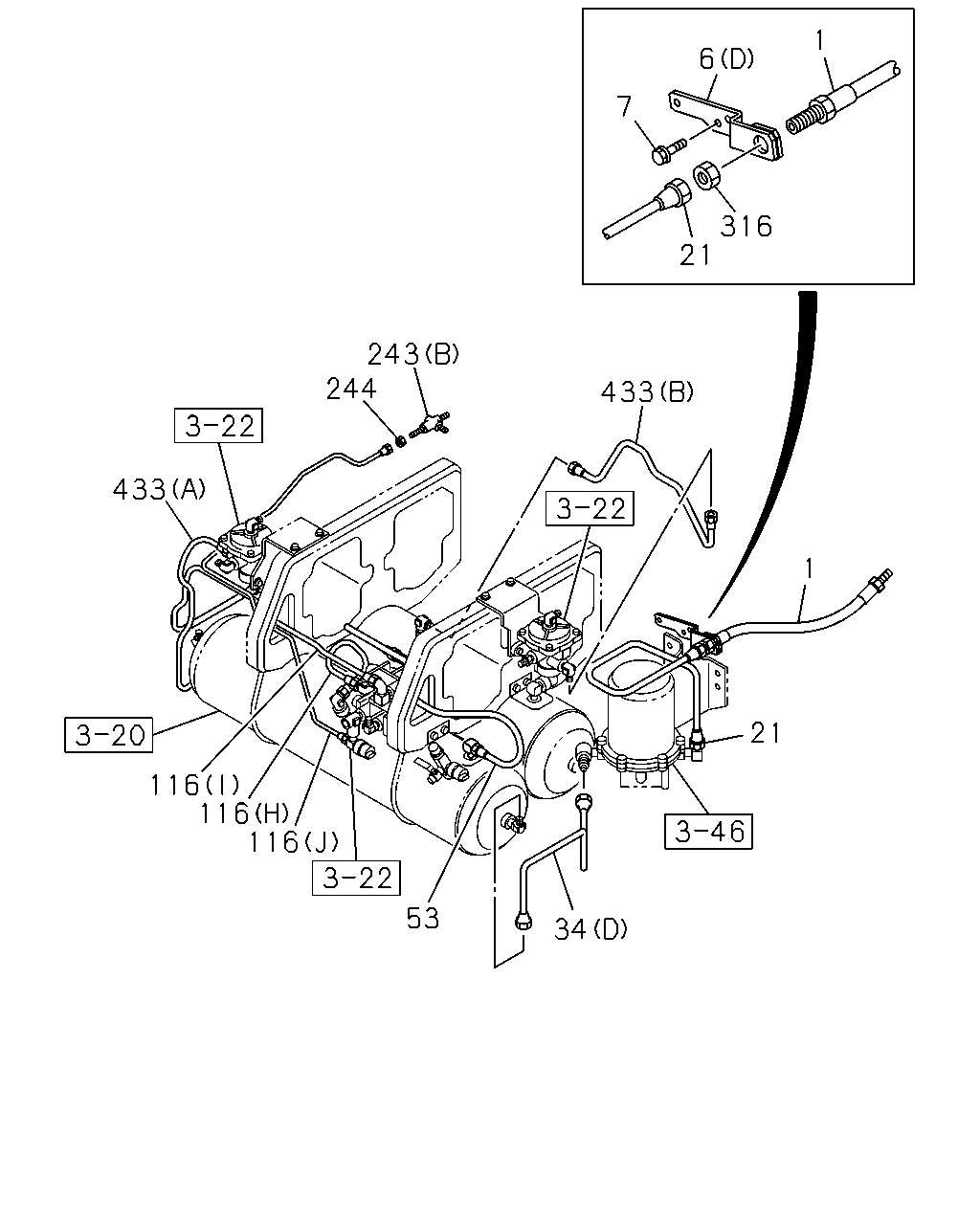

çizim 181934
1 6 7 316 21 243 244 433 433 1 21 116 116 116 53 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803-1003 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806-1003 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 1004- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803-1003 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1004- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
ANTI LOCK BRAKE<JE5> (D) L=405 		8-98147-523-0 01 1 1004- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803-1003 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
34 PIPE; AIR
EXC. ANTI LOCK BRAKE<JE5> (C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE
ANTI LOCK BRAKE<JE5> 		8-98147-505-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803-1003 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1004- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. ANTI LOCK BRAKE<JE5> L=732 		8-98108-559-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (H) 		8-98147-506-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (I) 		8-98147-508-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (J) L=1091 SERVICED BY L=1100 		1-47428-815-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (J) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (E) L=704 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) L=701 SERVICED BY L=800 		1-47428-812-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
EXC. BRAKE REGULATION ADR<TDU> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0902- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (F) 		8-98108-563-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0902-0905 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (G) 		8-98108-561-0 01 1 1004- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0803-1003 ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1004- ● ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
ANTI LOCK BRAKE<JE5> (B) L=596 SERVICED BY L=600 		1-47428-868-0 01 1 1004- ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
ANTI LOCK BRAKE<JE5> (A) 		8-98147-511-0 01 1 1004- ●

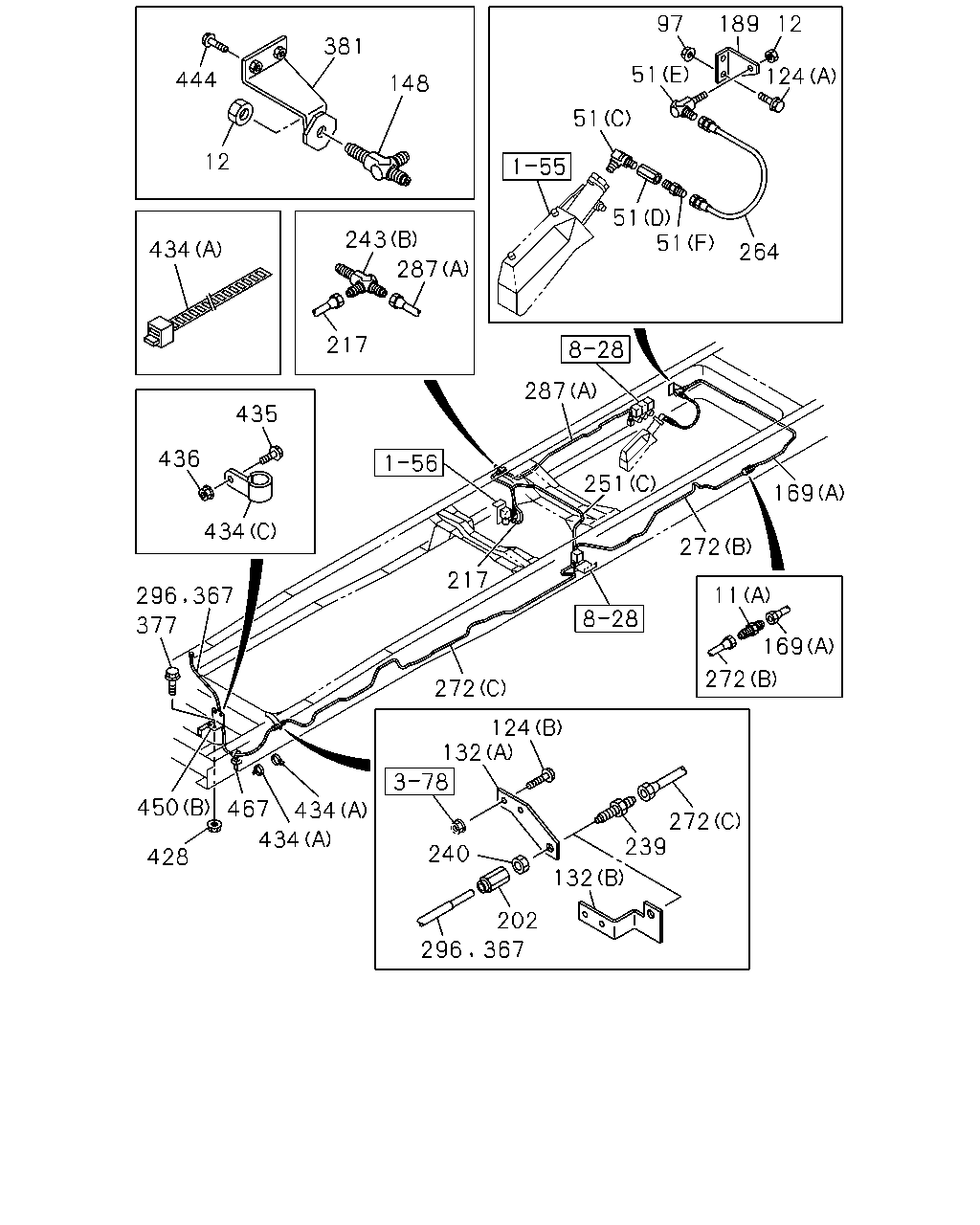

çizim 181941
97 189 12 381 51 124 444 148 51 12 51 51 243 434 264 287 217 287 435 436 251 169 434 272 217 11 377 169 272 272 124 132 450 467 434 272 239 132 240 434 428 202 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B C
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712-0811 ● ●
11 UNION; AIR PIPE
EURO4 SPECIFICATION<NT4> (A) M12 L=40 		0-92113-006-0 01 1 0812- ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0812- ●
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> M12 		0-91111-512-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803-0811 ● ●
12 NUT; UNION
EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0812- ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803-0811 ● ●
51 UNION
EURO4 SPECIFICATION<NT4> (E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0812- ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
97 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0812- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0812- ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812- ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812- ●
124 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
132 BRACKET; PIPE UNION
(A) 		8-98114-415-0 01 1 0803-0811 ● ●
132 BRACKET; PIPE UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98122-875-0 01 1 0812- ●
132 BRACKET; PIPE UNION
(B) 		8-98122-875-0 01 1 0812- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> M12 2WAY 		1-09654-059-2 01 1 0812- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803-0811 ●
169 PIPE; AIR,UNION TO FLEX HOSE
EURO4 SPECIFICATION<NT4> (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0812- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803-0811 ● ●
189 BRACKET; FLEX HOSE
EURO4 SPECIFICATION<NT4> 		8-98054-640-0 01 1 0812- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0812- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0811 ● ●
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812- ●
217 PIPE; VAC,UNION TO MAG VLV
L=413 		8-98147-700-0 01 1 1004- ●
217 PIPE; VAC,UNION TO MAG VLV
L=262 		8-98054-511-0 01 1 0712-0802 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0803-1003 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 1004- ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0803-0811 ● ●
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 L=56.5 		0-92113-106-0 01 1 0812- ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0812- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803-0811 ● ●
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		9-09840-280-0 01 1 0812- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-0811 ● ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803-0811 ● ●
264 HOSE; FLEX
CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09363-877-0 01 1 0812- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2407 		8-98132-312-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) L=2473 		8-98132-313-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION<NT4> (B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
287 PIPE; AIR,MAG VLV
(B) L=236 		8-98093-529-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(C) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
287 PIPE; AIR,MAG VLV
(A) L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0803-0811 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-0906 ●
287 PIPE; AIR,MAG VLV
(A) L=1063 		8-98138-240-1 01 1 0907- ●
287 PIPE; AIR,MAG VLV
(A) L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 0803- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0803-0811 ● ●
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0803-0811 ● ●
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0812- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> 		8-98131-569-0 01 1 0812- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0905 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-1003 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1004- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-1003 ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1004- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0812- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-0811 ● ●
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0805-0811 ● ●
467 CLIP; NYLON TUBE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 0812- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0812- ●

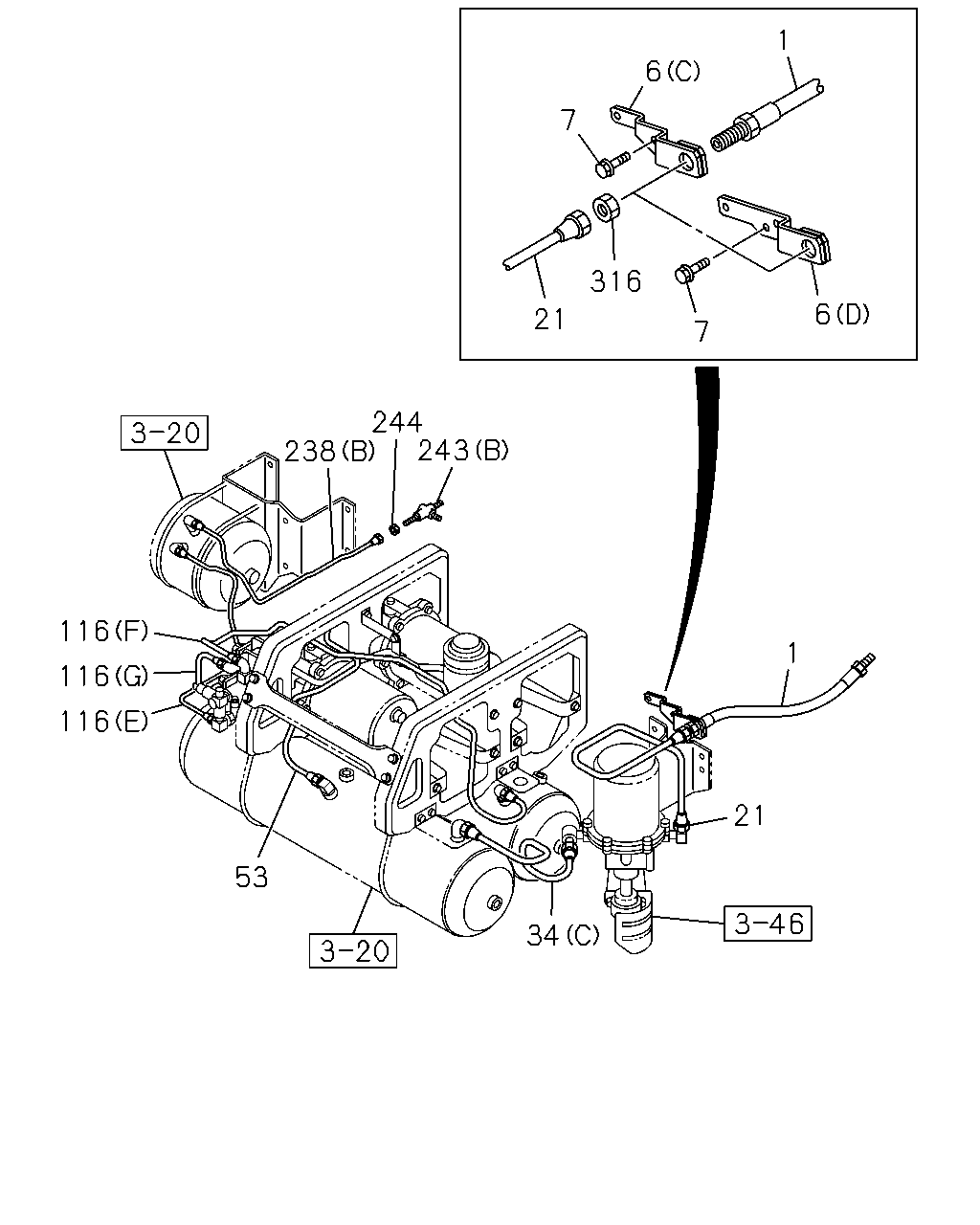

çizim 182019
1 6 7 316 6 21 7 244 238 243 116 1 116 116 21 53 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803-1003 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806-1003 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 1004- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803-1003 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1004- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
ANTI LOCK BRAKE<JE5> (D) L=405 		8-98147-523-0 01 1 1004- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803-1003 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
34 PIPE; AIR
EXC. ANTI LOCK BRAKE<JE5> (C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE
ANTI LOCK BRAKE<JE5> 		8-98147-505-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803-1003 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1004- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. ANTI LOCK BRAKE<JE5> L=732 		8-98108-559-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (H) 		8-98147-506-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (I) 		8-98147-508-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (J) L=1091 SERVICED BY L=1100 		1-47428-815-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (J) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (E) L=704 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) L=701 SERVICED BY L=800 		1-47428-812-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
EXC. BRAKE REGULATION ADR<TDU> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0902- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (F) 		8-98108-563-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0902-0905 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (G) 		8-98108-561-0 01 1 1004- ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
238 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ADR<TDU> (B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0812- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0803-1003 ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1004- ● ● ●
çizim 182027
434 435 53 436 116 1 116 7 116 6 34 7 6 421 450 377 377 251 436 11 421 45 238 434 153 131 116 116 118 153 251 116 117 118 45 238 1 21 53 34 243 238 244 116
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803-1003 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806-1003 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 1004- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712-0811 ● ●
11 UNION; AIR PIPE
EURO4 SPECIFICATION<NT4> (A) M12 L=40 		0-92113-006-0 01 1 0812- ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0812- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803-1003 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1004- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
ANTI LOCK BRAKE<JE5> (D) L=405 		8-98147-523-0 01 1 1004- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803-1003 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
34 PIPE; AIR
EXC. ANTI LOCK BRAKE<JE5> (C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
45 PIPE; AIR,UNION TO AIR TANK
L=381 		8-98099-038-0 01 1 0712-0802 ●
45 PIPE; AIR,UNION TO AIR TANK
L=361 		8-98111-262-0 01 1 0803- ●
53 PIPE; AIR,AIR TANK TO VALVE
ANTI LOCK BRAKE<JE5> 		8-98147-505-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803-1003 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1004- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. ANTI LOCK BRAKE<JE5> L=732 		8-98108-559-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (H) 		8-98147-506-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (I) 		8-98147-508-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (J) L=1091 SERVICED BY L=1100 		1-47428-815-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (J) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (E) L=704 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) L=701 SERVICED BY L=800 		1-47428-812-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
EXC. BRAKE REGULATION ADR<TDU> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0902- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (F) 		8-98108-563-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0902-0905 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (G) 		8-98108-561-0 01 1 1004- ●
117 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0712-0802 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0803- ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 0712- ●
131 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
153 PIPE; AIR,AIR TANK TO UNION 8-98099-037-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
238 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ADR<TDU> (B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0812- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) 		8-98111-616-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-0811 ● ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0812-1003 ●
251 PIPE; AIR,UNION TO MAG VLV
CATALYSIS CONTROL WITH DPD<8JM> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
251 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> (C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1004- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-1003 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1004- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-1003 ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1004- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-0811 ● ●
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
çizim 182110
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 0712-0811 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1064 		8-98089-688-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-689-0 01 1 0712-0811 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1064 		8-98089-689-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-689-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-146-0 01 1 0712-0811 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=838 		8-98095-146-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-146-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-147-0 01 1 0712-0811 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=838 		8-98095-147-0 01 1 0812- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-147-0 01 1 0812- ●
çizim 182112
436 377 450 7 435 6 21 434 238 421 316 1 238 45 238 116 116 34 116 1 21 53 238 243 117 117 238 244 116 118 45 238 118 238
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803-1003 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1004- ●
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806-1003 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 1004- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803-1003 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1004- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
ANTI LOCK BRAKE<JE5> (D) L=405 		8-98147-523-0 01 1 1004- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803-1003 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
34 PIPE; AIR
EXC. ANTI LOCK BRAKE<JE5> (C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1004- ●
45 PIPE; AIR,UNION TO AIR TANK
L=381 		8-98099-038-0 01 1 0712-0802 ●
45 PIPE; AIR,UNION TO AIR TANK
L=361 		8-98111-262-0 01 1 0803- ●
53 PIPE; AIR,AIR TANK TO VALVE
ANTI LOCK BRAKE<JE5> 		8-98147-505-0 01 1 1004- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803-1003 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1004- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. ANTI LOCK BRAKE<JE5> L=732 		8-98108-559-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (H) 		8-98147-506-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> (I) 		8-98147-508-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (J) L=1091 SERVICED BY L=1100 		1-47428-815-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (J) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (E) L=704 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (E) L=701 SERVICED BY L=800 		1-47428-812-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
EXC. BRAKE REGULATION ADR<TDU> (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0902- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (F) 		8-98108-563-0 01 1 1004- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0812-0901 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0902-0905 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0906- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803-1003 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 1004- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. ANTI LOCK BRAKE<JE5> (G) 		8-98108-561-0 01 1 1004- ●
117 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0712-0802 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0803- ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 0712- ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803-0811 ●
238 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ADR<TDU> (B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0812- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712-1003 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1004- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712-1003 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1004- ● ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0803-1003 ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1004- ● ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-1003 ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1004- ● ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-1003 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1004- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-1003 ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1004- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0812- ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-0811 ● ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0811 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-0811 ● ●
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0812-0905 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0906- ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
