◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#56602) — 57 parça

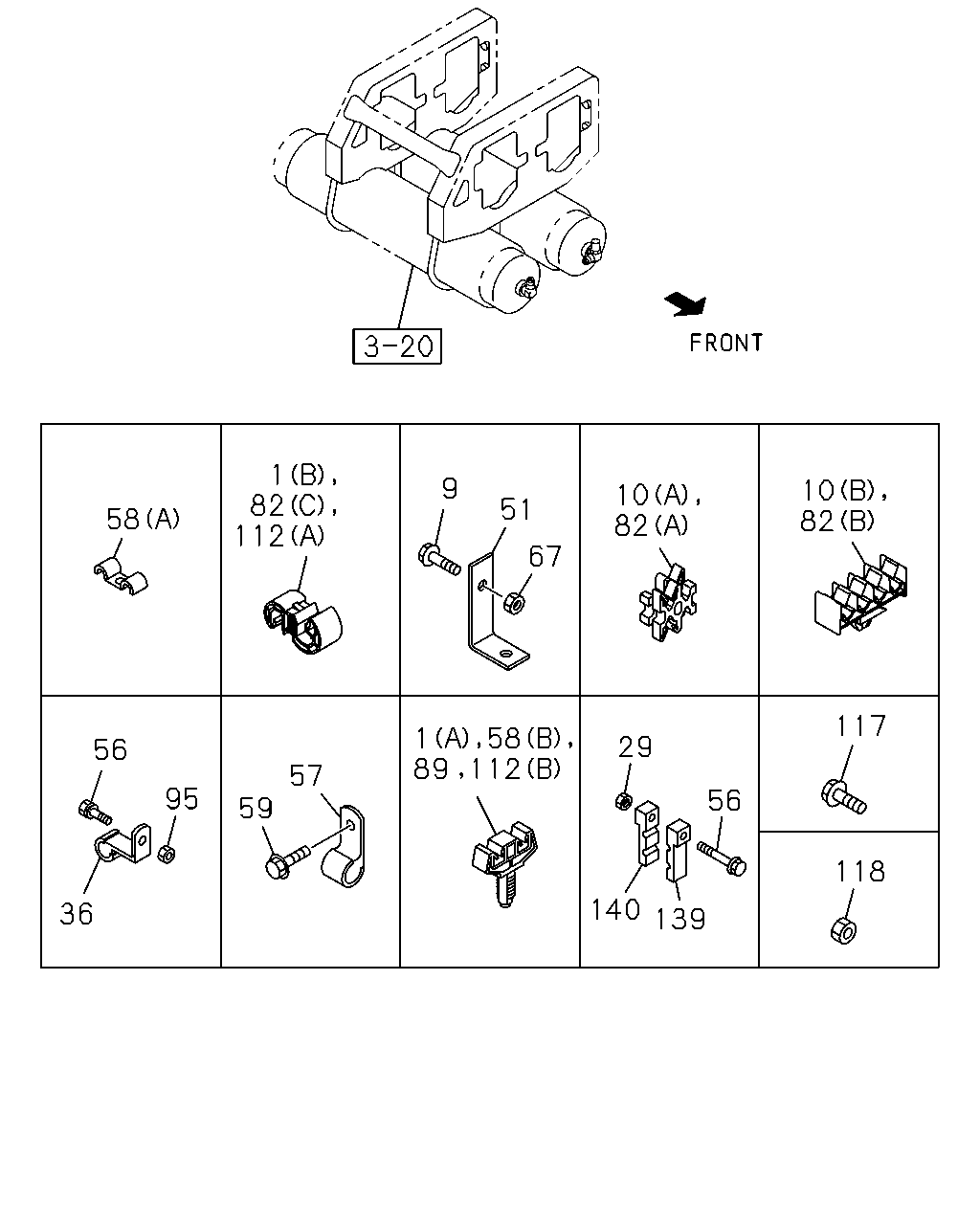

çizim 181768
1 82 112 9 10 82 10 82 51 58 67 117 29 56 57 95 56 59 118 140 36 139 1 58 89 112
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLIP; OIL PIPE TO BODY
EURO4 SPECIFICATION<NT4> (A) 		8-98012-254-1 06 1 0812- ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 06 1 0812- ●
1 CLIP; OIL PIPE TO BODY
(B) ID=4.76 & 6.35 		1-09709-304-0 01 1 0804-1003 ● ●
1 CLIP; OIL PIPE TO BODY
(B) ID=4.76 & 6.35 		1-09709-304-0 01 1 1004- ● ● ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 01 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 0803-1003 ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 1004- ● ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 06 1 0803-0811 ● ●
1 CLIP; OIL PIPE TO BODY
EURO2 SPECIFICATION<NT2> (A) 		8-98012-254-1 07 1 0812-1003 ●
1 CLIP; OIL PIPE TO BODY
EURO2 SPECIFICATION<NT2> (A) 		8-98012-254-1 07 1 1004- ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 07 1 1004- ●
9 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
10 CLIP; OIL PIPE
(A) ID=4.7X4 		1-09701-304-0 01 1 0712-0802 ●
10 CLIP; OIL PIPE
(B) ID=4.76 & 10.0 		1-09709-305-0 04 1 0712-0802 ●
29 NUT; CLIP
EXC. TRAILER BRAKE CONTROL<J91> M8 FLANGE 		0-91180-108-0 01 1 1004- ●
36 CLIP; BRK PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
51 BRACKET; OIL PIPE
L=65 		1-47479-064-0 02 1 0712-0802 ●
56 BOLT; CLIP
EXC. TRAILER BRAKE CONTROL<J91> M8X50 FLANGE 		0-28050-850-0 01 1 1004- ●
56 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
57 CLIP; BRK PIPE,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 05 1 1212- ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 06 1 1004- ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 05 1 0712-1211 ● ●
57 CLIP; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 07 1 1212- ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 1212- ●
58 CLIP; OIL PIPE
BRK WHL LK CONT LSPV<6PH> (B) 		8-98012-254-1 02 1 1004- ●
58 CLIP; OIL PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-98012-254-1 01 1 1004- ●
58 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 0712-0802 ●
58 CLIP; OIL PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 0712-0802 ●
58 CLIP; OIL PIPE
(B) 		8-98012-254-1 03 1 0712-0802 ●
58 CLIP; OIL PIPE
(B) 		8-98012-254-1 05 1 0803- ● ●
59 BOLT; BRK PIPE,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 05 1 1212- ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 06 1 1004- ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 05 1 0712-1211 ● ●
59 BOLT; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 07 1 1212- ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 07 1 1212- ●
67 NUT; BRKT
BRK WHL LK CONT LSPV<6PH> M8 FLANGE 		0-91180-108-0 02 1 1004- ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
82 CLIP; OIL PIPE
(A) ID=4.7X4 		1-09701-304-0 12 1 0712-0811 ●
82 CLIP; OIL PIPE
(B) 		1-09701-305-0 02 1 0712-0811 ●
82 CLIP; OIL PIPE
(C) ID=4.76 & 10.0 		1-09709-305-0 02 1 0712-0811 ●
82 CLIP; OIL PIPE
(C) ID=4.76 & 12 		1-09709-306-0 01 1 0712-0811 ●
89 CLIP; OIL PIPE 8-98012-254-1 02 1 0712-0802 ●
95 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
112 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 1004- ●
112 CLIP; OIL PIPE
(B) 		8-98012-254-1 05 1 1004- ●
112 CLIP; OIL PIPE
(B) 		8-98012-254-1 02 1 0804- ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0712-0802 ●
117 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
118 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
139 CLIP; UPR
EXC. TRAILER BRAKE CONTROL<J91> ID=10 & 10 		1-09709-241-0 01 1 1004- ●
140 CLIP; LWR
EXC. TRAILER BRAKE CONTROL<J91> ID=6 & 6 		1-09709-244-0 01 1 1004- ●

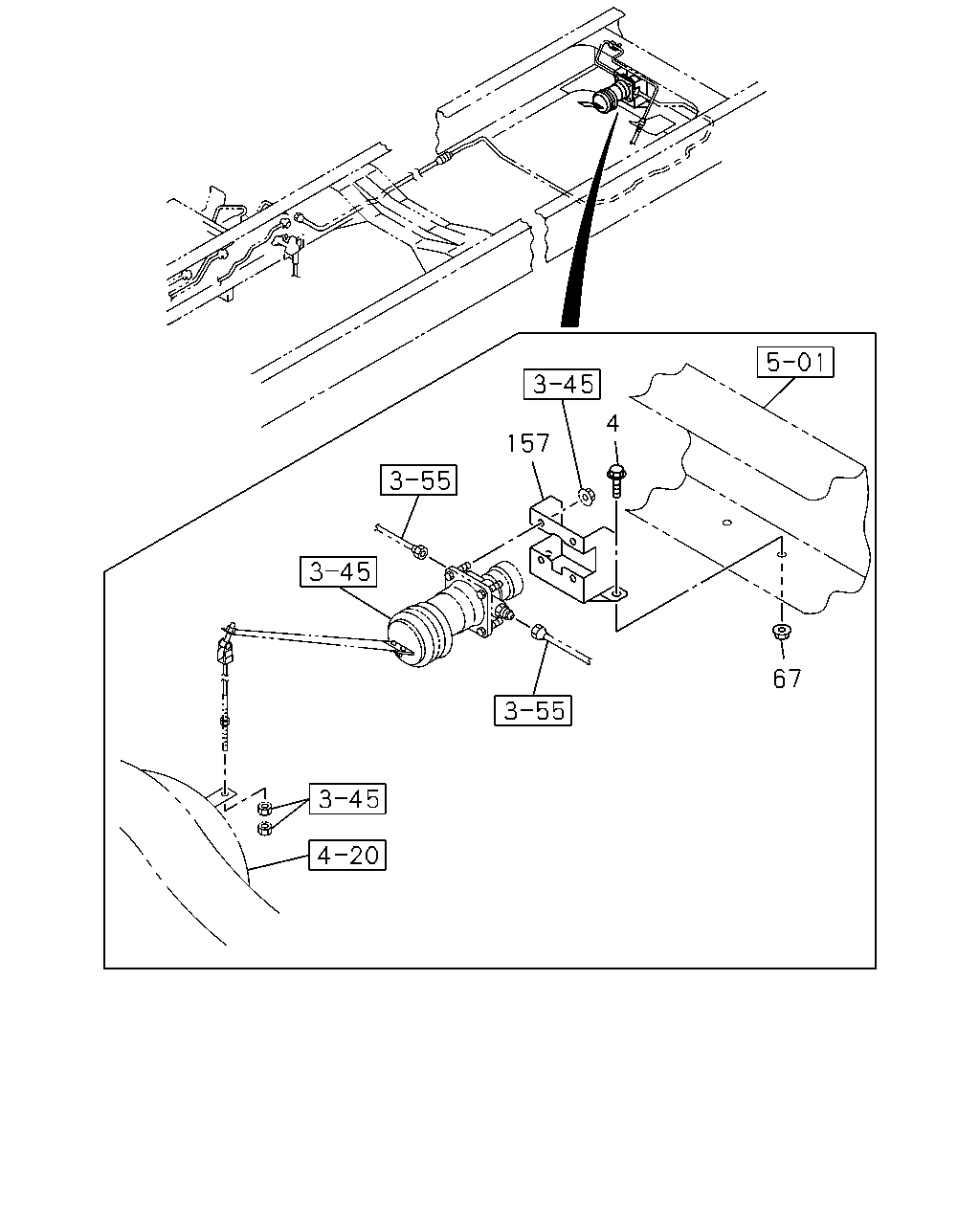

çizim 182093
4 157 67
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE 		0-28650-830-0 02 1 1004- ●
67 NUT; BRKT
BRK WHL LK CONT LSPV<6PH> M8 FLANGE 		0-91180-108-0 02 1 1004- ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
157 BRACKET; BRK
BRK WHL LK CONT LSPV<6PH> 		1-47477-787-0 01 1 1004- ●
